Pa / bar / inWC
Si Imp Modbus

Pressure transmitter PREMASGARD® SHD-Modbus 10 LCD

SKU 1301-2214-5560-221 EAN 4 251325 645490 Product group: WG01
In stock , available in 1-3 working days
Shipping calculated at checkout.
$465.99
$465.99

Auf die Merkliste

Add to wishlist

Añadir a la lista de favoritos

Aggiungi alla lista dei preferiti

Добавить в список желаний

Ajouter à la liste de souhaits

Product description

  • 0...10 bar
  • Modbus RTU
  • G1/2"
  • Suitable for ammonia and Freons

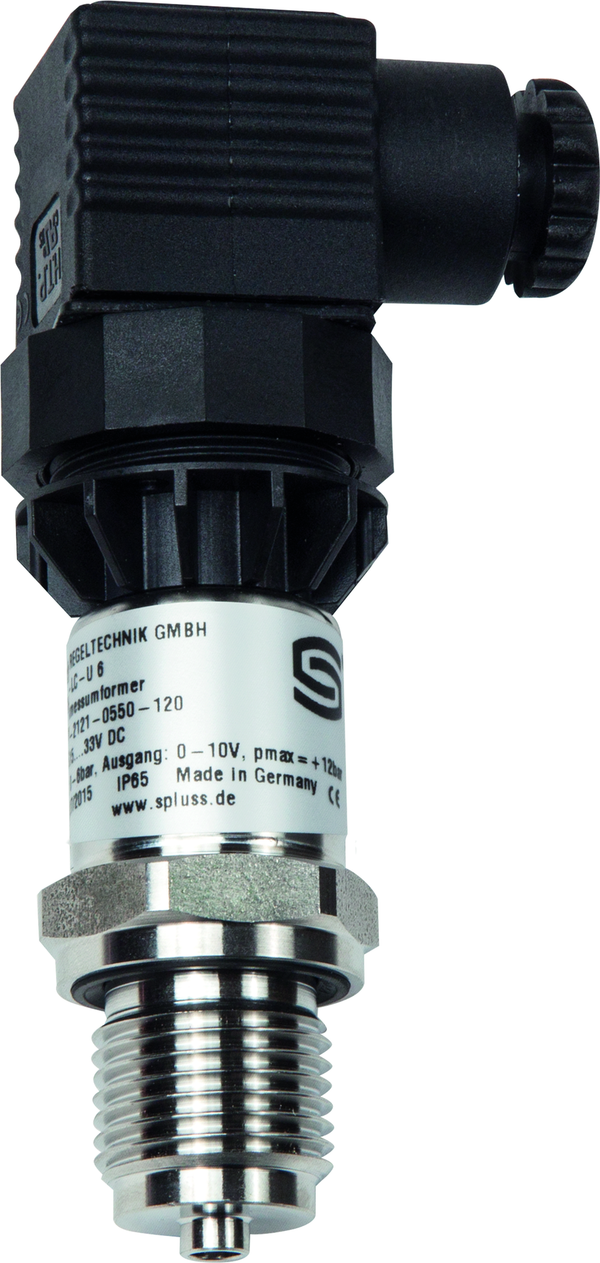

The PREMASGARD® SHD pressure sensor is used to measure relative pressures (max. 0...40 bar) in gaseous and liquid media. The pressure measuring cell is welded to the pressure sensor without any seals.

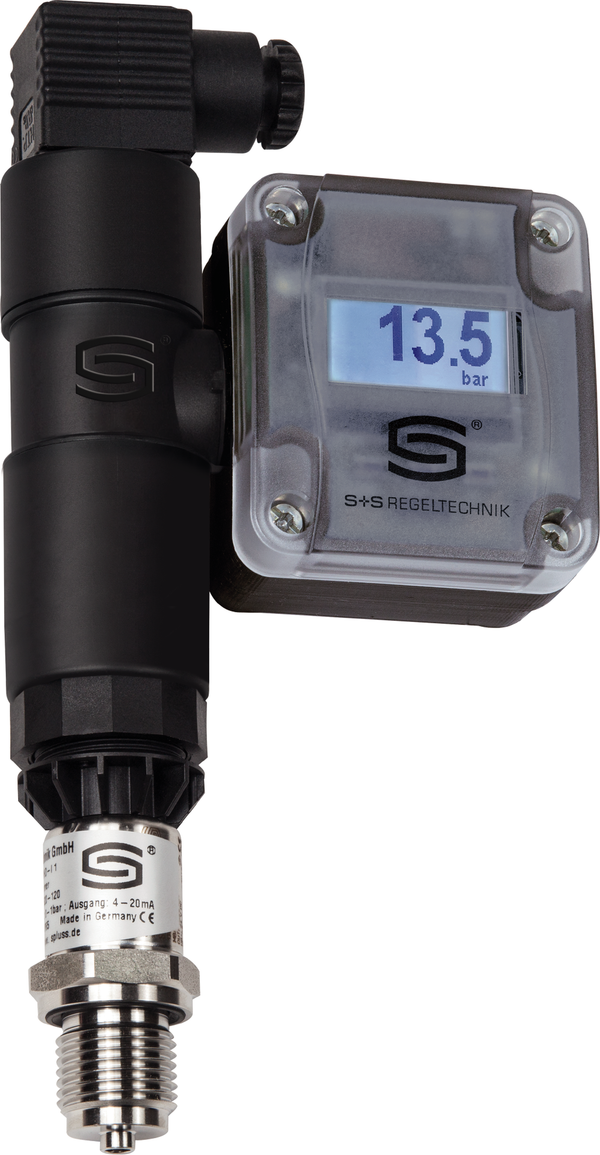

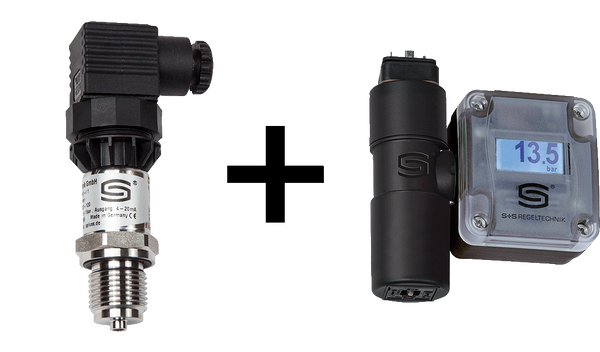

The SHD-xx-LCD device variant is supplied with an LCD-SHD display module. It is mounted below the angle plug. The module can be mechanically rotated and tilted, and the display content can be rotated in 90° steps to achieve the ideal reading position. The display types and pressure unit are configured directly on the display (menu-driven via buttons).

The pressure transducer converts the measured variable into a standard signal of 0 - 10 V or 4...20 mA. The process connection is G ½ ". This pressure transmitter is used in hydraulics, pneumatics, process technology, mechanical and plant engineering.

Technical data

Measuring range Pressure, relative Pressure, Pressure (water)
Power supply 24 V AC/DC for output 0–10 V
7–33 V DC for output 4...20 mA
Output Modbus RTU
Display Yes
Measuring range 0...10 bar
Output Modbus RTU
Measuring principle steel measuring cell (suitable for ammonia and Freon)
