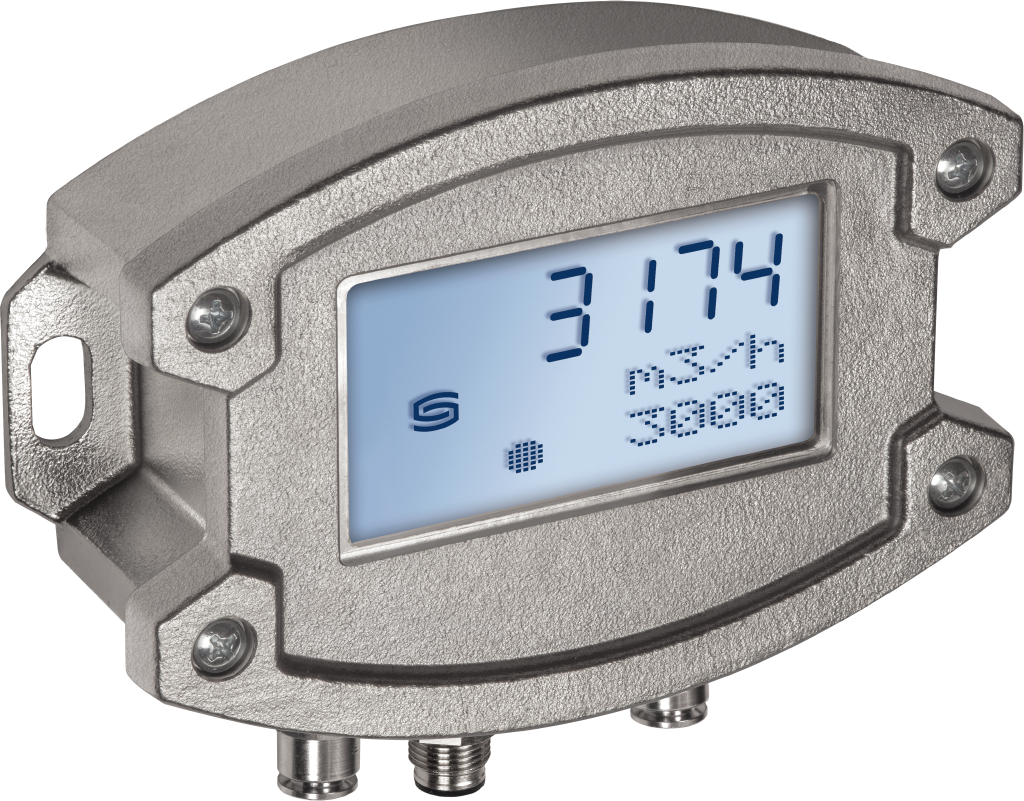

Pressure-transmitter/ -switch/ -monitor for volume flow PREMASREG 7161-UW VAQ LCD

The PREMASREG® 716x - VA electronic pressure sensor and switch is equipped with measuring functions for volume flow, differential pressure, filter monitoring and liquid level detection based on pressure measurement in clean air.

The devices with housing made of stainless steel V4A, with cable gland or M12 plug connector according to DIN EN 61076-2-101 and pressure connection by means of quick plug-in connection made of stainless steel (pipe fitting optional) contain a switching output, a continuous output and a backlit display for setting the switching point and displaying the actual values. The piezoresistive measuring element ensures high reliability and accuracy.
The pressure transmitter is used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths and commercial kitchens, for filter monitoring and level measurement or for controlling frequency converters. Measuring media are air (non-condensing) or gaseous, non-flammable media.
It has a manual zero point button and an offset potentiometer for end value correction. The parameters can be conveniently entered via the menu using three buttons on the display. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
