Screw-in temperature controller

THERMASREG® ETR-060 U MS/150

Name: THERMASREG® ETR-060 U MS/150
Brand: THERMASREG
SKU: 1102-2010-2100-310
Price: 88.63 USD
Availability: InStock

SKU 1102-2010-2100-310 EAN 4251325609423 Product group: WG02

In stock , available in 1-3 working days

$88.63

Quantity

View full details

Product description

Temperature monitor (internal setting)
0 ... +60 °C
Tmin ± 5 K; Tmax ± 3 K
Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA
Switching differential: 3K
Installation length: 150 mm
brass
IP65

DIN-tested, German quality product. EC type-tested (Module B), in accordance with Directive 97/23/EC. Temperature control and limiting devices for heat generation systems, in accordance with DIN EN 14597.

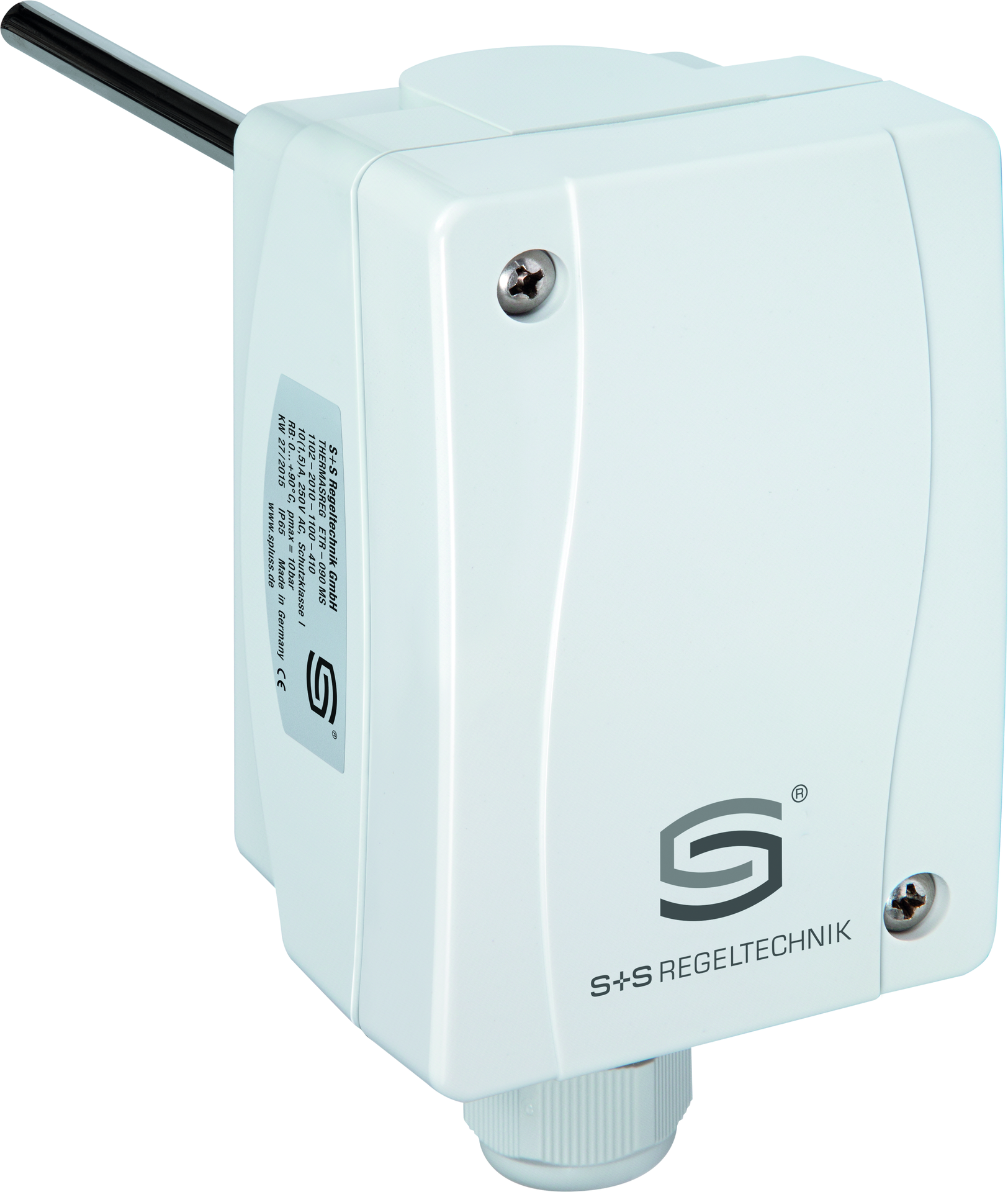

Mechanical temperature control device/rod thermostat THERMASREG® ETR with switching output, which is used to monitor, control or limit the temperature of liquid or gaseous media as a boiler controller or in heating, ventilation and air conditioning technology as well as in mechanical and apparatus engineering and in heat generation systems. It is designed as a one- or two-stage device, as an adjustable temperature controller TR, temperature monitor TW or safety temperature limiter STB.

Downloads

$49.62

Thermowells THR-08-MS/VA THR-MS-08/150

$18.83

WLP-1

$5.63

We also manufacture individually

Do you have special requirements?As a manufacturer with our own production facilities in Germany, we are always in a position to produce products outside the standard range.
