WLP-1
Regular price
$5.80
Regular price
Sale price
$5.80
°C
Product description
- – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- typically ± 0.2 K at +25 °C
- AOS - automatic 0 -10 V/ 4...20 mA
- Cable gland
- IP65

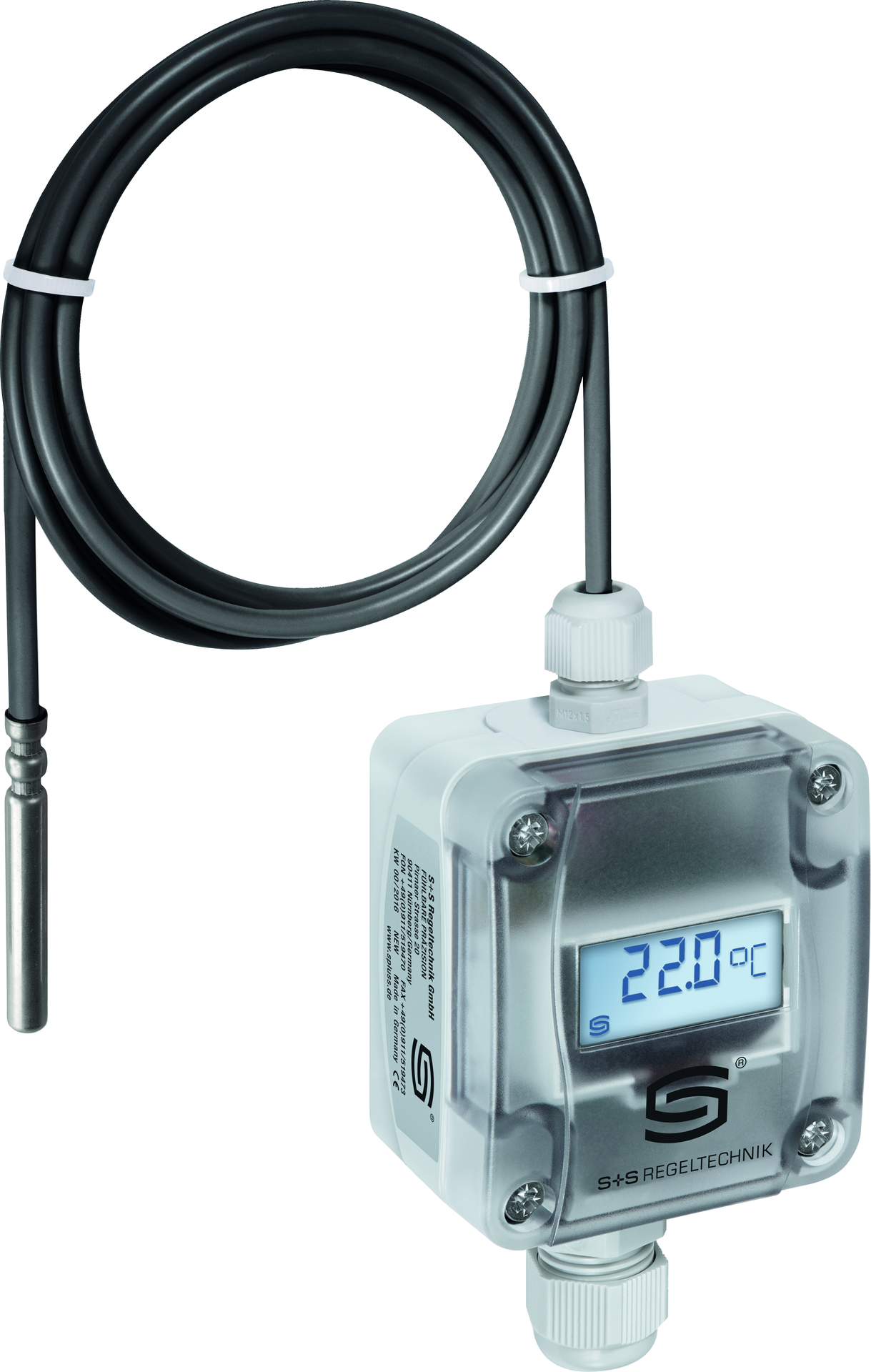

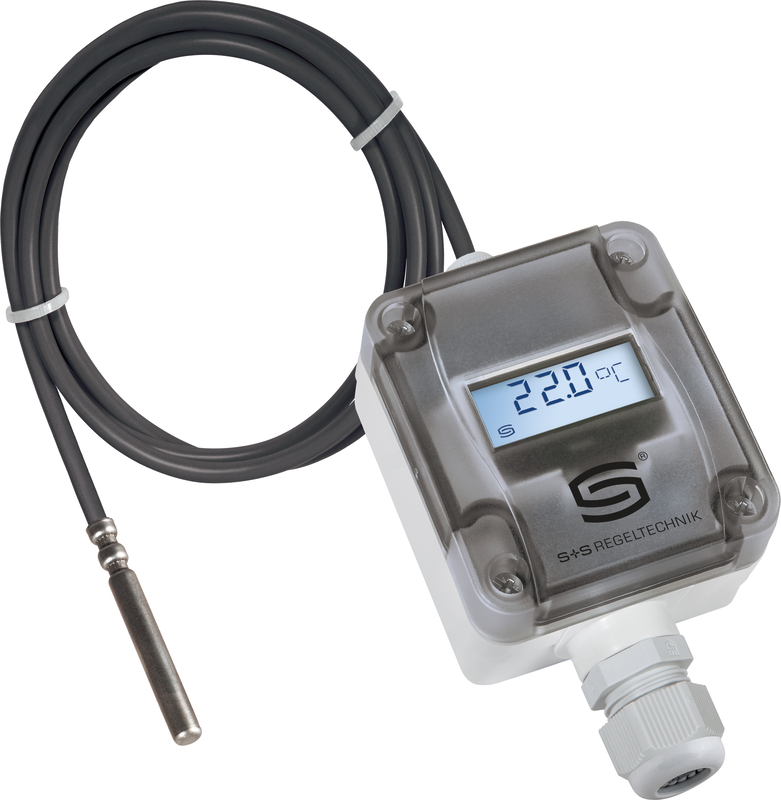

Calibratable temperature transmitter with THERMASGARD® HFTM thermowell sensor, eight switchable measuring ranges, continuous output, impact-resistant plastic housing with quick-locking screws, optionally with/without display, with cable gland or M12 plug connector to DIN EN 61076-2-101.
The temperature transmitter with remote sensor is used to measure temperatures in liquid and gaseous media, e.g. by installing it in a thermowell or as a duct sensor. In combination with immersion sleeves THE, direct, permanent use in liquids is possible (see chapter Accessories).
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The temperature transmitter with remote sensor is used to measure temperatures in liquid and gaseous media, e.g. by installing it in a thermowell or as a duct sensor. In combination with immersion sleeves THE, direct, permanent use in liquids is possible (see chapter Accessories).
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measuring range | Temperature |
| Communication | - |
| Output | 0-10V / 4..20mA |
| Cable length | 1.5 m |
| Display | Yes |
| Output variant | Cable gland |
| Measuring range | – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0... + 100 °C / 0... + 150 °C |
| Equipment | none |
| Output | Automatic Output Switching: Device automatically detects the required output type 0 -10 V or 4...20 mA |
| Output | AOS - automatic 0 -10 V/ 4...20 mA |
