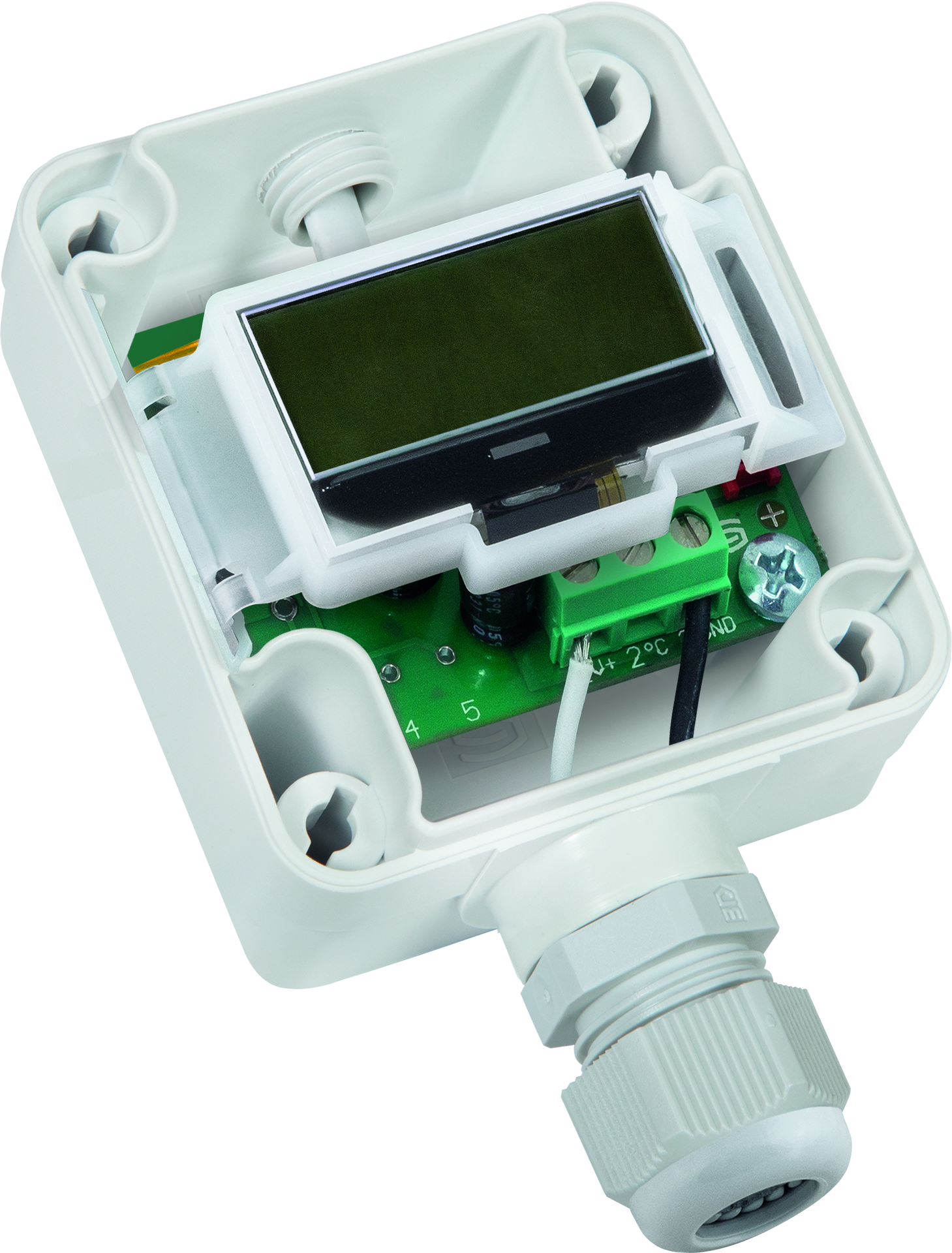

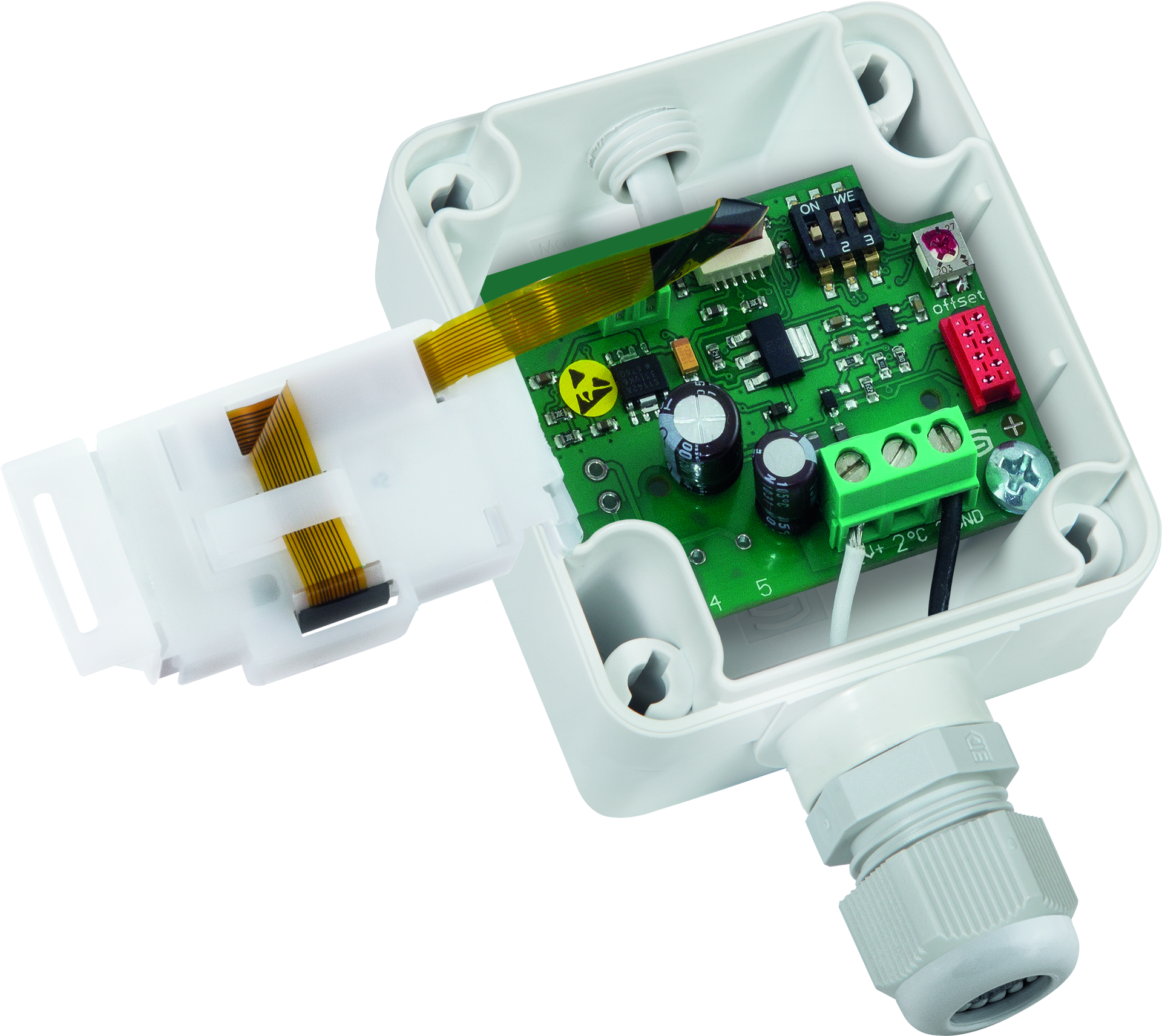

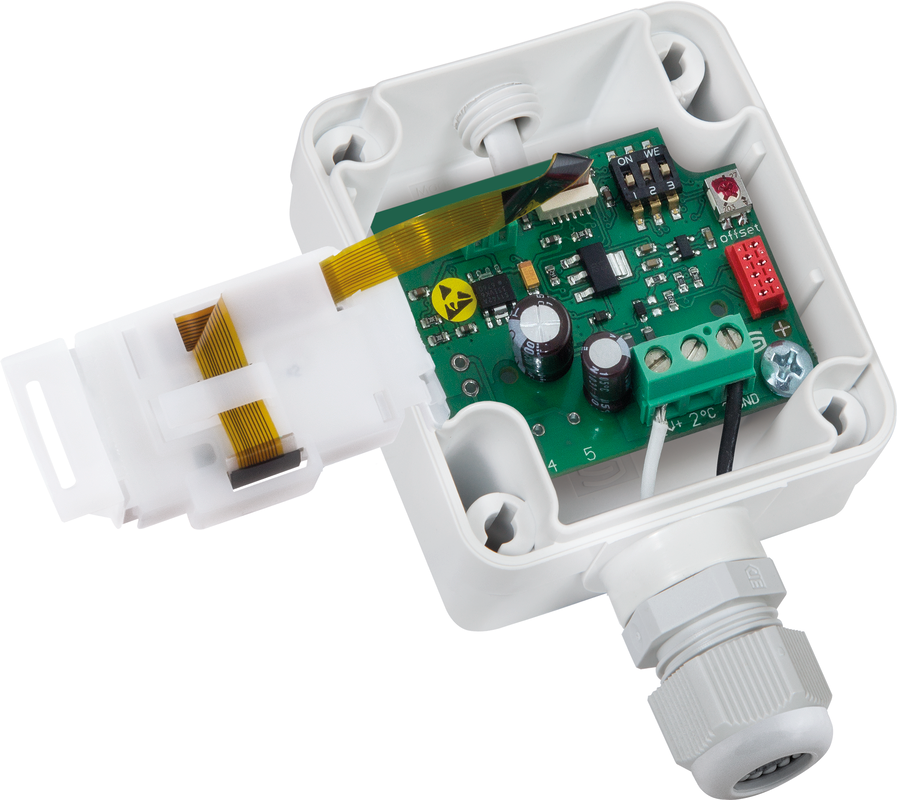

THERMASGARD HFTM-I LCD, mit geöffneter Abdeckung - S+S Regeltechnik
THERMASGARD HFTM-I LCD, mit geöffneter Abdeckung - S+S Regeltechnik
THERMASGARD HFTM-I LCD, mit geöffneter Abdeckung - S+S Regeltechnik
THERMASGARD HFTM-I LCD, mit geöffneter Abdeckung und LCD-Anzeige - S+S Regeltechnik

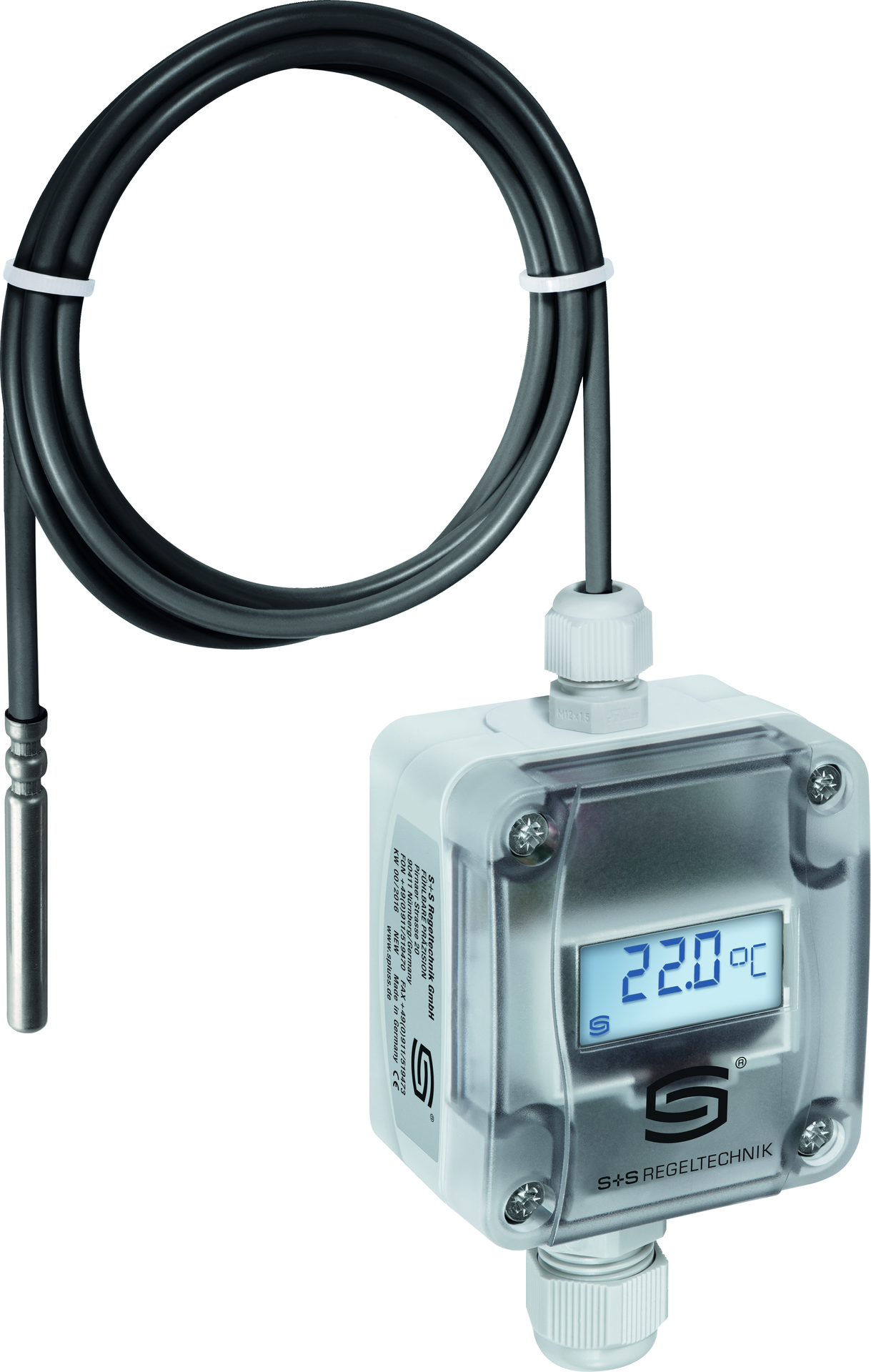

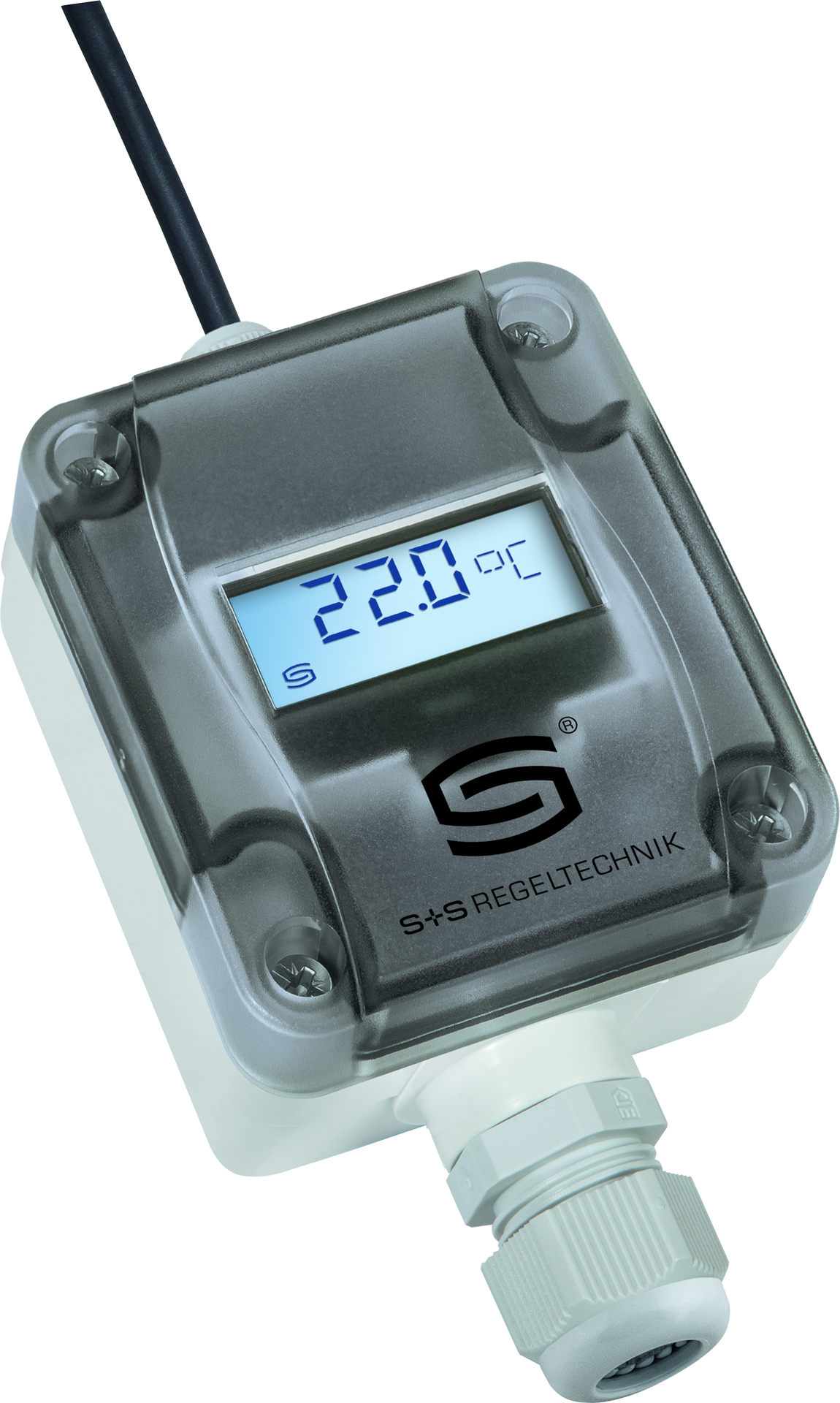

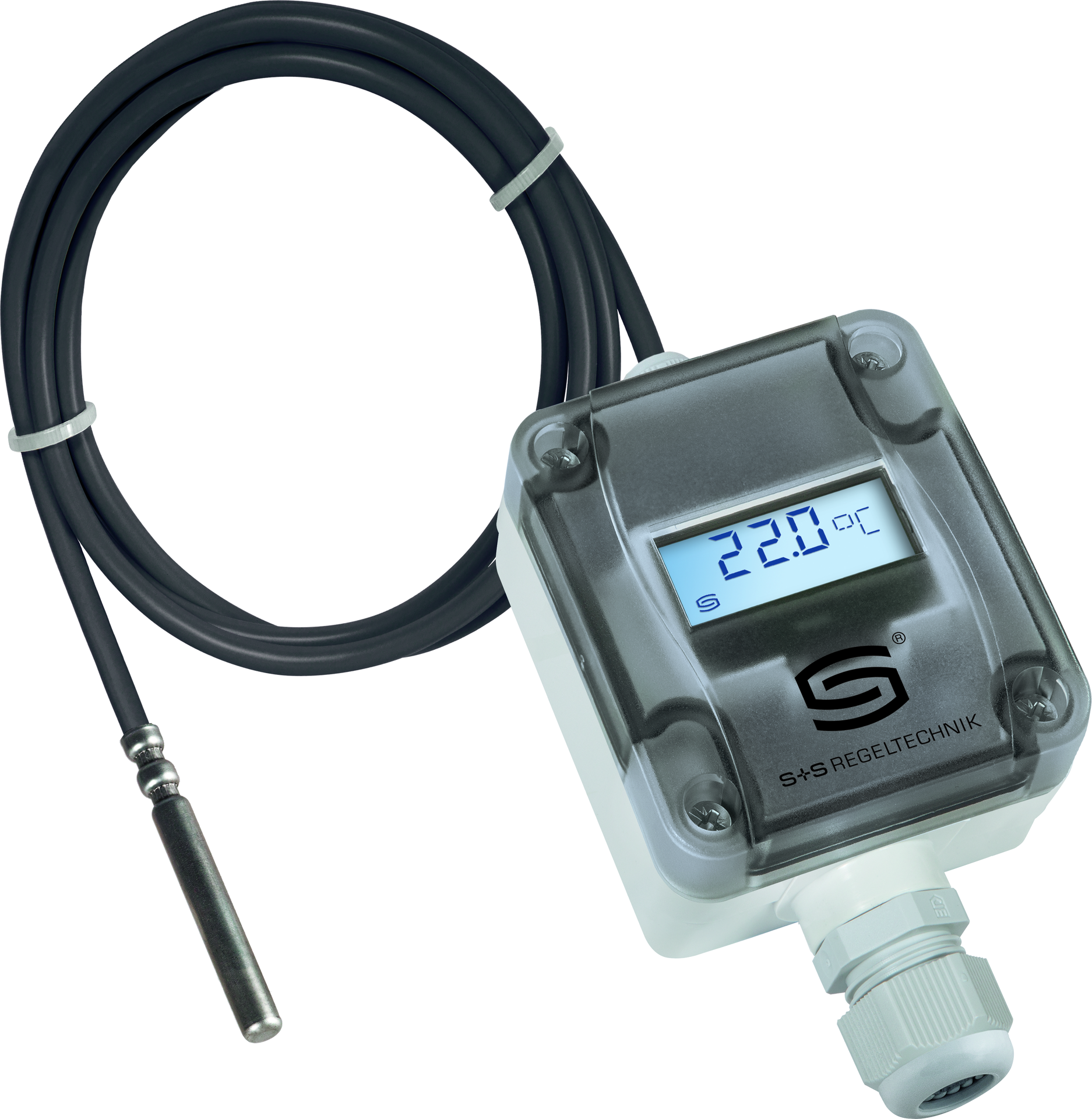

Sleeve sensor with temperature transmitter (cable temperature transmitter)

THERMASGARD® HFTM-I LCD

SKU 1101-1152-2219-920 EAN 4251325600697 Product group: WG01
In stock , available in 1-3 working days
Regular price $188.16
Regular price Sale price $188.16

Product description

  • - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
  • typically ± 0.2 K at +25 °C
  • 4...20 mA
  • Cable gland
  • IP65
Calibratable temperature transmitter with sleeve sensor THERMASGARD® HFTM, eight switchable measuring ranges, continuous output, housing made of impact-resistant plastic with quick-locking screws, optional with/without display, with cable gland or M12 plug connector according to DIN EN 61076-2-101.

The temperature transmitter with remote sensor is used to measure temperatures in liquid and gaseous media, e.g. by installing it in an immersion sleeve or as a duct sensor. In combination with immersion sleeves THE direct, permanent use in liquids is possible (see Accessories chapter).

The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
