Product description
- Measuring range: –50...+150 °C / –58...+302 °F
- Installation length: 150 mm
- Output: Modbus
- Protection class: IP 67 (according to EN 60 529)

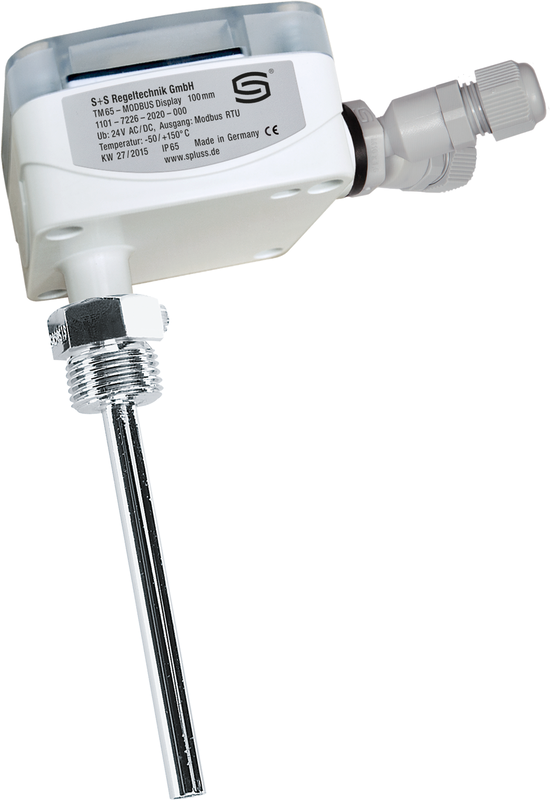

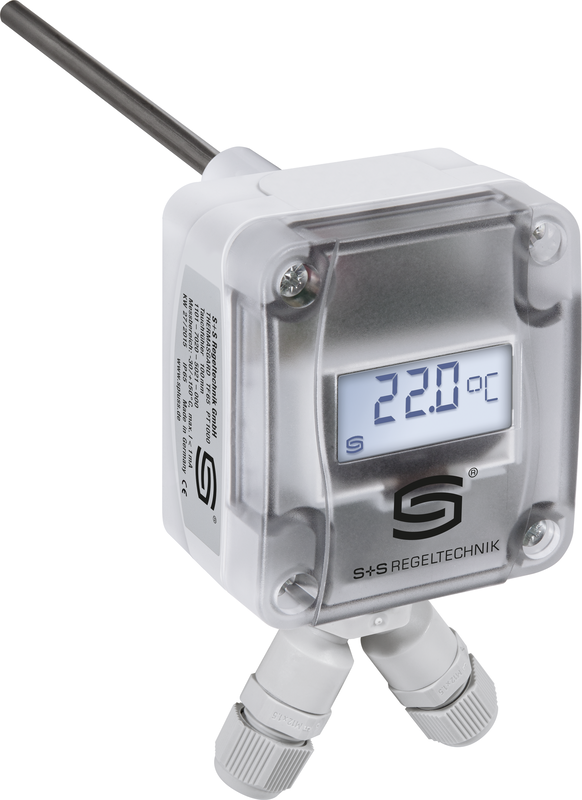

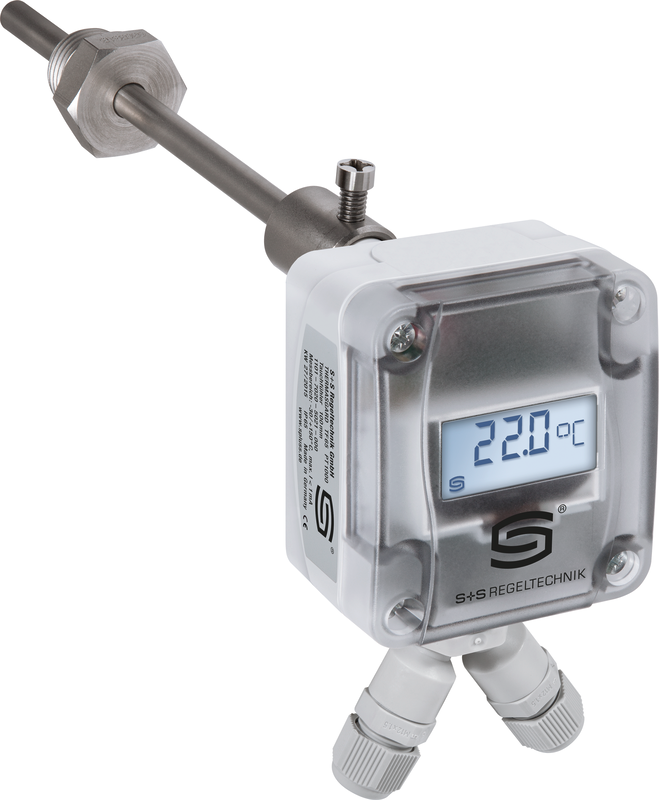

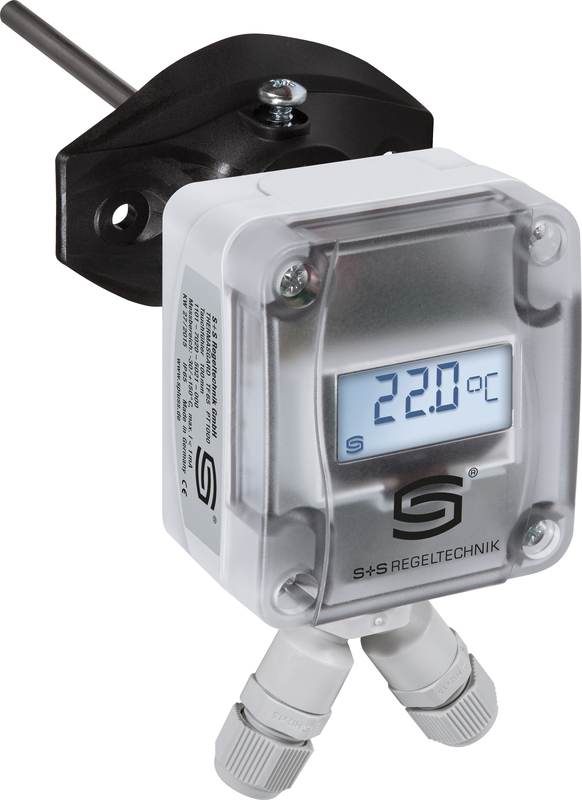

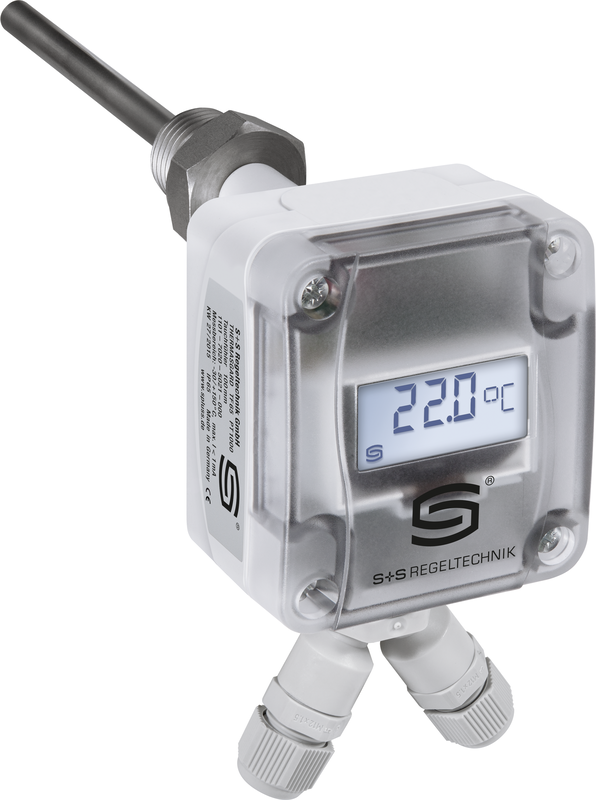

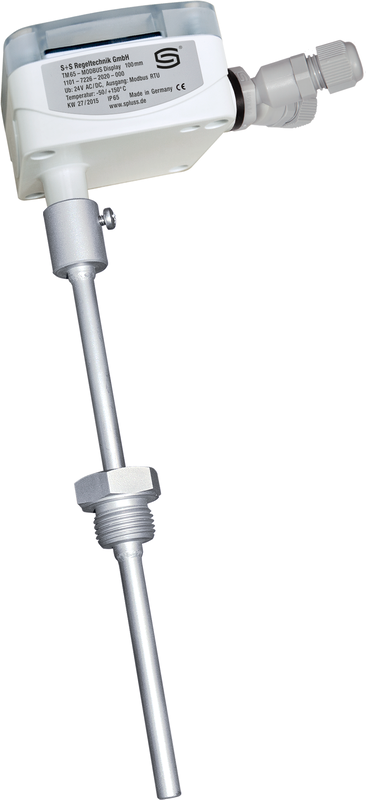

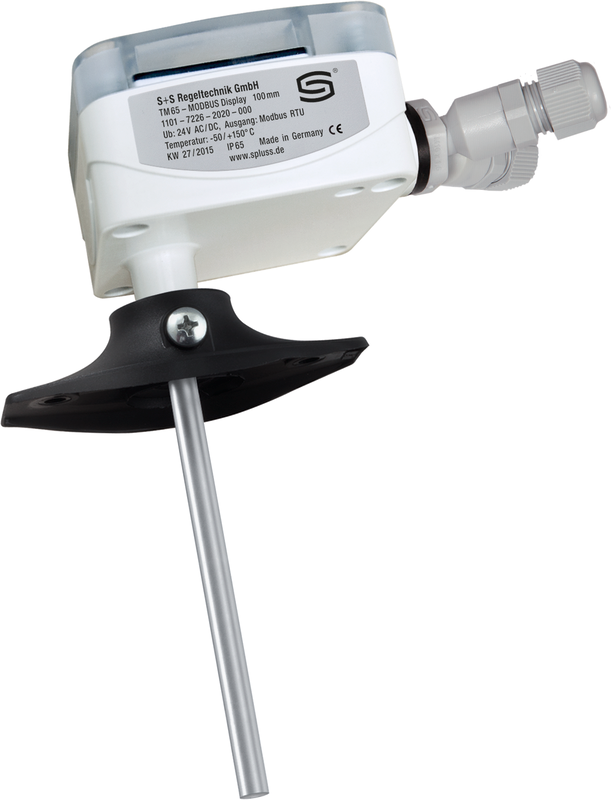

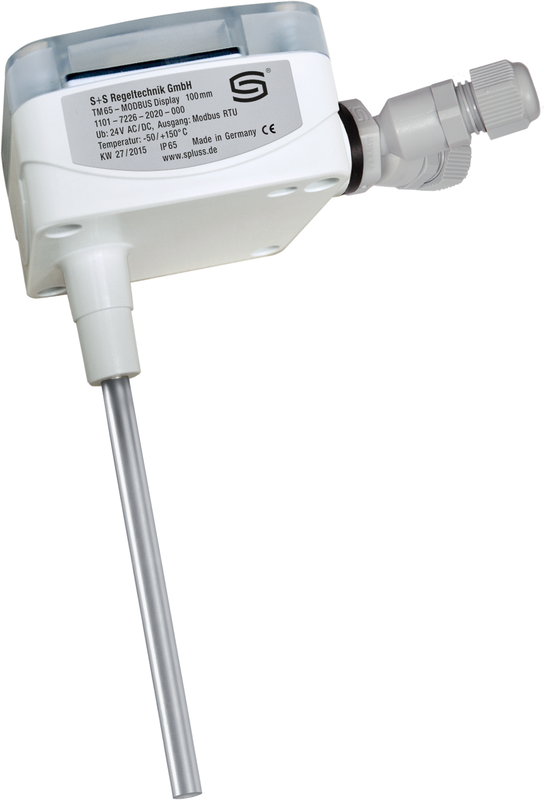

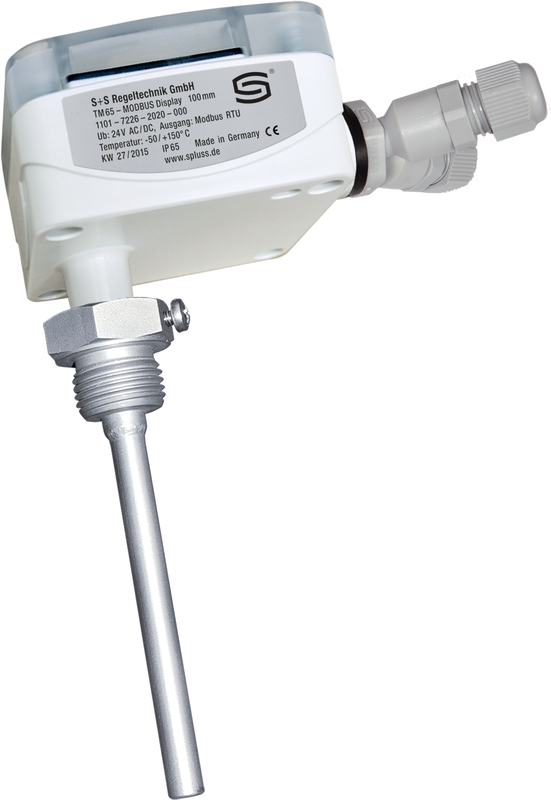

Calibratable temperature transmitter with THERMASGARD® TM65-Modbus-SD probe tube, 150 mm LCD, with Modbus connection (Y-adapter), in an impact-resistant plastic housing with quick-release screws, stainless steel protective tube (150.0 mm), with display, measures temperature (–50...+150 °C / –58...+302 °F). The International System of Units (SI) (default) can be switched to Imperial units (via Modbus).
The duct sensor is used to measure the temperature in liquid or gaseous media. For corrosive media, stainless steel immersion sleeves must be used. It is used in heating technology, ventilation and air conditioning ducts, piping, storage tanks, compact district heating stations, hot and cold water systems, oil and lubrication circulation systems, mechanical and plant engineering, and across the entire industrial sector.

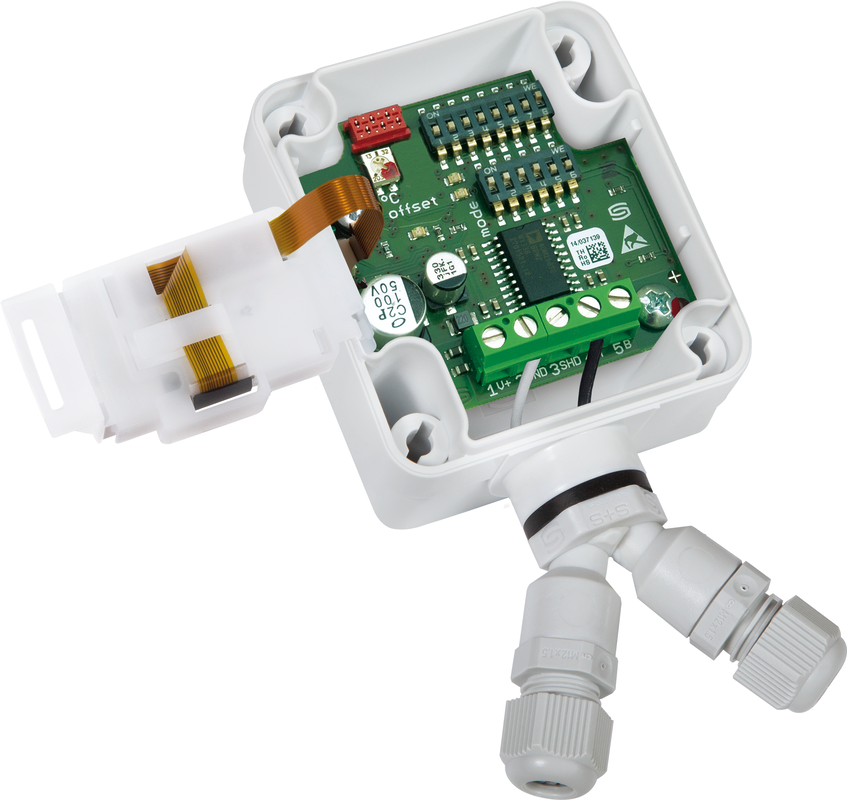

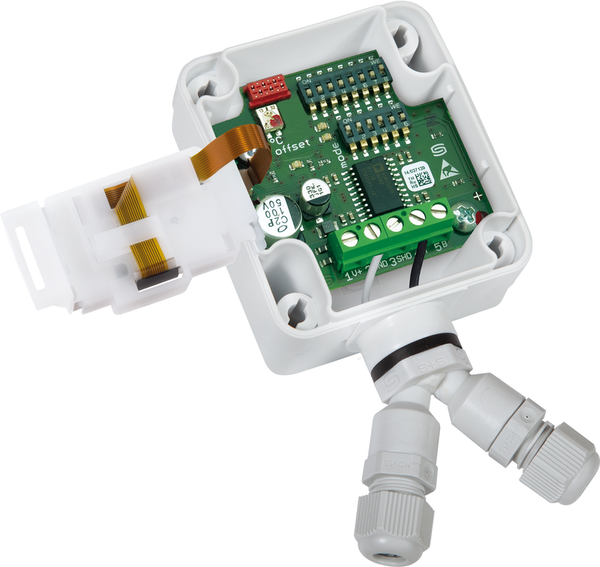

Modbus sensor SD with RS485 Modbus interface (not galvanically isolated), switchable bus termination resistor, DIP switches for configuration when powered off, internal LEDs for telegram status indication (illuminated, individually programmable). Self-diagnostics detect sensor breakage or short circuits as errors. The sensor is factory-calibrated; a specialist can perform a fine adjustment based on ambient conditions.
Technical data
| Power supply | 24 V AC (± 20%) and 15…36 V DC (± 10%) |
| Power consumption | < 1.0 W at 24 V DC; < 2.2 VA at 24 V AC |
| Unit system | SI (default) or Imperial (switchable via Modbus) |
| Data points | Temperature [°C] [°F] |
| Sensor | Pt1000 DIN EN 60751 Class B (Perfect Sensor Protection) |
| Measurement range | –50...+150 °C / –58...+302 °F |
| Temperature accuracy | typically ± 0.2 K at +25 °C |
| Zero-point offset | ± 10 K |
| Ambient temperature | Transmitter –30...+70 °C |
| Medium | Depends on selected immersion sleeve |
| Fault detection | Sensor break, sensor short circuit |
| Bus interface | RS-485, not galvanically isolated; bus termination can be enabled via DIP switch. Up to 32 devices are possible on a single segment. For a larger number of devices, RS-485 repeaters must be used. |
| Bus protocol | Modbus (RTU mode) Address range 0...247, adjustable |
| Baud rate | 9,600, 19,200, 38,400 baud |
| Status indicator | Green LED = valid telegram; Red LED = telegram error |
| Signal filtering | 0.3 s / 1 s / 10 s |
| Protective tube | V4A stainless steel (1.4571), Ø = 6 mm, installation length (EL) = 150 mm (see table) |
| Housing | UV-resistant plastic, material: polyamide, 30% glass bead-reinforced, with quick-release screws (slot/Phillips combination), color: traffic white (similar to RAL 9016); the display cover is transparent! |
| Housing dimensions | 72 x 64 x 43.3 mm (Type 1 with display) |
| Cable connection | Plastic cable gland, 2x M 12 x 1.5 (Y-adapter) with strain relief, replaceable; max. inner diameter 6 mm |
| Electrical connection | 0.14–1.5 mm² via screw terminals |
| Permissible relative humidity | < 95% RH, non-condensing air |
| Protection class | III (per EN 60 730) |
| Ingress protection | IP 67 (according to EN 60 529) |
| TÜV test report no. | 713139052 (Tyr 1) |
| Standards | CE conformity according to the EMC Directive 2014/30/EU |
| Optional | Backlit, two-line, programmable display; cutout approx. 36 x 15 mm (W x H) for displaying the actual temperature, error messages, or an offset of an individually programmable display value |
