WIRELESS room controller (controller) RYMASKON® RYM 1442C-RH-CO2-VOC-WMOD-LL

The room operating devices of the Rymaskon® 1000 series are designed to control (up to 2 heating/cooling zones) in residential, hotel, and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its elegant design, intuitive operation, and the many combination options of the individual components.

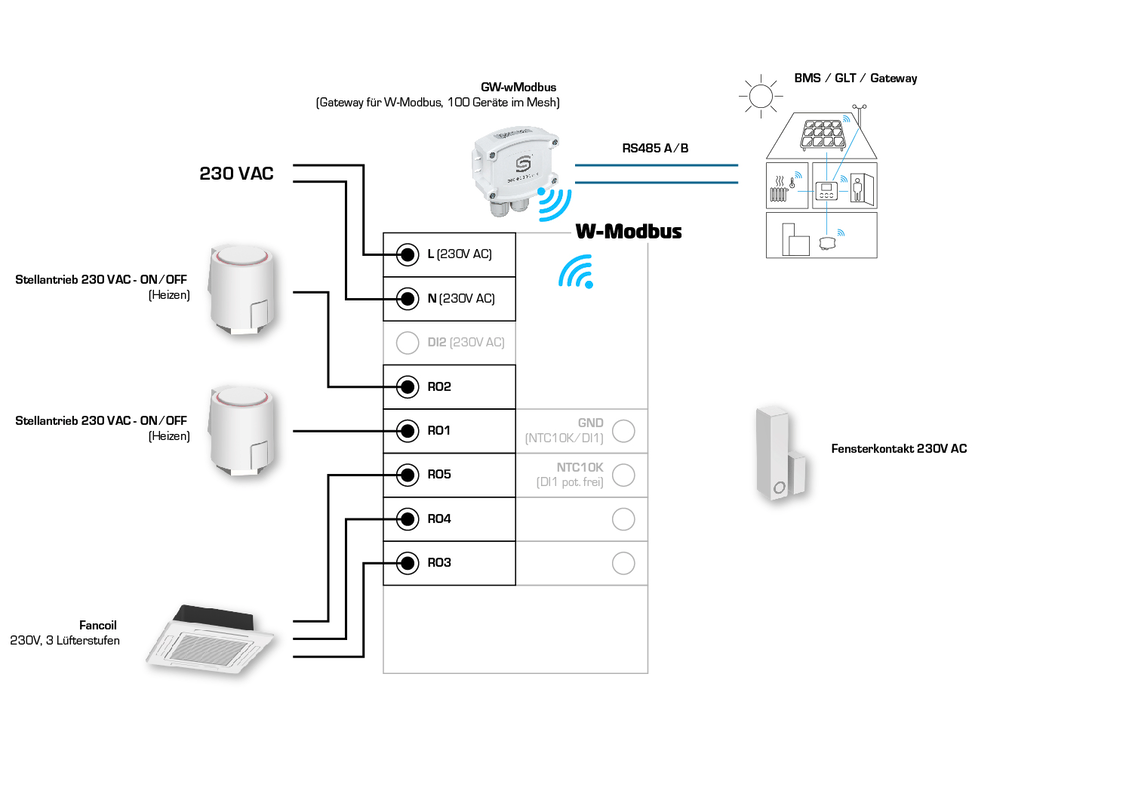

The Rymaskon® 1000 C room operating devices (controller) are used to actuate and control heating fan convectors and fan coil units (fancoils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fans, or EC fans. The actuation is carried out via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the climate parameters on the controller via the BMS. In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This means, for example, a window contact or a condensation monitor can be connected. This ensures all possibilities are available to flexibly and individually condition the rooms.

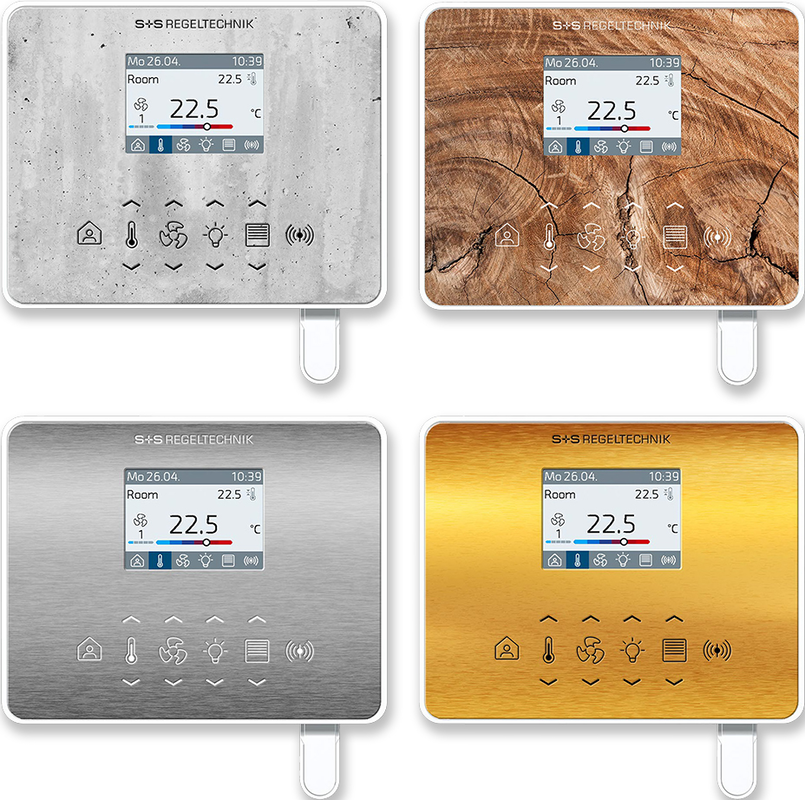

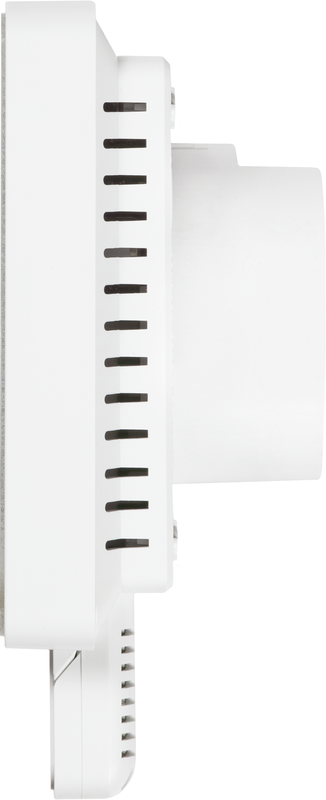

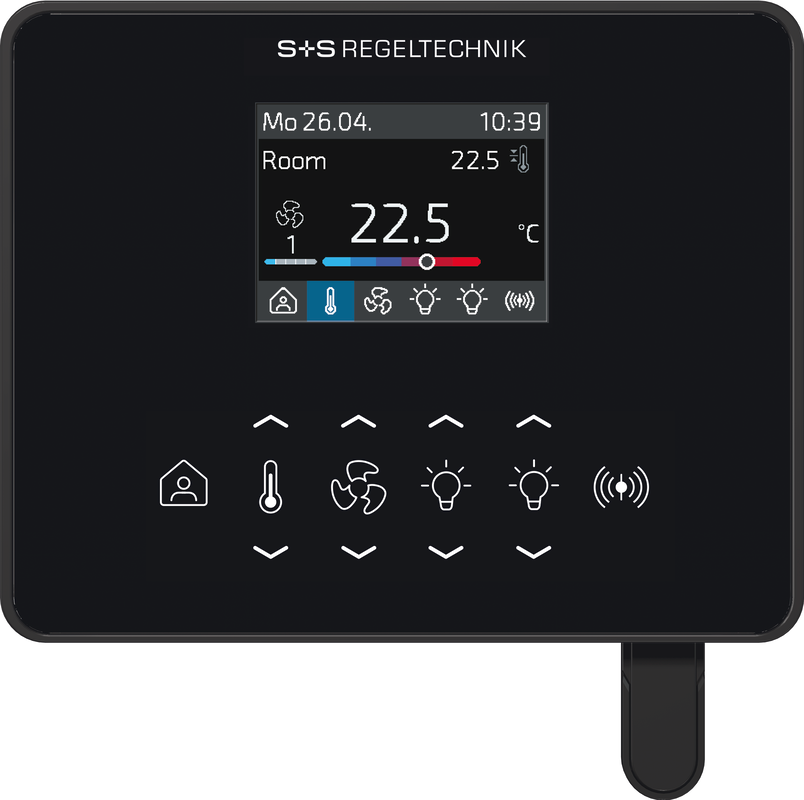

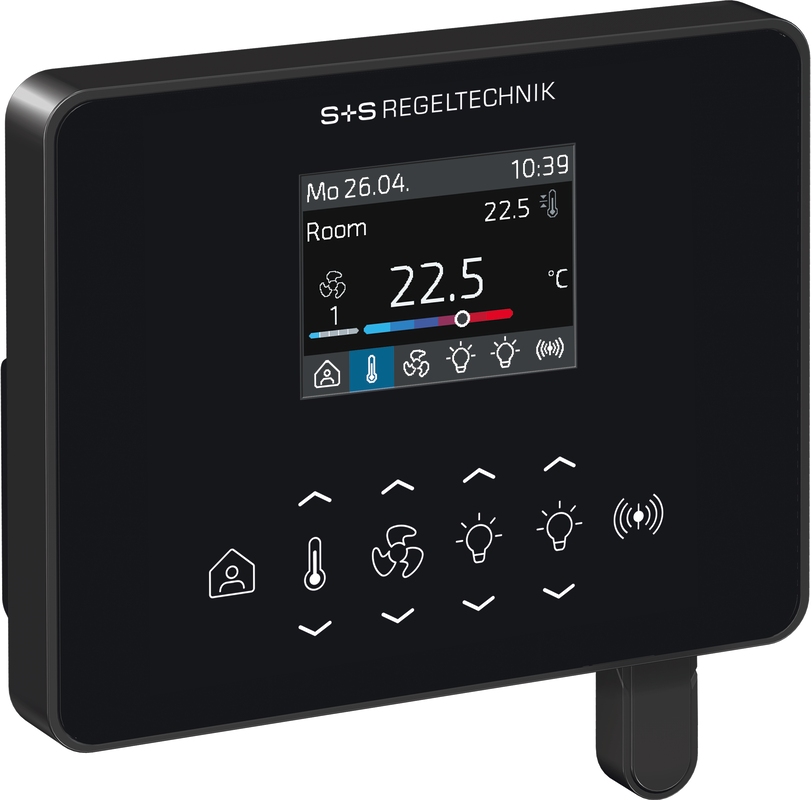

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors White or Black. Wall mounting is carried out on standard flush-mount boxes.
