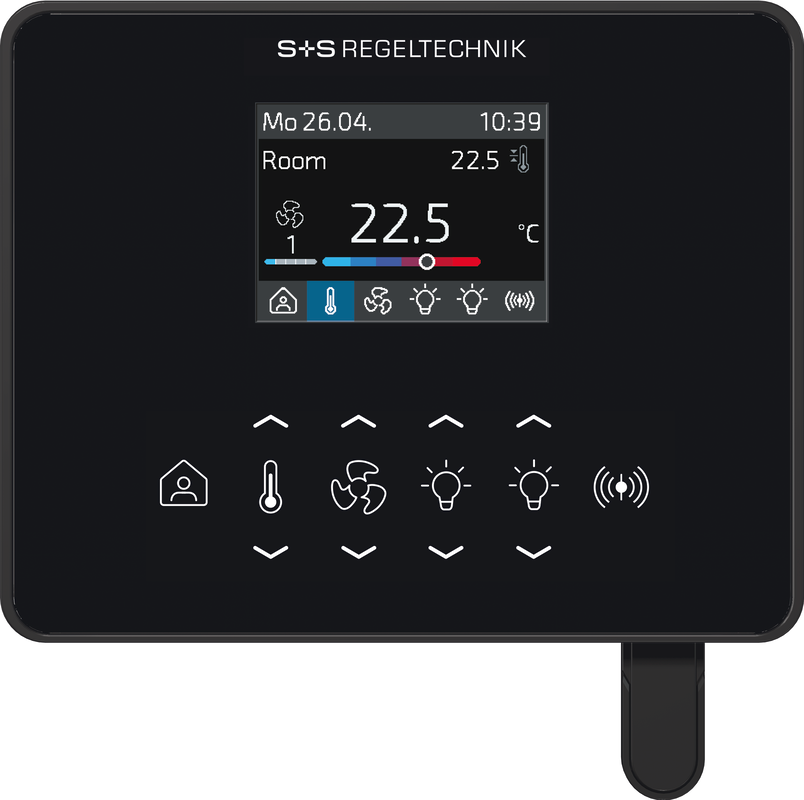

WIRELESS room controller (controller) RYMASKON® RYM 1452C-RH-WMOD-LL

The room controller devices of the Rymaskon® 1000 series are designed to control (up to 2 heating zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.
The room controller devices Rymaskon® 1000 C (controller) are used for actuating and controlling heating fan coils and blowers fan coils (fancoils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. The actuation is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

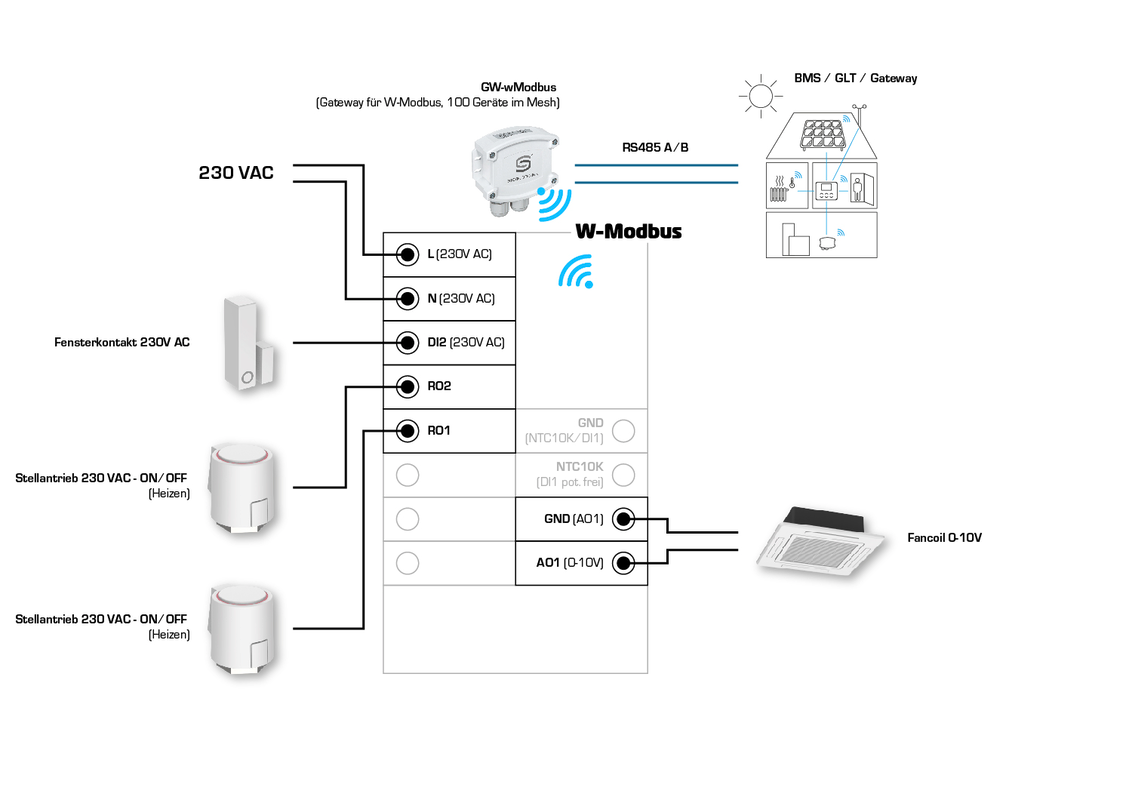

The Modbus communication interface or W-Modbus enables the configuration and monitoring of climate parameters on the controller at any time via the BMS/GLT. In addition, sun protection (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a volt-free contact are provided. For example, a window contact or a condensation monitor can be connected. This means all options are available to climate-control rooms flexibly and individually.

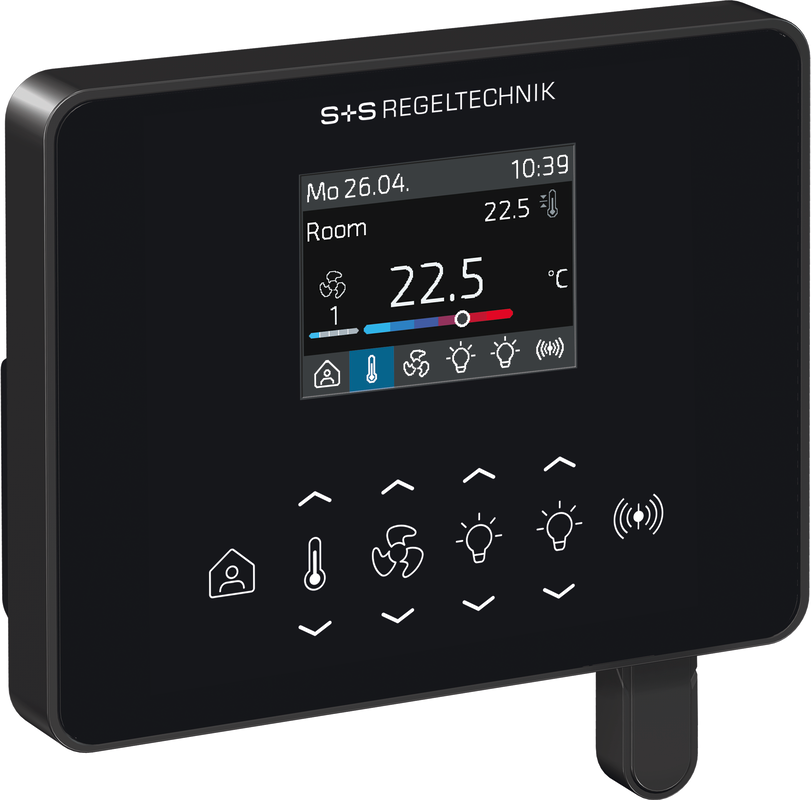

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounting boxes.
