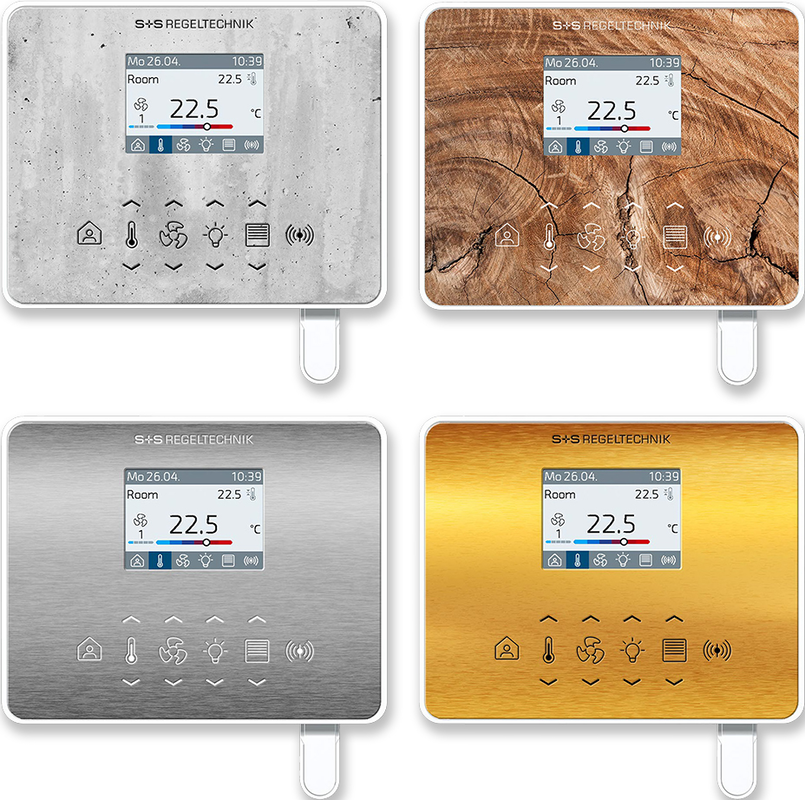

WIRELESS room controller (controller) RYMASKON® RYM 1321C-RH-WMOD-LL

The room control devices of the series Rymaskon® 1000 are designed for controlling (up to 2 heating zones) in residential, hotel and office rooms and individually control the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone units via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used for actuating and controlling heating fan coils and cooling fan coils (fancoils). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for actuating heating valves, cooling valves, 6-way valves, stepped fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the climate parameters on the controller via the BMS/GLT. In addition, the functions solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation alarm to be connected. This means all options are available to flexibly and individually climate-control the rooms.

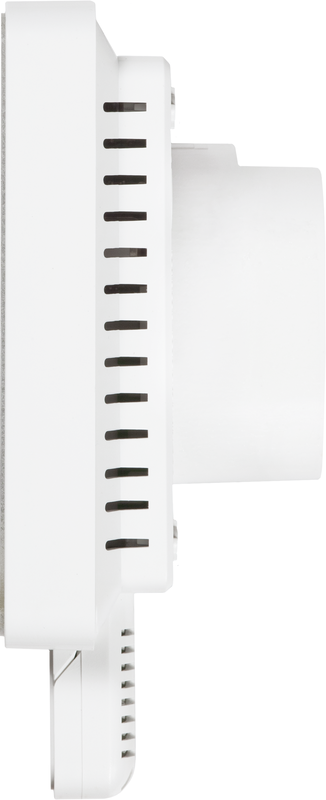

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
