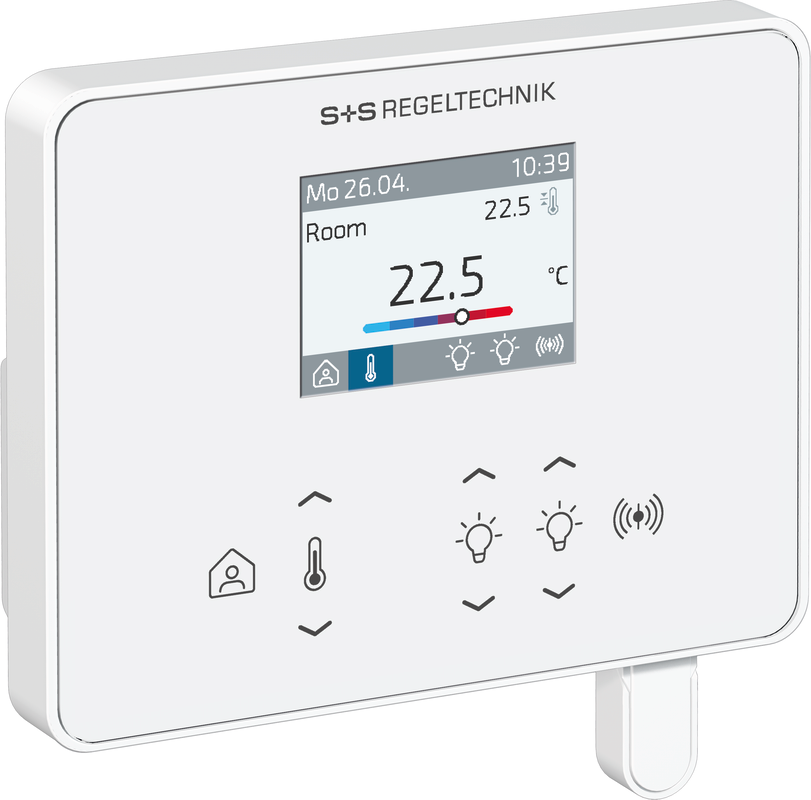

Room controller (Controller) RYMASKON® RYM 1361C-RH-MOD-LL

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel and office rooms and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

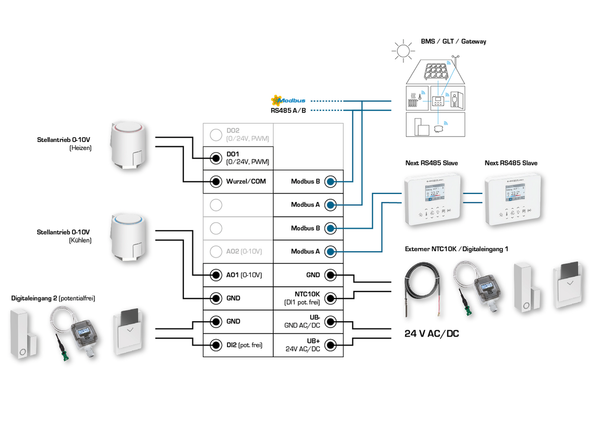

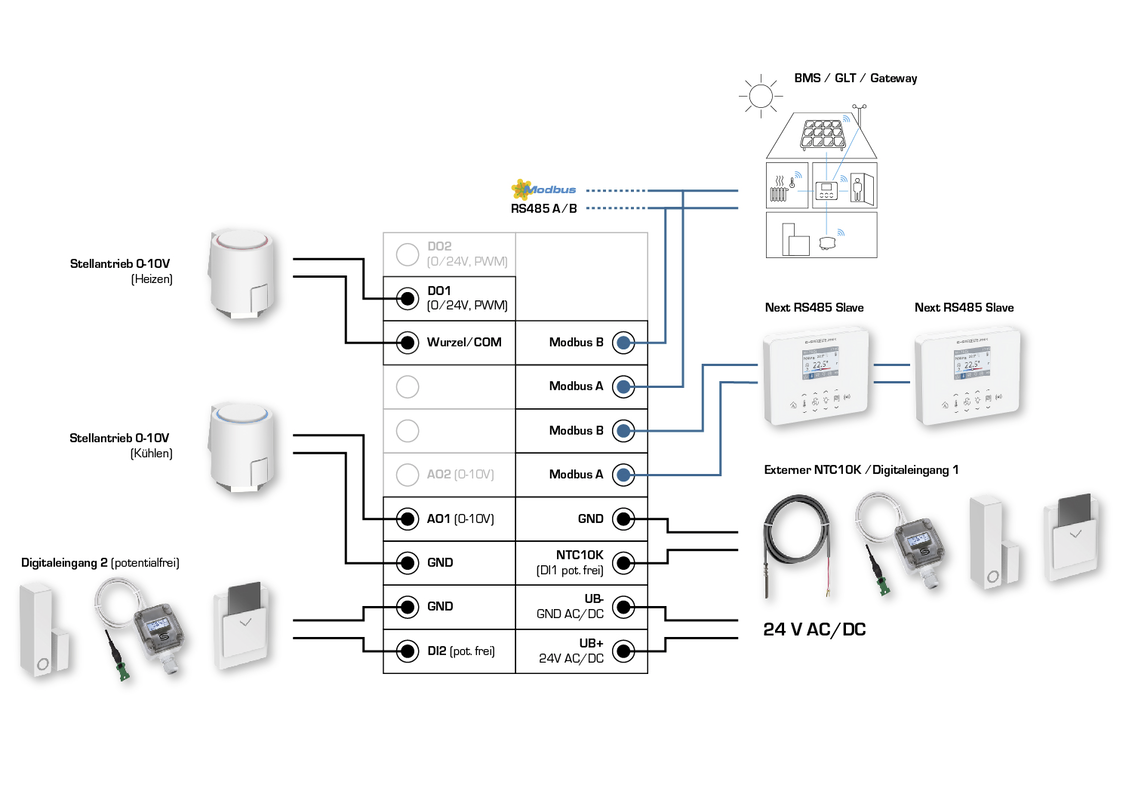

The room control devices Rymaskon® 1000 C (controllers) are used for actuating and controlling heating fan convectors and fan convectors (fan coils). Depending on the type variant, the units are available with analog outputs (0 -10 V) and with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, stepwise fans or EC fans. The actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

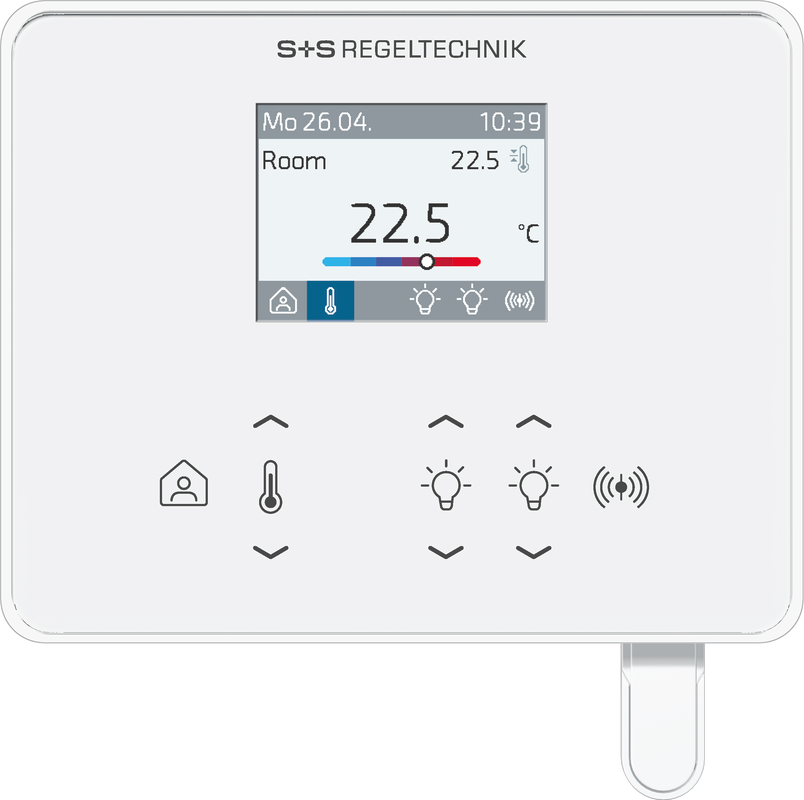

The Modbus communication interface or W-Modbus enables the change and monitoring of climate parameters on the controller at any time via the BMS. In addition, the functions solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical indication is provided via a 2" TFT display, and operation via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensate switch. This means that all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is performed on standard flush-mounted back boxes.
