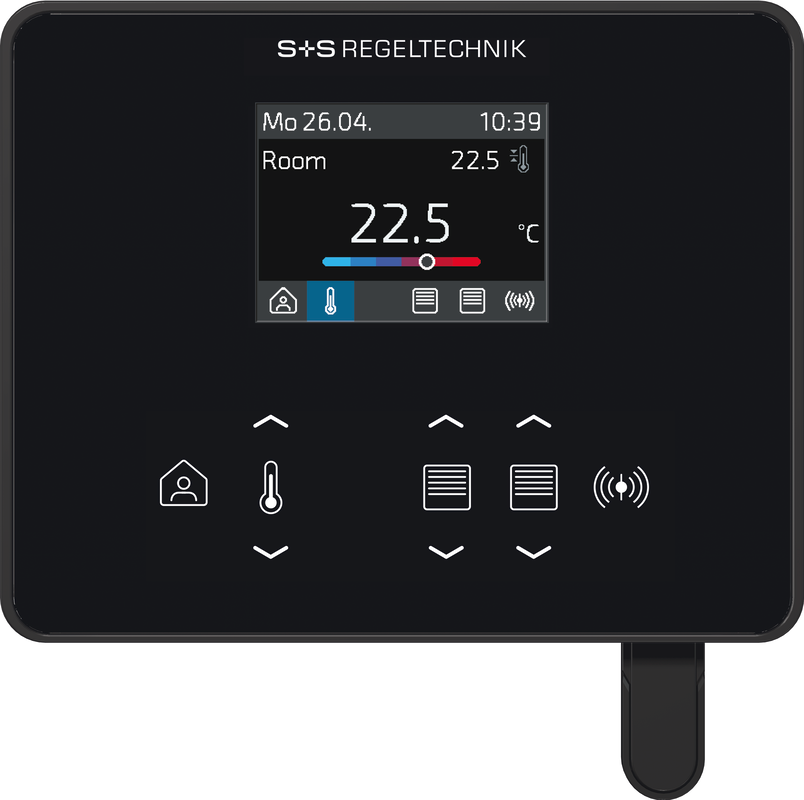

Room controllers (Controllers) RYMASKON® RYM 1362C-RH-CO2-VOC-MOD-BB

The room control units of the Rymaskon® 1000 series are designed to control (up to 2 zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the indoor area. The controller variants can be operated as stand-alone units via the integrated control functions PI, PWM or 2-/3-position control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

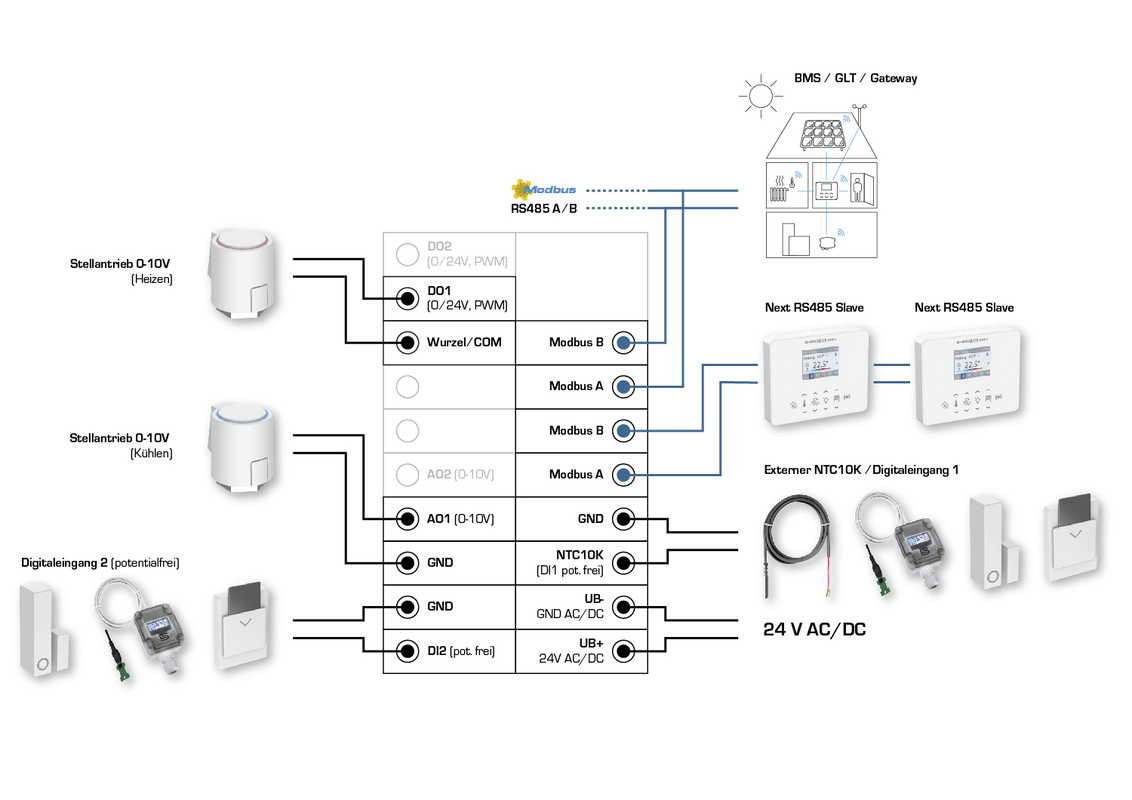

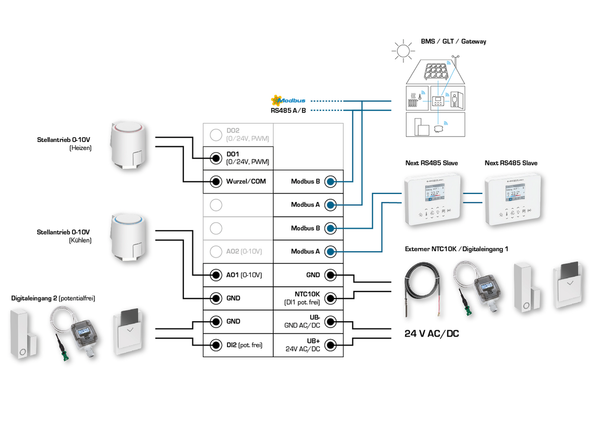

The room control units Rymaskon® 1000 C (controller) are used for actuating and controlling heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped air vents or EC air vents. Actuation is performed via PI, PWM or 2-/3-position control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables continuous changing and monitoring of the climate parameters on the controller via the BMS. In addition, the functions solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The visual display is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition the rooms.

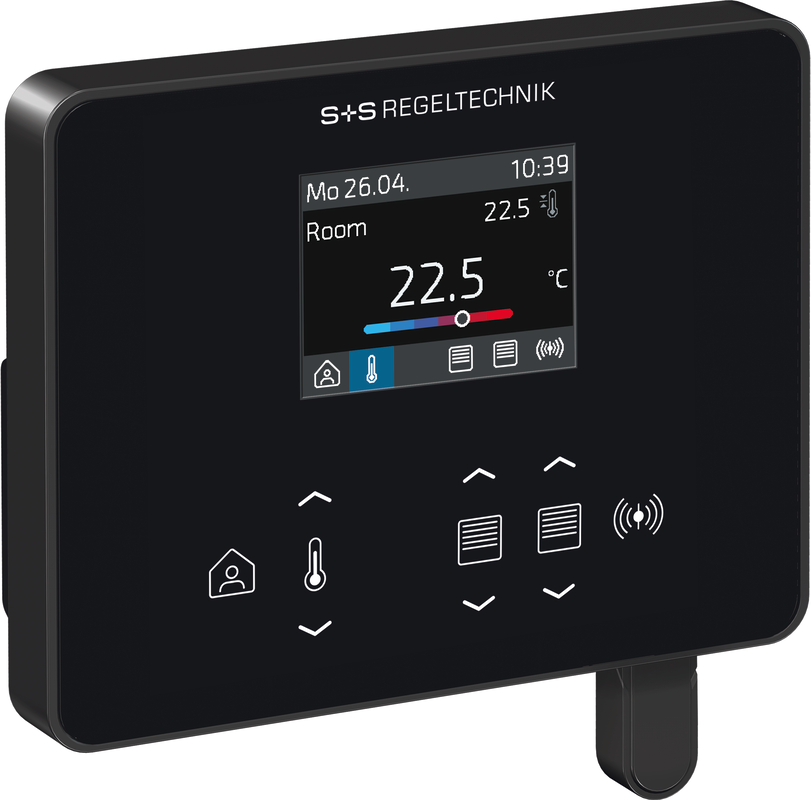

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mount boxes.
