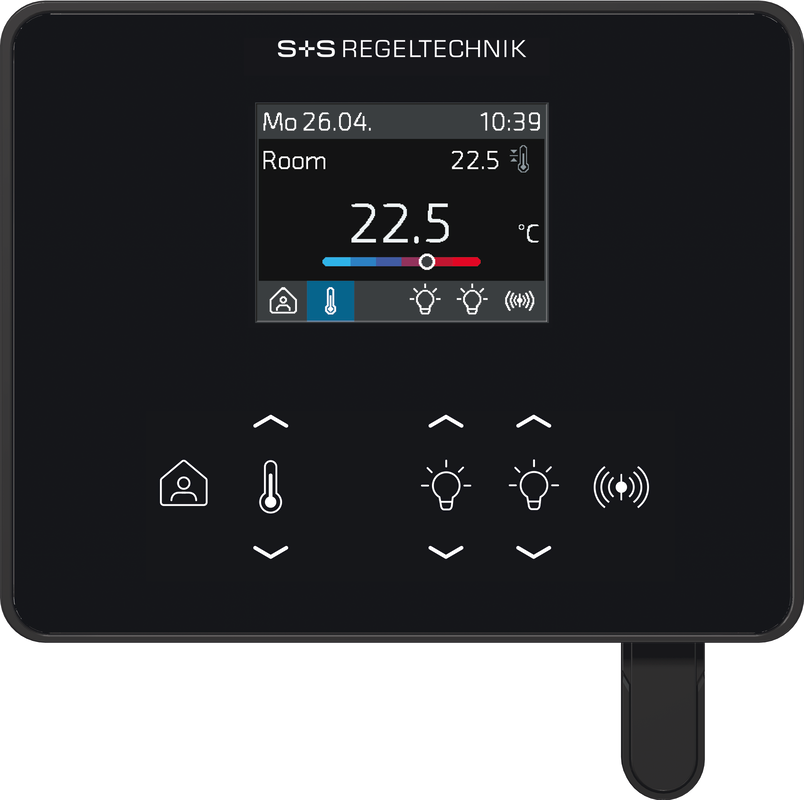

Room controllers (controllers) RYMASKON® RYM 1362C-RH-MOD-LL

The room operating devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) living, hotel, and office rooms and individually regulate the room’s heating, cooling, and fan stages. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation, and the wide range of combination options of the individual components.
The room operating devices Rymaskon® 1000 C (controllers) are used for controlling and regulating heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fans, or EC fans. Control is carried out via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the HVAC parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation via capacitive keys (Touchkeys).

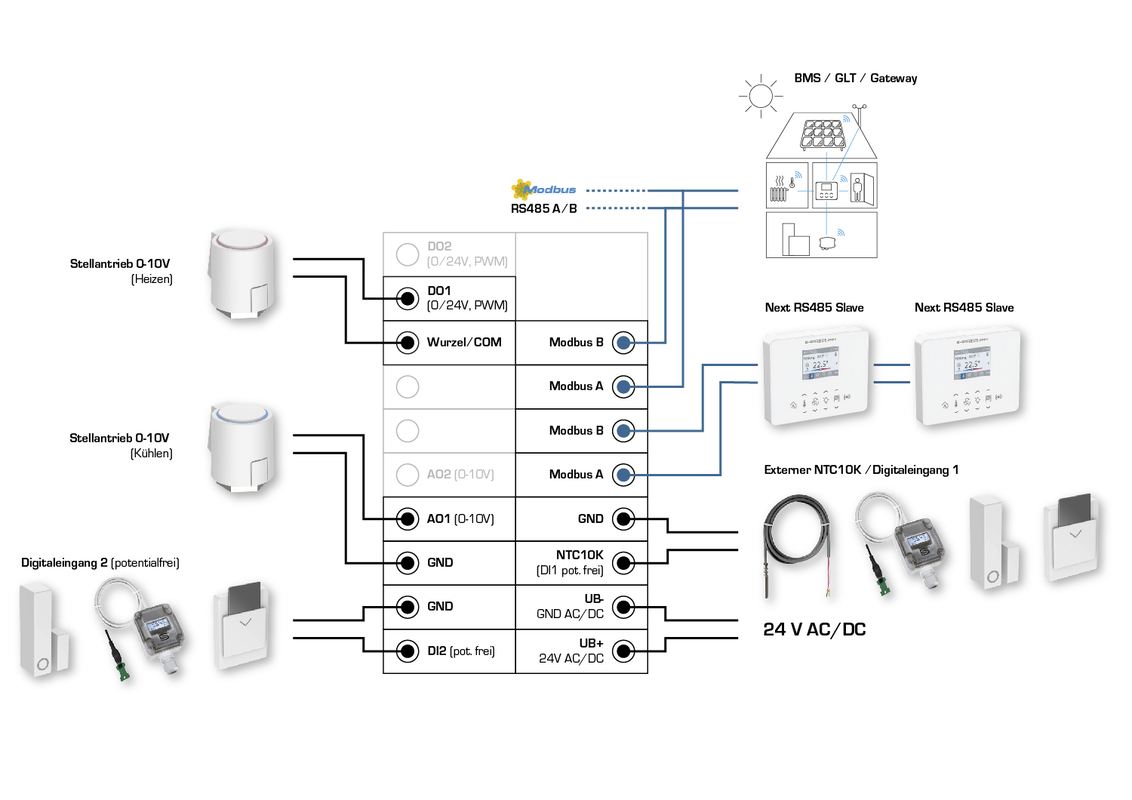

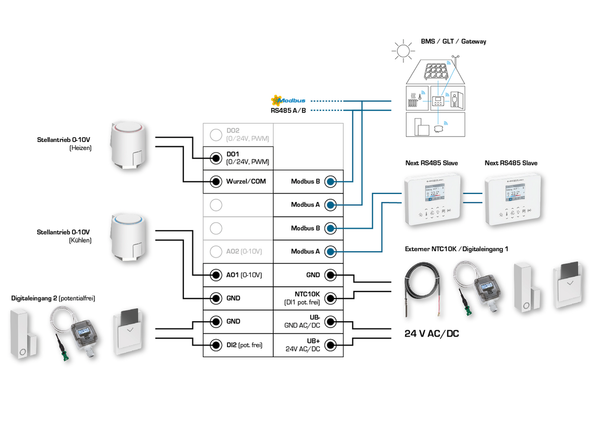

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. For example, a window contact or a condensation monitor can be connected. This ensures that all options are available to climate rooms flexibly and individually.

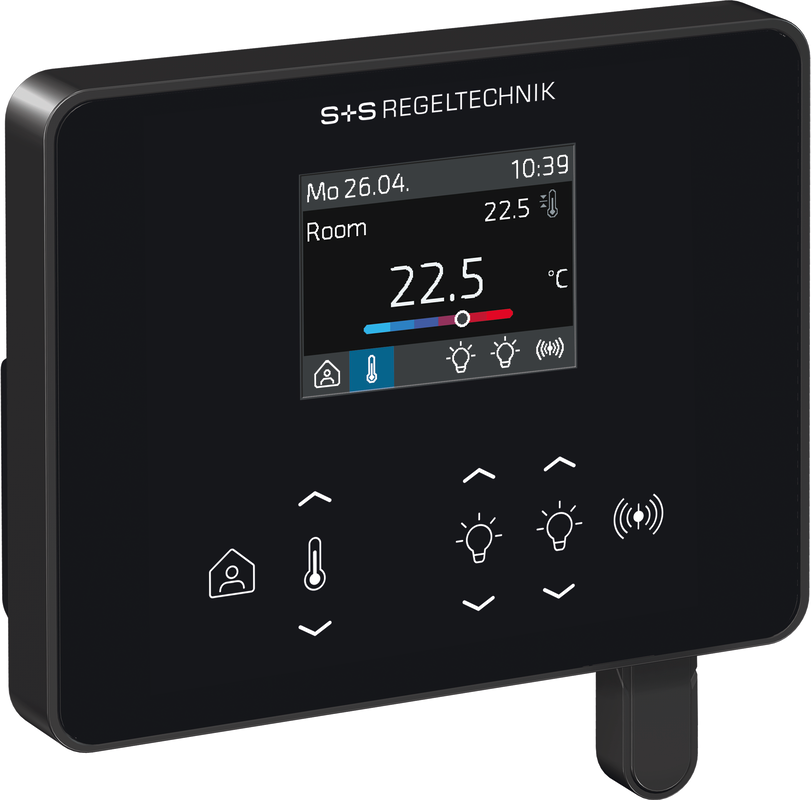

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is performed on standard flush-mounting boxes.
