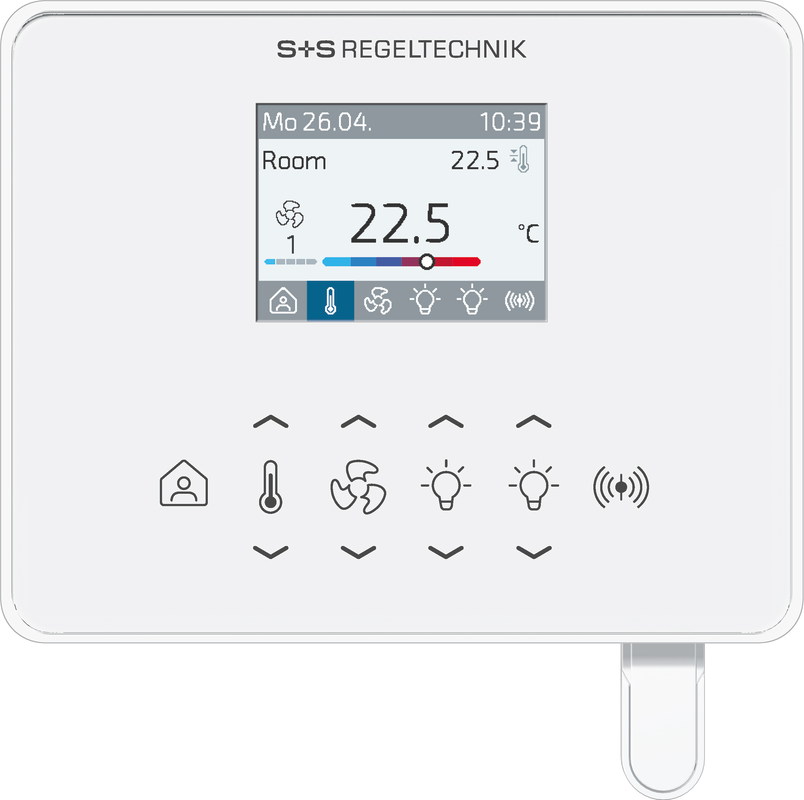

Room controllers (controllers) RYMASKON® RYM 1461C-RH-MOD-LL

Room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office premises, and they individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation and the diverse combination options of the individual components.

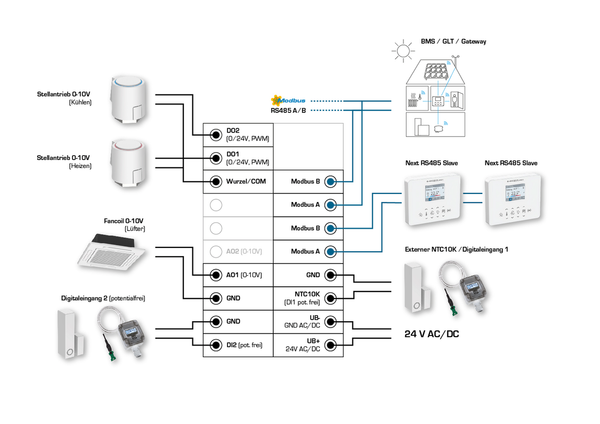

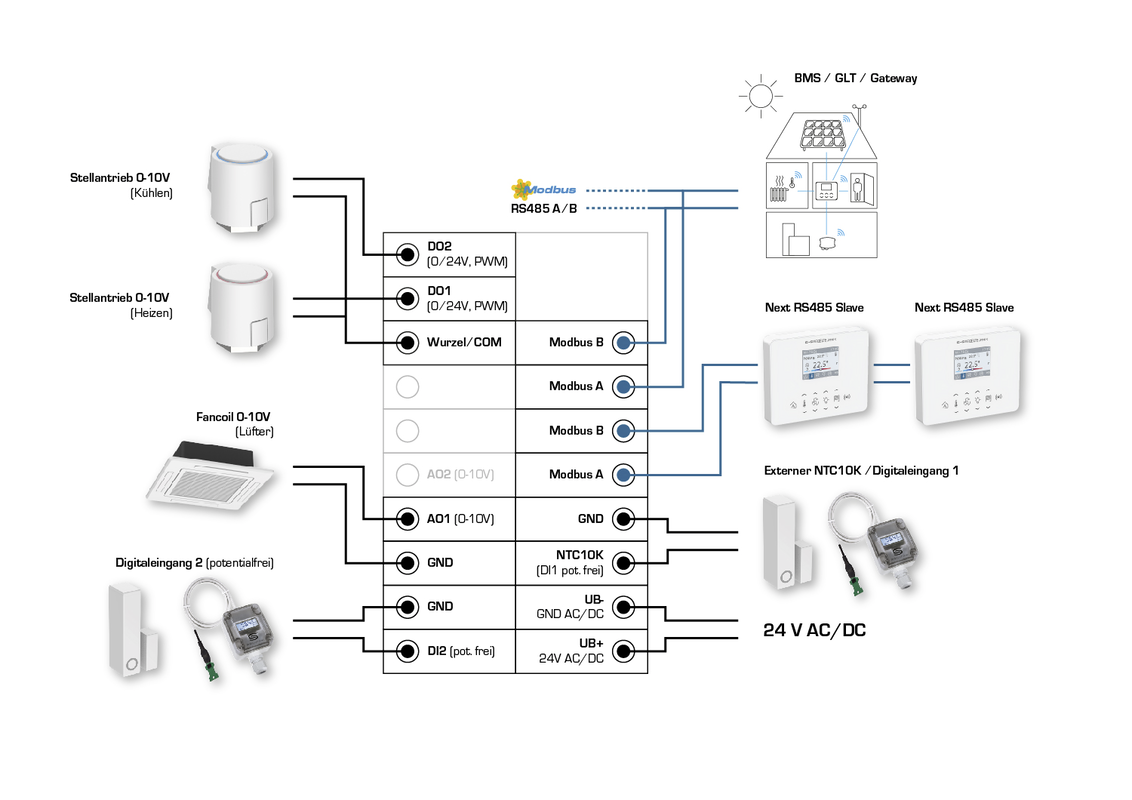

The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan coil units and blower fan coil units (fan coils). Depending on the specific type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fan speeds or EC fans. Control is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the HVAC parameters on the controller to be changed and monitored at any time via the BMS/GLT. In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. For example, a window contact or a condensation monitor can be connected. This ensures that all options are available to flexibly and individually climate-control the rooms.

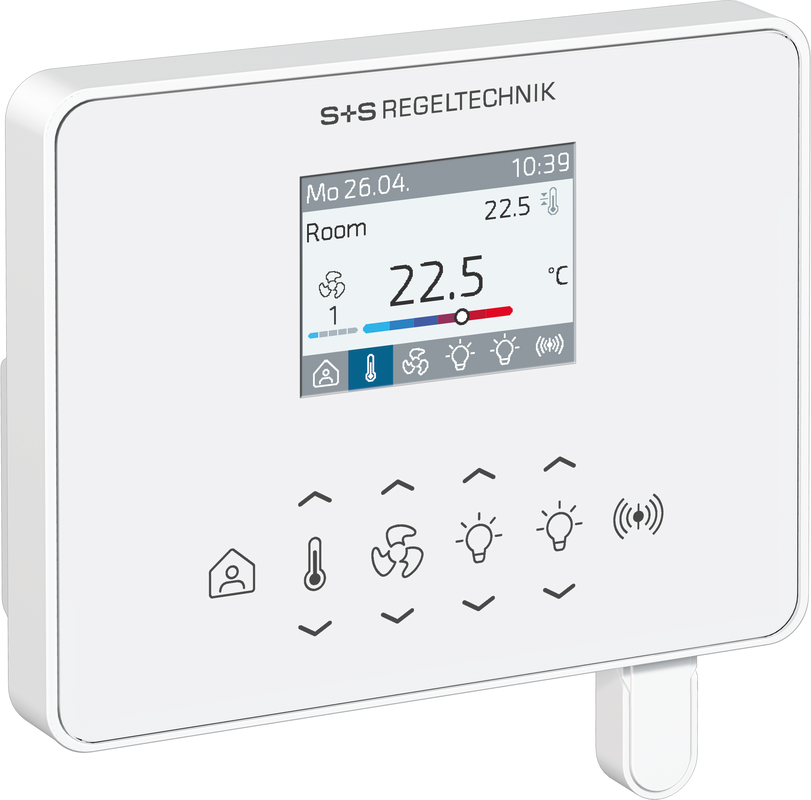

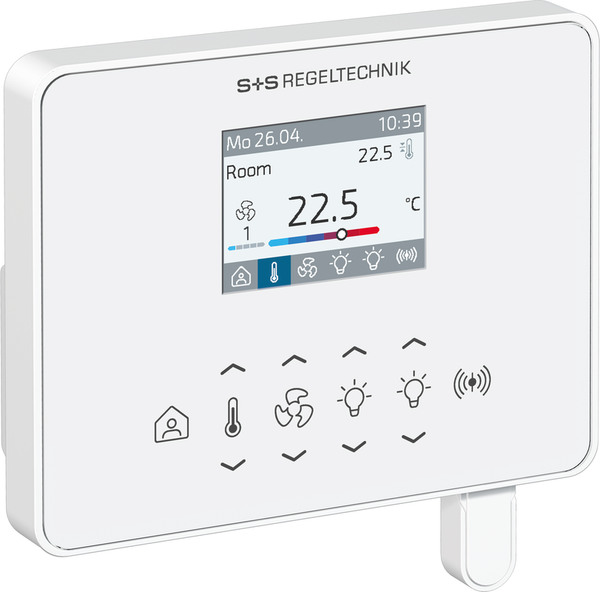

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mount boxes.
