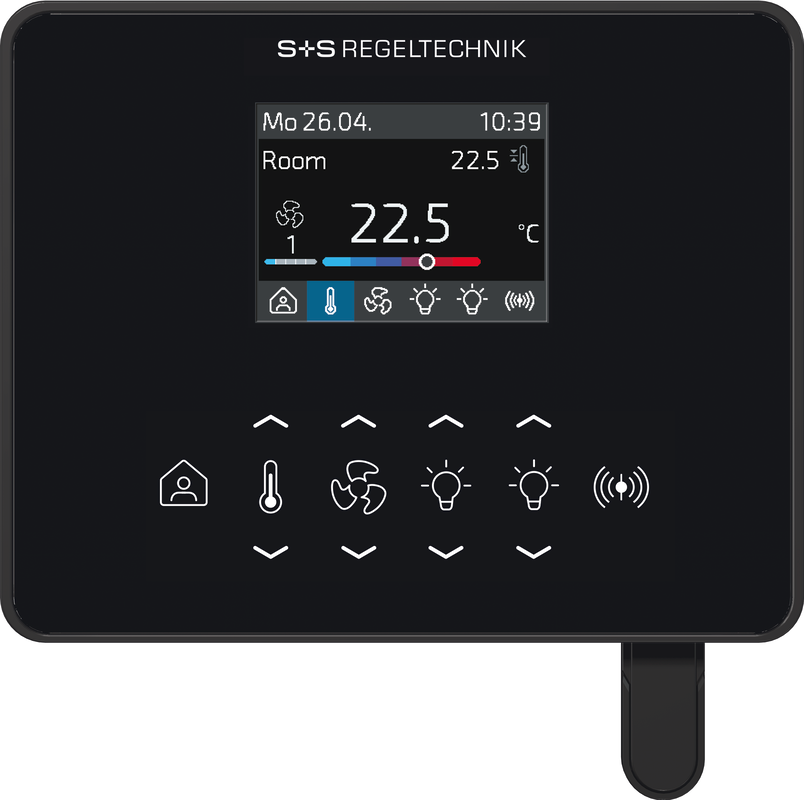

Room controller (controller) RYMASKON® RYM 1462C-RH-MOD-LL

Room control units of the series Rymaskon® 1000 are designed to control (up to 2 HVAC zones) residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages in the interior. The controller variants can be operated as standalone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its refined design, intuitive operation, and the many combination options of the individual components.

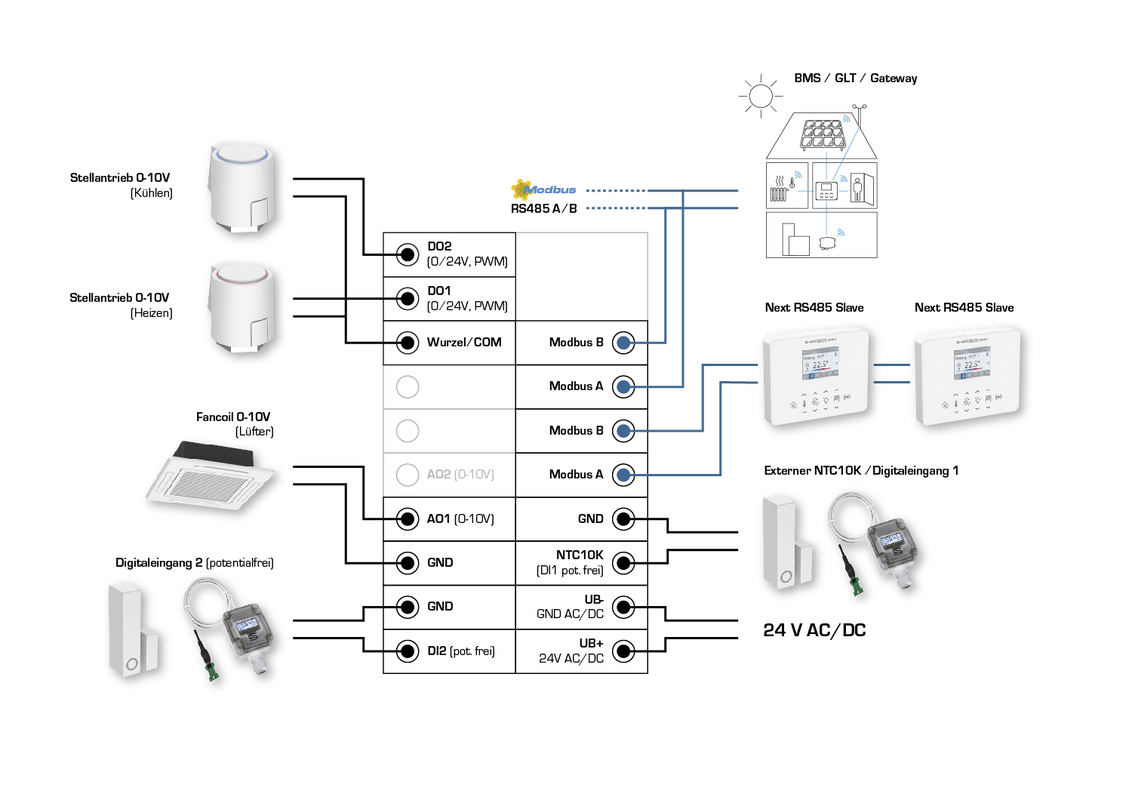

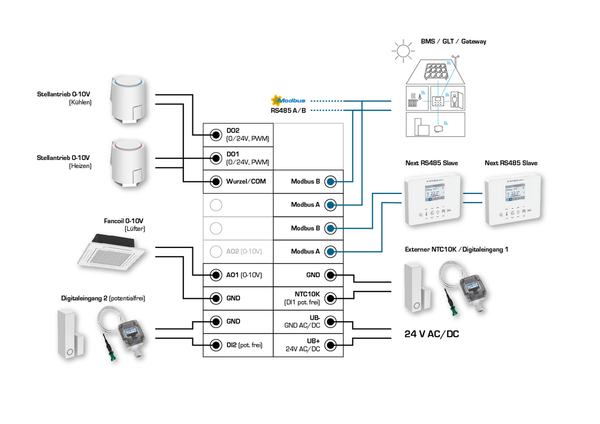

The room control units Rymaskon® 1000 C (controller) are used to actuate and control heating fan convectors and cooling fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fan speeds, or EC fans. Actuation is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the change and monitoring of HVAC parameters on the controller at any time via the BMS (building management system). In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. Optical indication is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation alarm. As a result, all options are available to flexibly and individually climate the rooms.

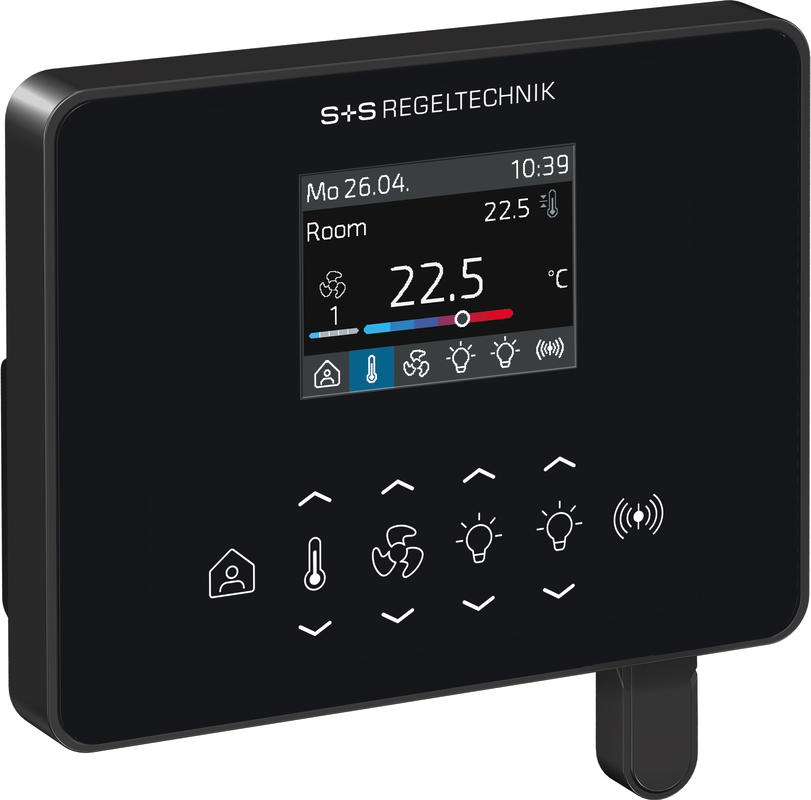

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounting boxes.
