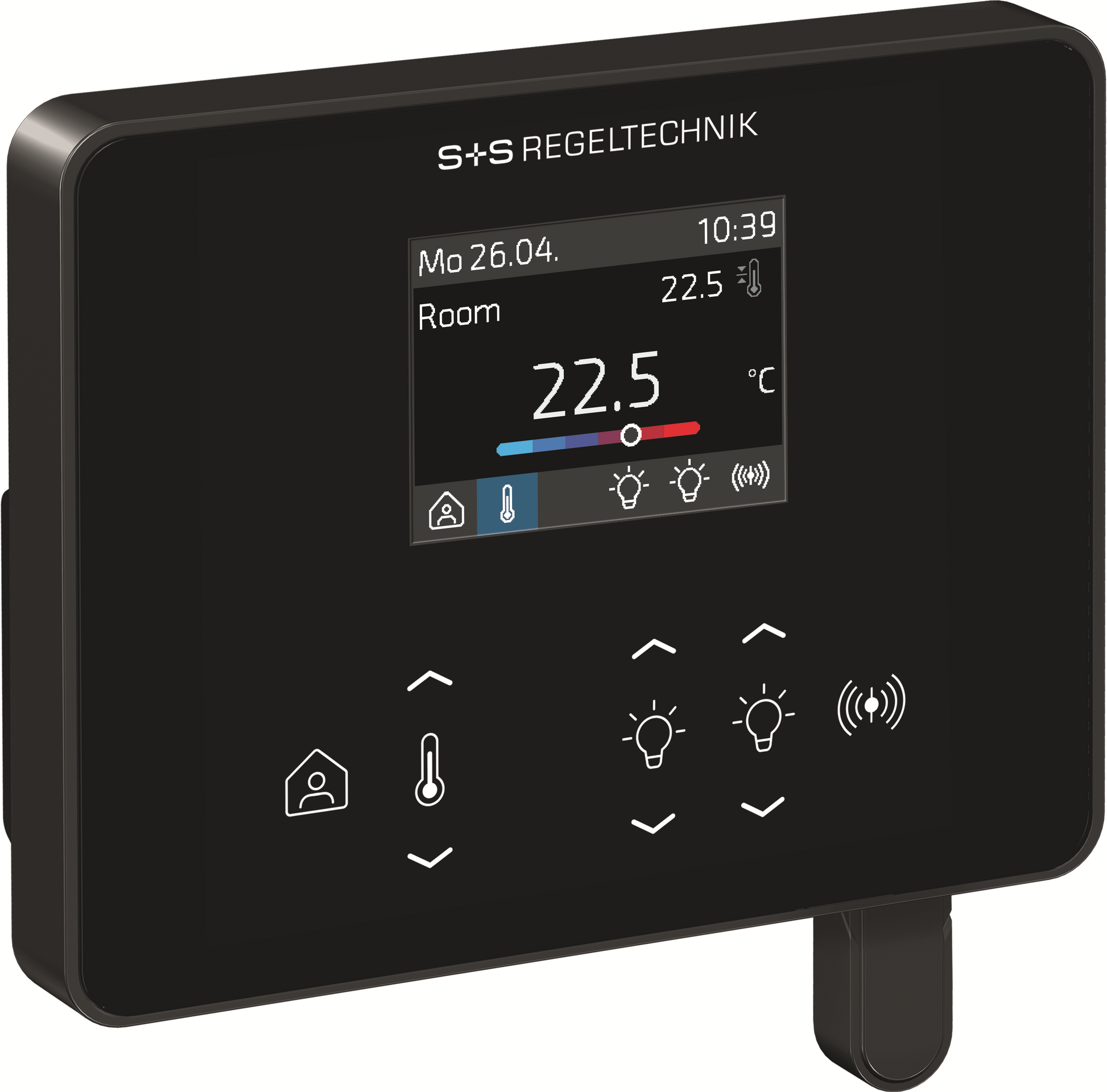

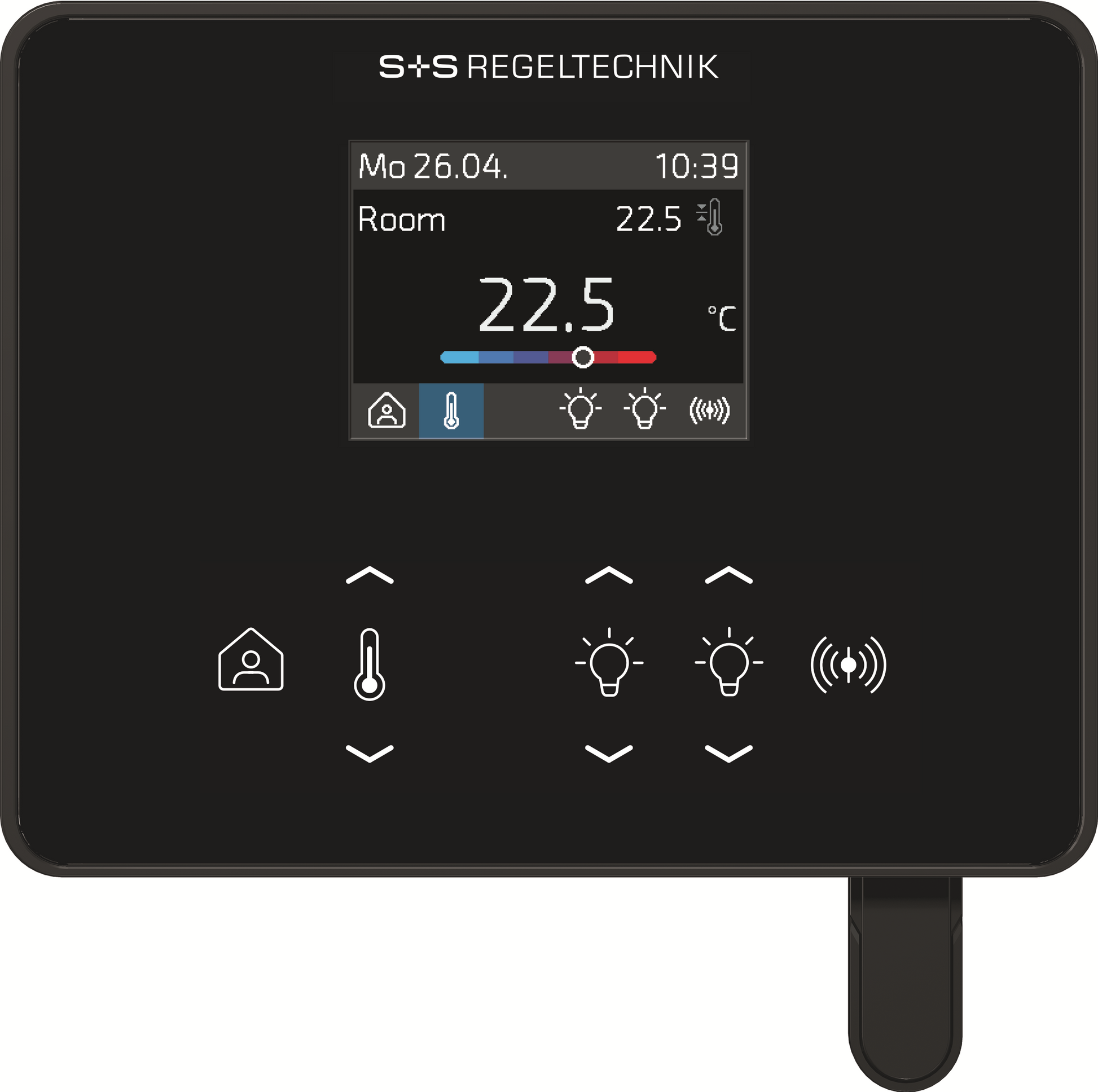

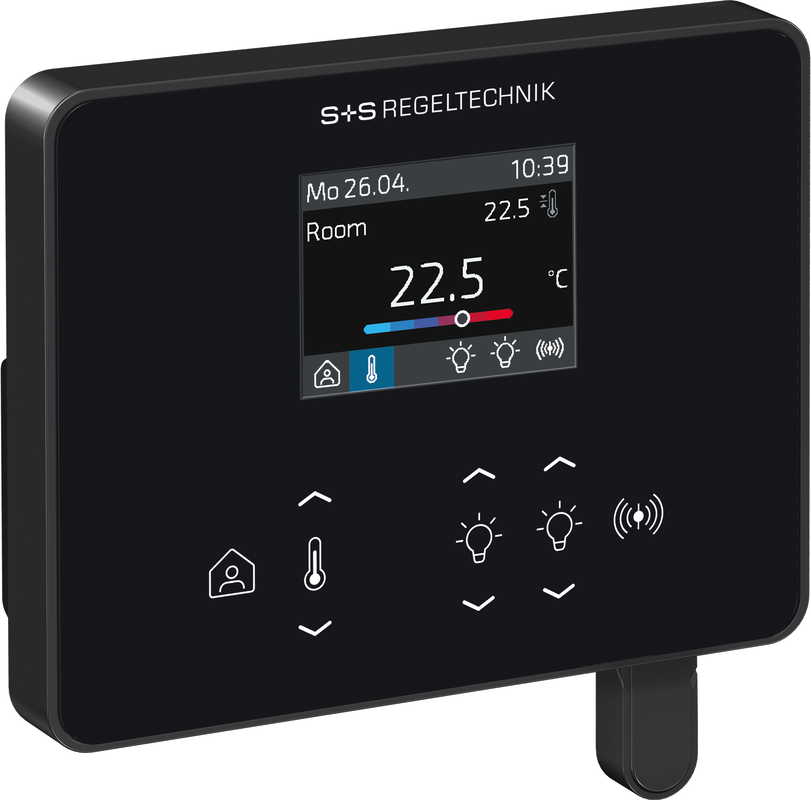

WIRELESS room operating unit (interface) RYMASKON® RYM 1302-RH-WMOD-AP-LL

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 heating/cooling zones) in residential, hotel, and office rooms and individually regulate the indoor heating, cooling, and ventilation stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the many combination options of the individual components.

The Rymaskon® 1000 room control devices (interface) are used to control temperature, ventilation, solar protection (roll-down shutters, venetian blinds) or lighting (with dimming function). The room control devices provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. Visual indication is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation detector. This ensures that all options are available to flexibly and individually condition rooms.

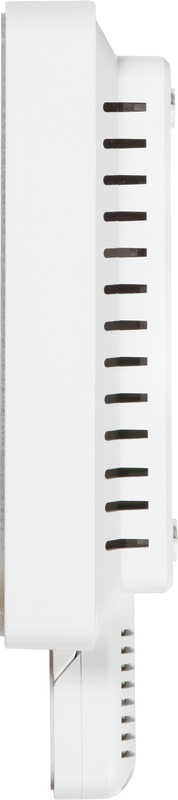

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mount boxes or surface-mount boxes.
