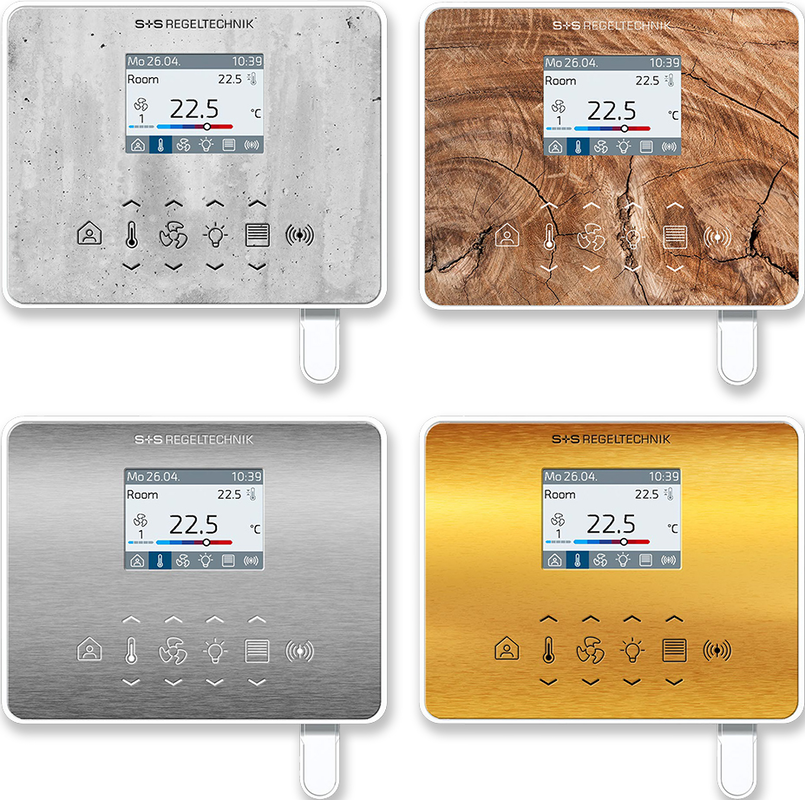

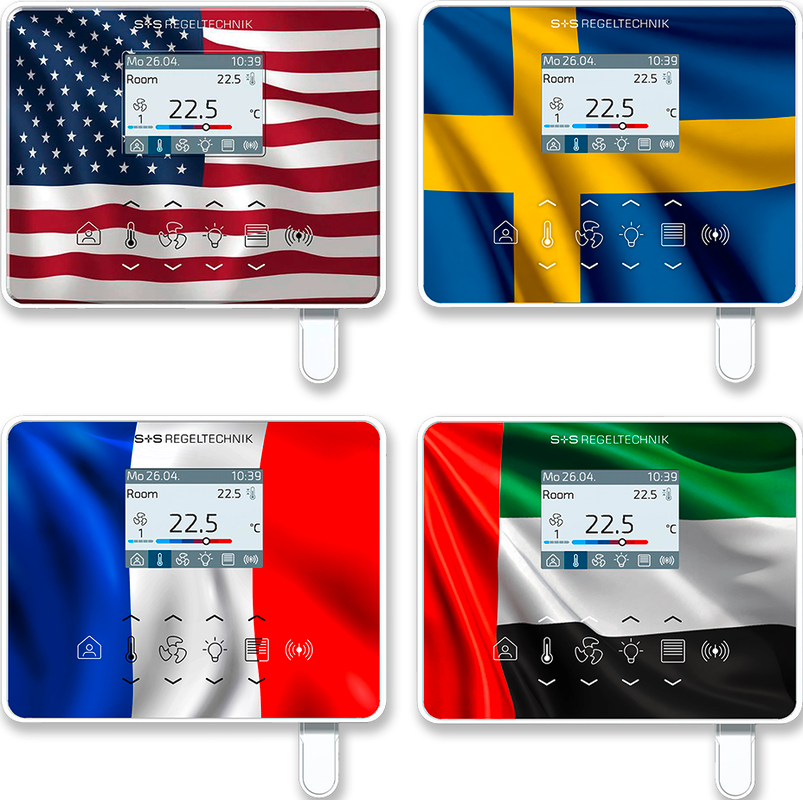

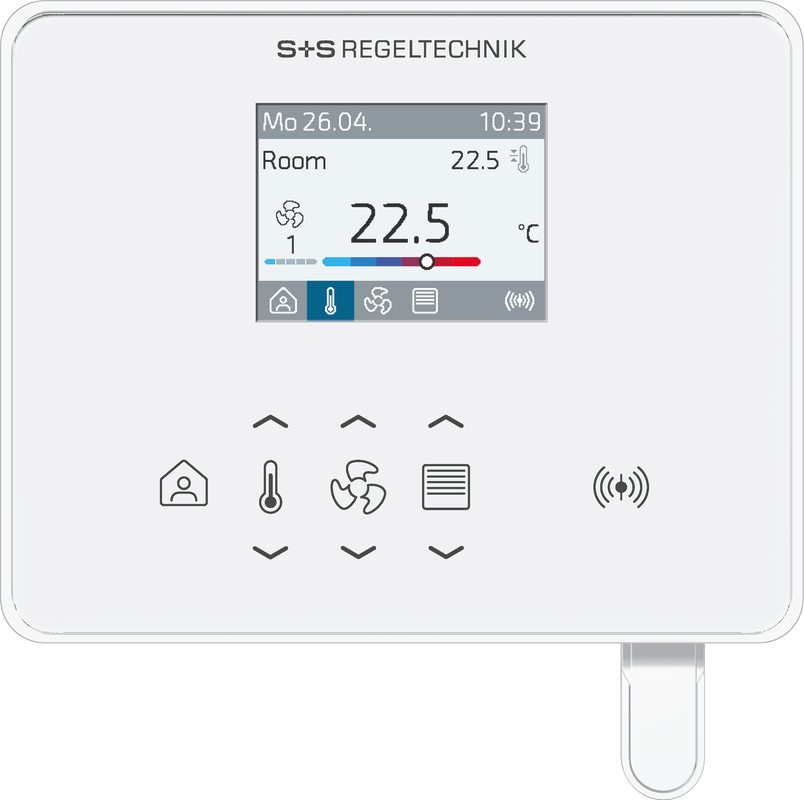

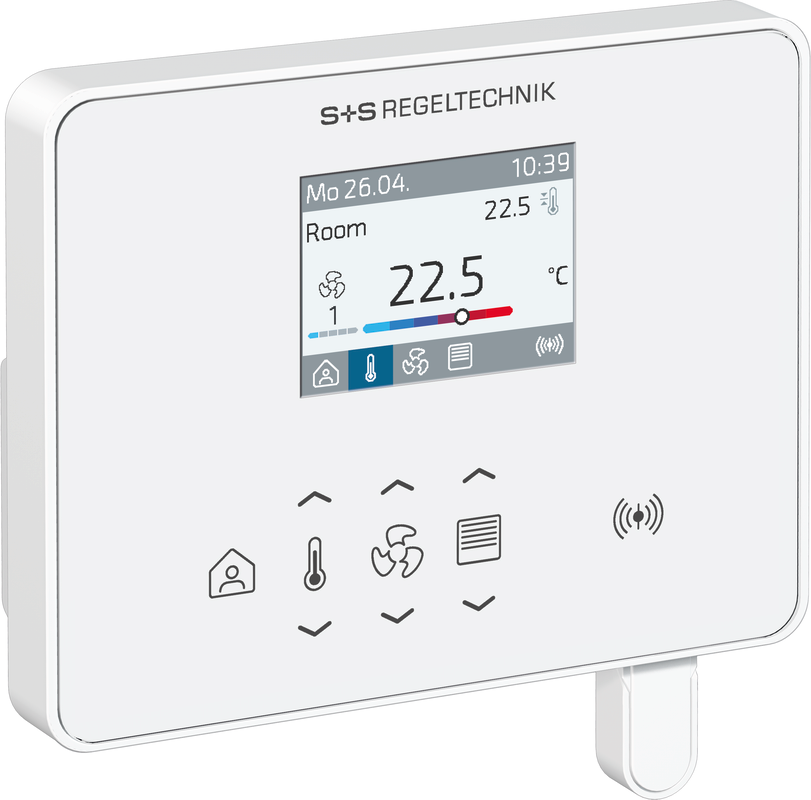

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-WMOD-AP-B

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the wide range of combination options for the individual components.

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan operation, solar protection (roller shutters, blinds) or lighting (with dimming function). The room control units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of building management systems (BMS). The visual display is provided by a 2" TFT display, and operation is via capacitive keys (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, a window contact or a condensation watchdog to be connected. As a result, all options are available to flexibly and individually climate-control the rooms.

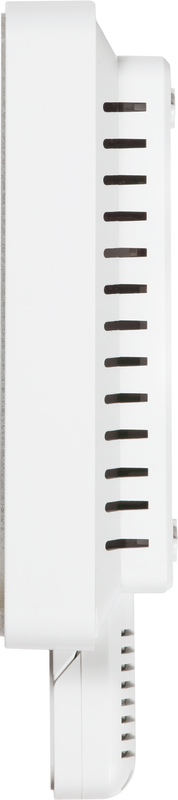

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mount back boxes or surface-mount.]
