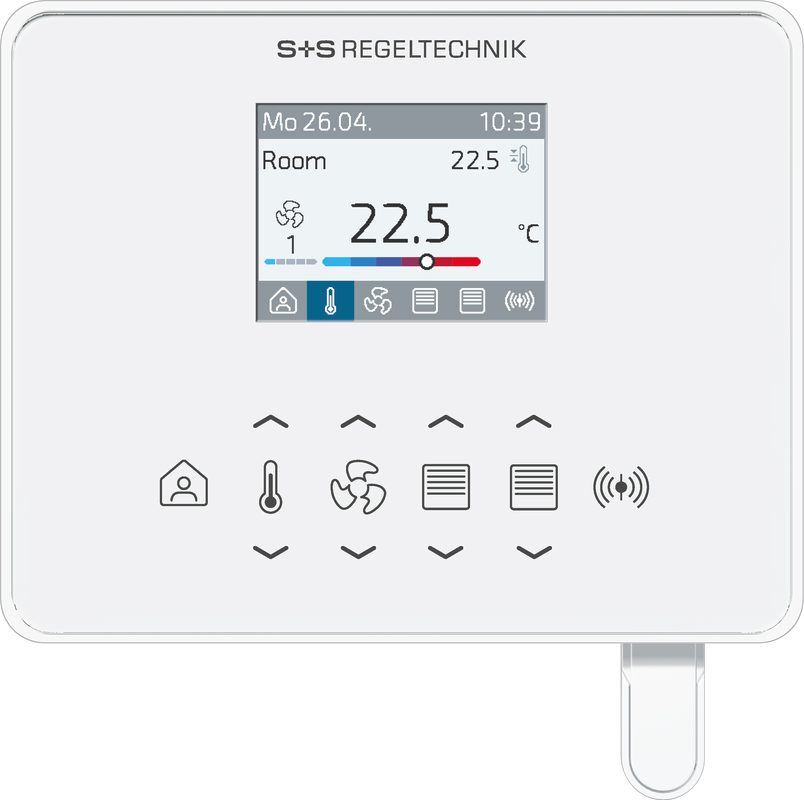

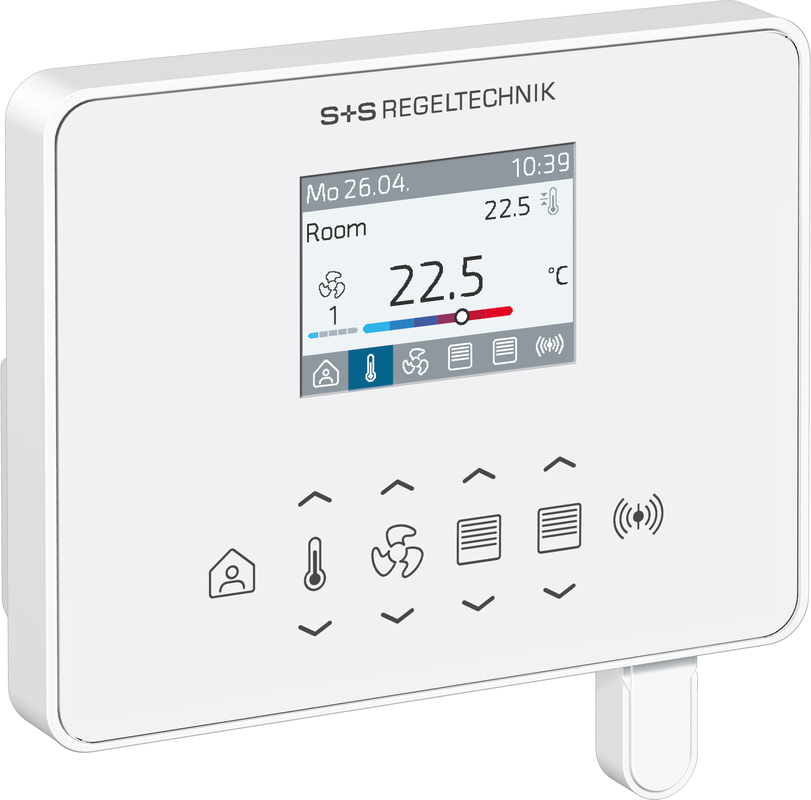

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-WMOD-BB

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the wide range of combination options of the individual components.

The room control devices Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or lighting (with dimming function). The room control devices provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical display is provided via a 2" TFT display, and operation via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, a window contact or a condensation warning device to be connected. As a result, all options are available to flexibly and individually condition the rooms.

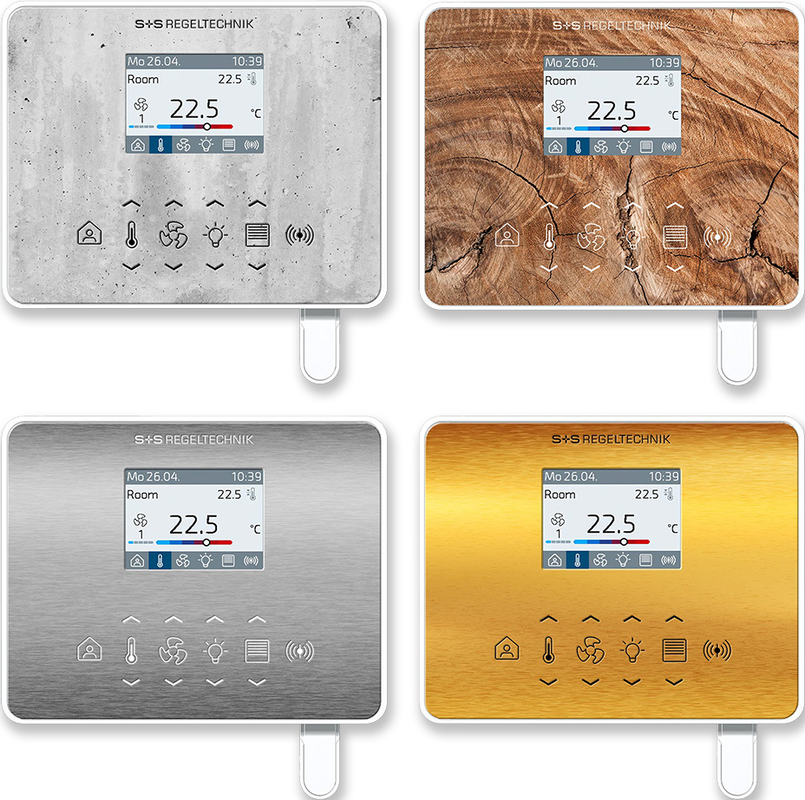

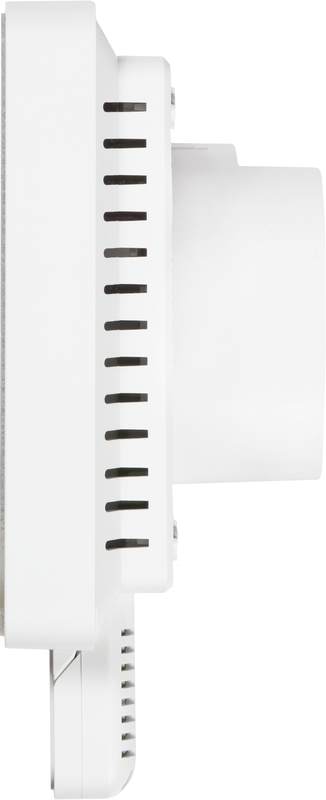

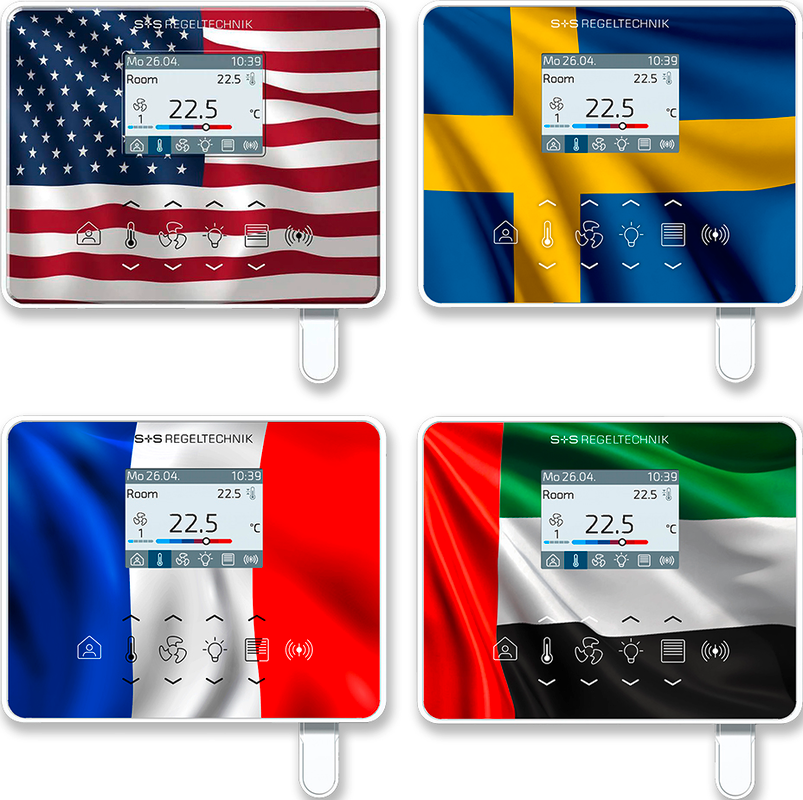

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mount boxes or surface-mount.
