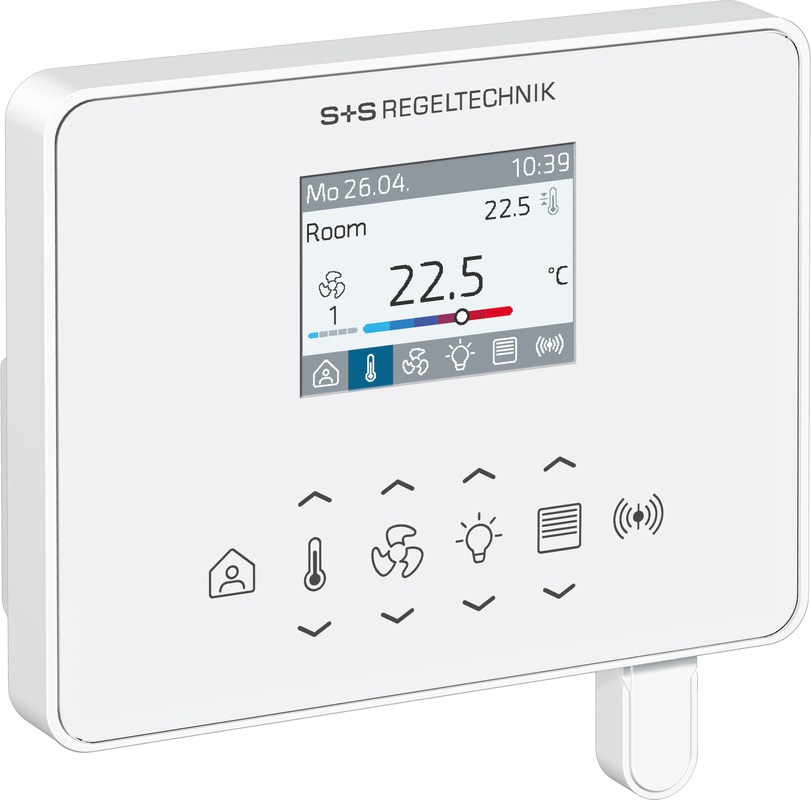

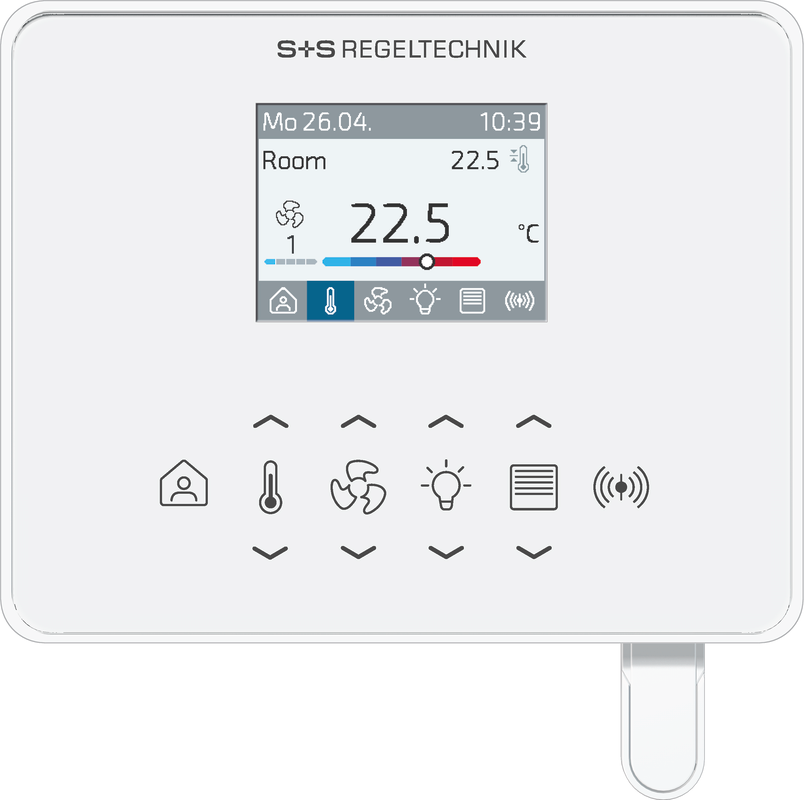

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-WMOD-BL

The room operating devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and ventilation stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the many possible combinations of the individual components.

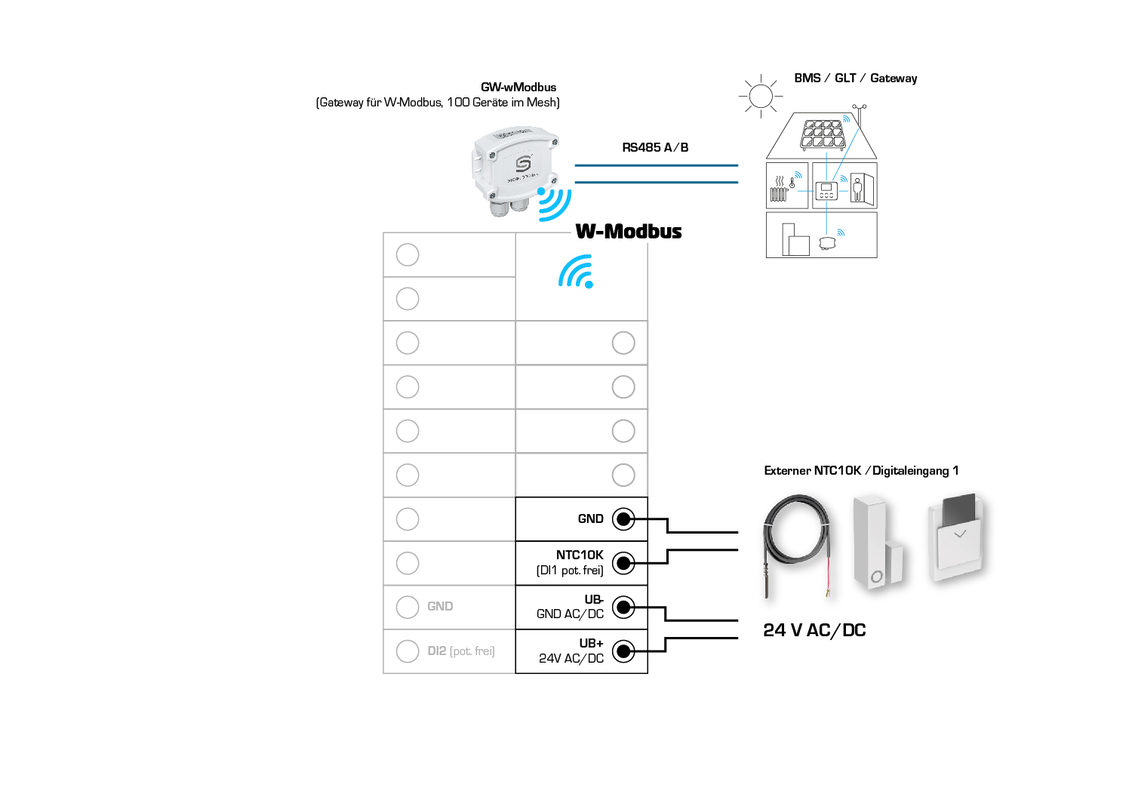

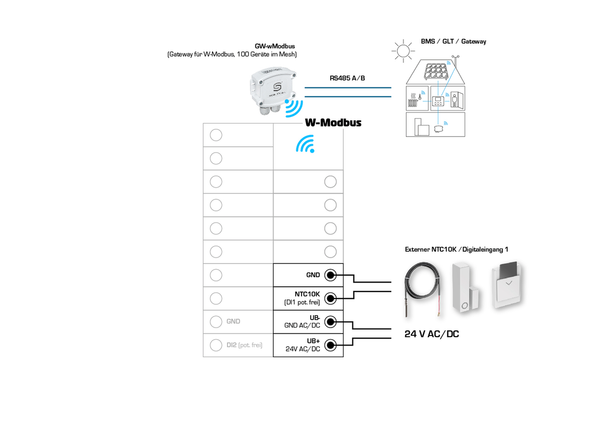

The Rymaskon® 1000 room operating devices (interface) are used to control temperature, ventilation, solar protection (roller shutters, blinds), or lighting (with dimming function). The room operating devices provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus from the BMS. The optical display is provided by a 2" TFT display, with operation via capacitive keys (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This enables, for example, a window contact or a condensation alarm to be connected. This ensures that all options are available to flexibly and individually condition rooms.

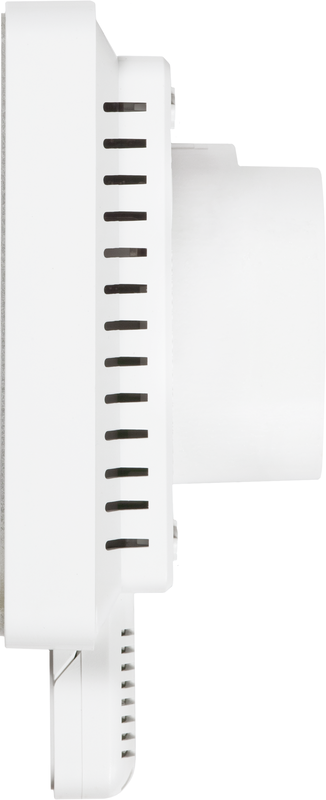

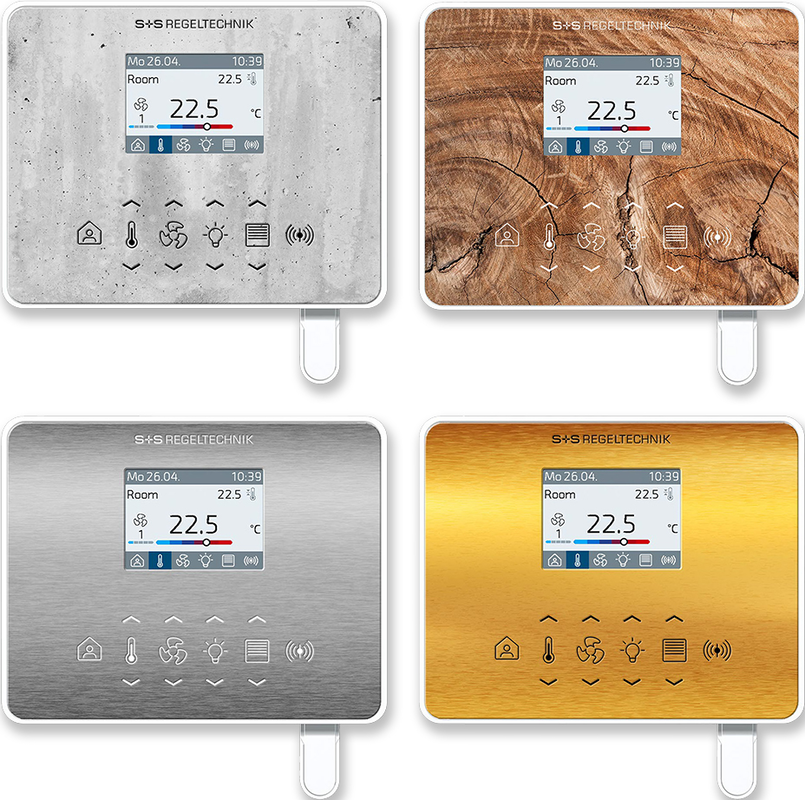

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mount boxes or surface-mount boxes.
