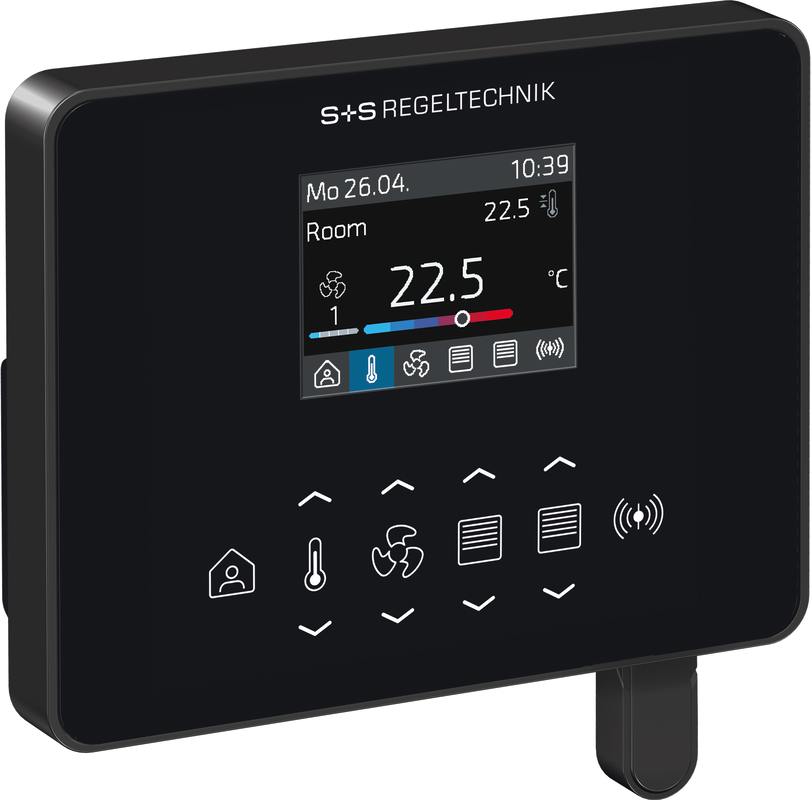

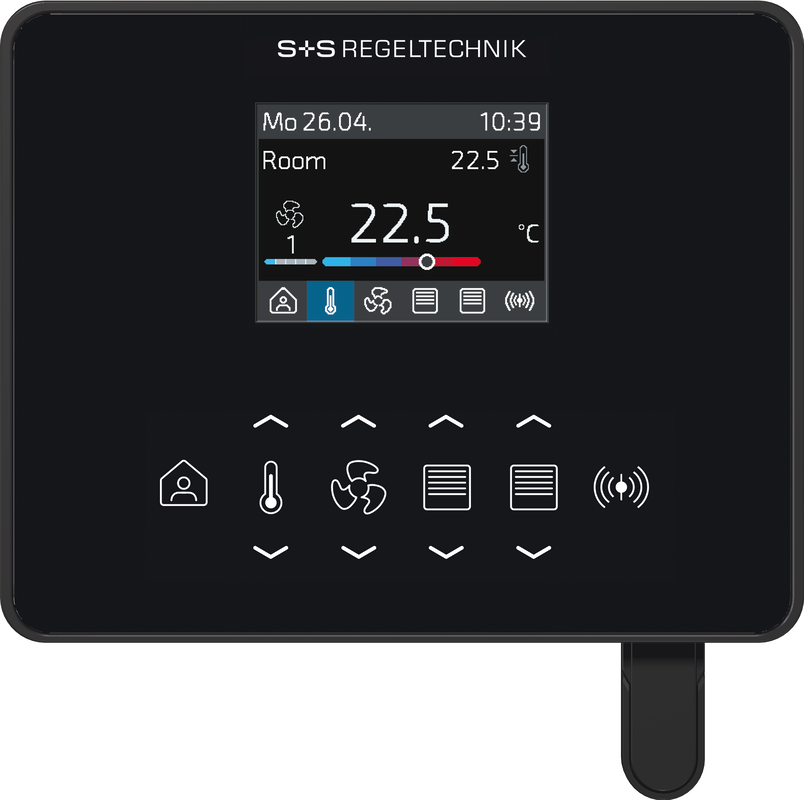

WIRELESS room operating unit (interface) RYMASKON® RYM 1402-RH-WMOD-AP-BB

The room controller units of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the many combination options of the individual components.

The room controller units Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds), or lighting (with dimming function). The room controller units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus from the BMS. Visual indication is provided by a 2" TFT display; operation is via capacitive keys (touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This enables, for example, a window contact or a condensation monitor to be connected. This means all options are available to flexibly and individually climate-control the rooms.

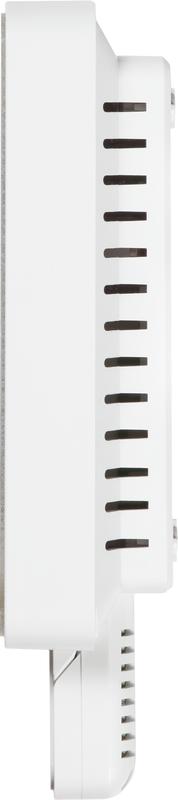

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounted.
