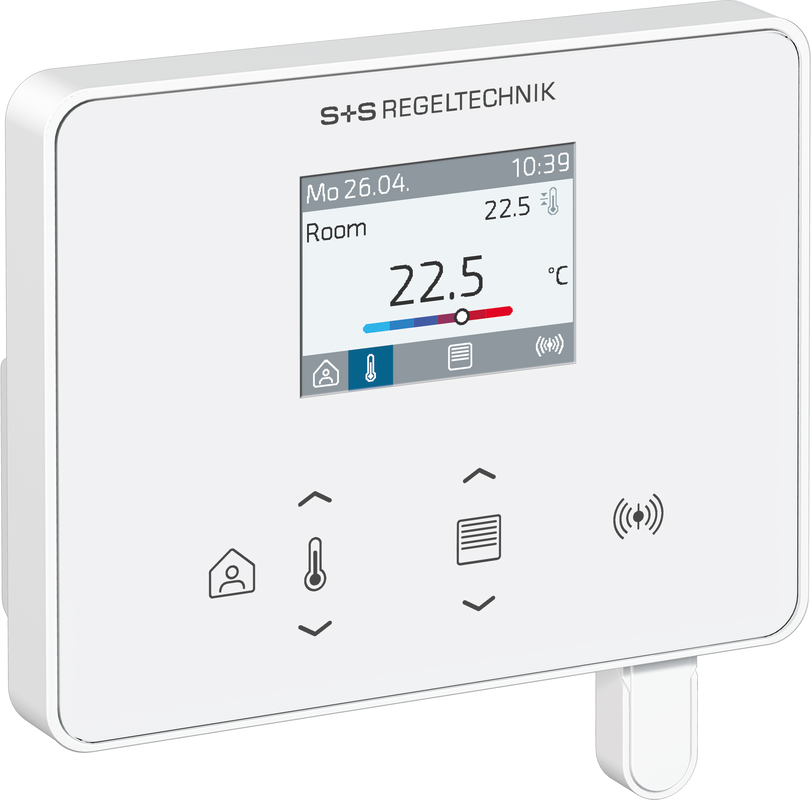

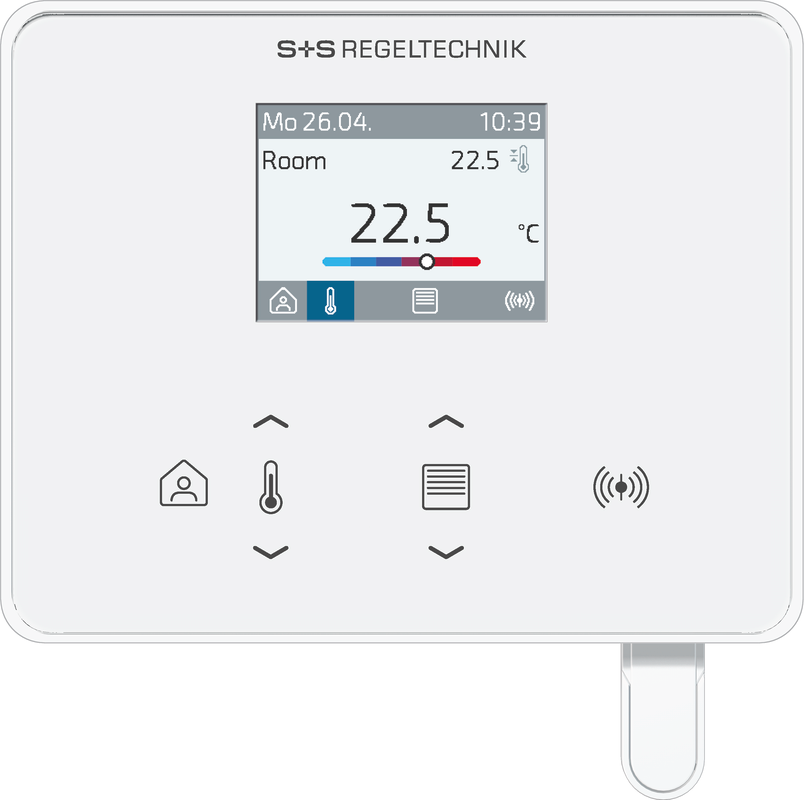

Room controller (controller) RYMASKON® RYM 1321C-RH-CO2-MOD-B

The room controller devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by elegant design, intuitive operation, and the many combination possibilities of the individual components.

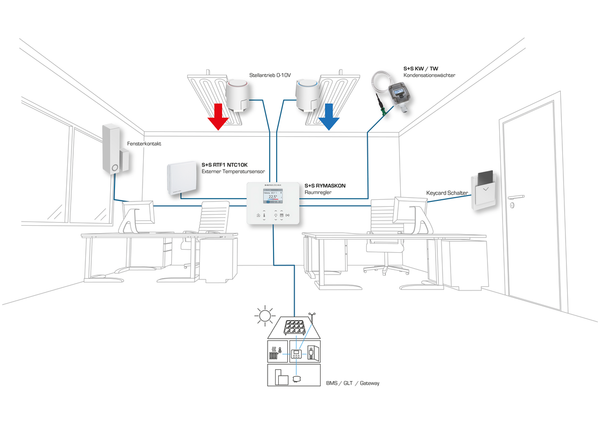

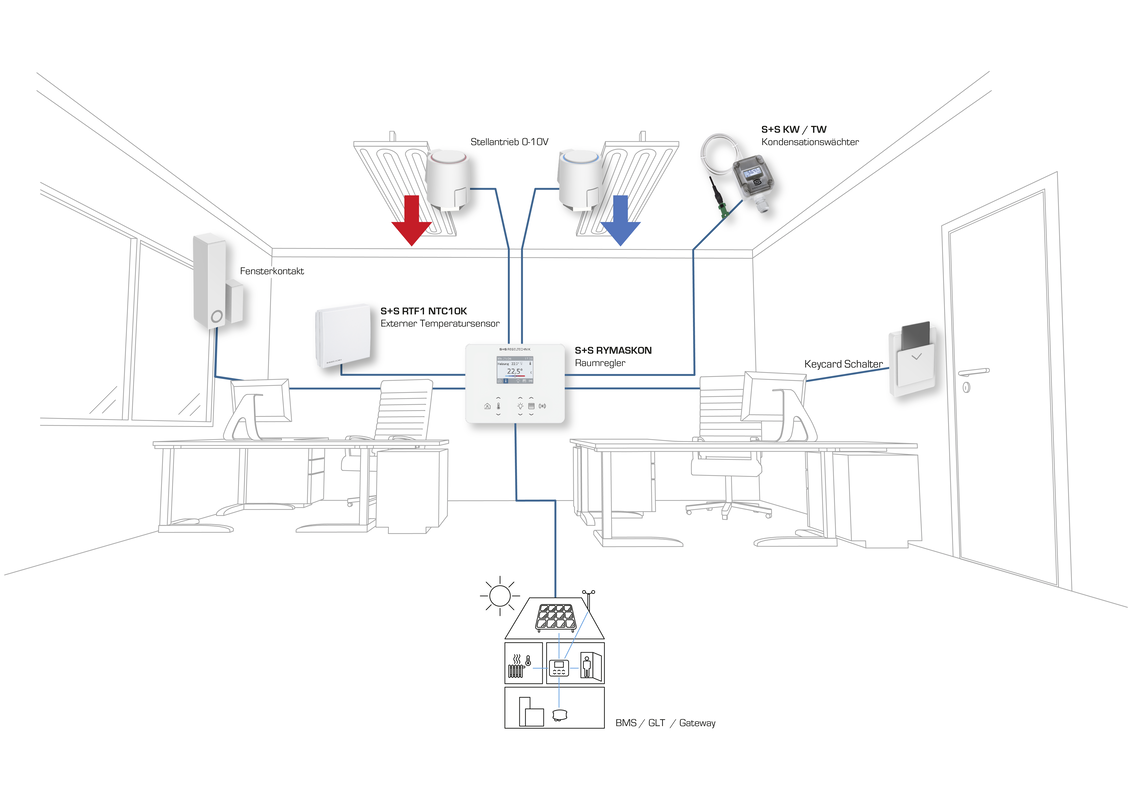

The room controller devices Rymaskon® 1000 C (controller) are used for actuation and control of heating fan convectors and cooling fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital-/relay outputs for actuating heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. Actuation is carried out via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the HVAC parameters on the controller to be changed and monitored at any time via the BMS. In addition, the functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

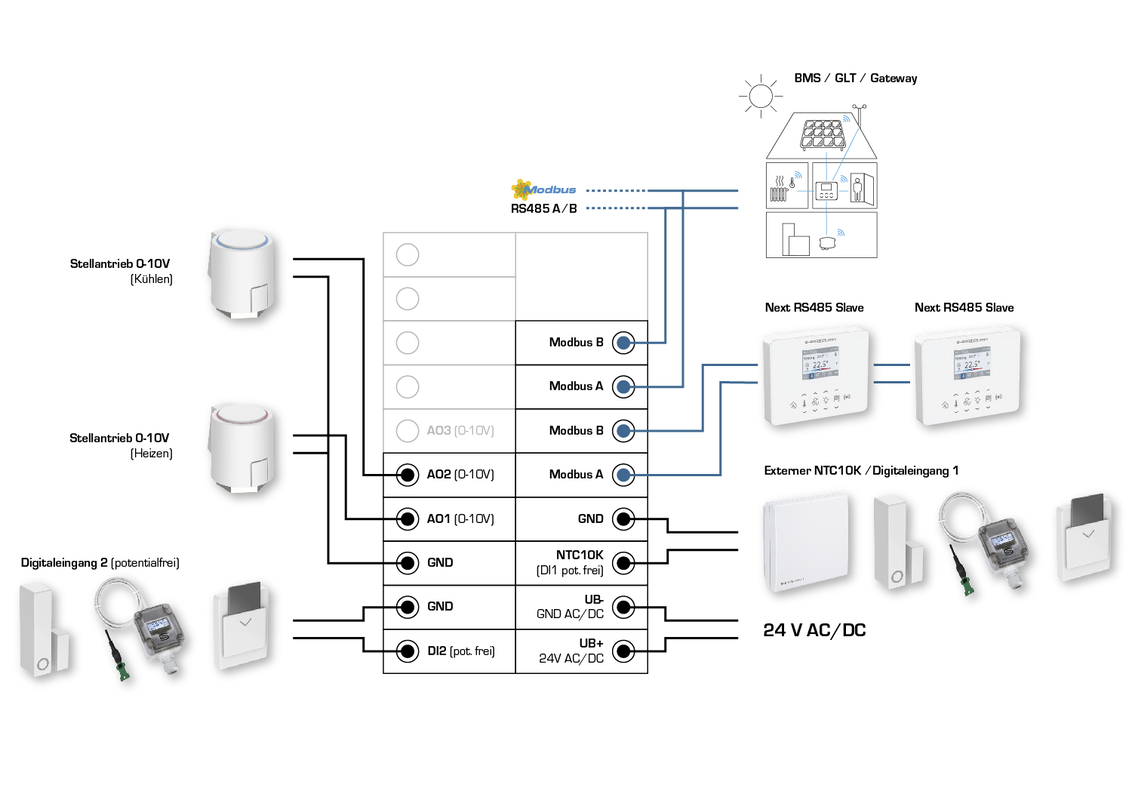

In addition to the integrated temperature and humidity sensor, CO2 and VOC sensors are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to climate-control rooms flexibly and individually.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounted back boxes.
