Room controller (controller) RYMASKON® RYM 1321C-RH-CO2-MOD-BB

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel, and office rooms and individually control the heating, cooling, and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its elegant design, intuitive operation, and the many combination options of the individual components.

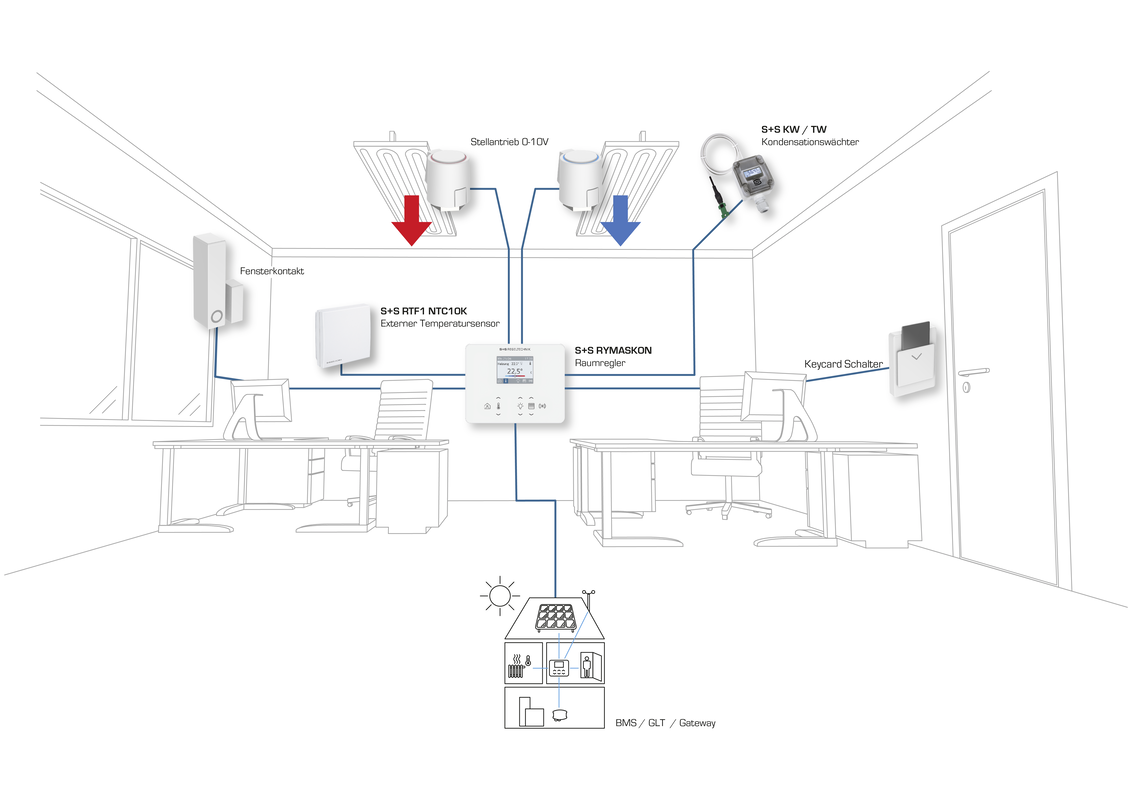

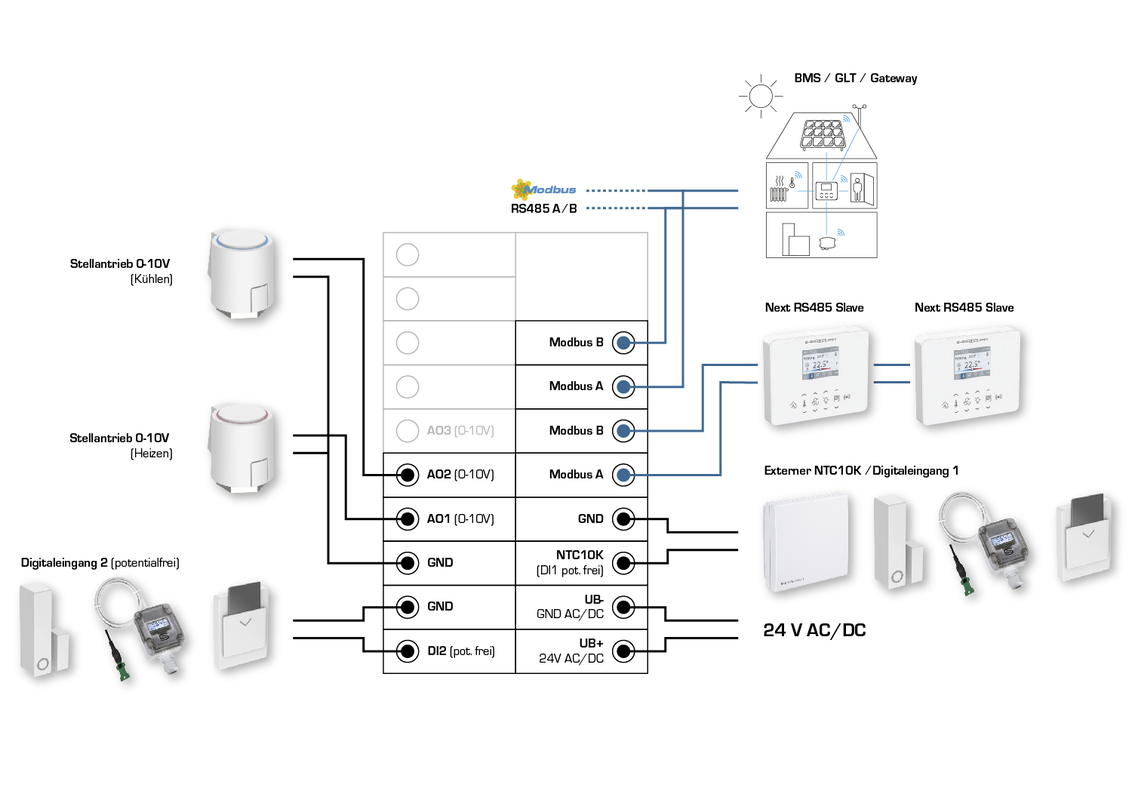

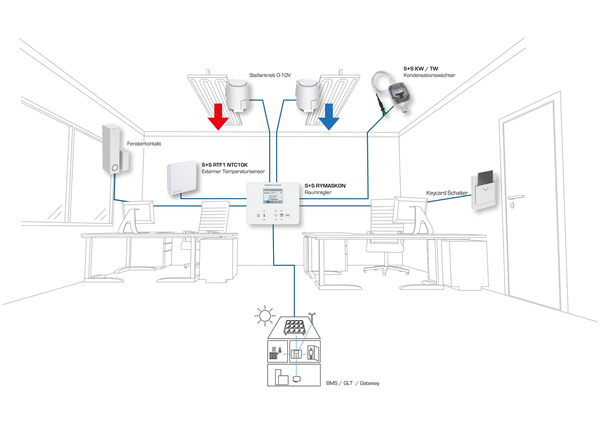

The room control devices Rymaskon® 1000 C (controllers) are used to control and regulate heating fan convectors and fan convectors (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped fan stages, or EC fan stages. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

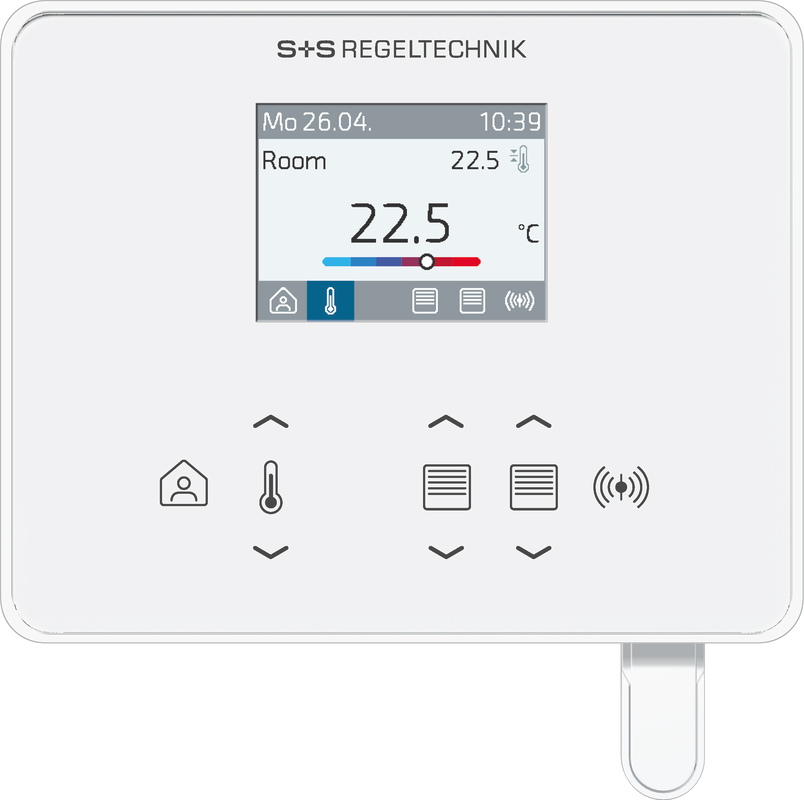

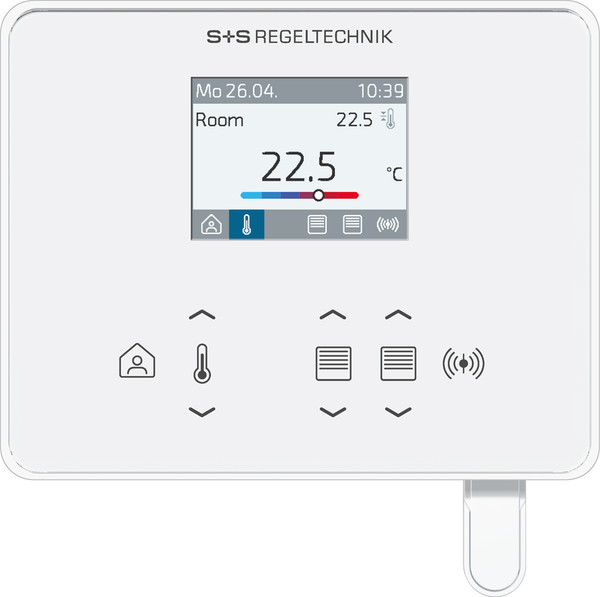

The Modbus communication interface or W-Modbus enables the continuous modification and monitoring of climate parameters on the controller via the BMS. In addition, sun protection (roller shutters, louvres) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as an option. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. For example, a window contact or a condensation monitor can be connected. This ensures that all options are available to flexibly and individually condition rooms.

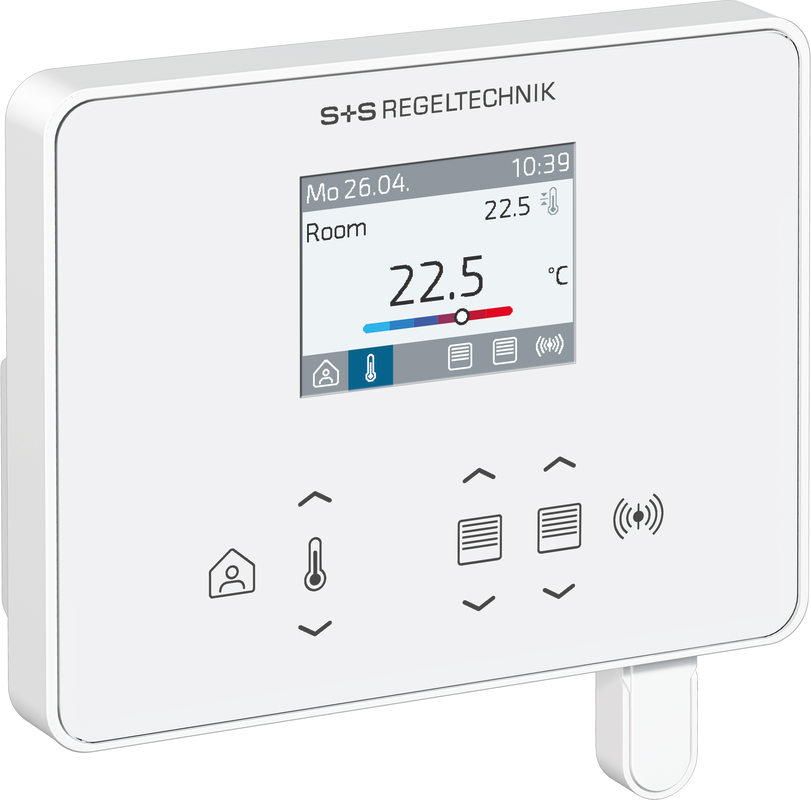

All device types are available in the timeless enclosure Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounting boxes.
