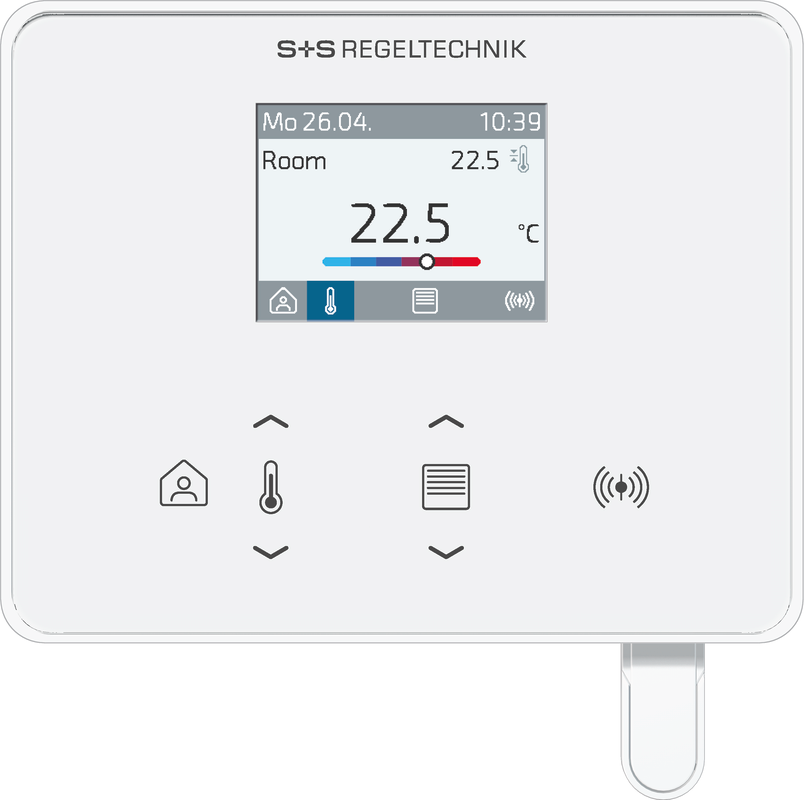

Room controller (controller) RYMASKON® RYM 1321C-RH-MOD-B

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its refined design, intuitive operation and the wide range of combination options of the individual components.

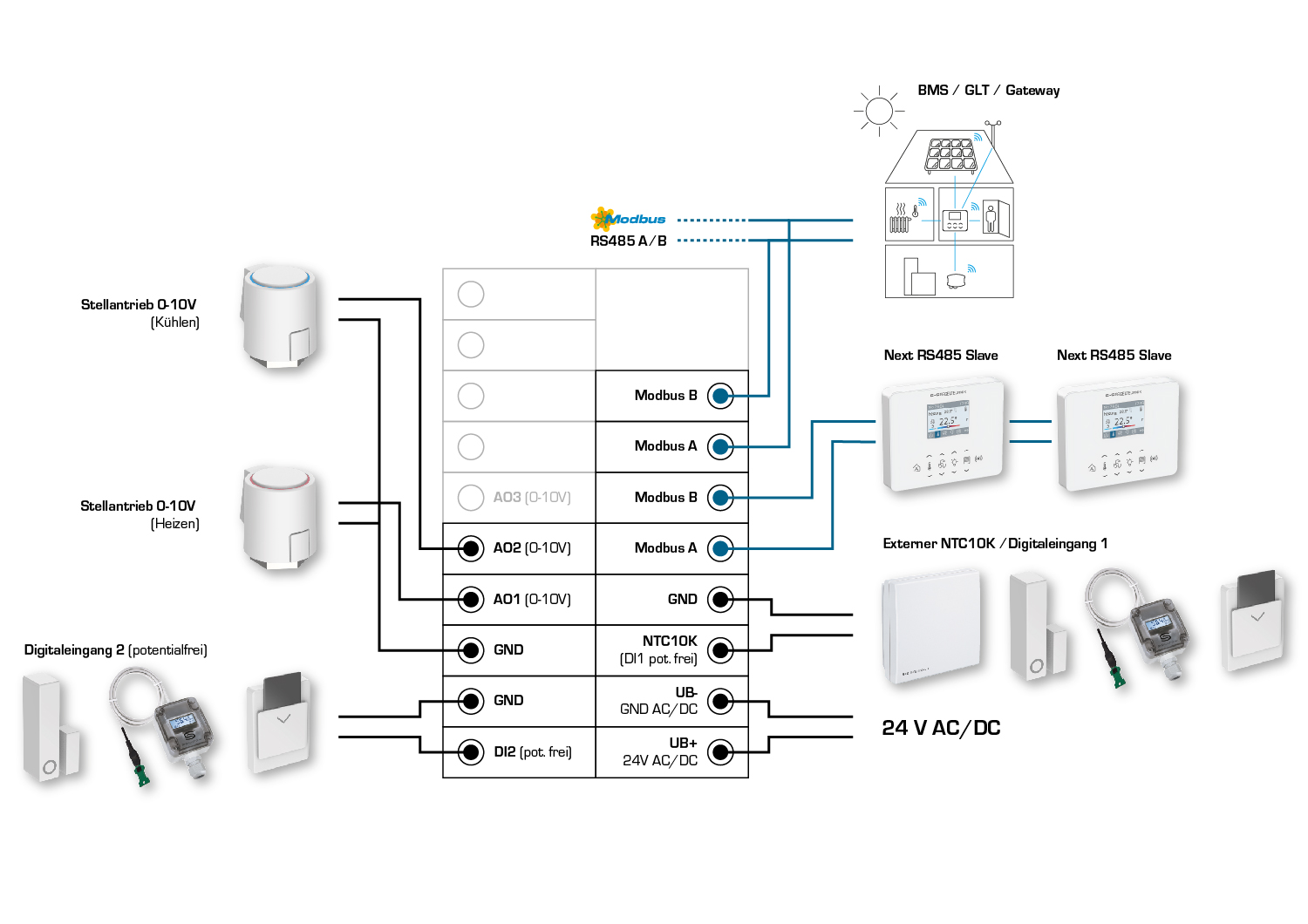

The room control devices Rymaskon® 1000 C (controllers) are used to control and regulate heating fan coils and blower fan coils (fan-coil units). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fan speeds or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

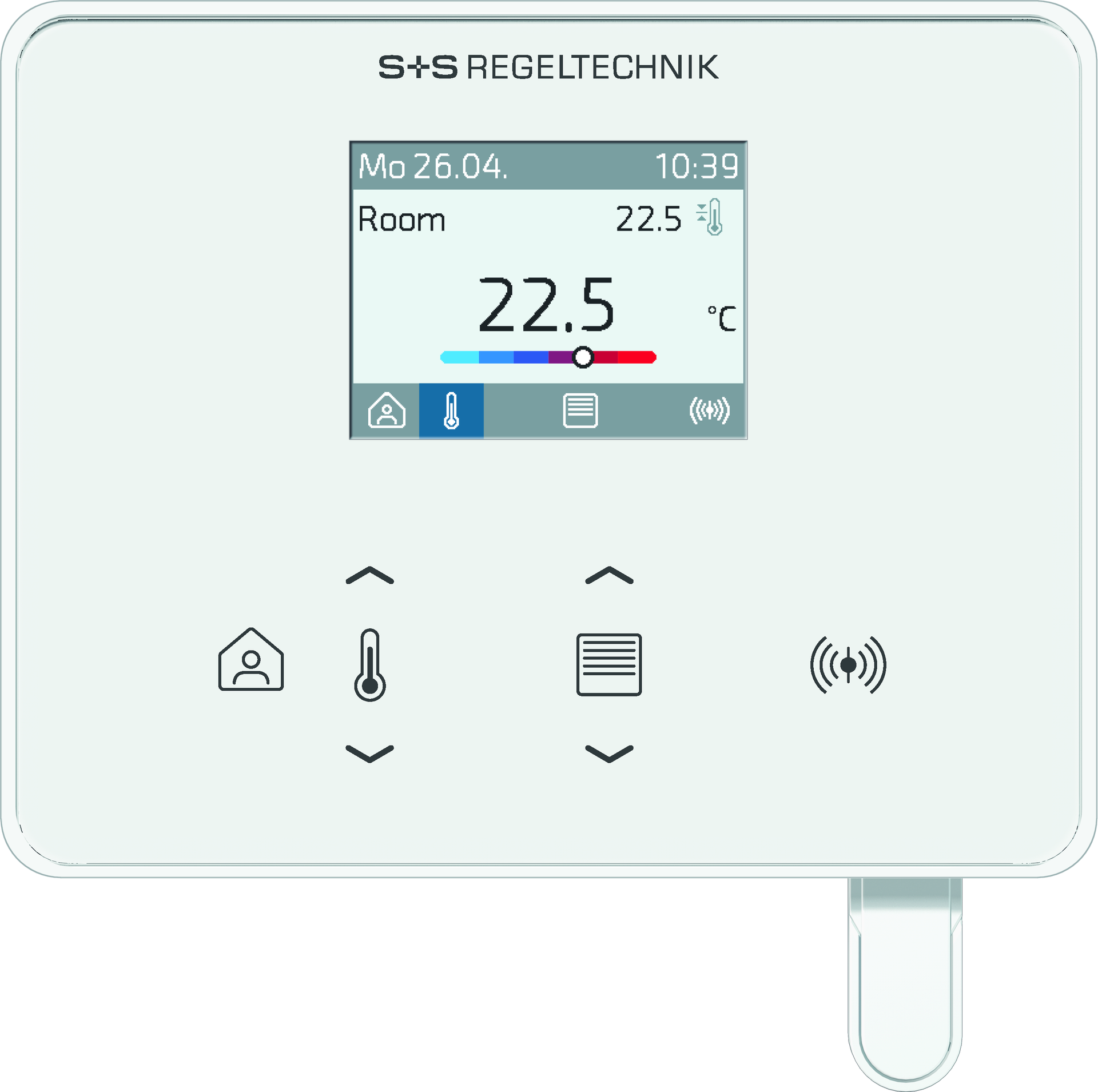

The Modbus communication interface or W-Modbus enables the continuous changing and monitoring of HVAC parameters on the controller via the BMS. In addition, the functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

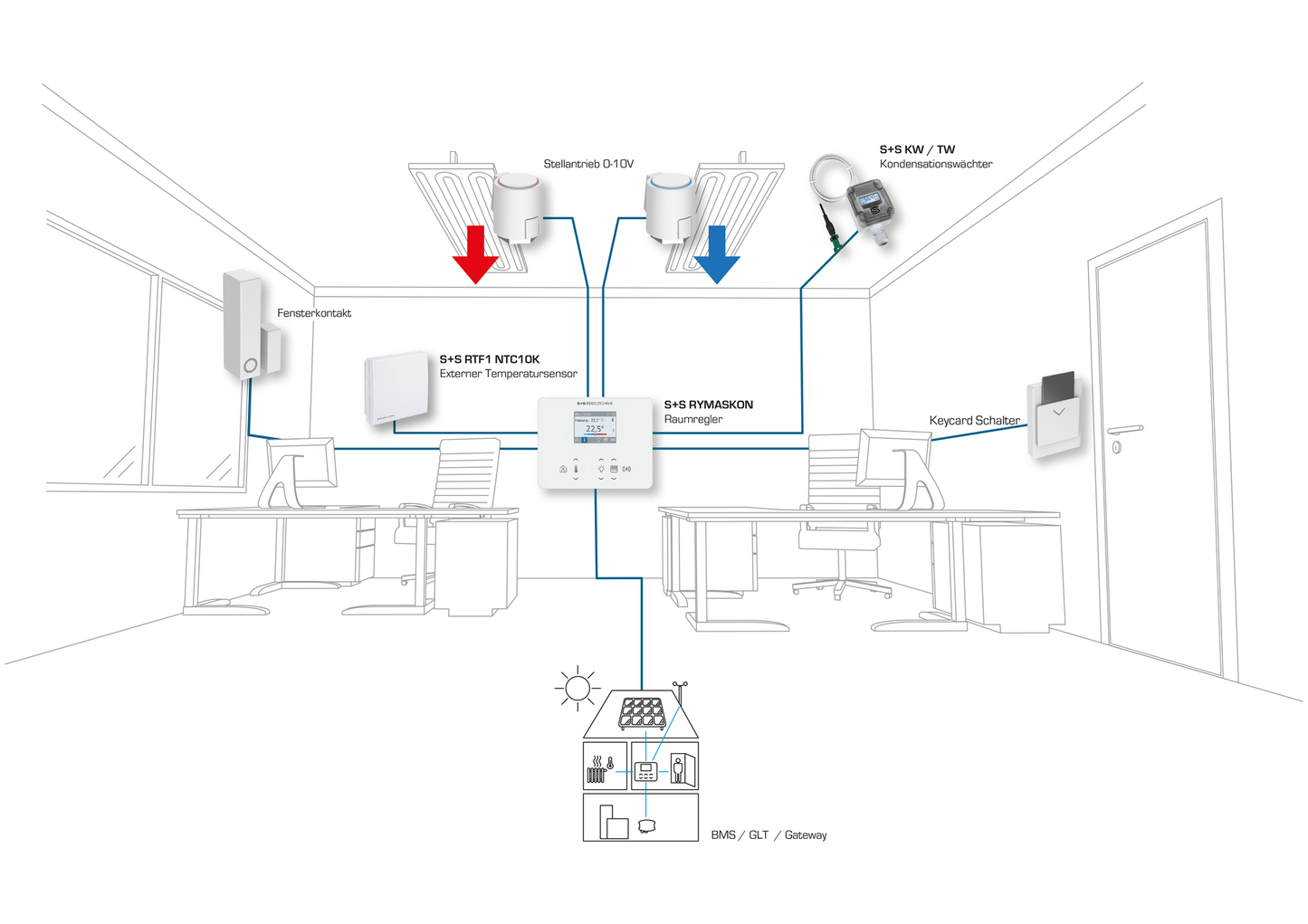

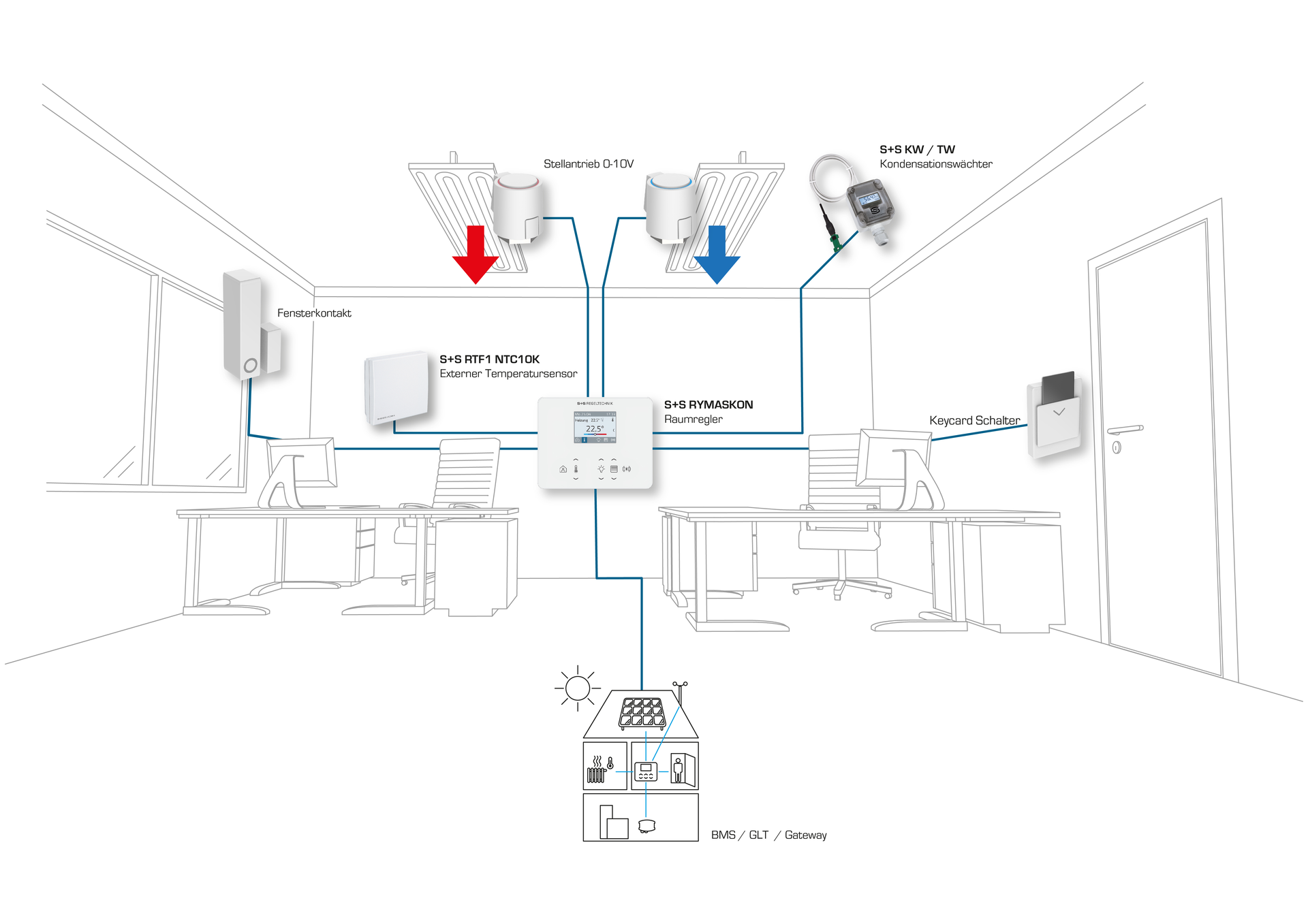

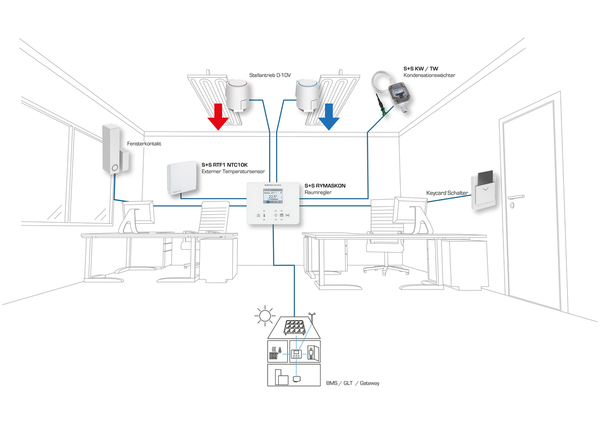

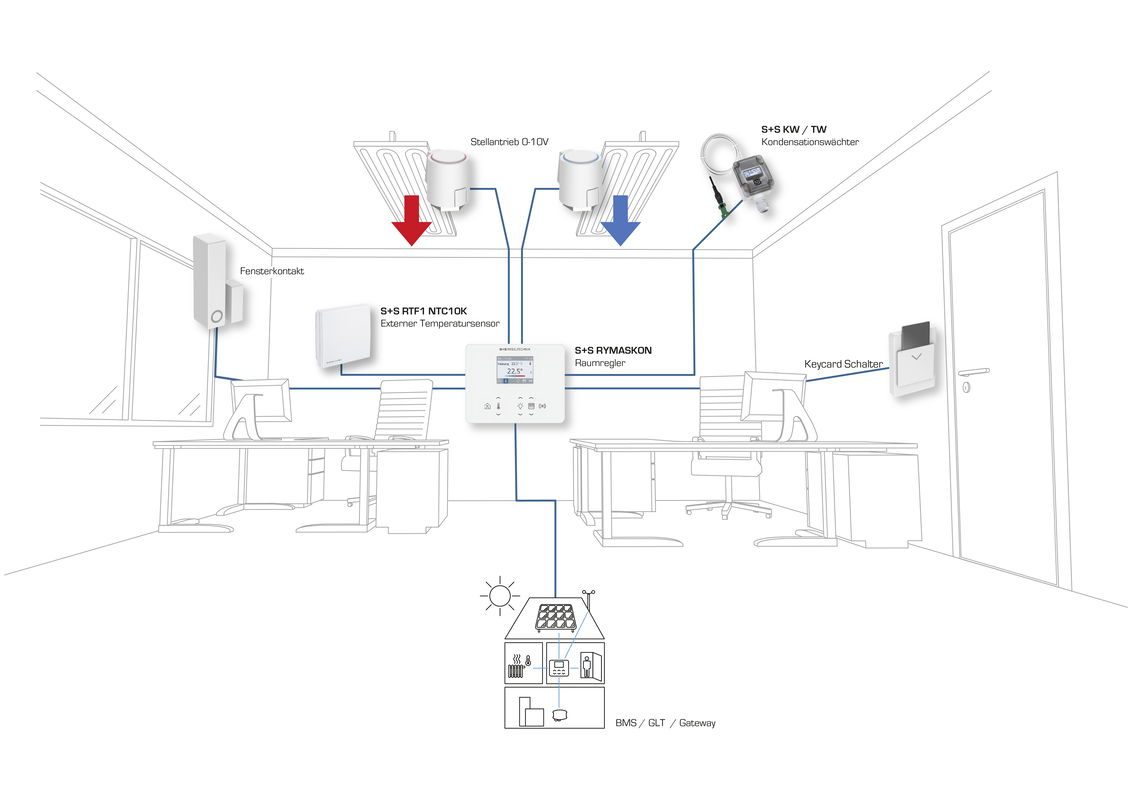

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. For example, a window contact or a condensation monitor can be connected. This ensures that all options are available to flexibly and individually condition rooms.

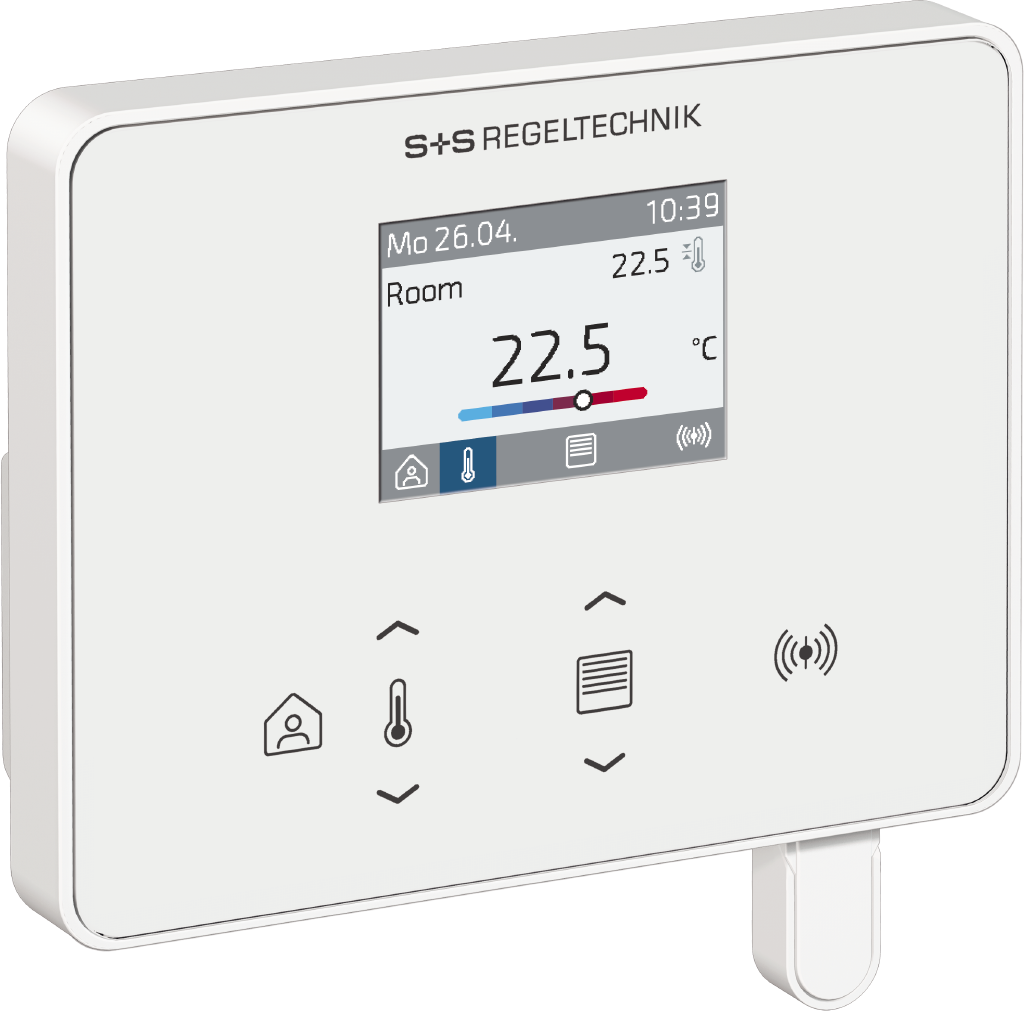

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
