Room controller (controller) RYMASKON® RYM 1321C-RH-MOD-BB

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 heating/cooling zones) in residential, hotel, and office rooms, and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the many combination options of the individual components.

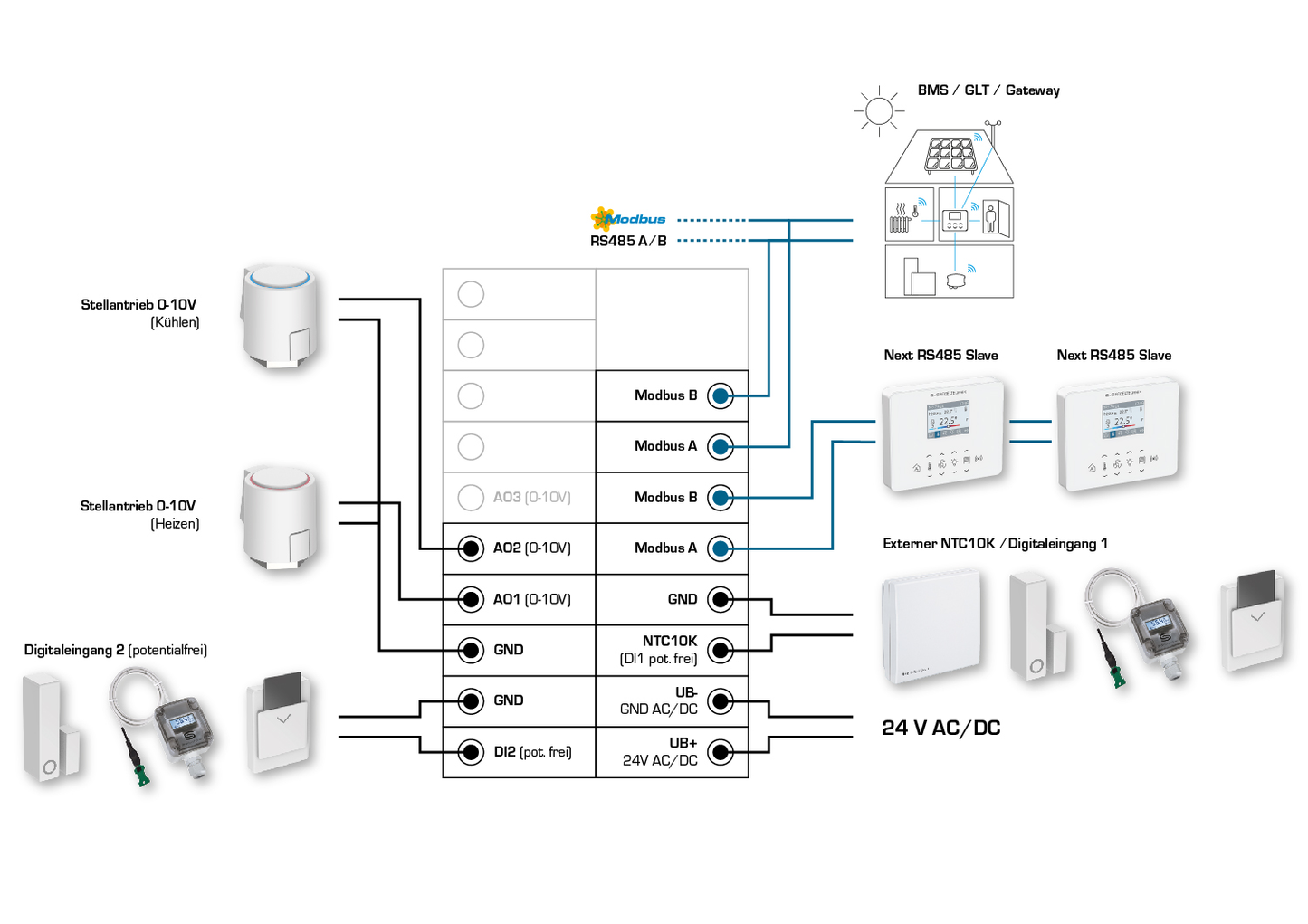

The room control units Rymaskon® 1000 C (controllers) are used to actuate and control heating fan convectors and fan convectors (fan coil units). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged fans, or EC fans. Actuation is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

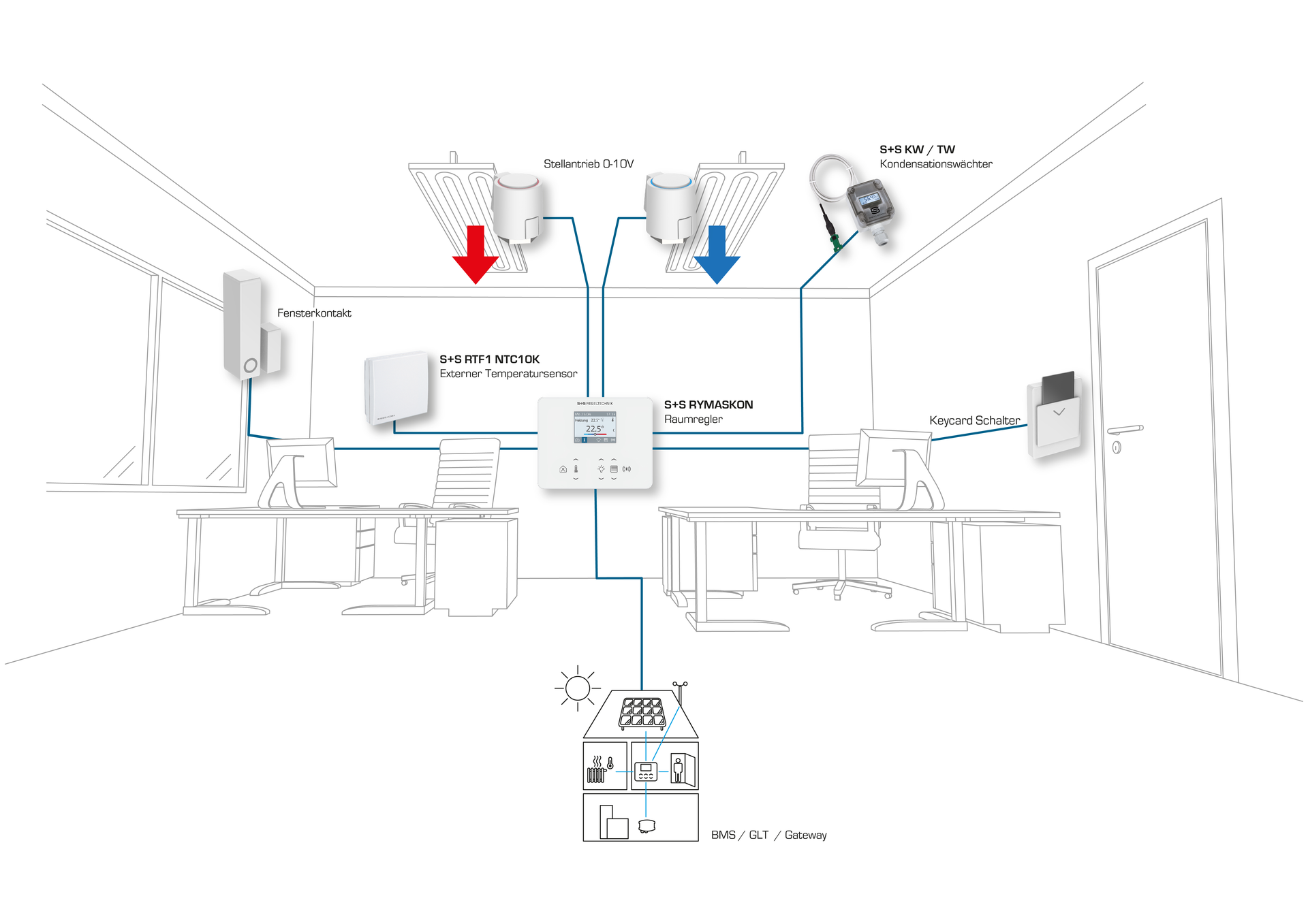

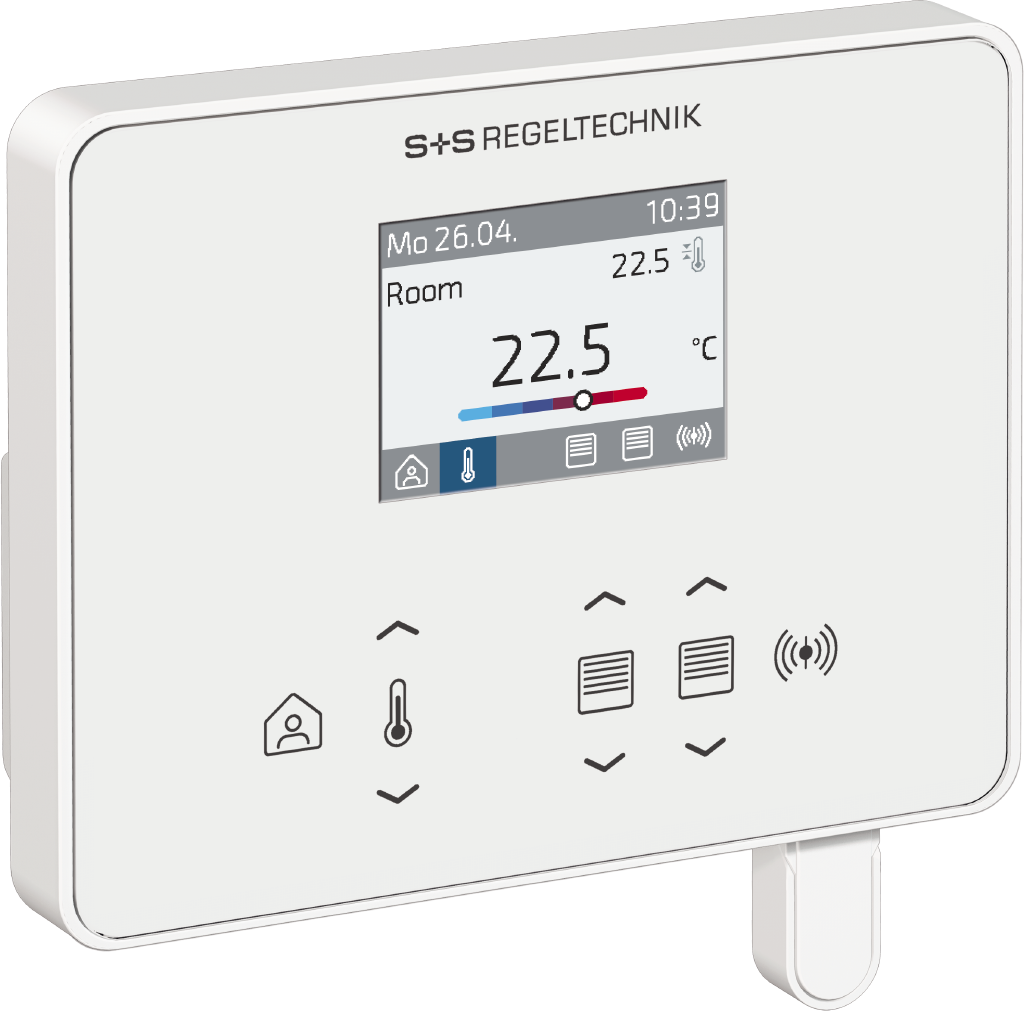

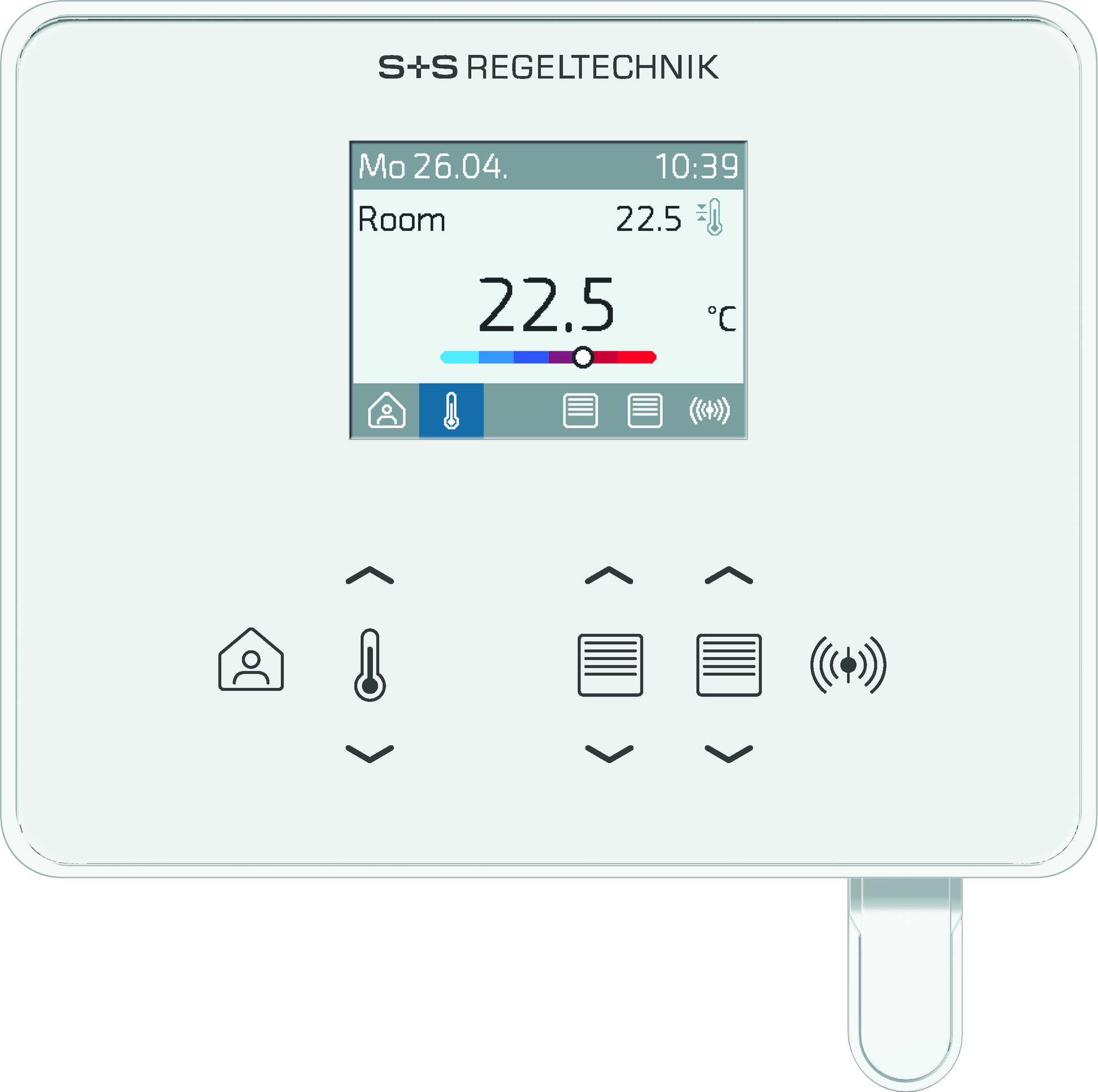

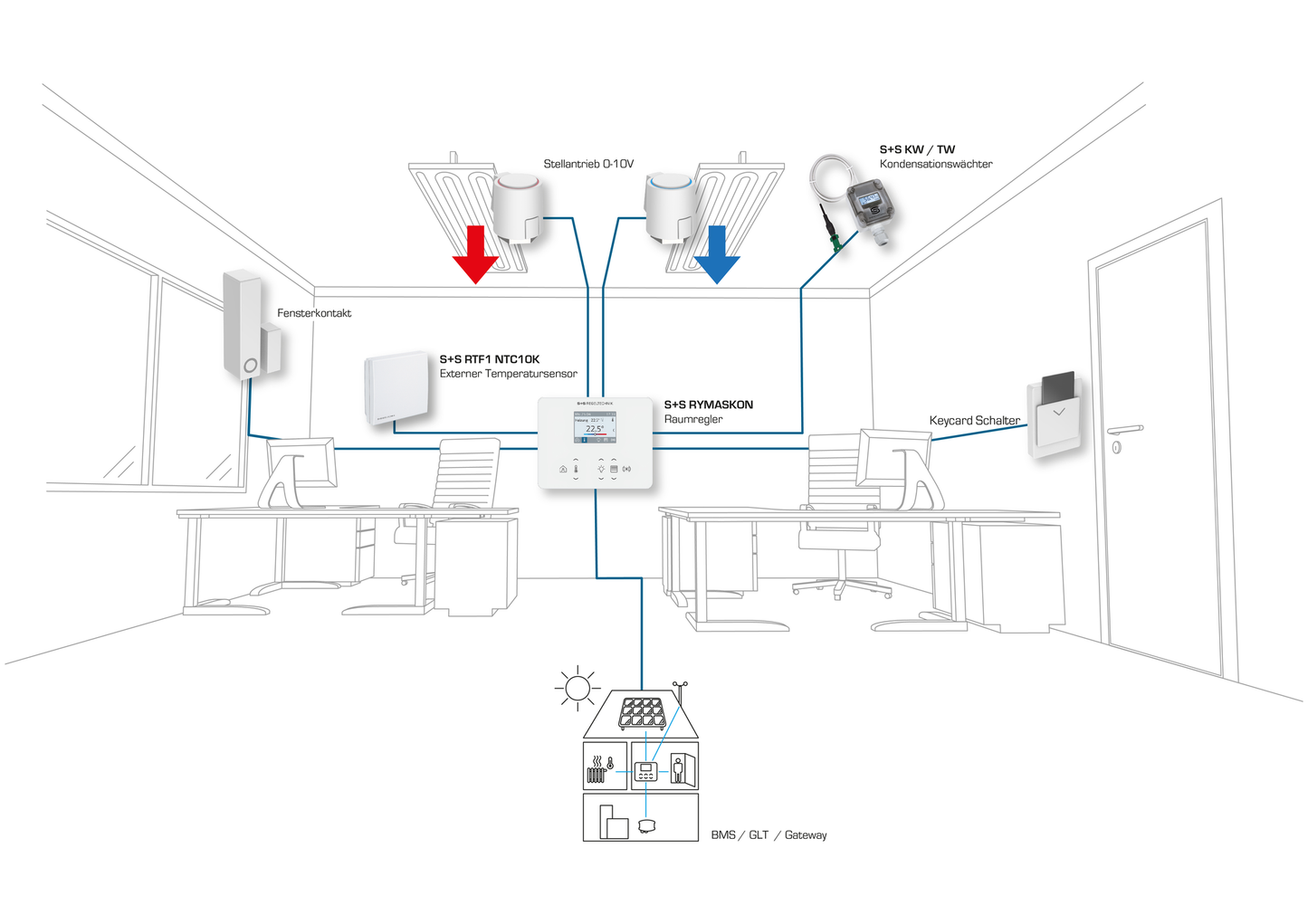

The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the HVAC parameters on the controller via the BMS. In addition, the functions sun protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. This provides all options to flexibly and individually condition the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounting boxes (flush mounting plates).
