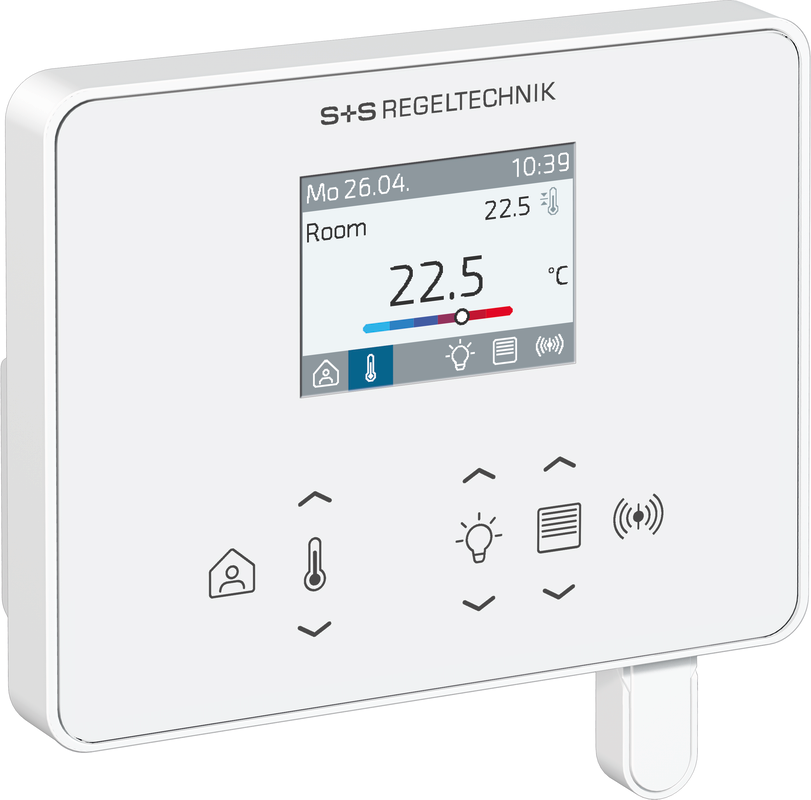

Room controller (controller) RYMASKON® RYM 1321C-RH-MOD-BL

The room operating devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office premises and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the wide range of combination options offered by the individual components.

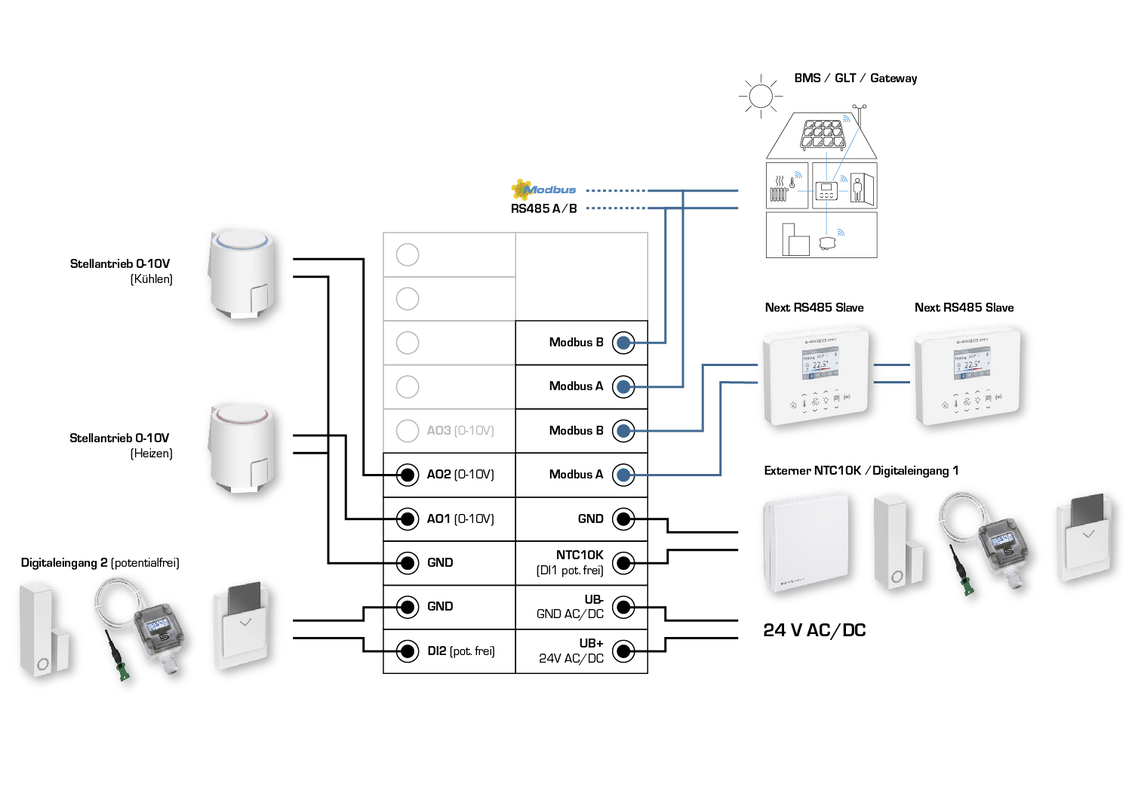

The room operating devices Rymaskon® 1000 C (controller) are used to actuate and control heating fan convectors and cooling fan convectors (fan coil units). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. Actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

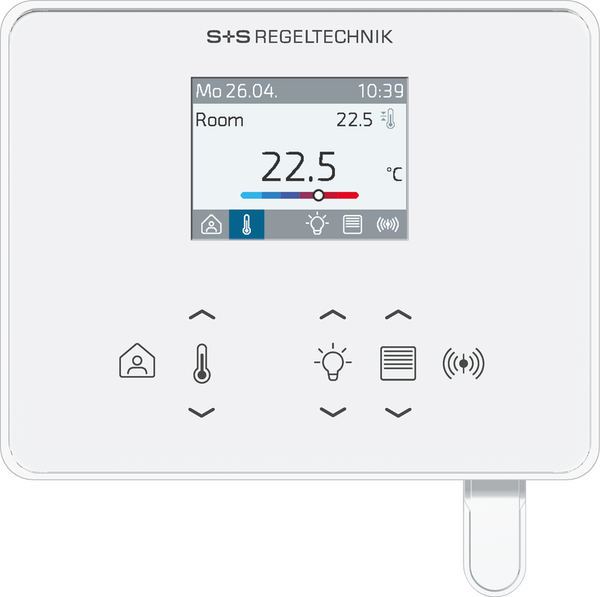

The Modbus communication interface or W-Modbus enables the controller to change and monitor the HVAC parameters at any time via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (Touchkeys).

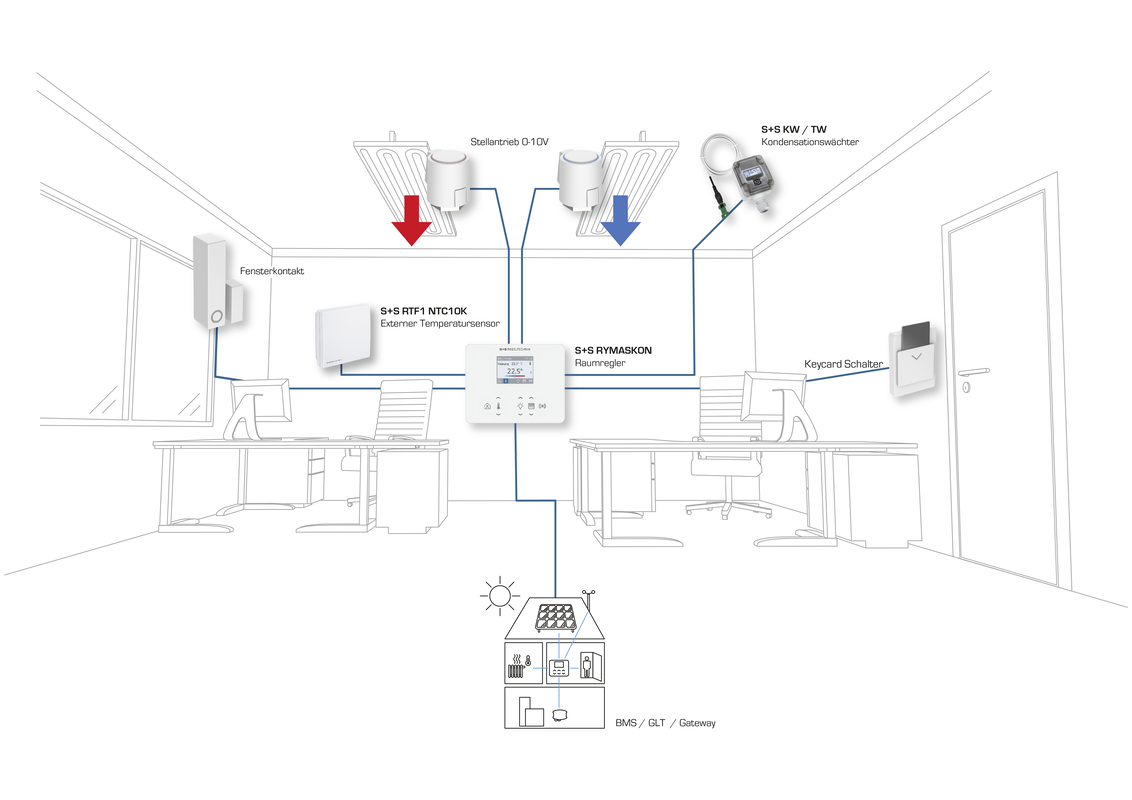

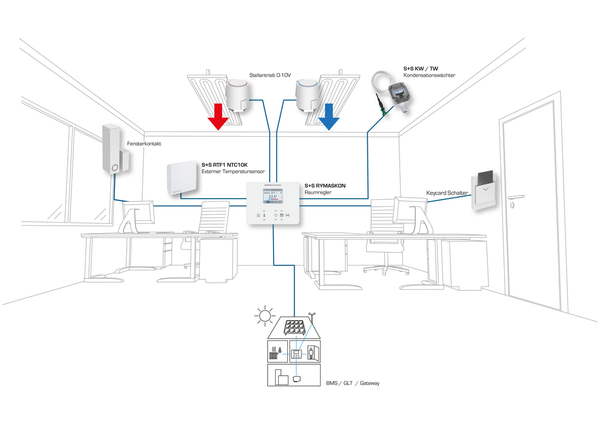

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. This means that all options are available to flexibly and individually condition the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounting boxes.
