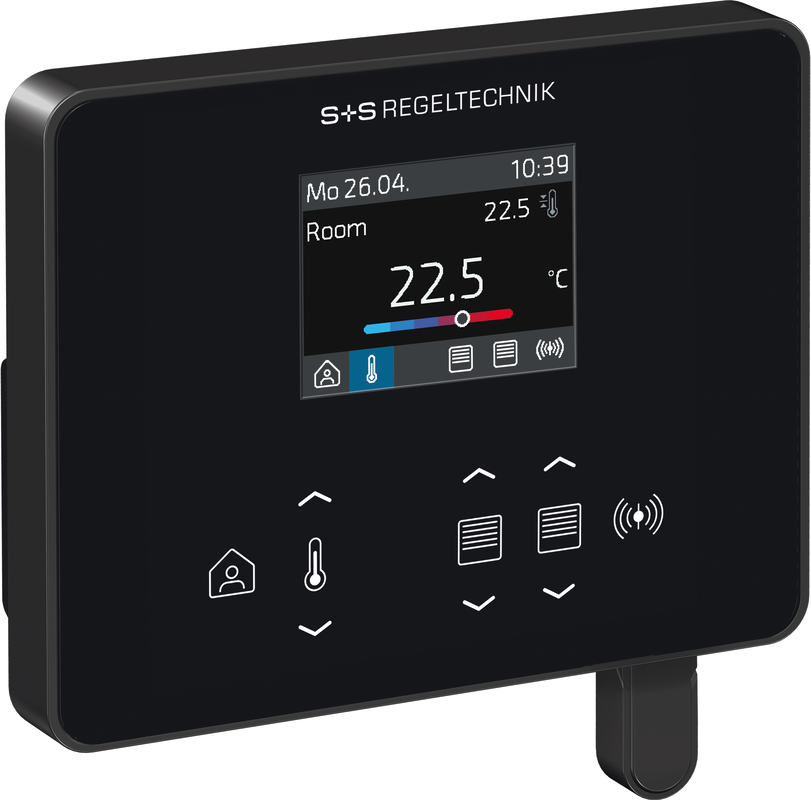

Room controller (controller) RYMASKON® RYM 1322C-RH-CO2-MOD-BB

The room operating devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and ventilation stages of the interior space. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the many combination possibilities of the individual components.

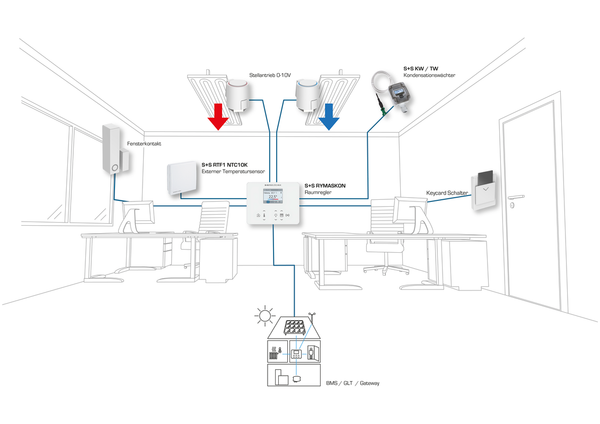

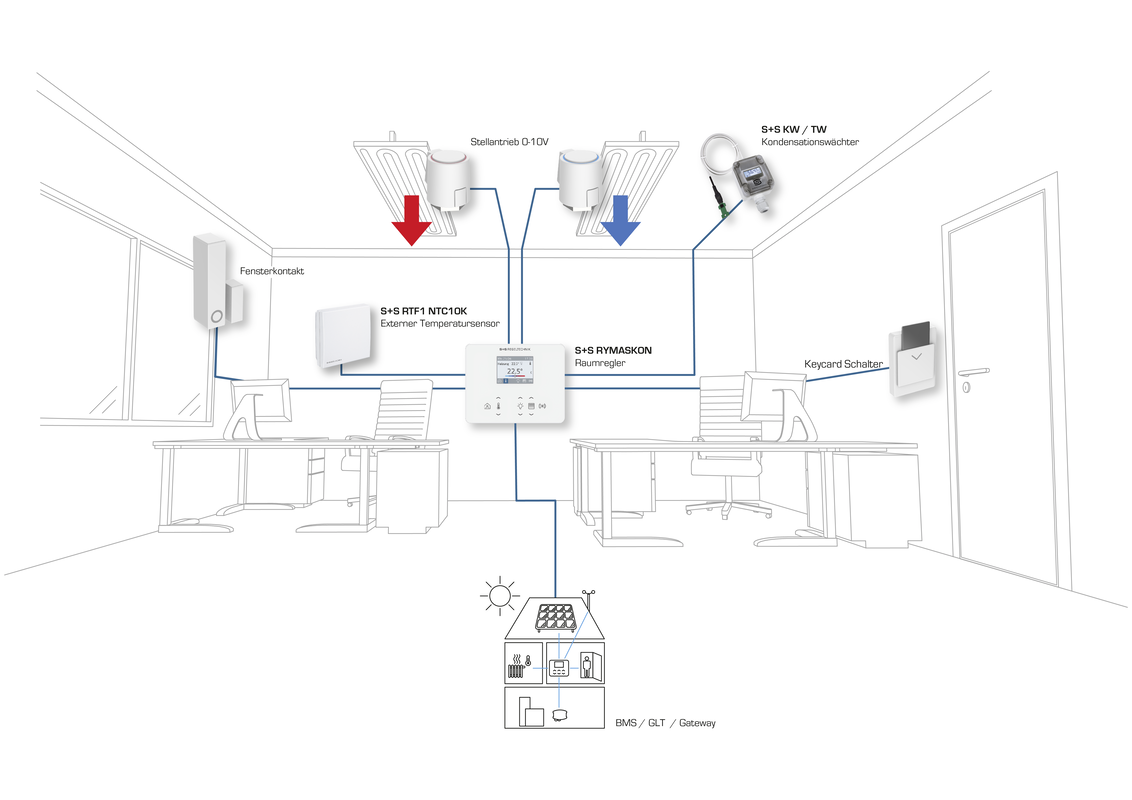

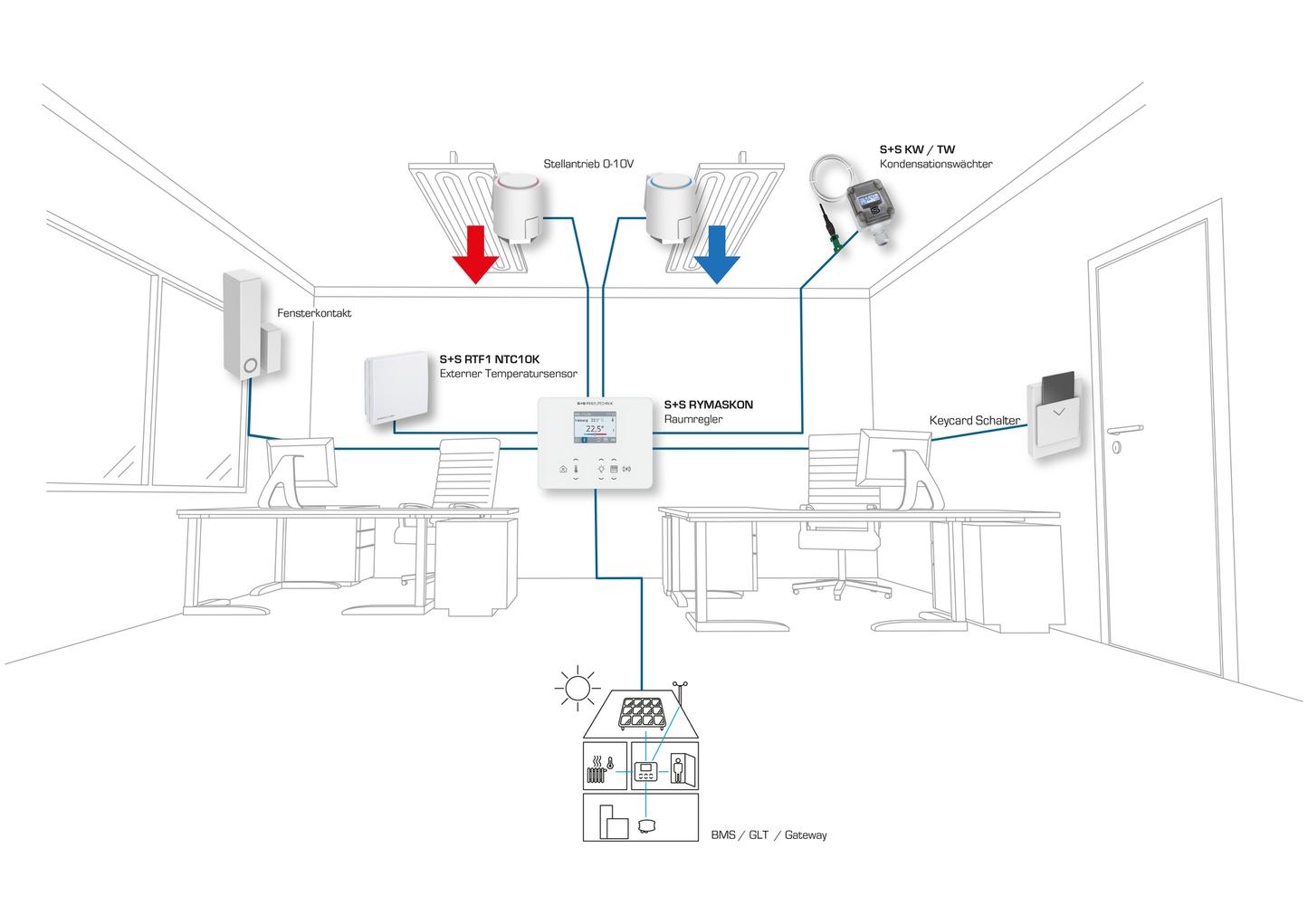

The room operating devices Rymaskon® 1000 C (controllers) are used to control and regulate heating fan convectors and blower fan convectors (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) and with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped vent fans, or EC fans. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

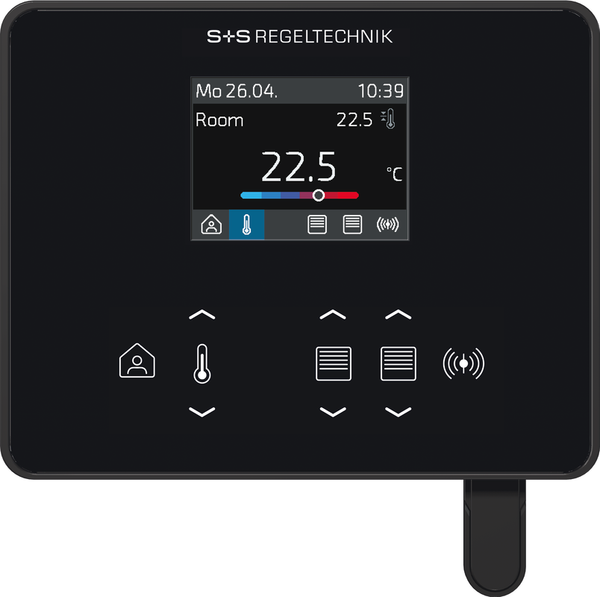

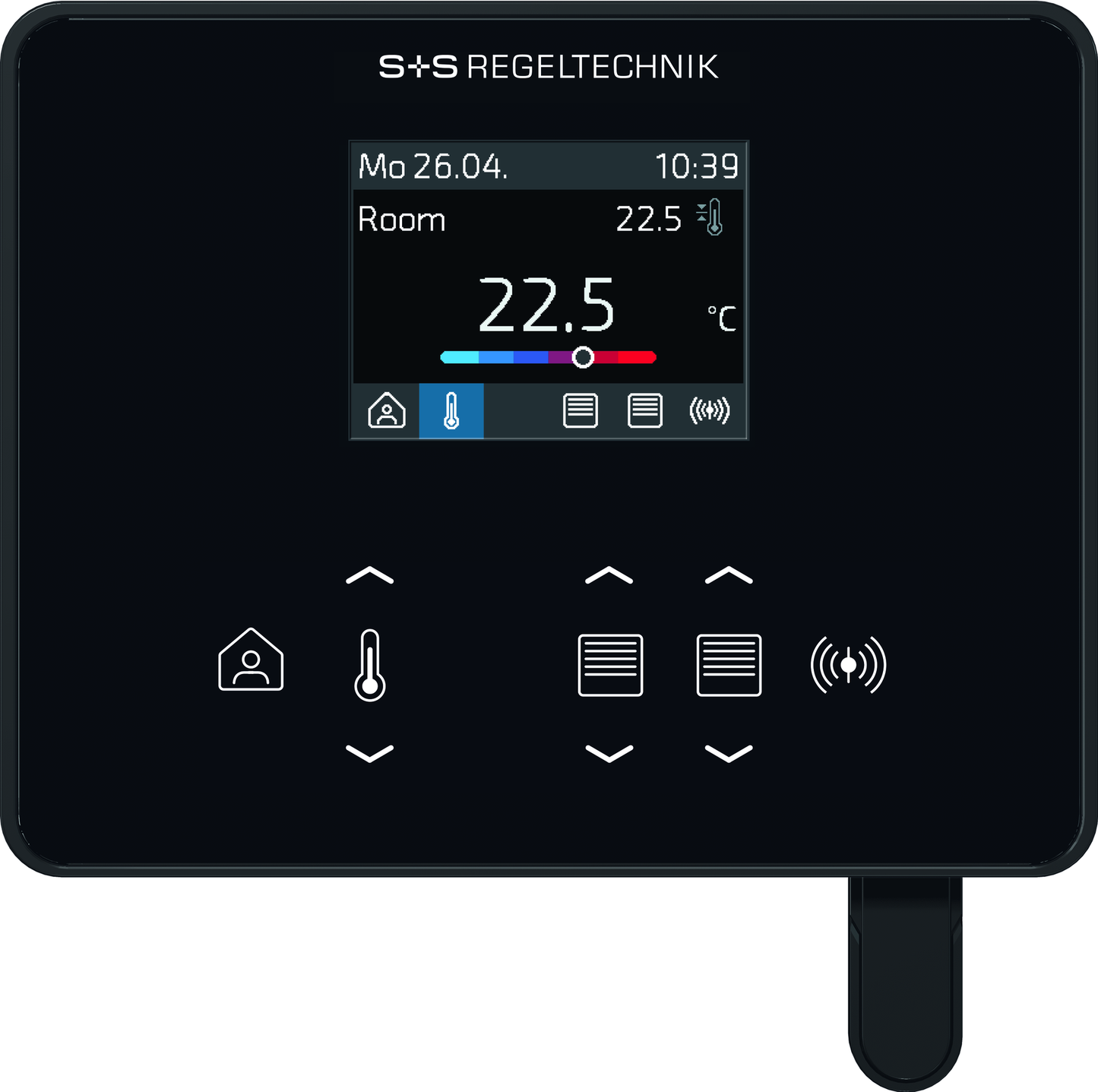

The Modbus communication interface or W-Modbus enables any time the modification and monitoring of climate parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is via a 2" TFT display; operation is via capacitive keys (touchkeys).

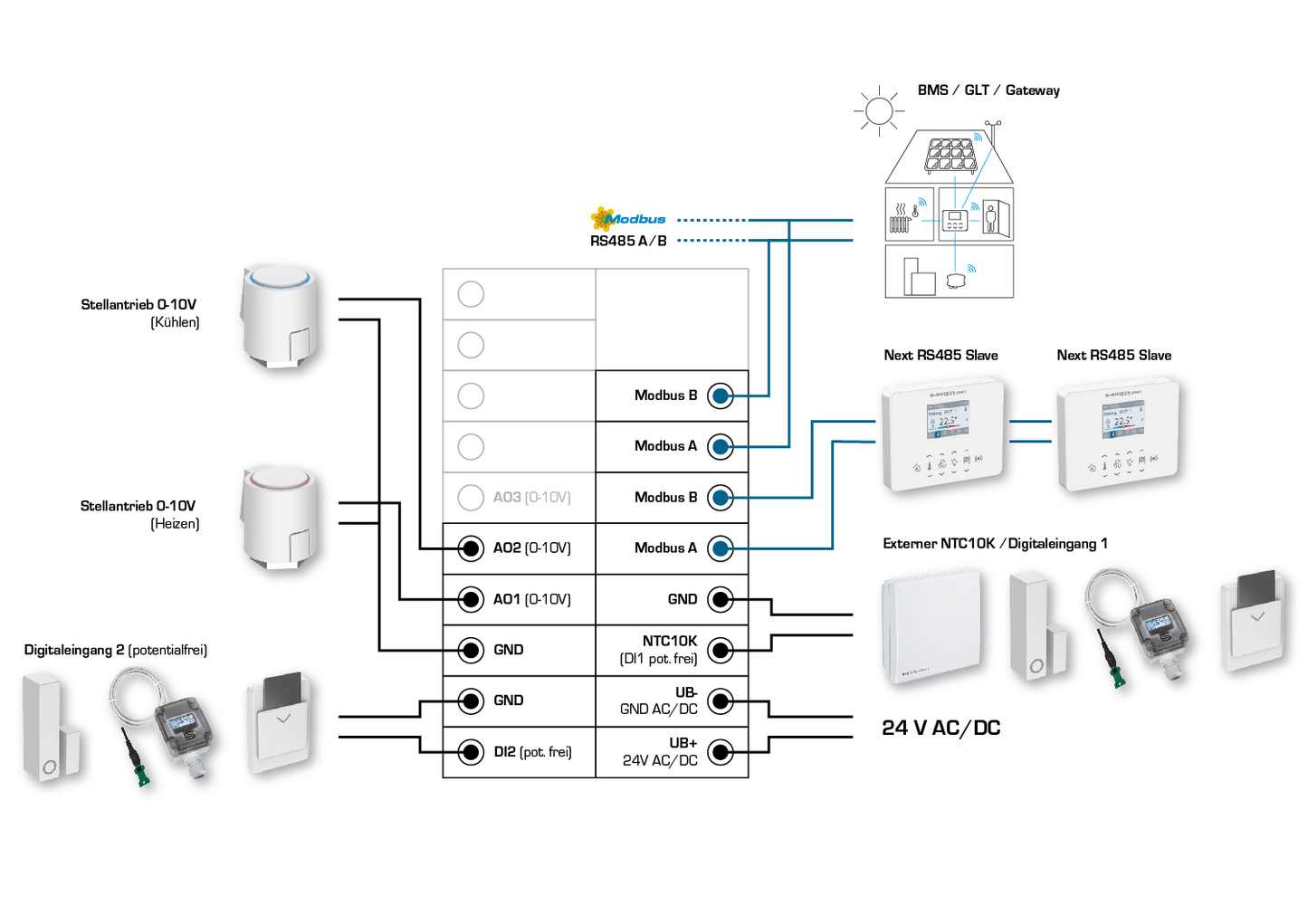

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K), and an input is available for a potential-free contact. This allows, for example, connecting a window contact or a condensate alarm. This provides all the possibilities to flexibly and individually climate-control rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is carried out on standard flush-mount junction boxes.
