Room controller (controller) RYMASKON® RYM 1322C-RH-MOD

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and they individually regulate the heating, cooling and fan stages of the indoor area. The controller variants can be operated as stand-alone units via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

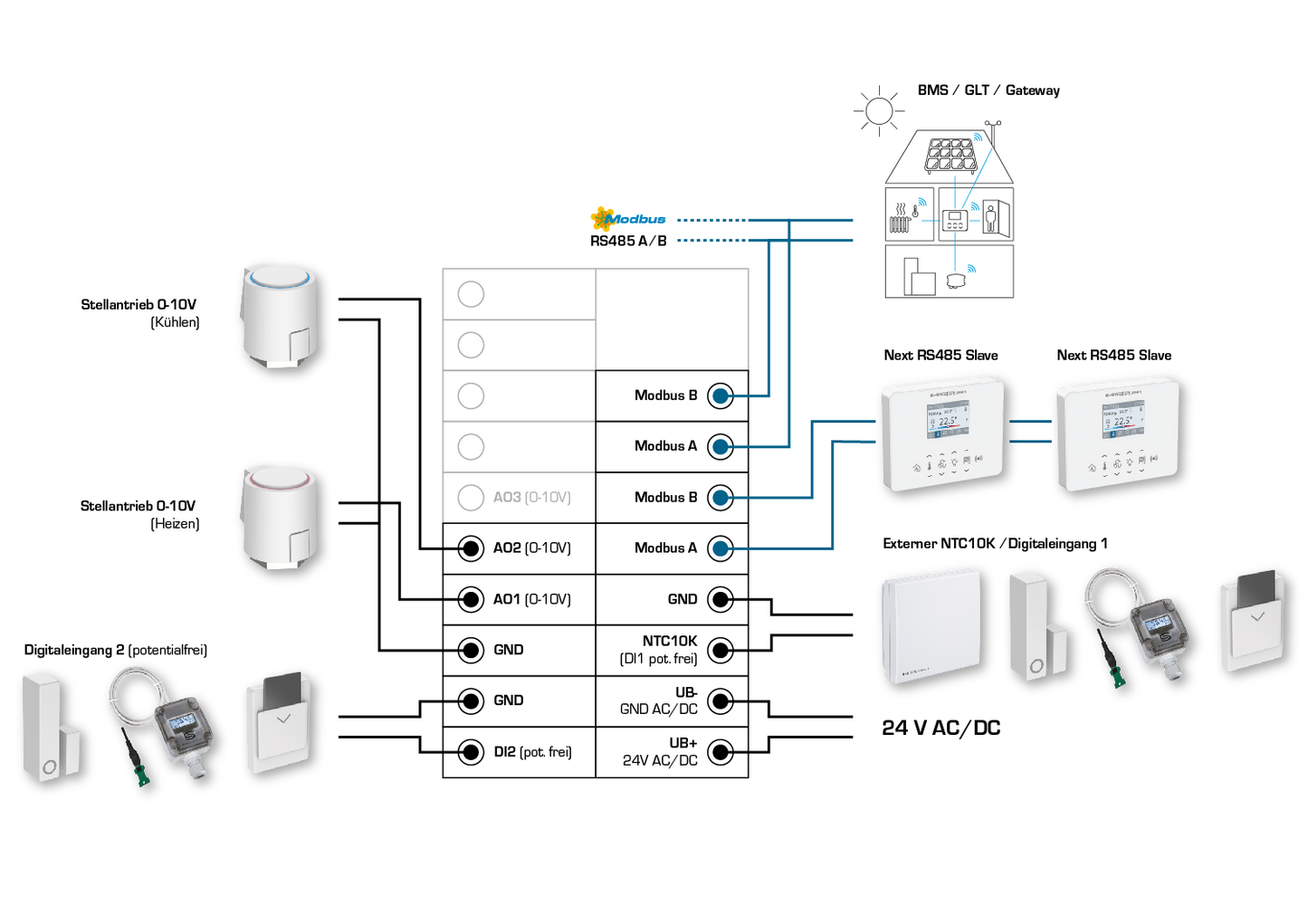

The room control devices Rymaskon® 1000 C (controllers) are used to actuate and control heating fan coil units and fan coil units (fancoils). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs for actuating heating valves, cooling valves, 6-way valves, staged fans or EC fans. Actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

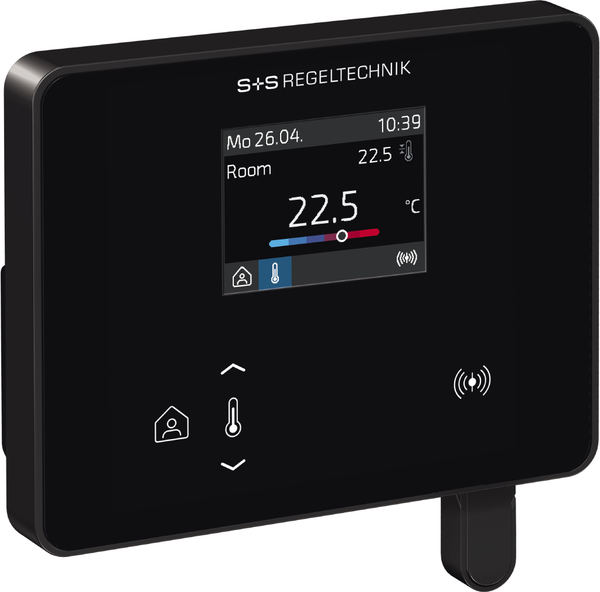

The Modbus communication interface or W-Modbus enables the adjustment and monitoring of the HVAC parameters on the controller at any time via the BMS (building management system). In addition, the functions for solar shading (retractable awnings/roller blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive keys (touchkeys).

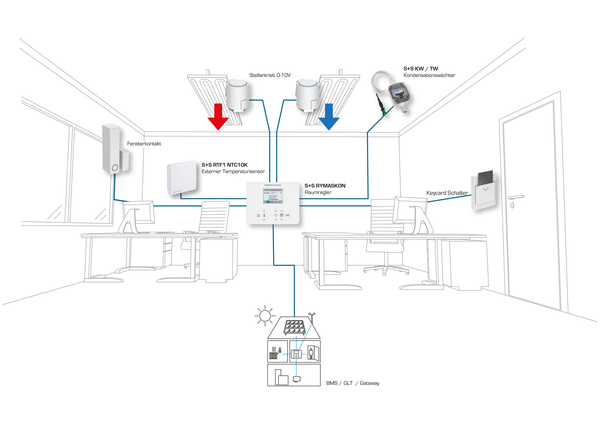

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to climate-control rooms flexibly and individually.
All unit types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
