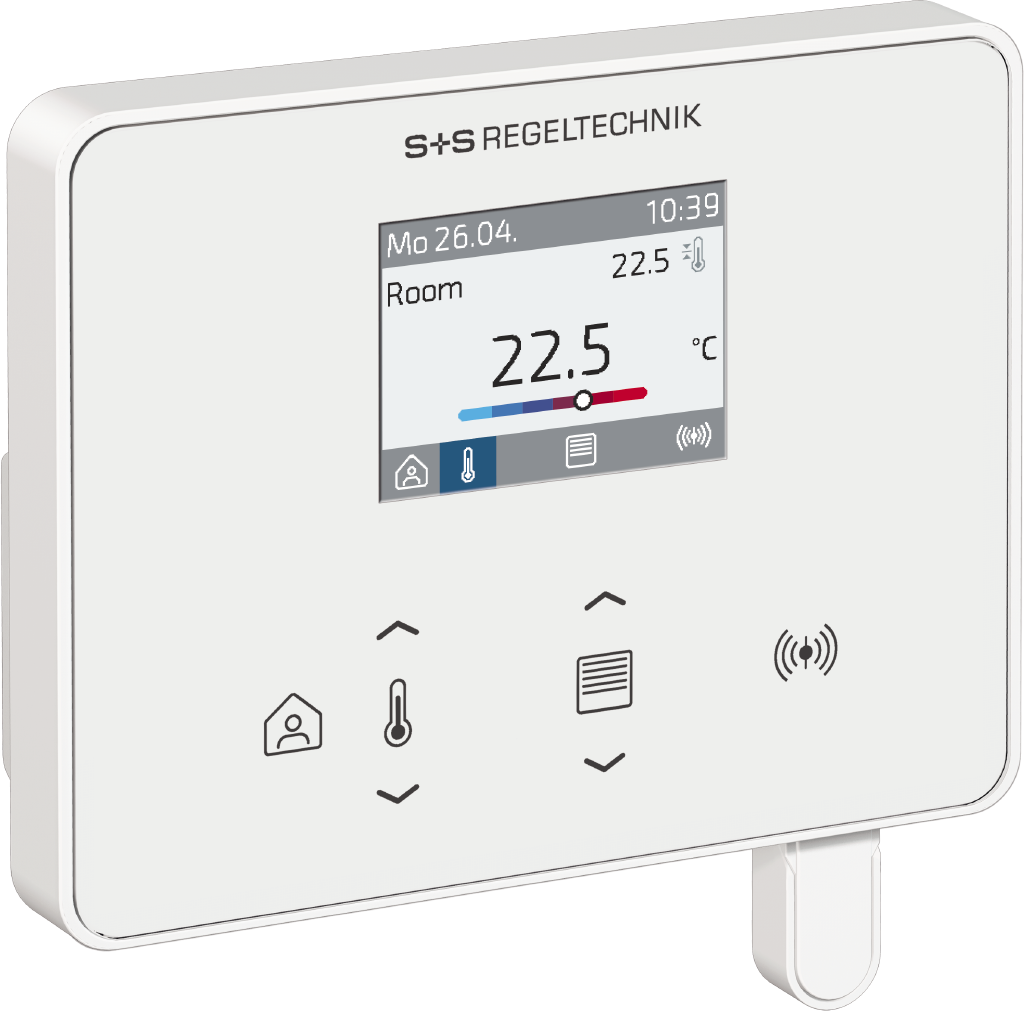

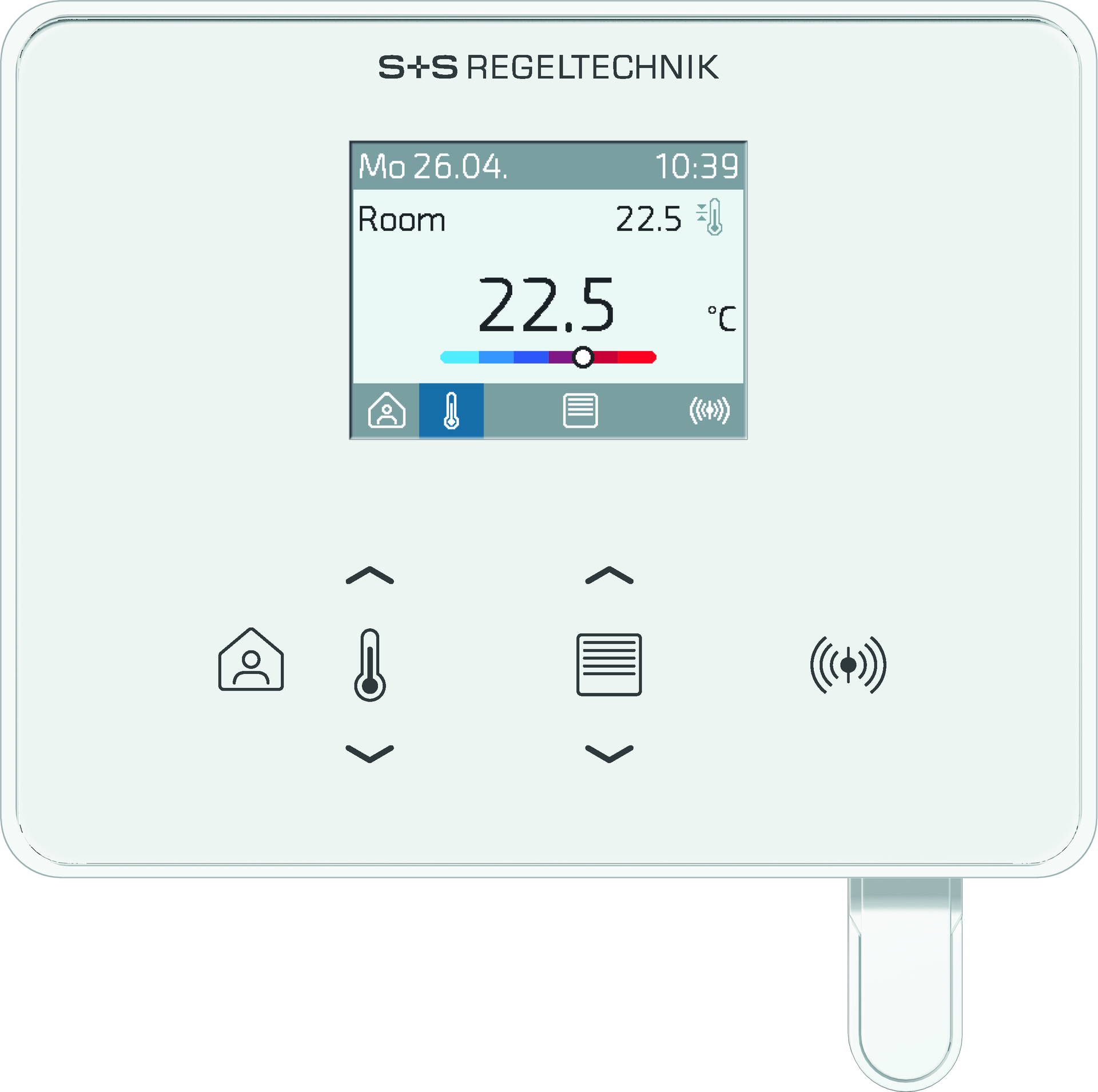

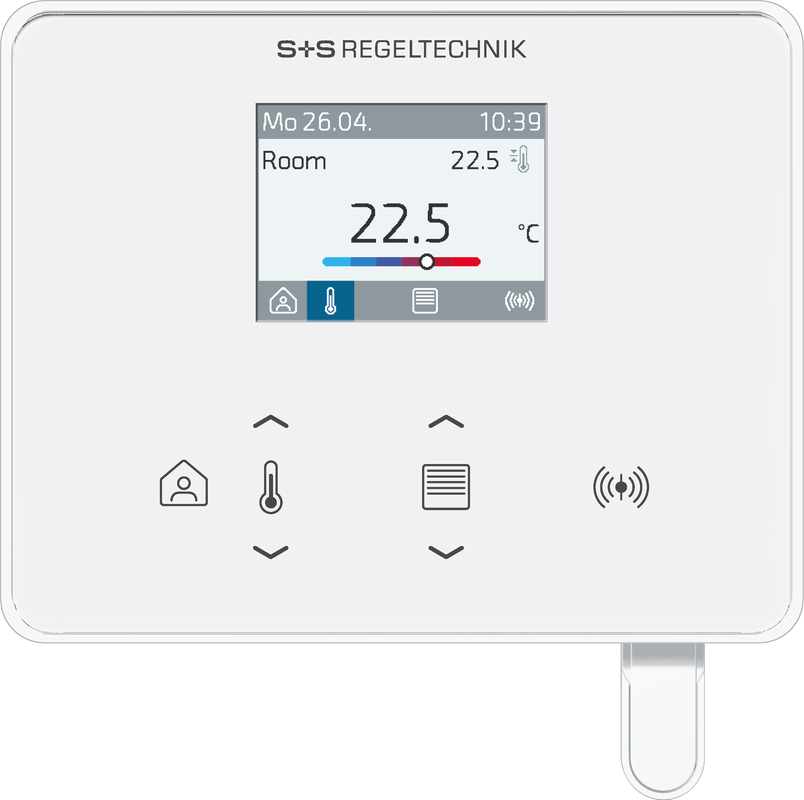

Room controller (controller) RYMASKON® RYM 1361C-RH-MOD-B

The room controller devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office spaces, and individually control the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.
The room controller Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and blowers fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) and with digital/relay outputs, for driving heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

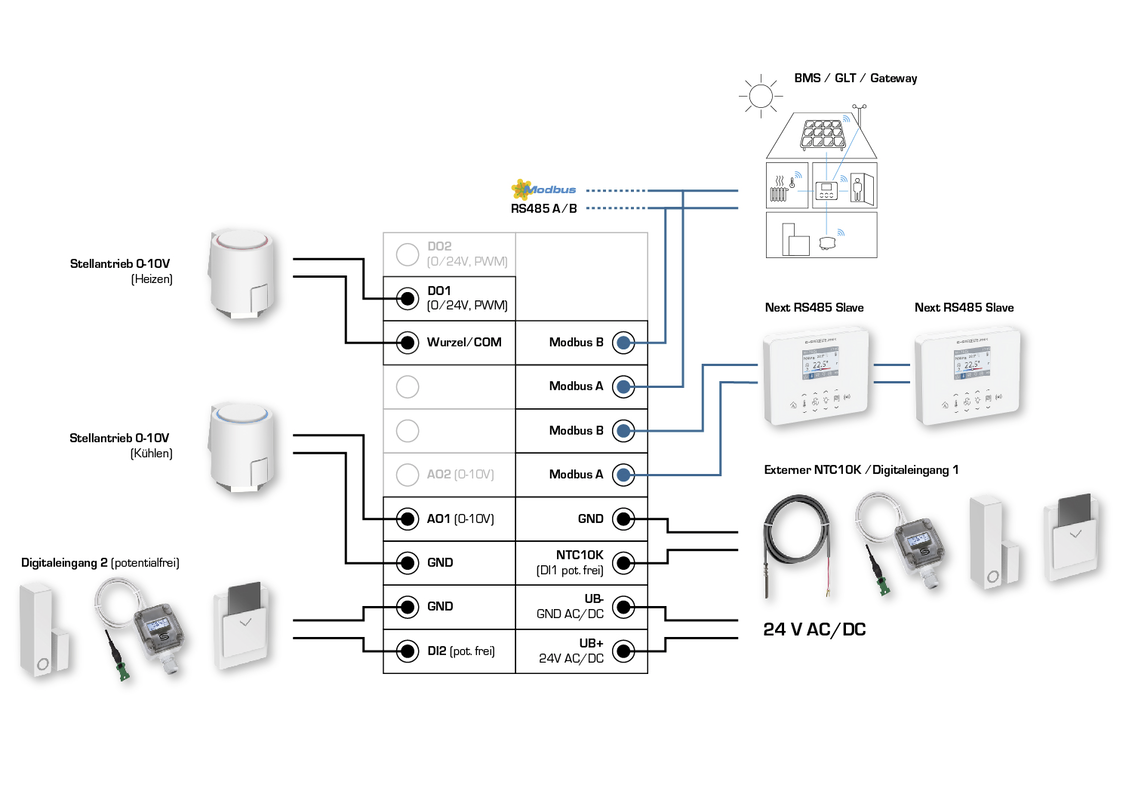

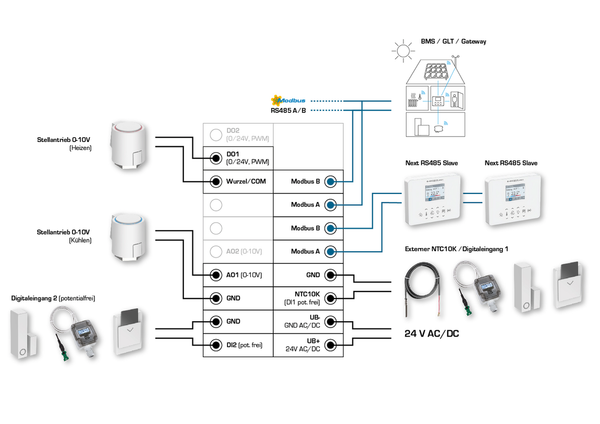

The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the HVAC parameters on the controller via the BMS (GLT). In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to climate-control rooms flexibly and individually.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mount back boxes.
