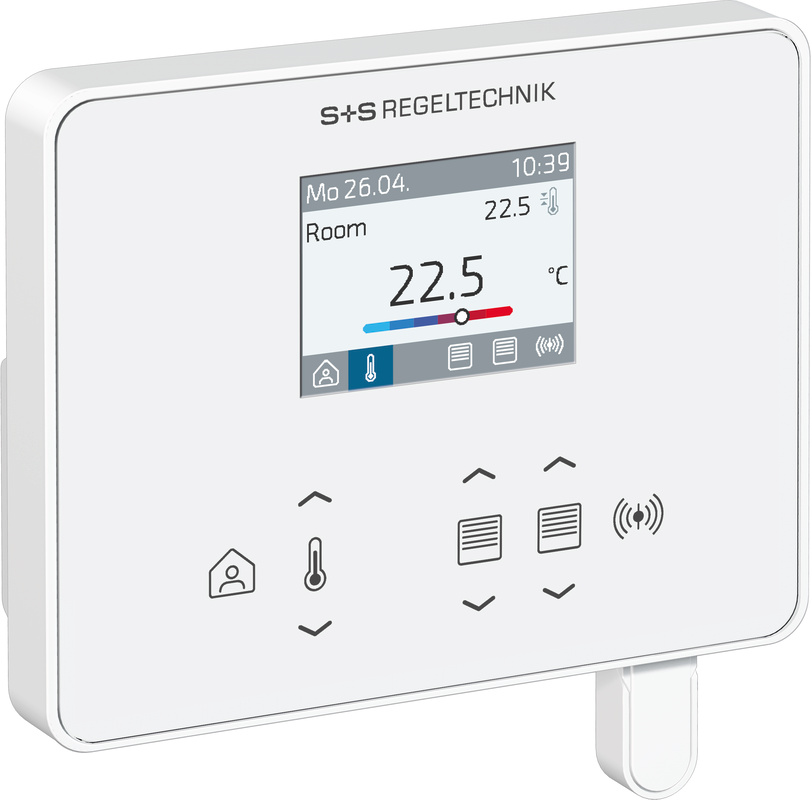

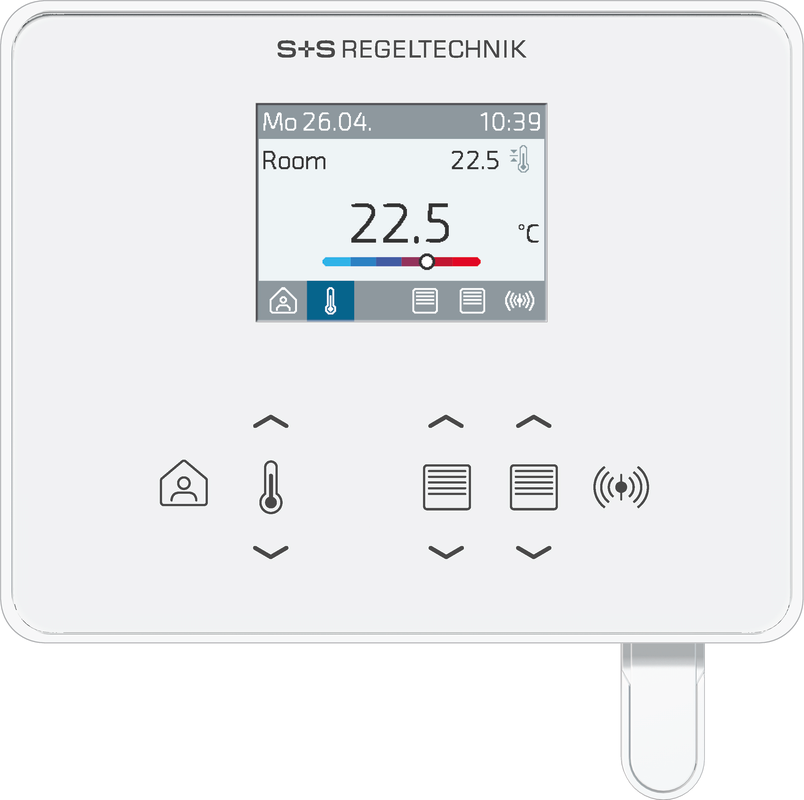

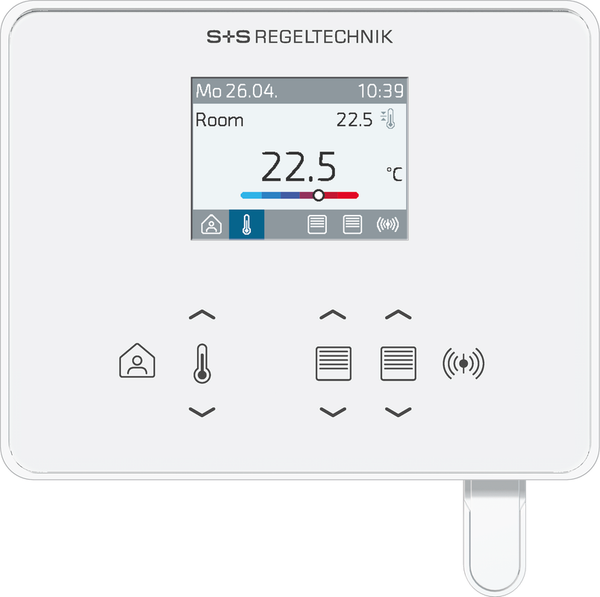

Room controller (controller) RYMASKON® RYM 1361C-RH-MOD-BB

The room operating devices of the Rymaskon® 1000 series are designed for controlling (up to 2 cooling/heating zones) in residential, hotel and office rooms, and individually control the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation and the many combination options of the individual components.

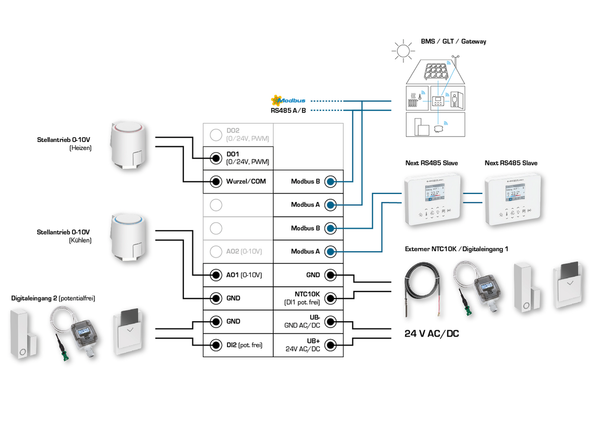

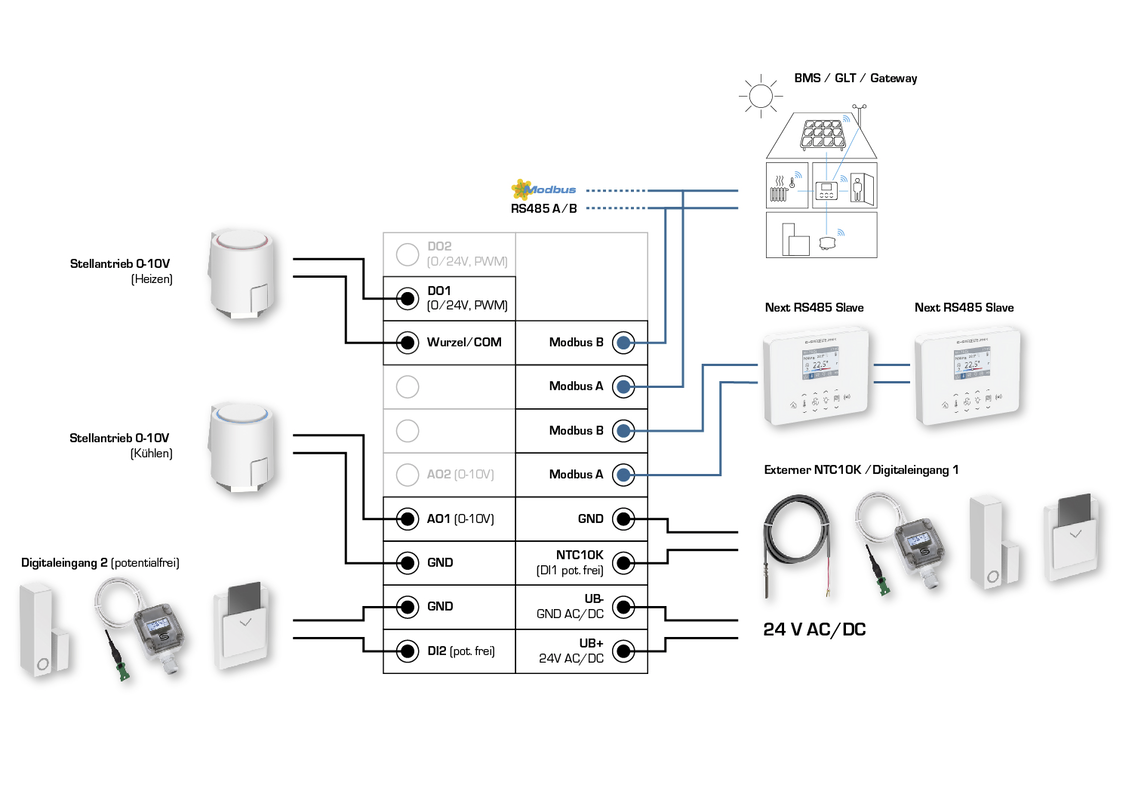

The room operating devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and fan convectors (fancoil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, stepped fans or EC fans. The control is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the configuration and monitoring of the climate parameters on the controller at any time via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display; operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation alarm. This ensures that all options are available to flexibly and individually condition rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes (standard recessed back boxes).
