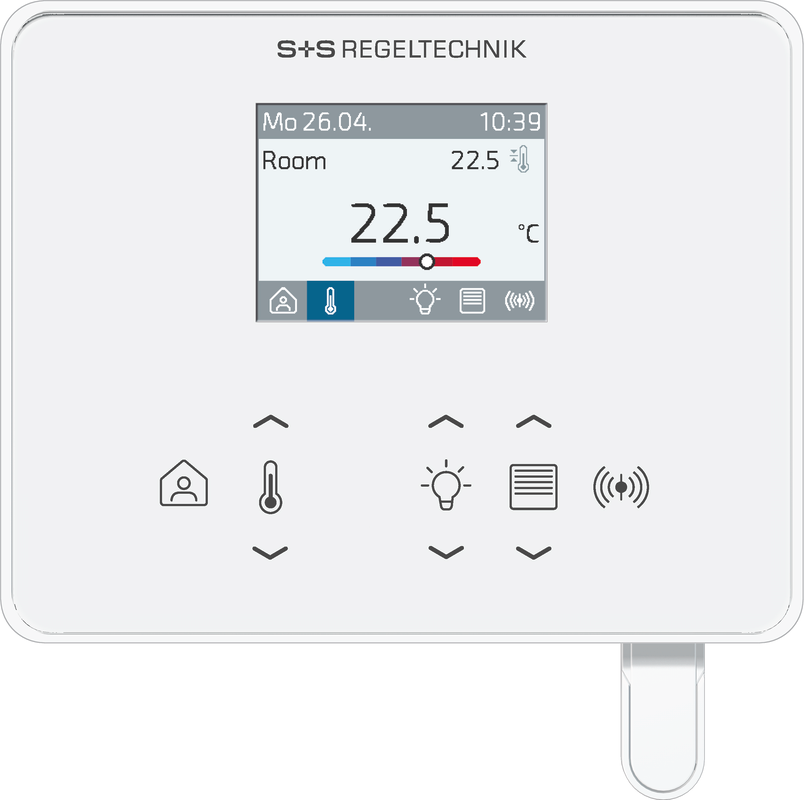

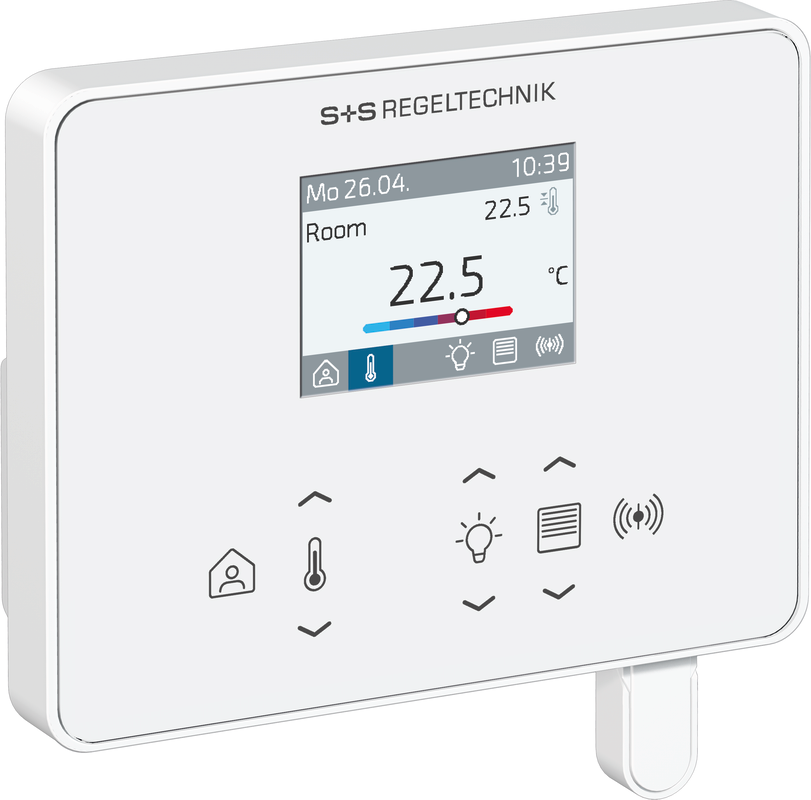

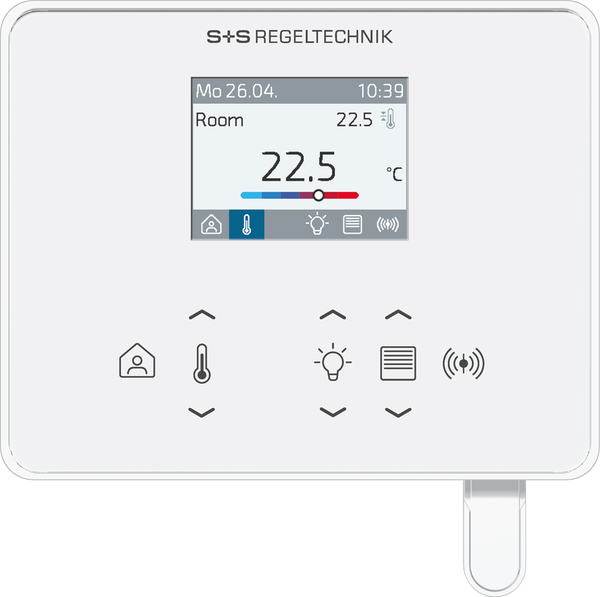

Room controller (controller) RYMASKON® RYM 1361C-RH-MOD-BL

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 heating/cooling zones) in residential, hotel and office rooms, and individually control the heating, cooling and fan stages of the indoor area. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation, and the many possible combinations of the individual components.

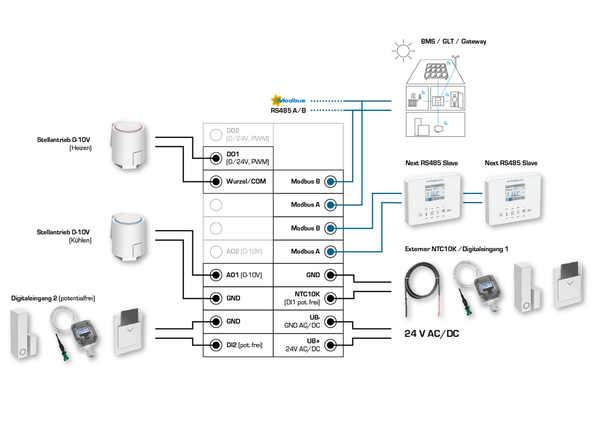

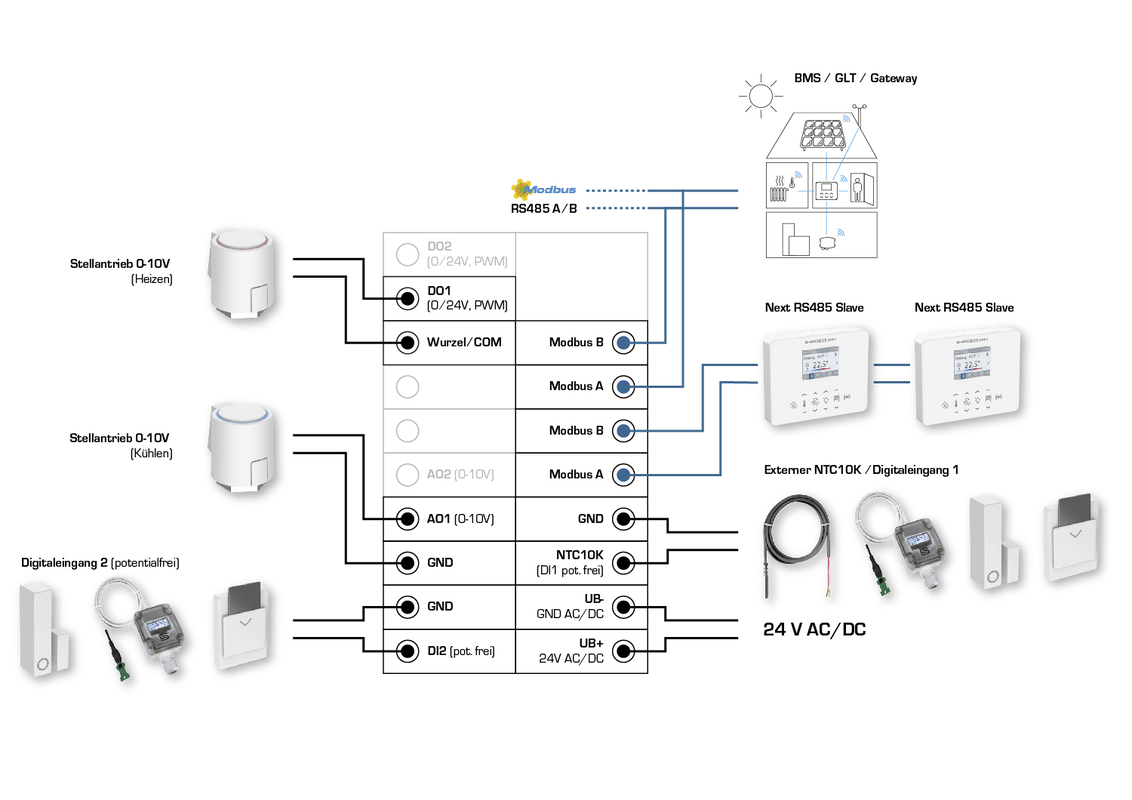

The room control units Rymaskon® 1000 C (controller) are used for control and regulation of heating fan coils and air handling fan coils (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, stepped fan stages, or EC fan stages. The control is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the controller to change and monitor the climate parameters at any time via the BMS. In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display; operation is via capacitive keys (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This enables, for example, a window contact or a condensation monitor to be connected. This means all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
