Room controller (controller) RYMASKON® RYM 1362C-RH-MOD-B

The room operating devices of the series Rymaskon® 1000 are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

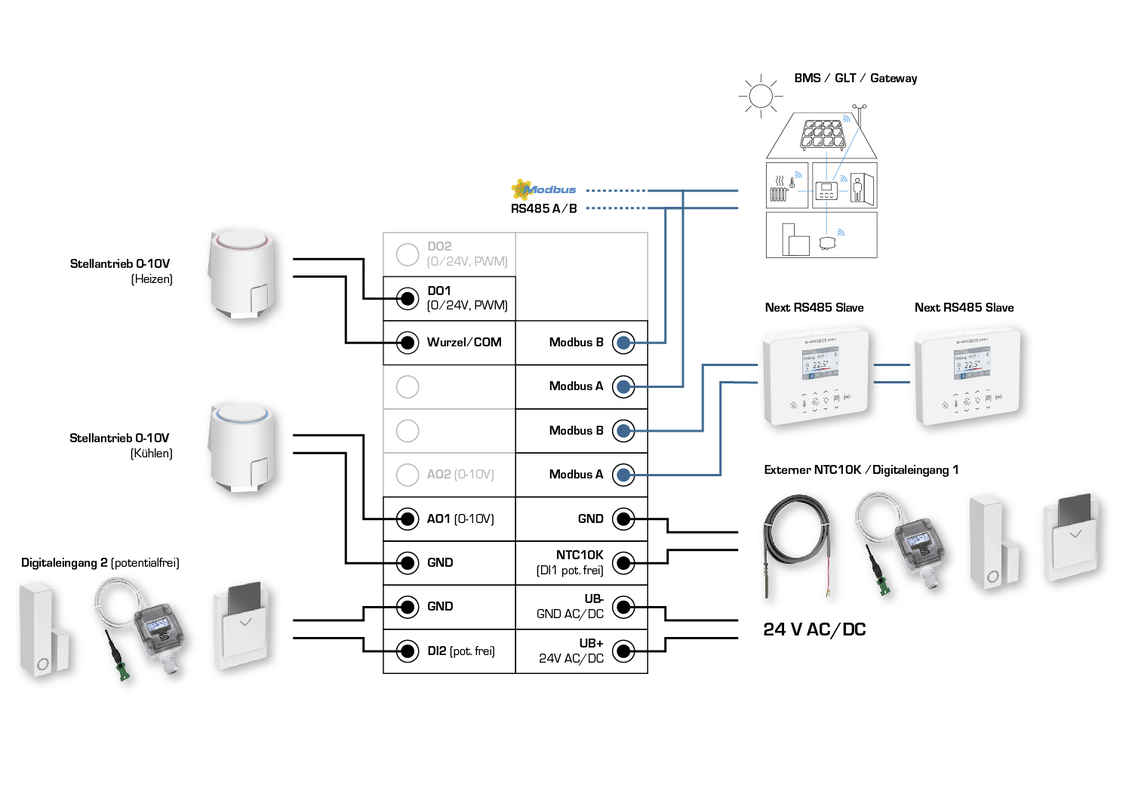

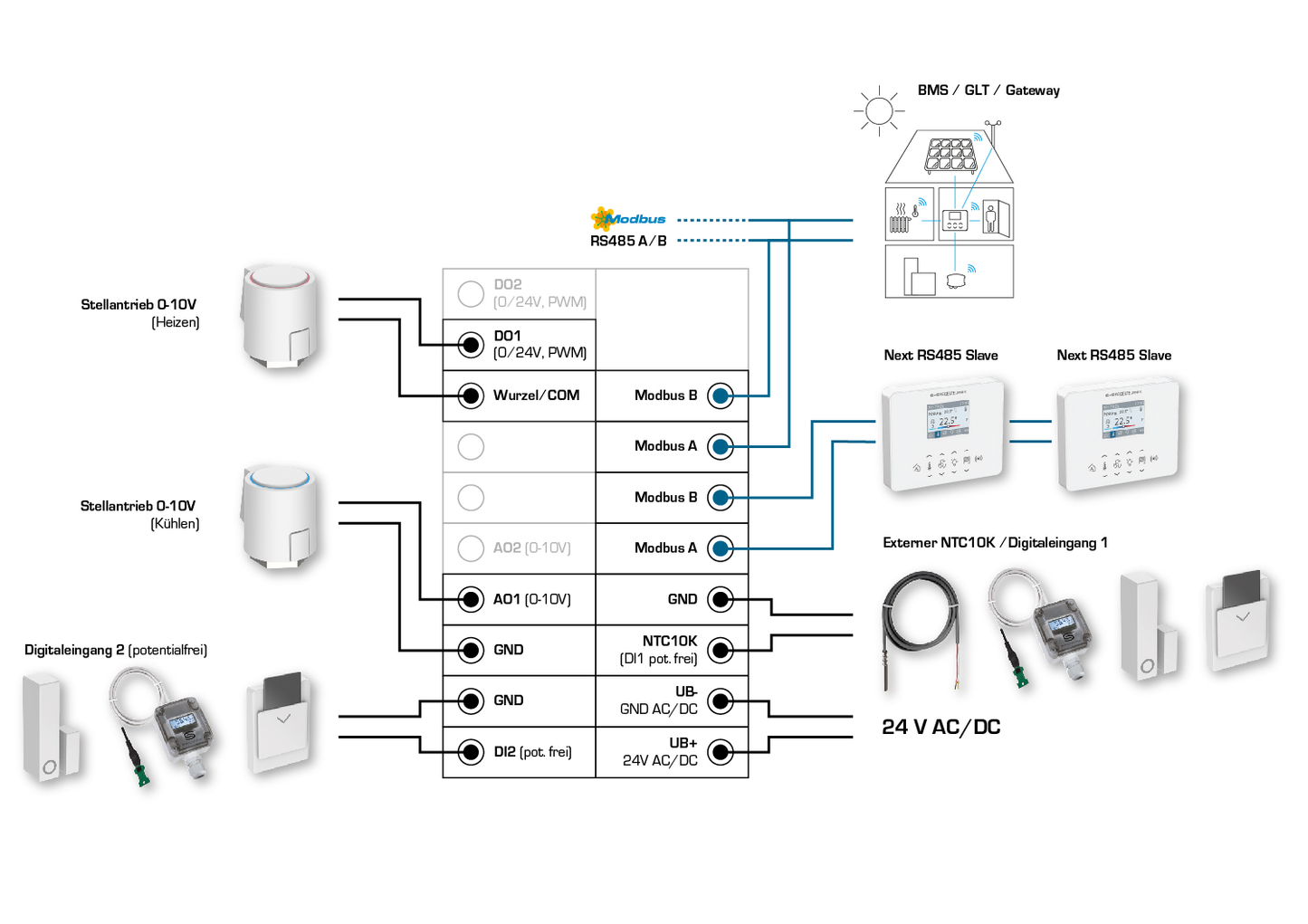

The room operating devices Rymaskon® 1000 C (controllers) are used for actuation and control of heating fan convectors and chilled water fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for actuating heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. The actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.

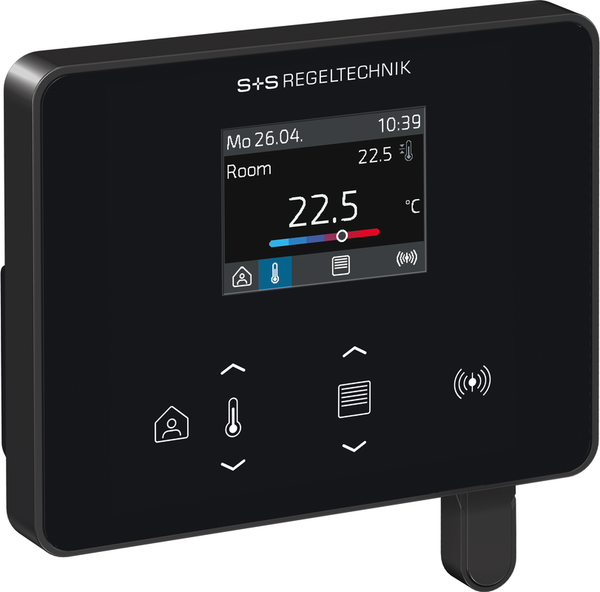

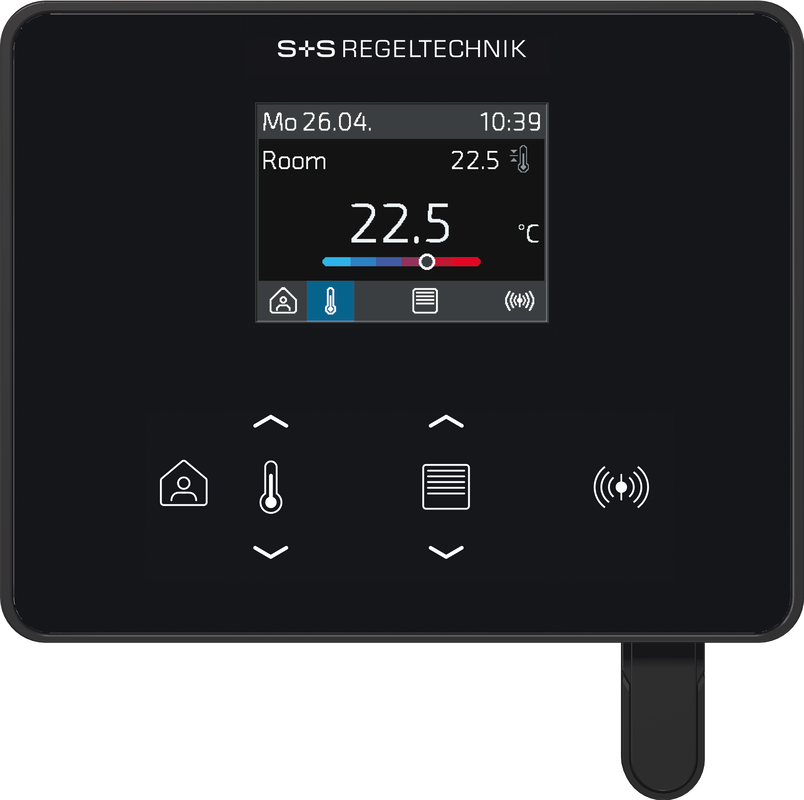

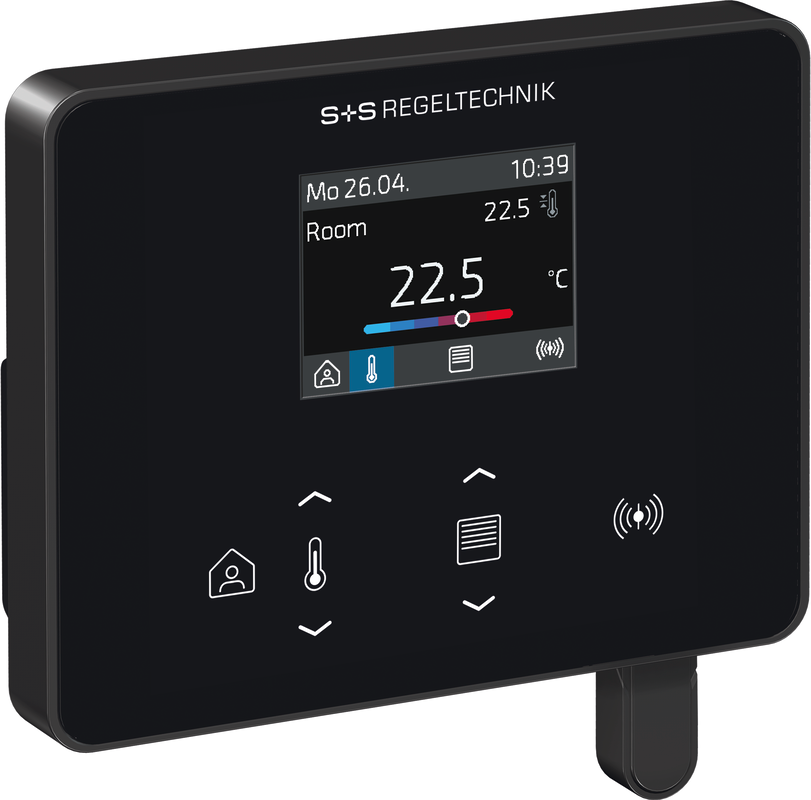

The Modbus communication interface or W-Modbus allows the HVAC parameters to be changed and monitored on the controller at any time via the BMS/Building Management System (GLT). In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical indication is provided by a 2" TFT display, and operation is via capacitive keys (Touchkeys).

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation alarm. This ensures that all options are available to flexibly and individually climate the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounting boxes.
