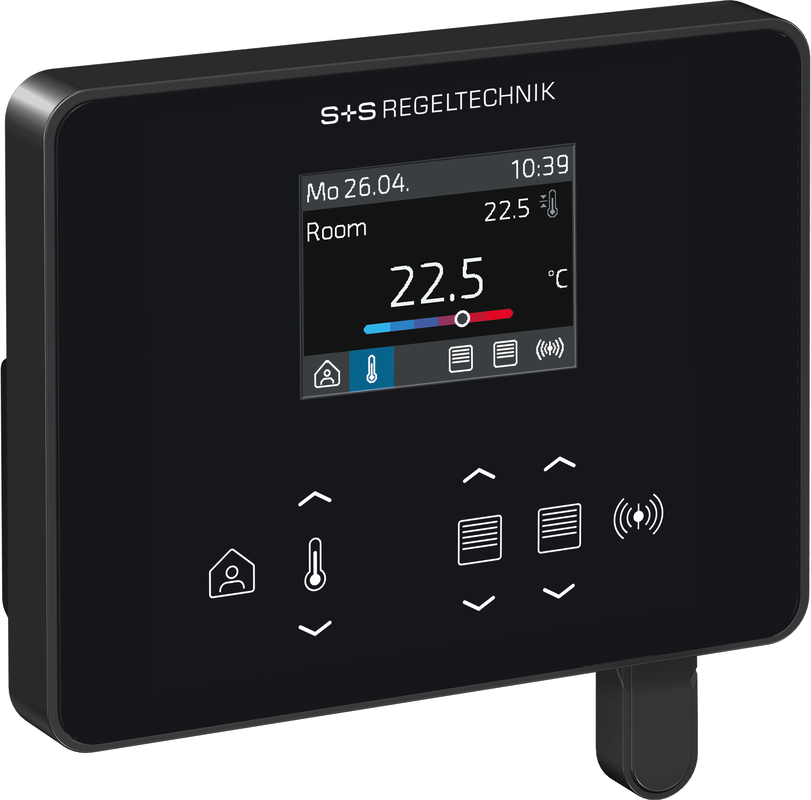

Room controller (controller) RYMASKON® RYM 1362C-RH-MOD-BB

The room controller units of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as standalone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.

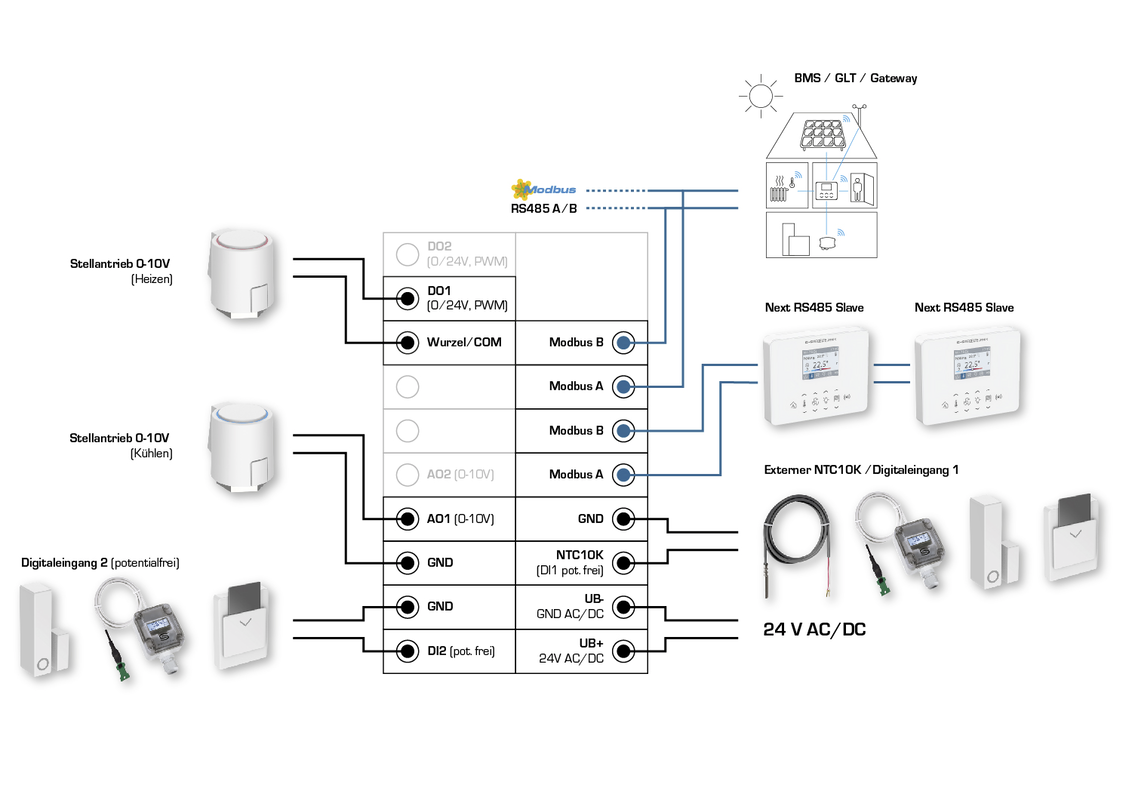

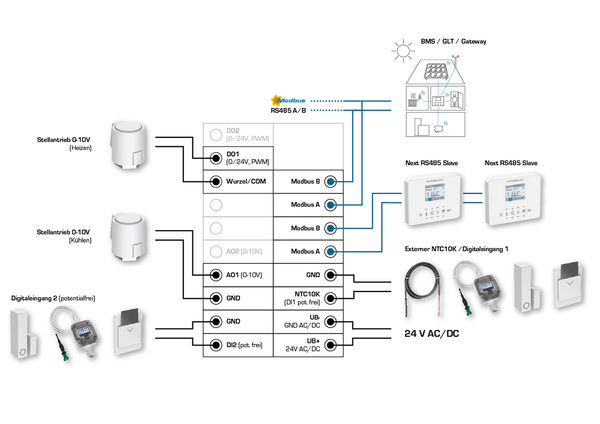

The room controller units Rymaskon® 1000 C (controller) are used for actuating and controlling heating fan convectors and fan coil units (fancoil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for actuating heating valves, cooling valves, 6-way valves, step-controlled fans or EC fans. The actuation is performed via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

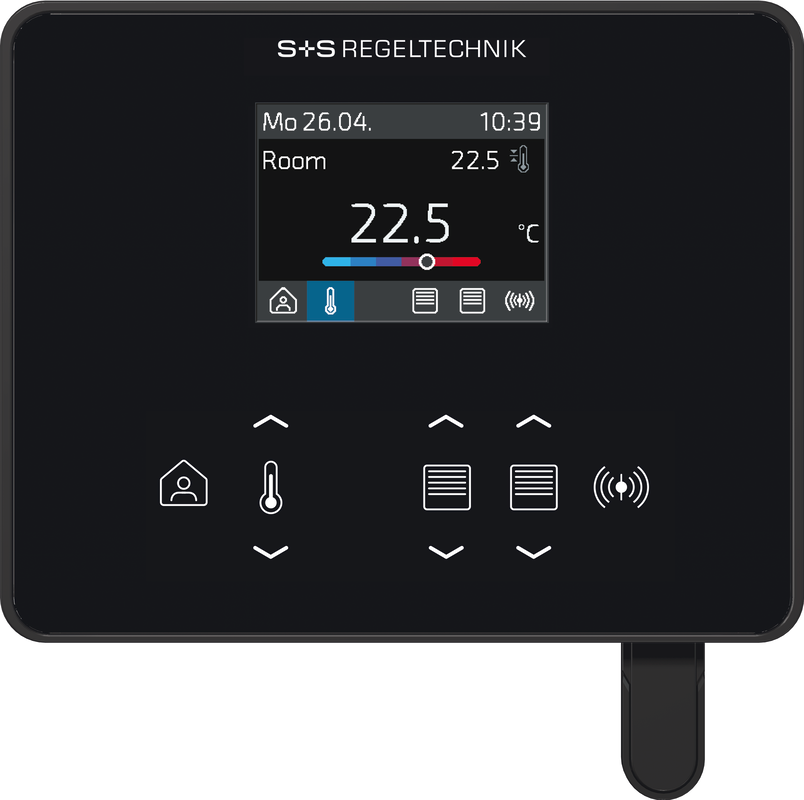

The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the HVAC parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This enables, for example, a window contact or a condensation sensor to be connected. This ensures that all options are available to flexibly and individually condition the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mount boxes.
