Room controller (controller) RYMASKON® RYM 1362C-RH-MOD-BL

The room controller devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination possibilities of the individual components.

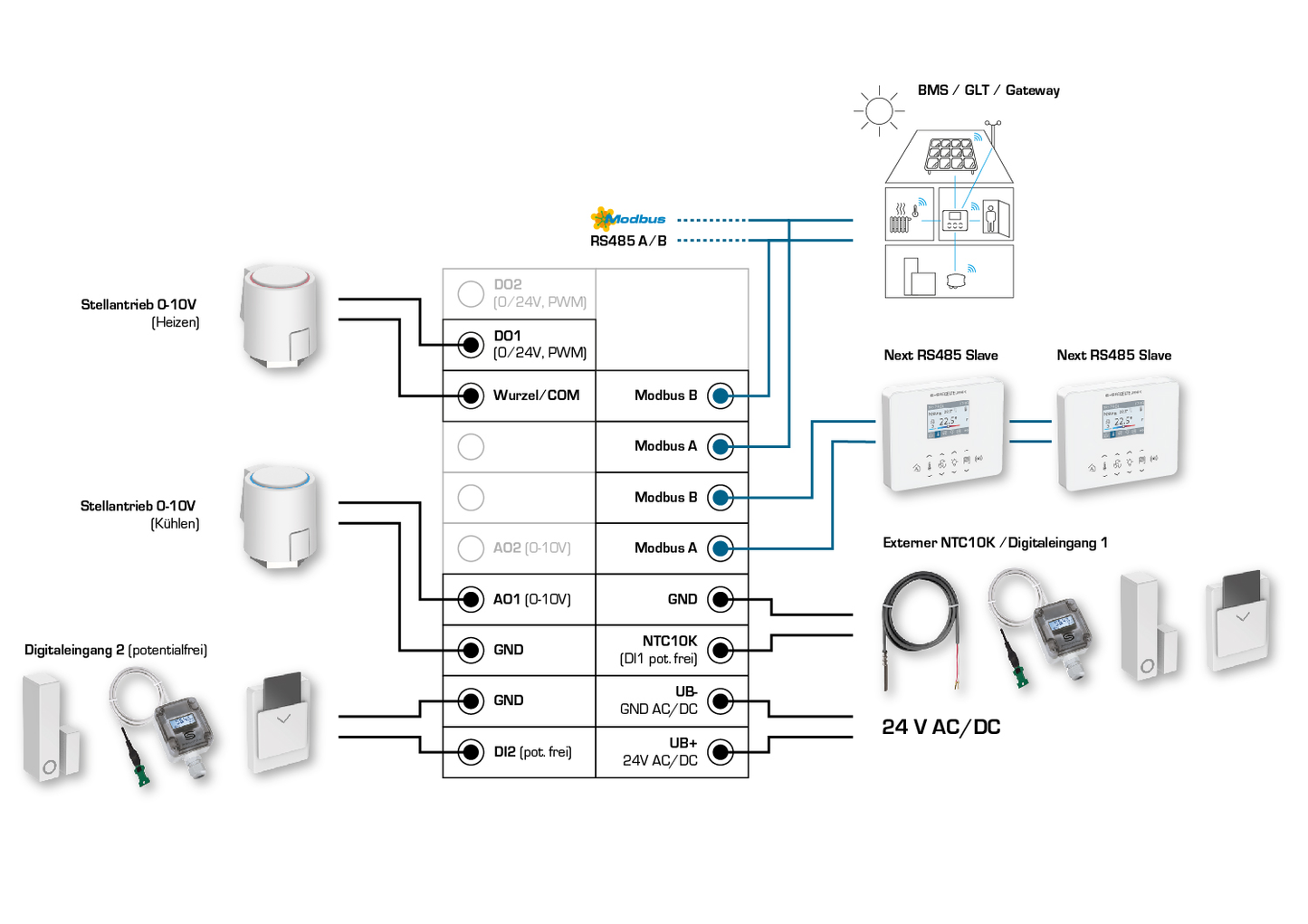

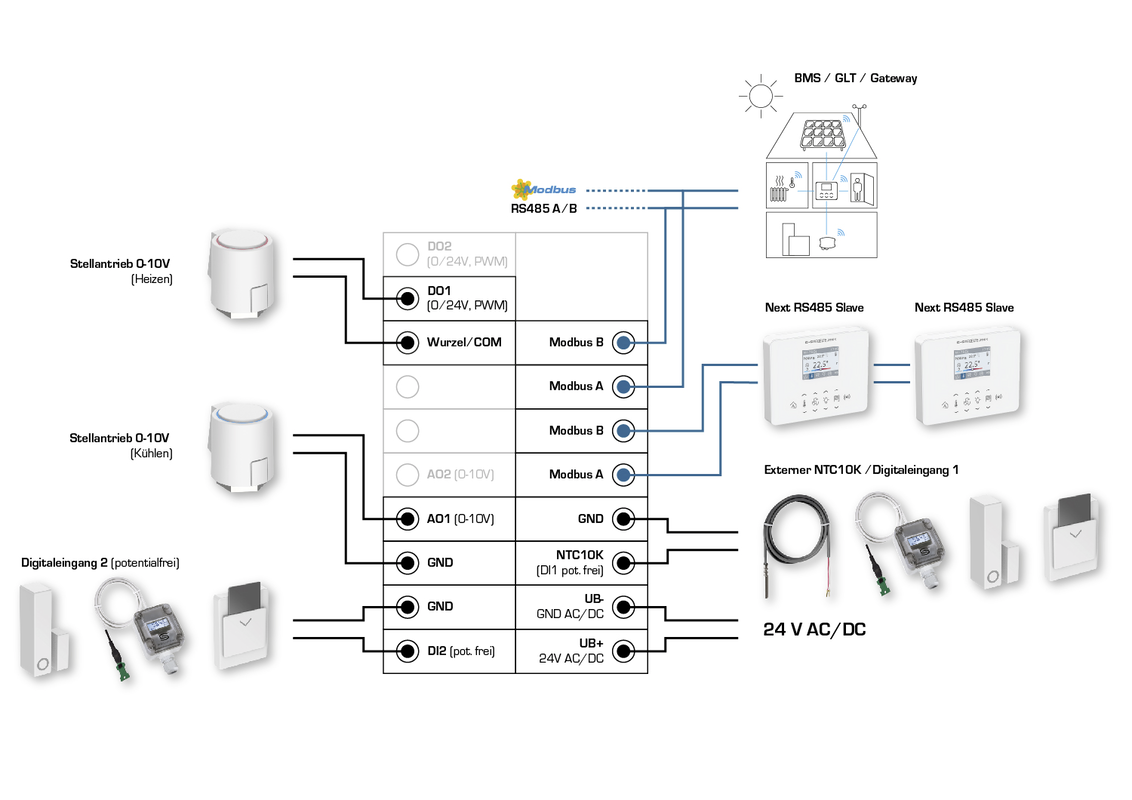

The room controller devices Rymaskon® 1000 C (controller) are used for control and regulation of heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. The control is performed via PI, PWM or 2-/3-point control. With the Changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the HVAC parameters to be changed and monitored on the controller at any time via the BMS. In addition, sun shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This means, for example, that a window contact or a condensation warning device can be connected. This ensures that all options are available to climate-control rooms flexibly and individually.

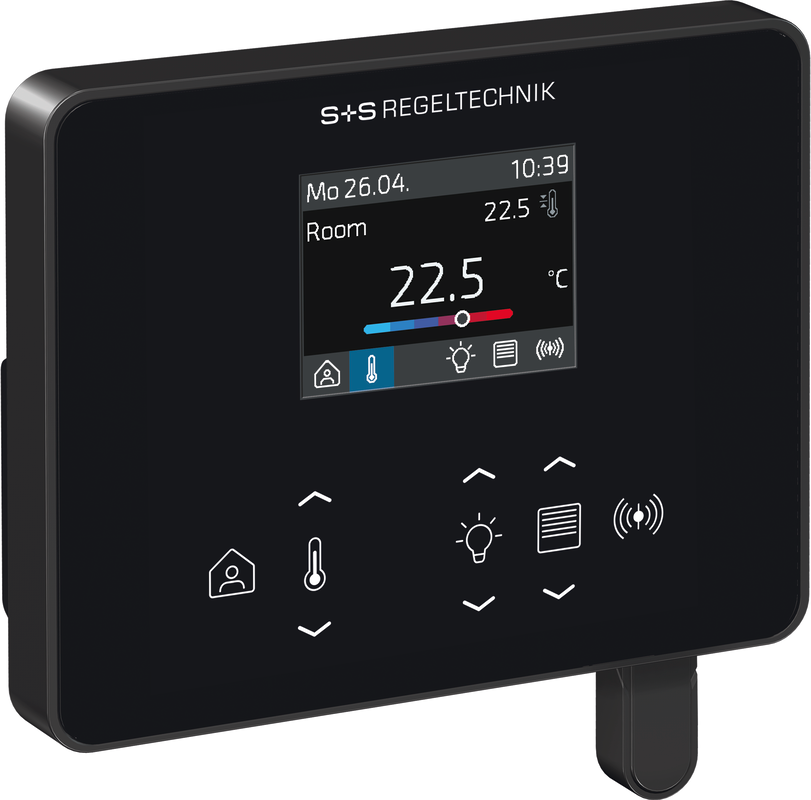

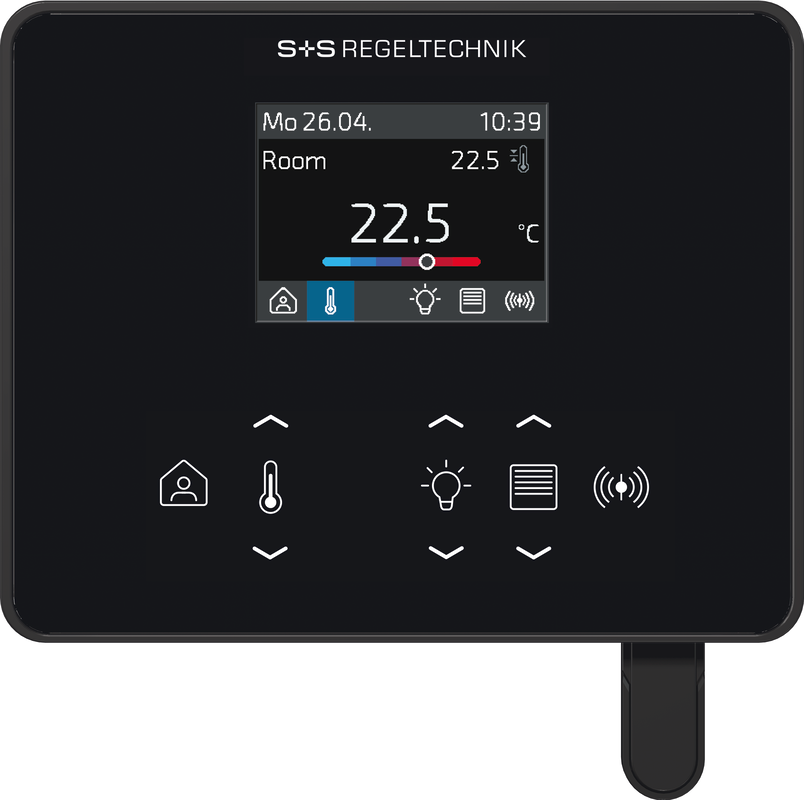

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is carried out on standard flush-mounting boxes.
