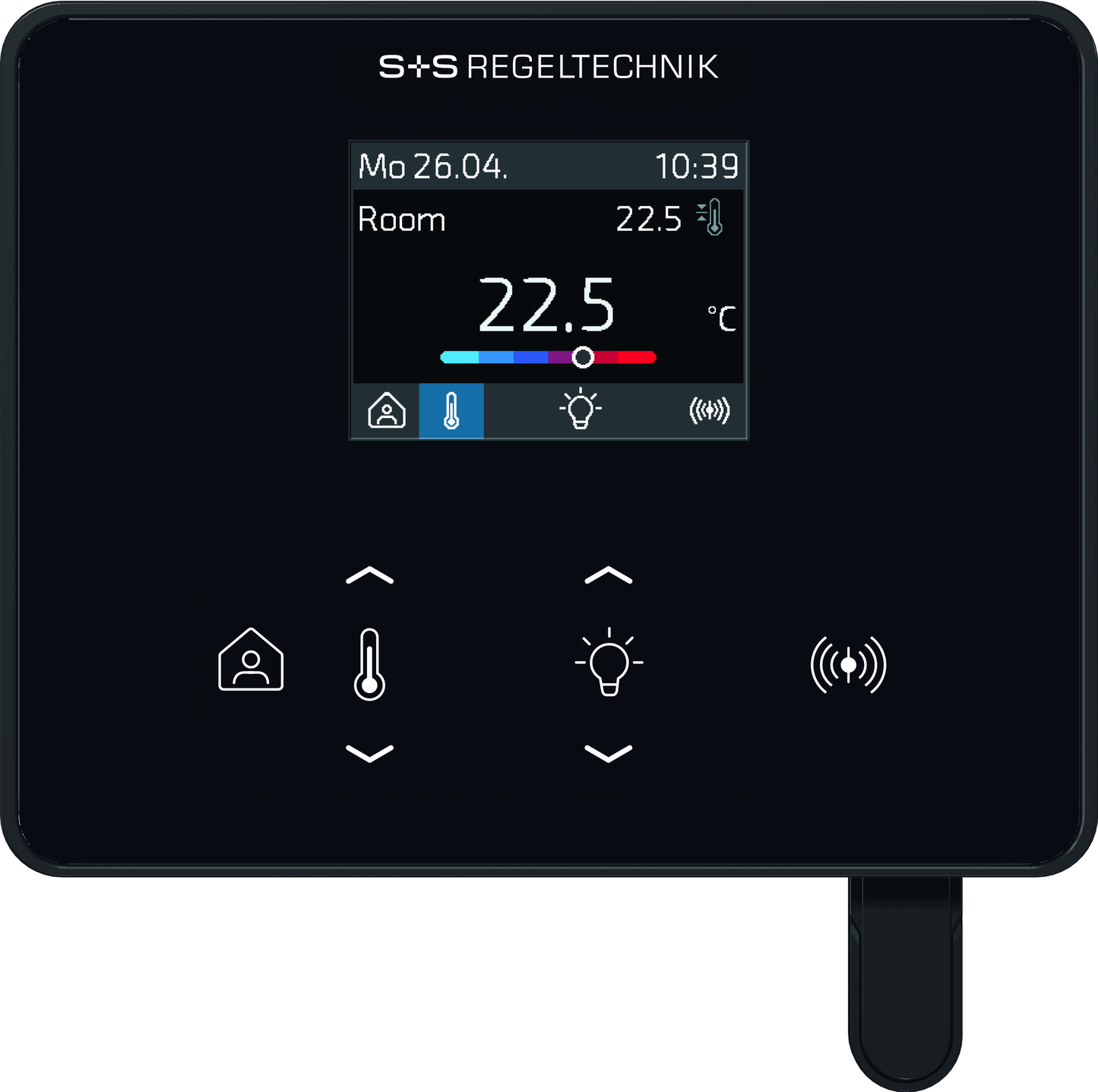

Room controller (controller) RYMASKON® RYM 1362C-RH-MOD-L

The room control devices of the Rymaskon 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms, and individually regulate the heating, cooling, and fan stages of the indoor space. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM, or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation, and the many combination options of the individual components.
The room control devices Rymaskon 1000 C (controller) are used for actuation and control of heating fan convectors and blower convectors (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, stepwise fans, or EC fans. Actuation is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the control and monitoring of climate parameters on the controller at any time via the BMS. In addition, the functions solar protection (roll-down shutters, louver blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation monitor to be connected. This ensures all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is performed on standard flush-mounted boxes.
