Room controller (controller) RYMASKON® RYM 1431C-RH-MOD-B

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages in the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.

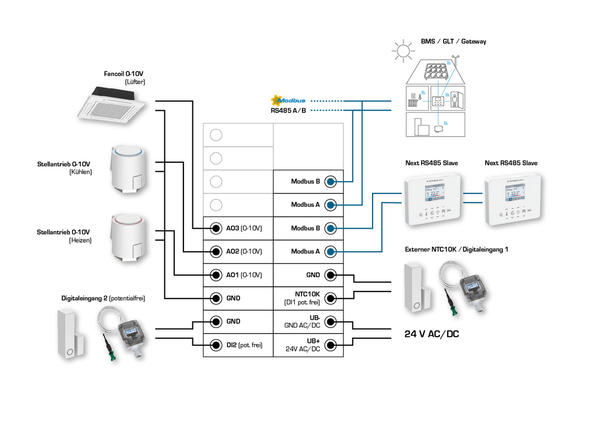

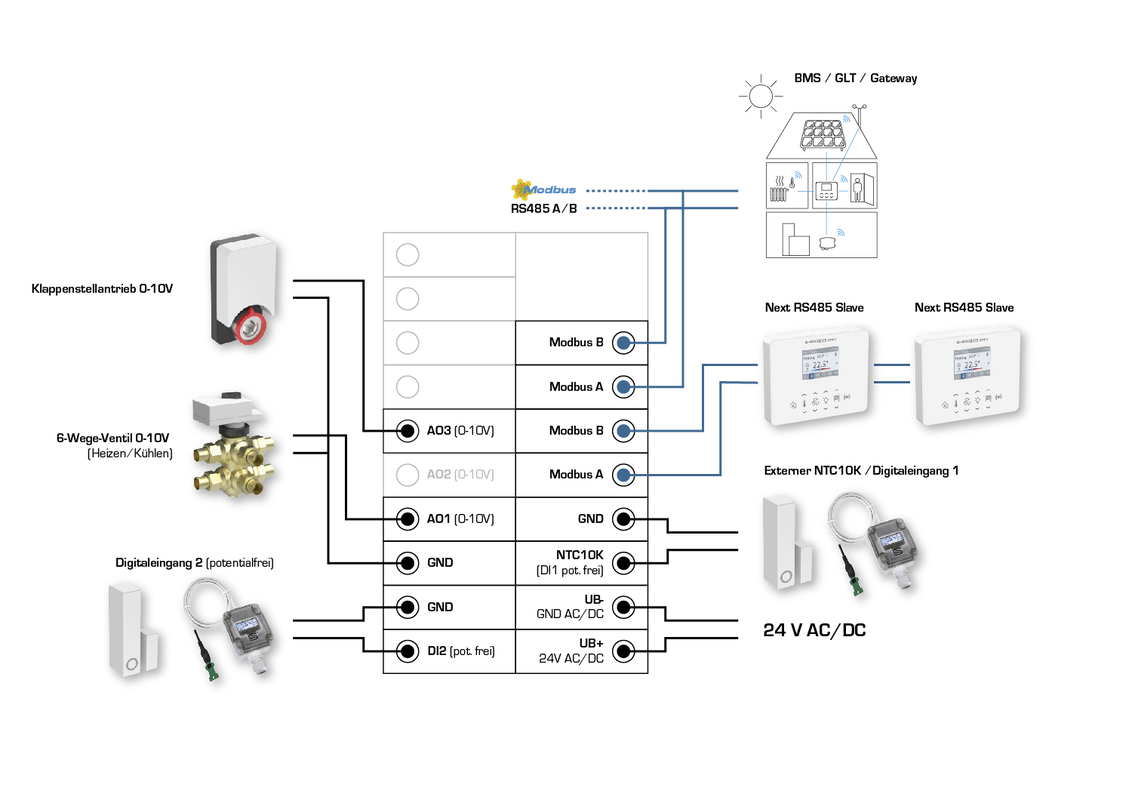

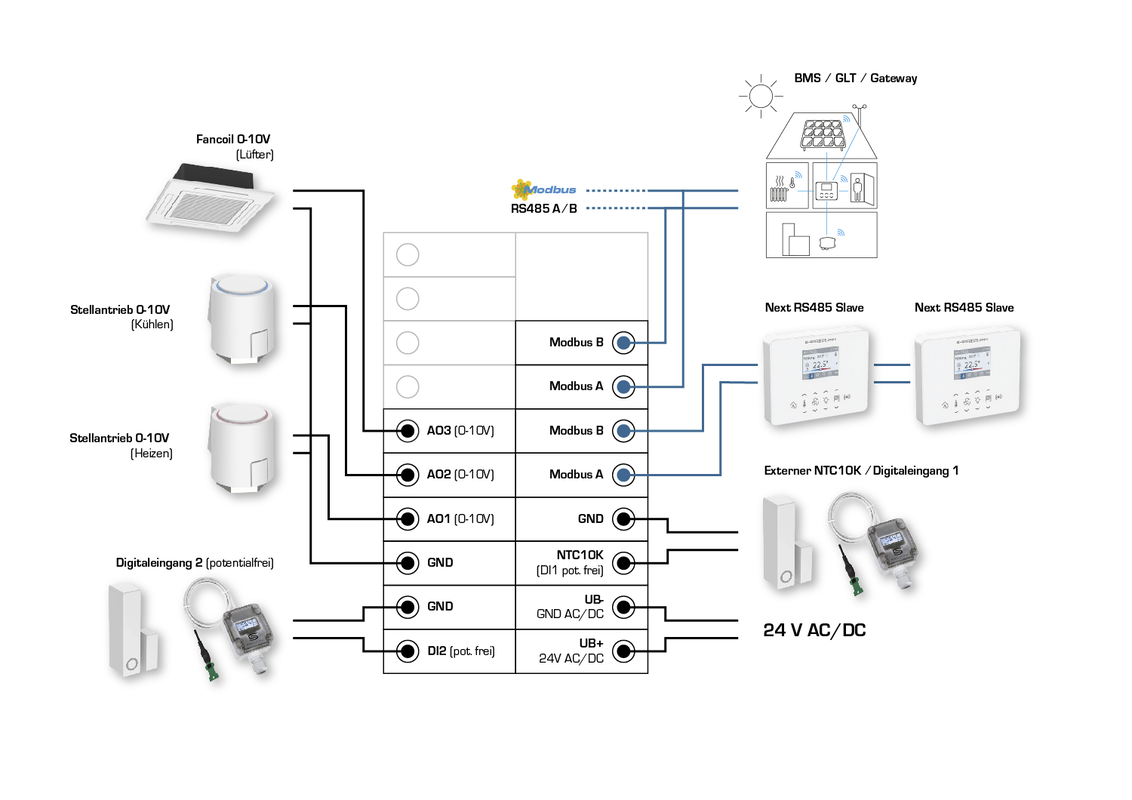

The room control devices Rymaskon® 1000 C (controller) are used for actuation and control of heating fan convectors and fan convectors (fancoils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. The actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the building management system (BMS/GLT) to change and monitor the climate parameters on the controller at any time. In addition, the functions solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The visual indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available optionally. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to flexibly and individually climate-control the rooms.

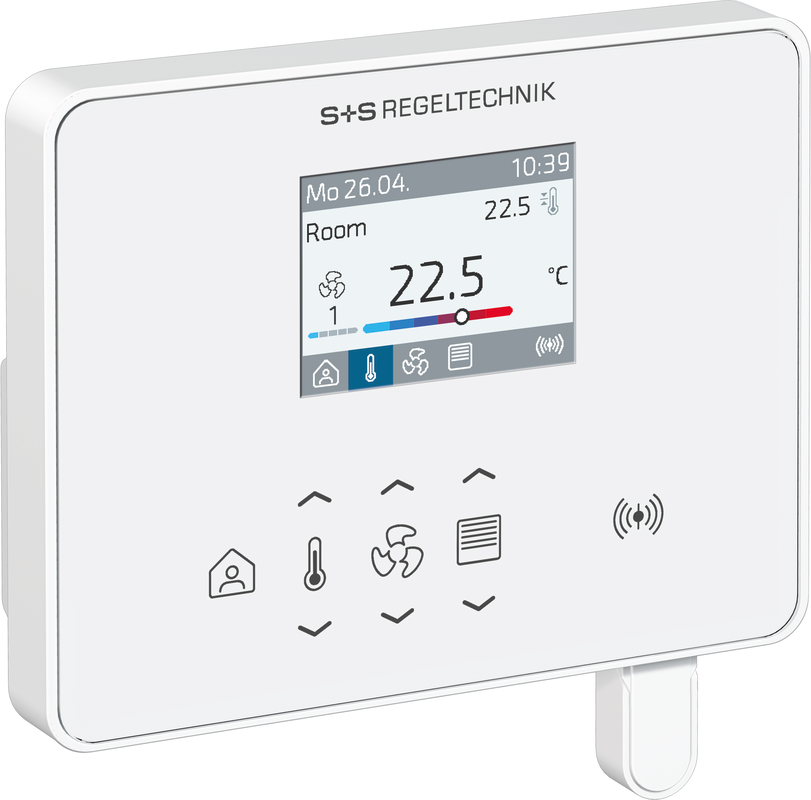

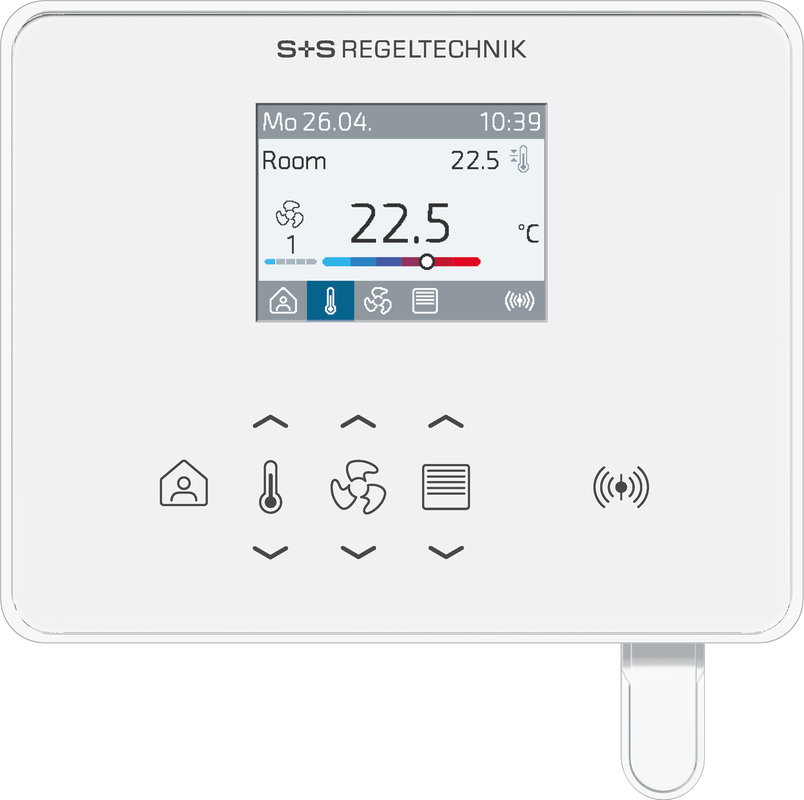

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounting boxes.
