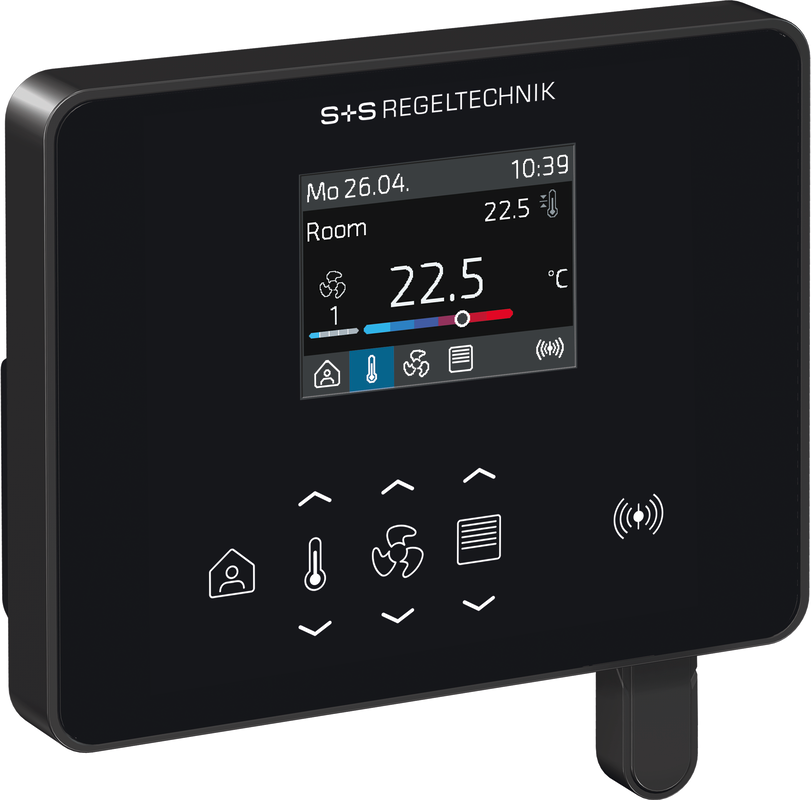

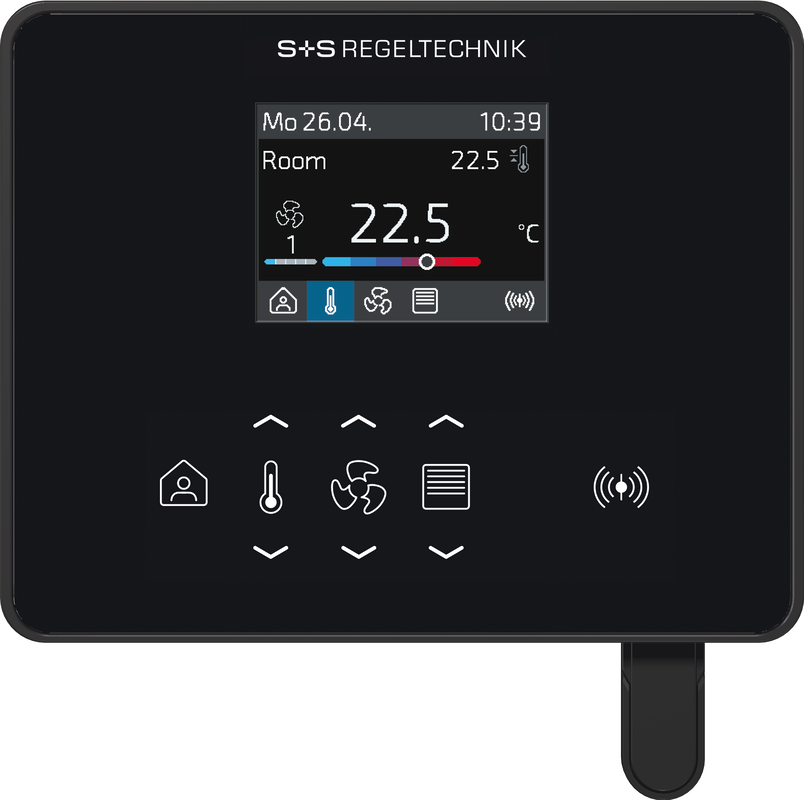

Room controller (controller) RYMASKON® RYM 1432C-RH-MOD-B

The room control units of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms, and individually regulate the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

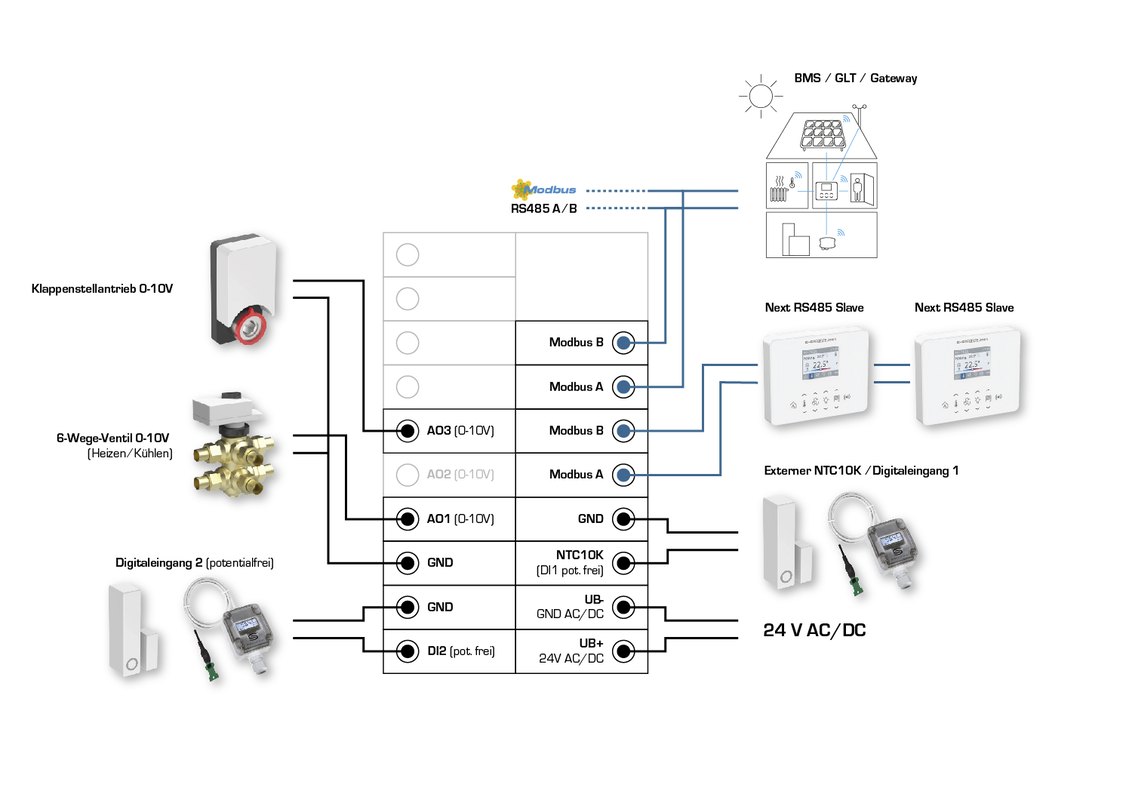

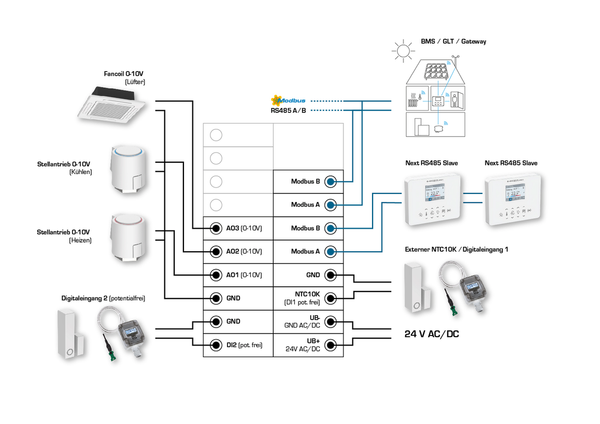

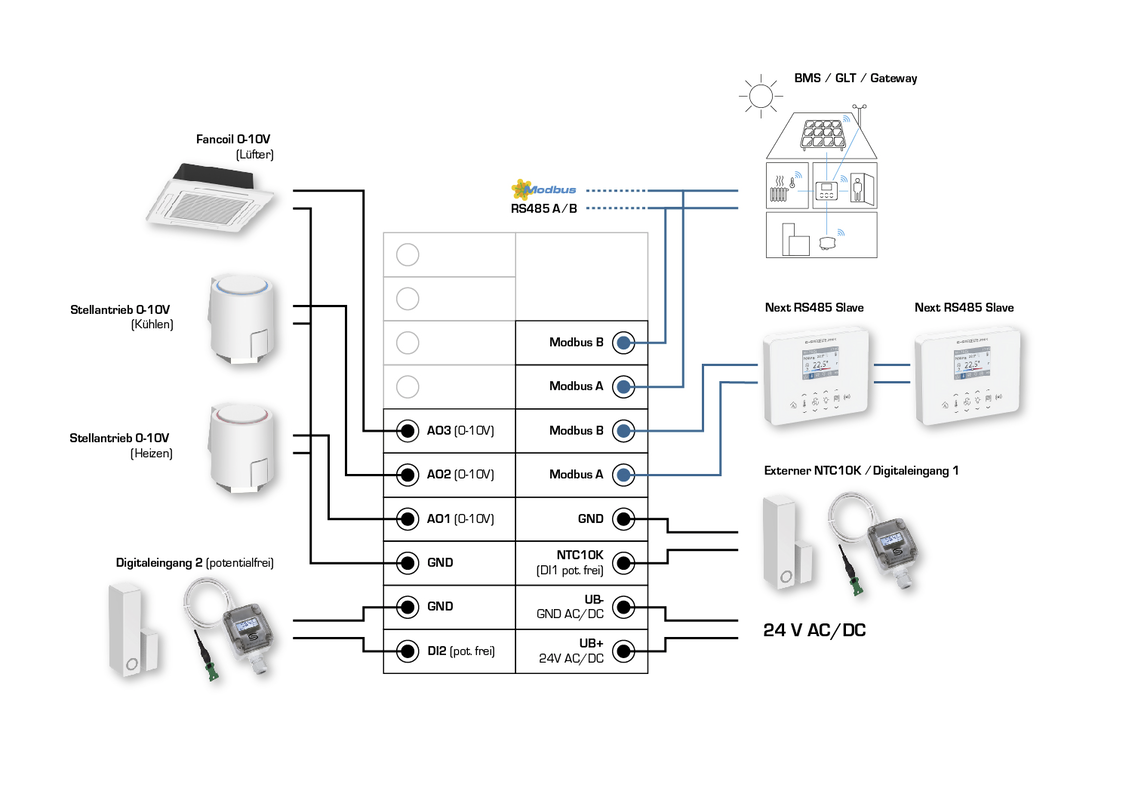

The room control units Rymaskon® 1000 C (controller) are used for controlling and regulating heating convectors and fan convectors (fancoil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepped fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the HVAC parameters to be changed and monitored on the controller at any time via the BMS (GLT). In addition, the functions for solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, CO2 and VOC sensors are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This means, for example, that a window contact or a condensation monitor can be connected. As a result, all options are available to climate-control rooms flexibly and individually.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mount boxes.
