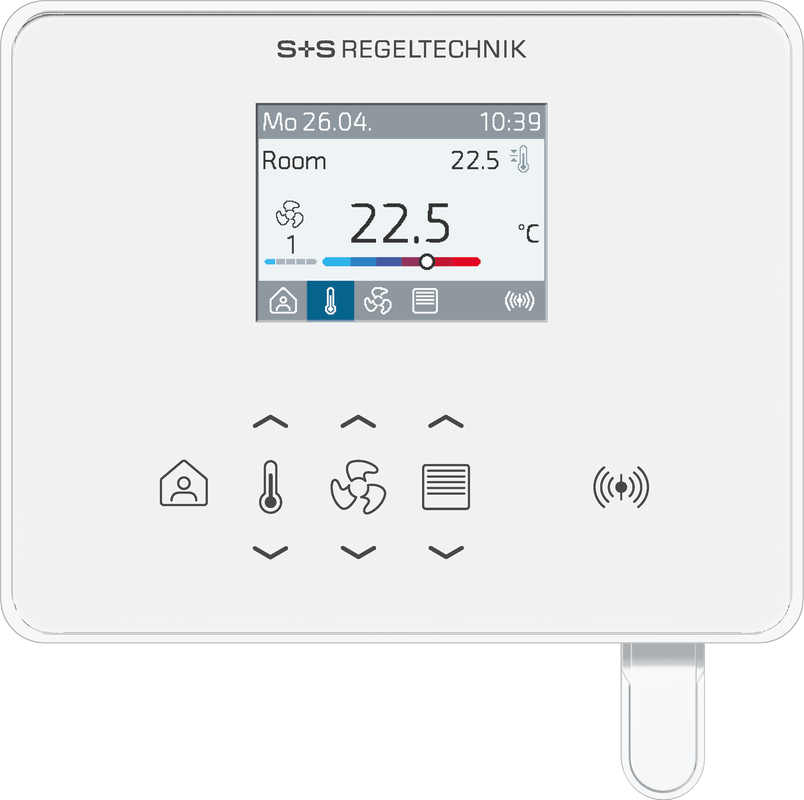

Room controller (controller) RYMASKON® RYM 1461C-RH-MOD-B

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 heating/cooling zones) in residential, hotel and office rooms and individually control the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.

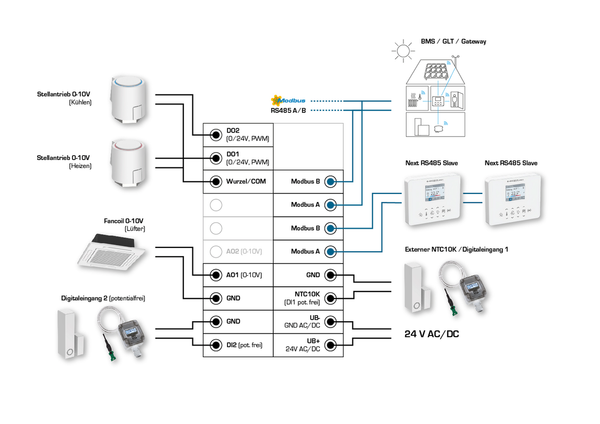

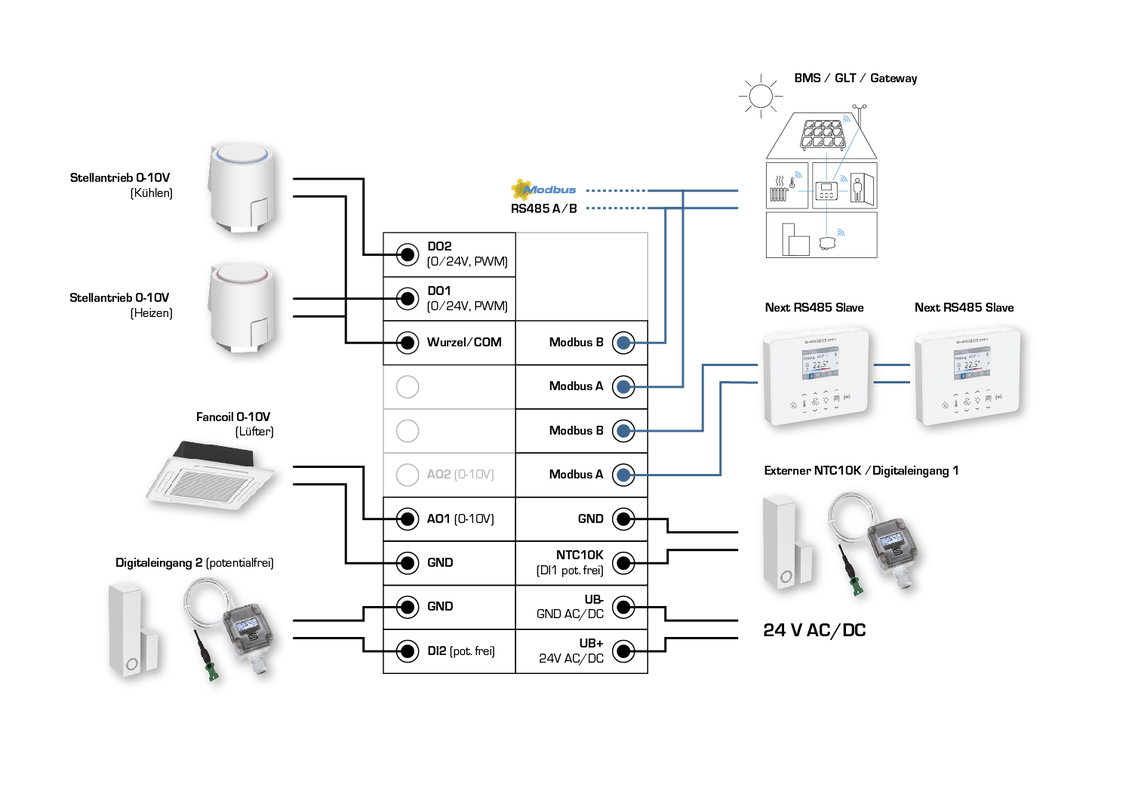

The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and fan coil units (fancoil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, staged fans or EC fans. Control is performed via PI, PWM or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the climate parameters on the controller via the BMS. In addition, functions for solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive pushbuttons (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. For example, a window contact or a condensation switch can be connected. This ensures that all options are available to flexibly and individually climate-control the rooms.

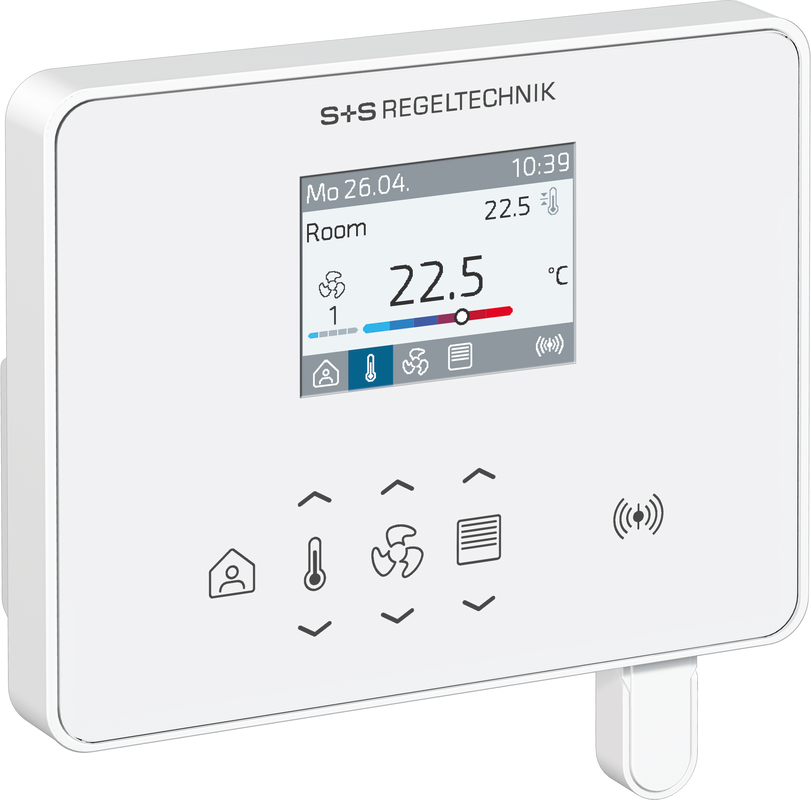

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mounting boxes.
