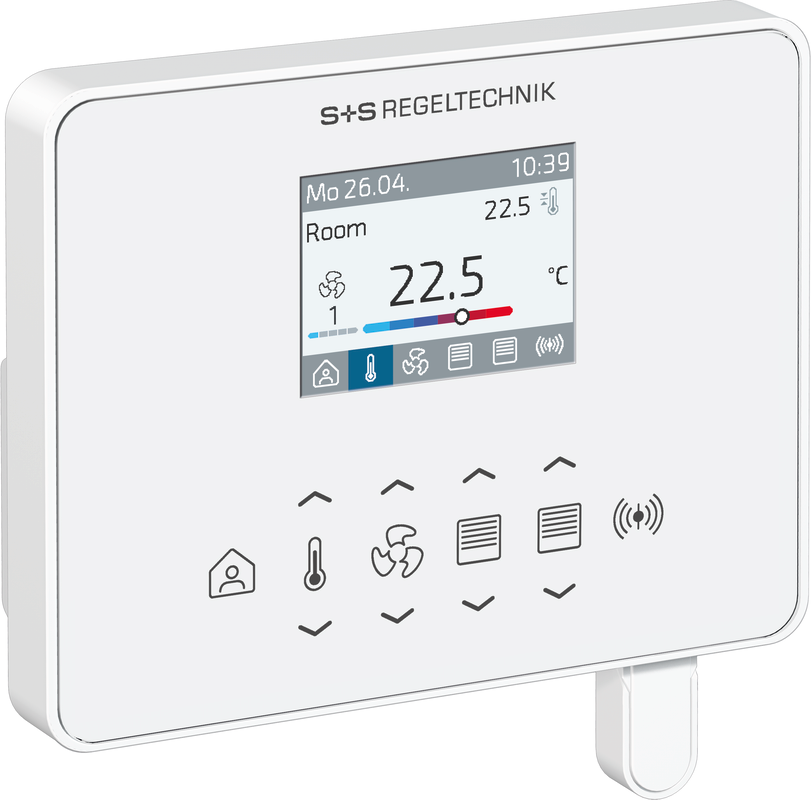

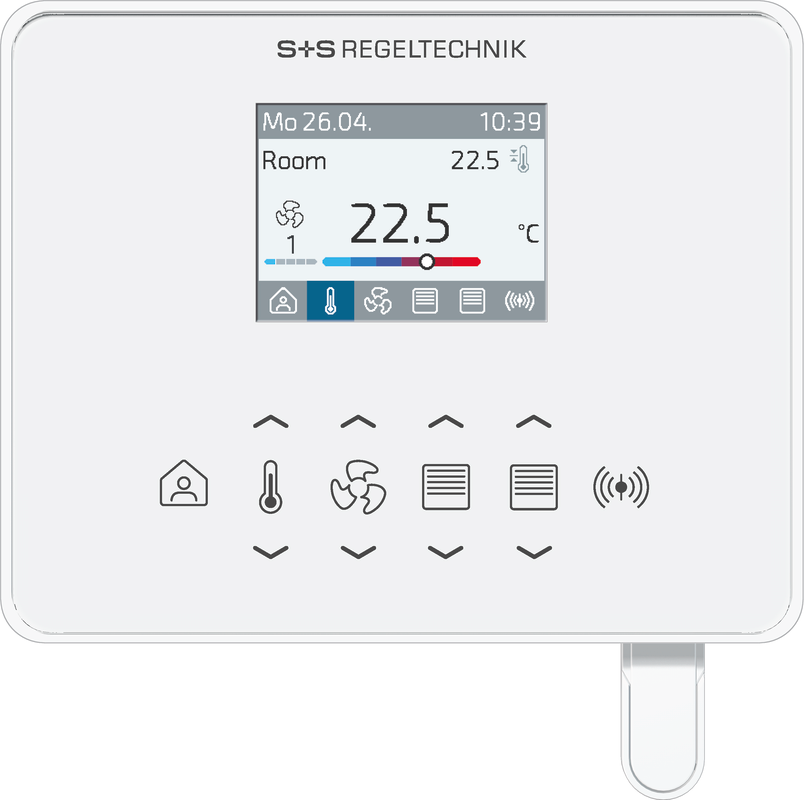

Room controller (controller) RYMASKON® RYM 1461C-RH-MOD-BB

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 climate zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its refined design, intuitive operation and the diverse combination options of the individual components.

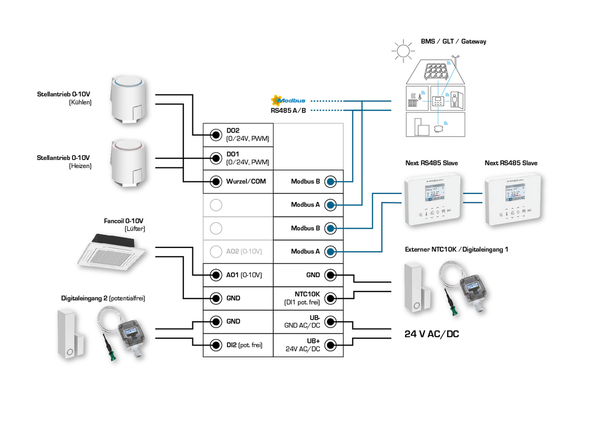

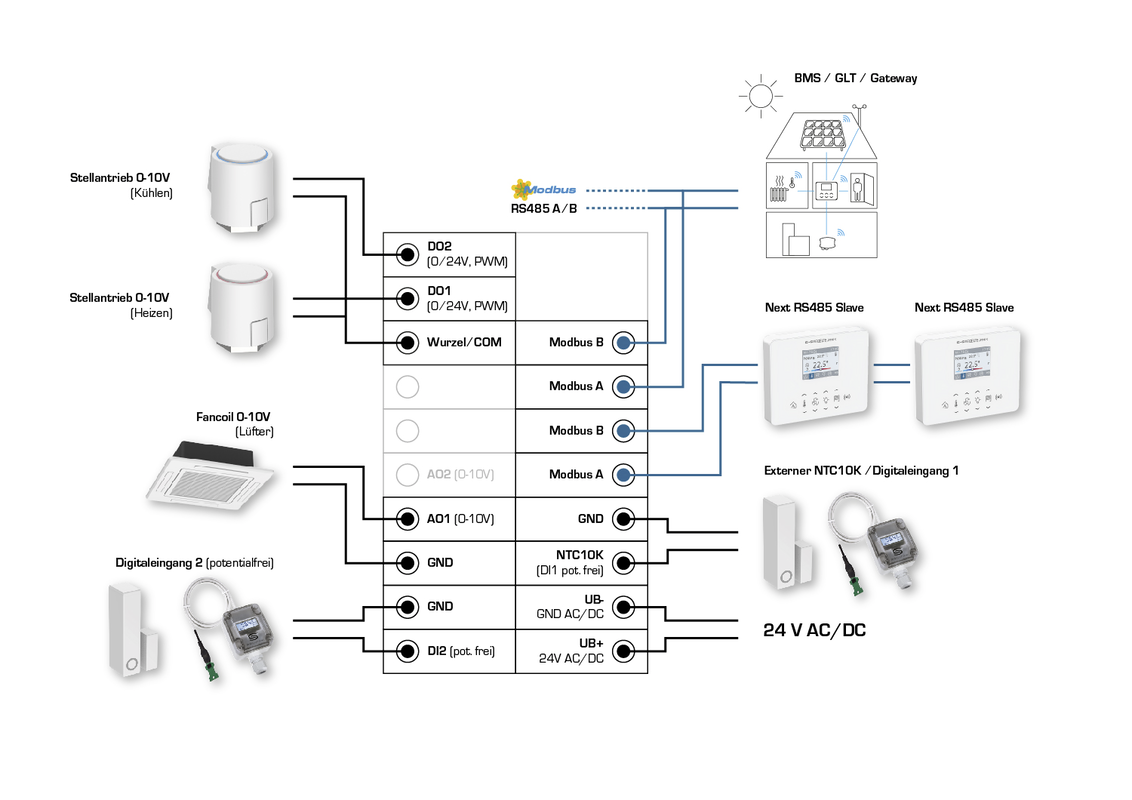

The room control devices Rymaskon® 1000 C (controllers) are used for actuation and control of heating fan convectors and blower fan convectors (fan coil). Depending on the type variant, the units are available with analog outputs (0 -10 V) as well as with digital-/relay outputs, for controlling heating valves, cooling valves, 6-way valves, stepwise fans or EC fans. The actuation is carried out via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables continuous modification and monitoring of the climate parameters on the controller via the BMS (building management system). In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. Optical indication is provided via a 2" TFT display, and operation is via capacitive keys (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation monitor to be connected. This ensures that all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is performed on standard flush-mounted junction boxes.
