Room controller (controller) RYMASKON® RYM 1461C-RH-MOD-L

The room control devices of the series Rymaskon® 1000 are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms, and they individually regulate the heating, cooling, and fan stages of the indoor area. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation, and a wide range of combination possibilities of the individual components.

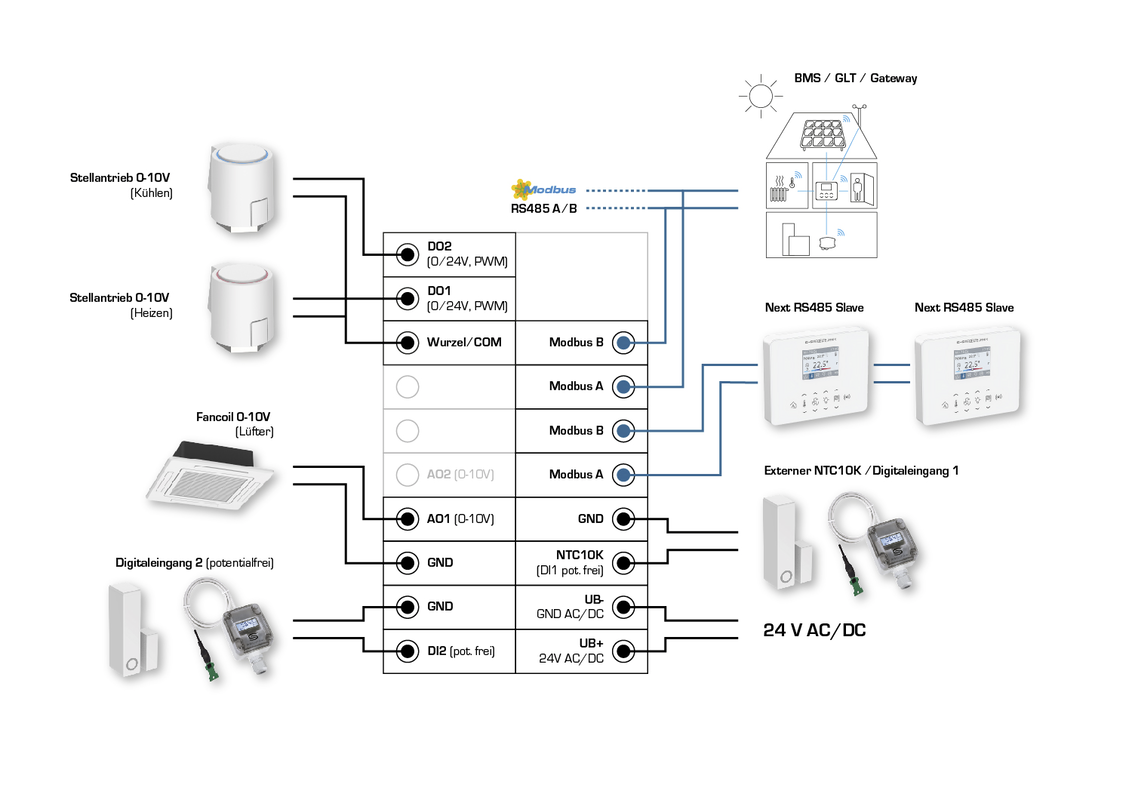

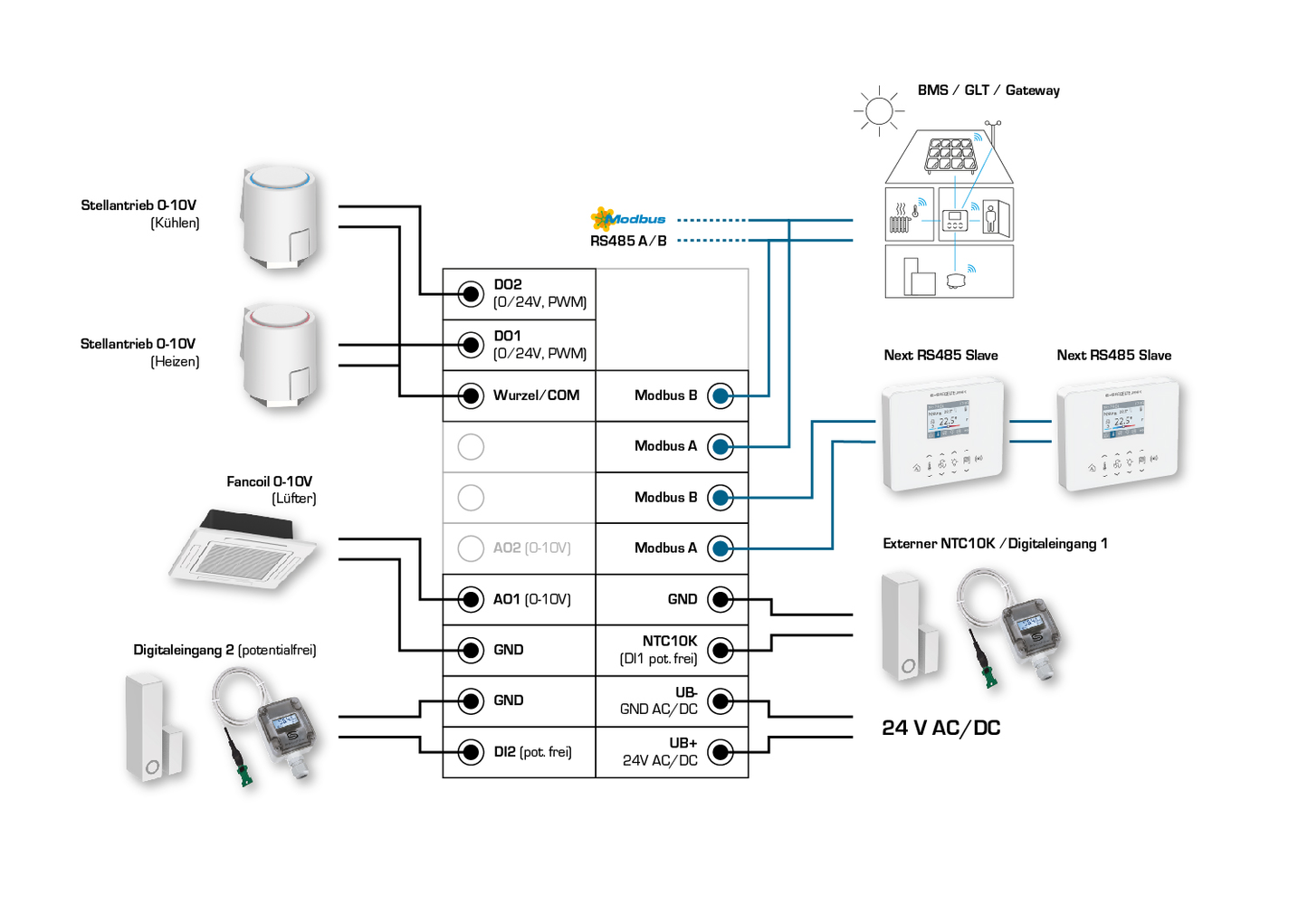

The room control devices Rymaskon® 1000 C (controller) are used for controlling and regulating heating fan convectors and fan coil units (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital/relay outputs, for actuating heating valves, cooling valves, 6-way valves, staged fans, or EC fans. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

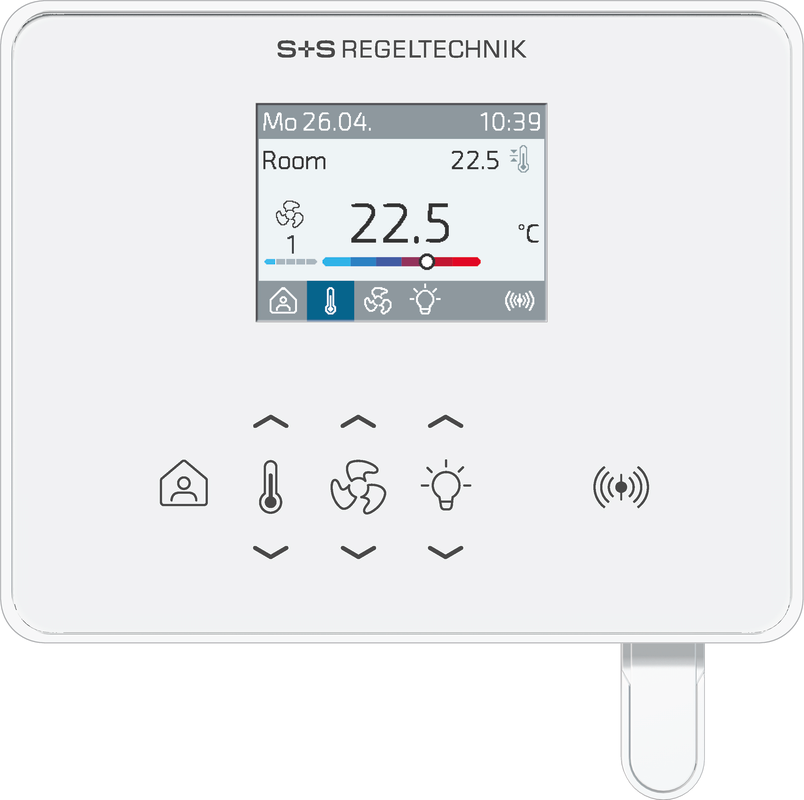

The Modbus communication interface or W-Modbus makes it possible at any time to change and monitor the climate parameters on the controller via the BMS. In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided via a 2" TFT display, and operation is via capacitive keys (Touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation alarm. This ensures that all options are available to flexibly and individually condition the rooms.

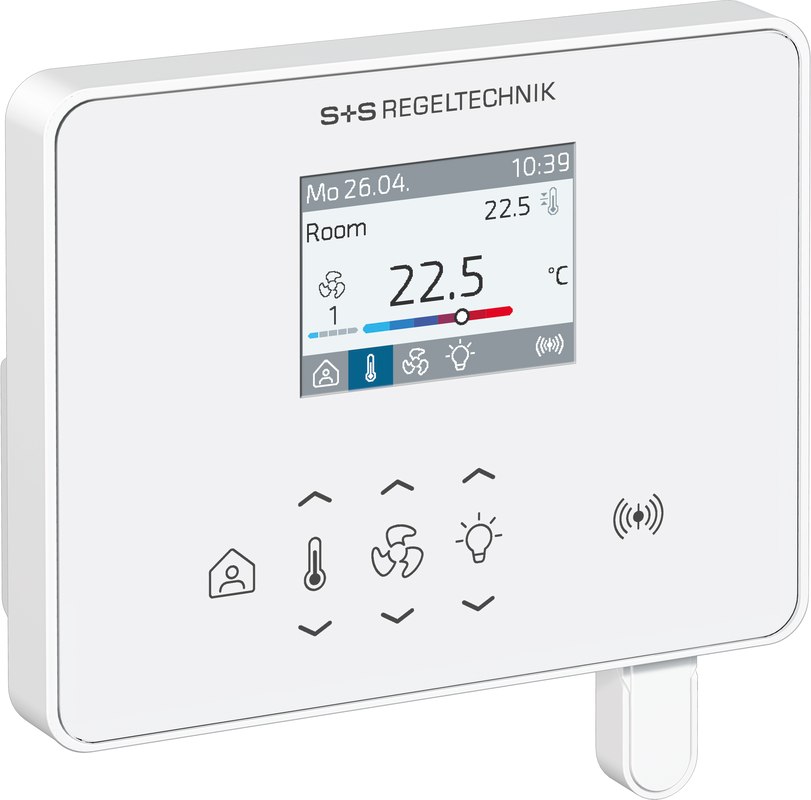

All device types are available in the timeless enclosure Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is carried out on standard flush-mount back boxes.
