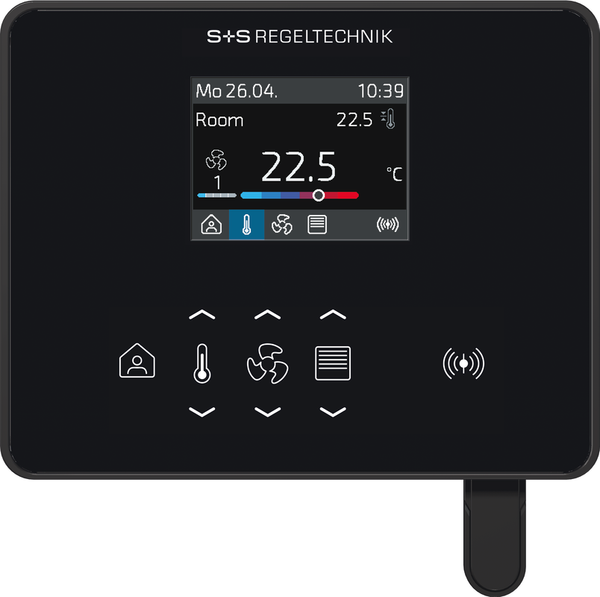

Room controller (controller) RYMASKON® RYM 1462C-RH-MOD-B

The room control devices of the Rymaskon 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the indoor heating, cooling, and fan stages. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family stands out for its elegant design, intuitive operation, and the many combination options of the individual components.

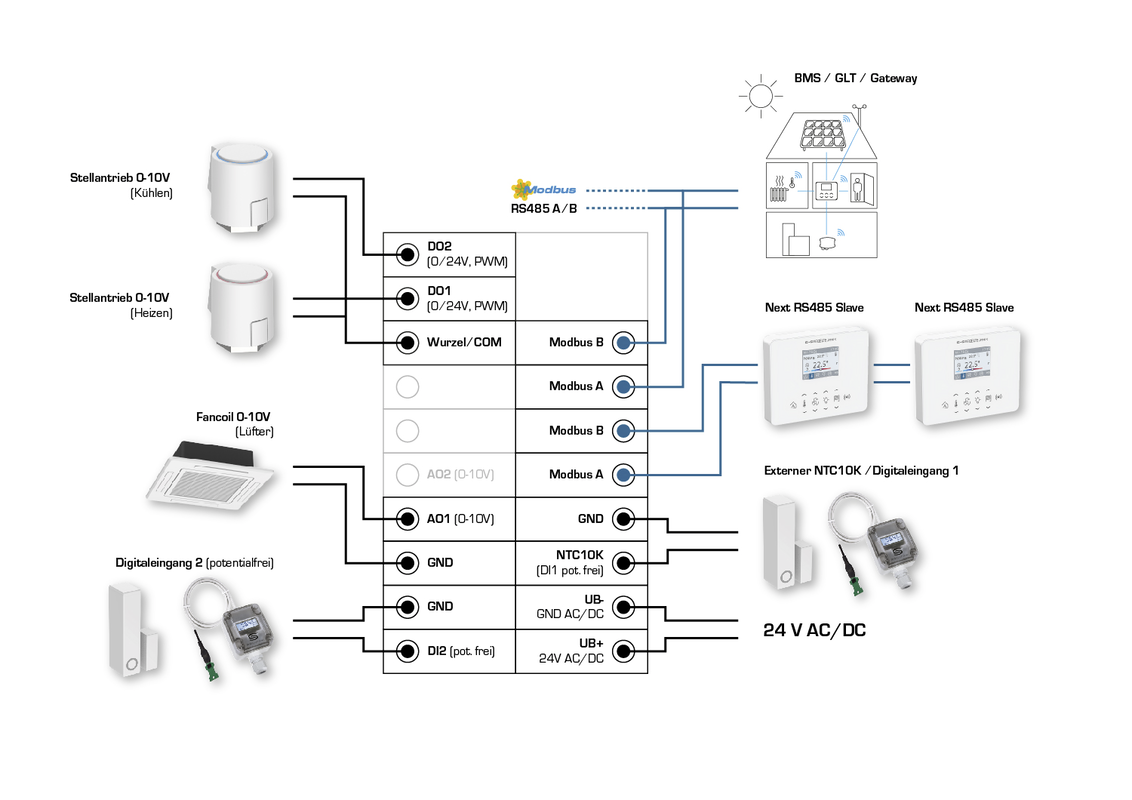

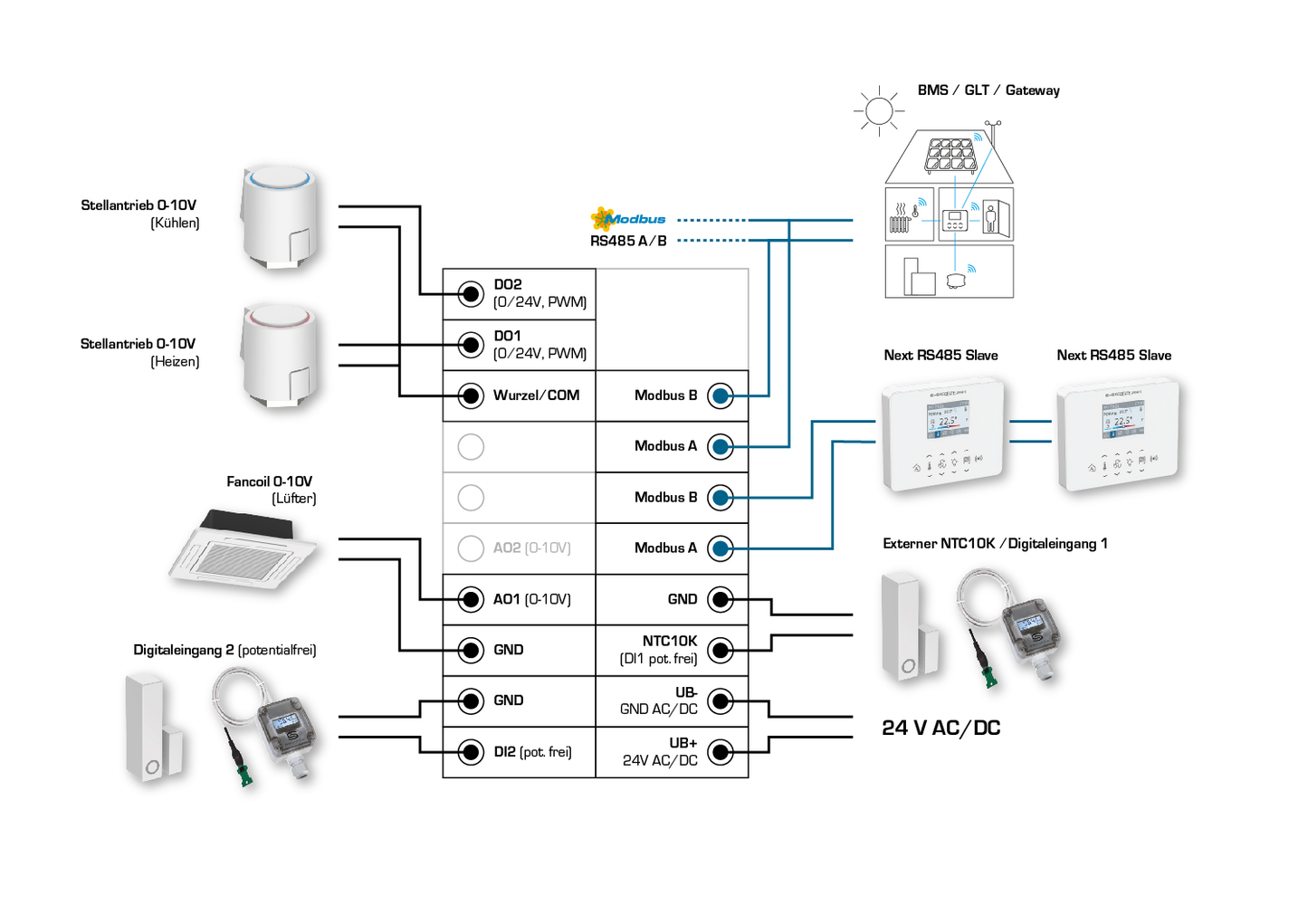

The room control devices Rymaskon 1000 C (controllers) are used for controlling and regulating heating fan convectors and cooling fan convectors (fan coils). Depending on the device version, they are available with analog outputs (0 -10 V) as well as with digital / relay outputs for controlling heating valves, cooling valves, 6-way valves, step-controlled fans, or EC fans. Control is performed via PI, PWM, or 2-/3-point control. With the changeover function, 2- and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the continuous modification and monitoring of the climate parameters on the controller via the BMS (GLT). In addition, functions such as solar protection (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical indication is provided by a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition the rooms.

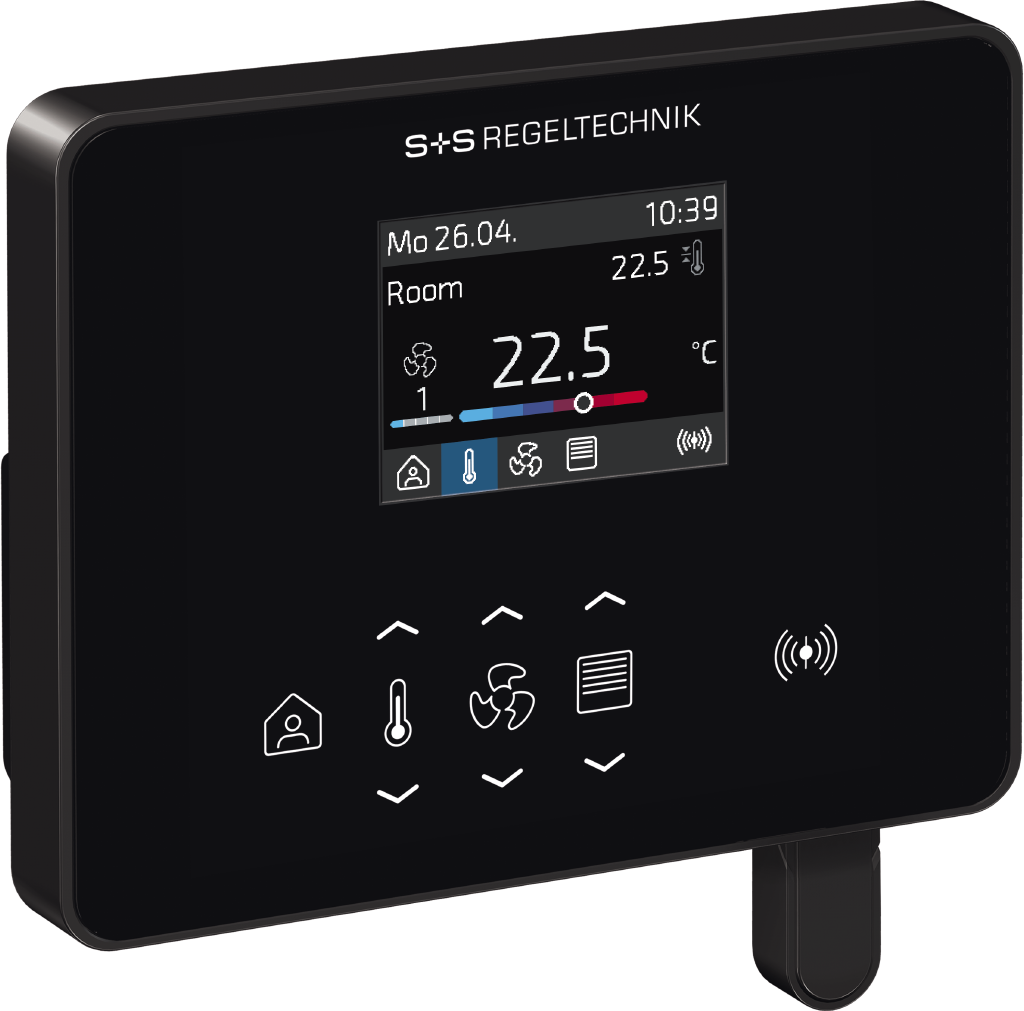

All device types are available in the timeless enclosure Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is done on standard flush-mounted boxes.
