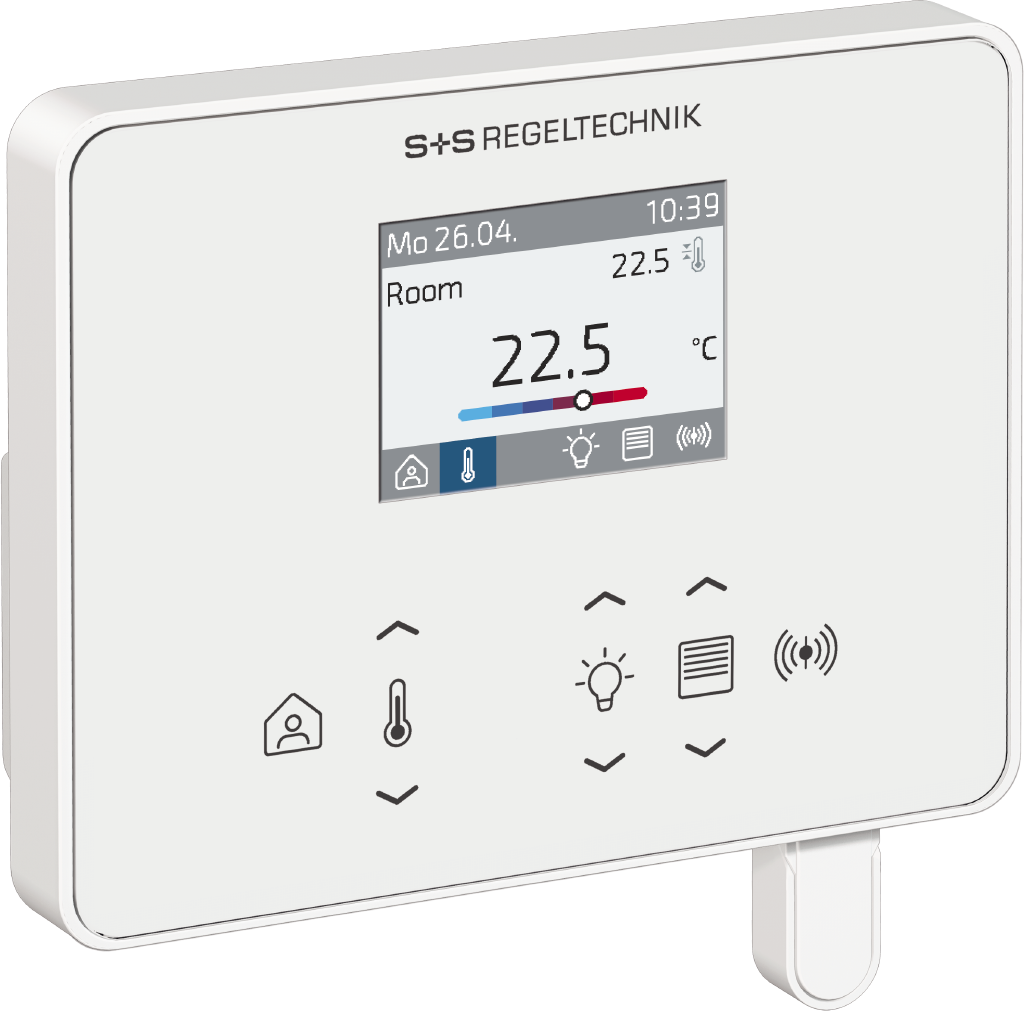

Room operating unit (interface) RYMASKON® RYM 1301-RH-MOD-AP-BL

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 zones) in residential, hotel and office premises and individually regulate the indoor heating, cooling and fan stages. The controller variants can be operated as standalone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its refined design, intuitive operation and the many combination options of the individual components.

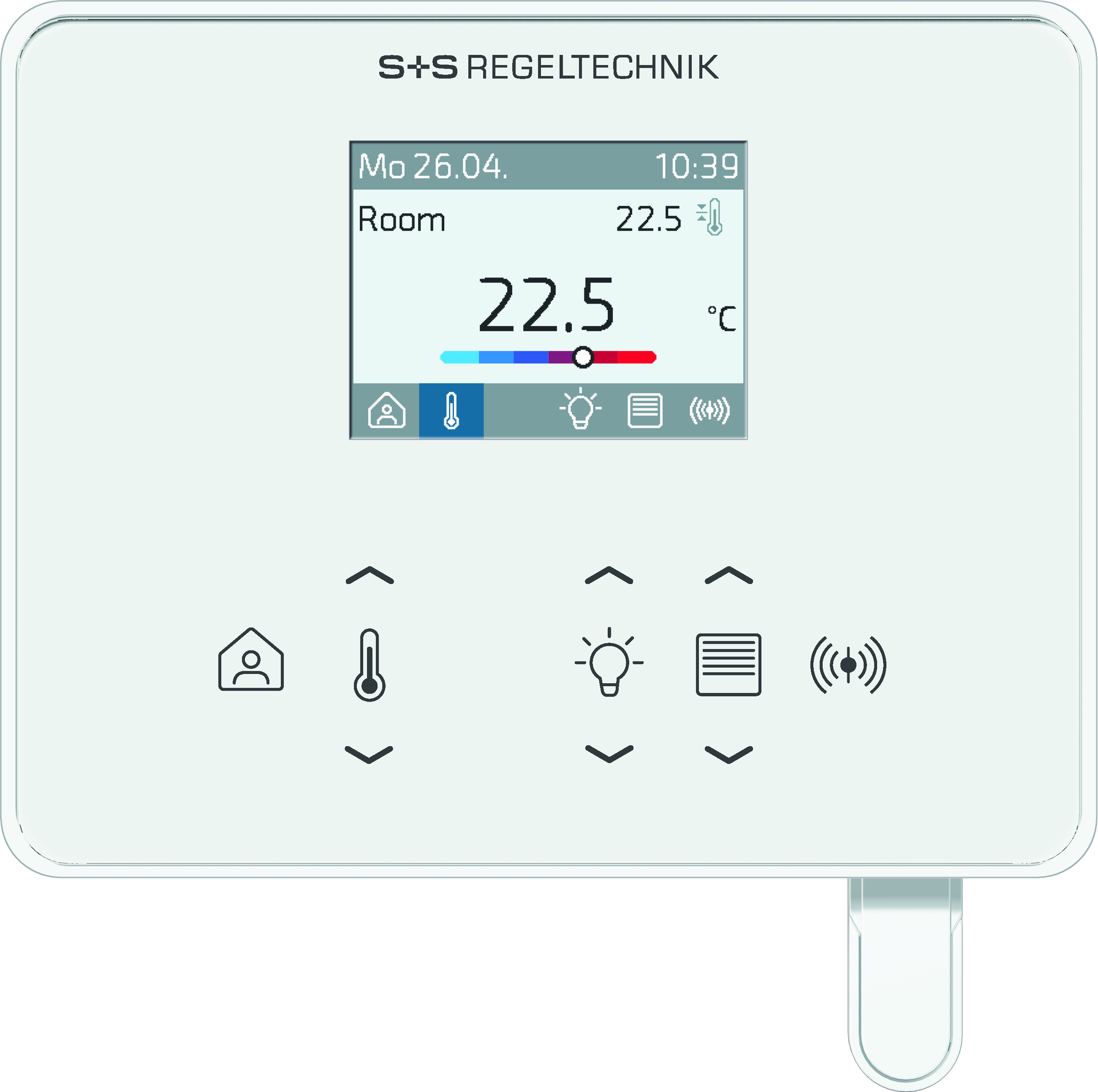

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, solar protection (roller shutters, blinds) or lighting (with dimming function). The room control units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The visual indication is provided by a 2" TFT display, and operation is via capacitive keys (Touchkeys).

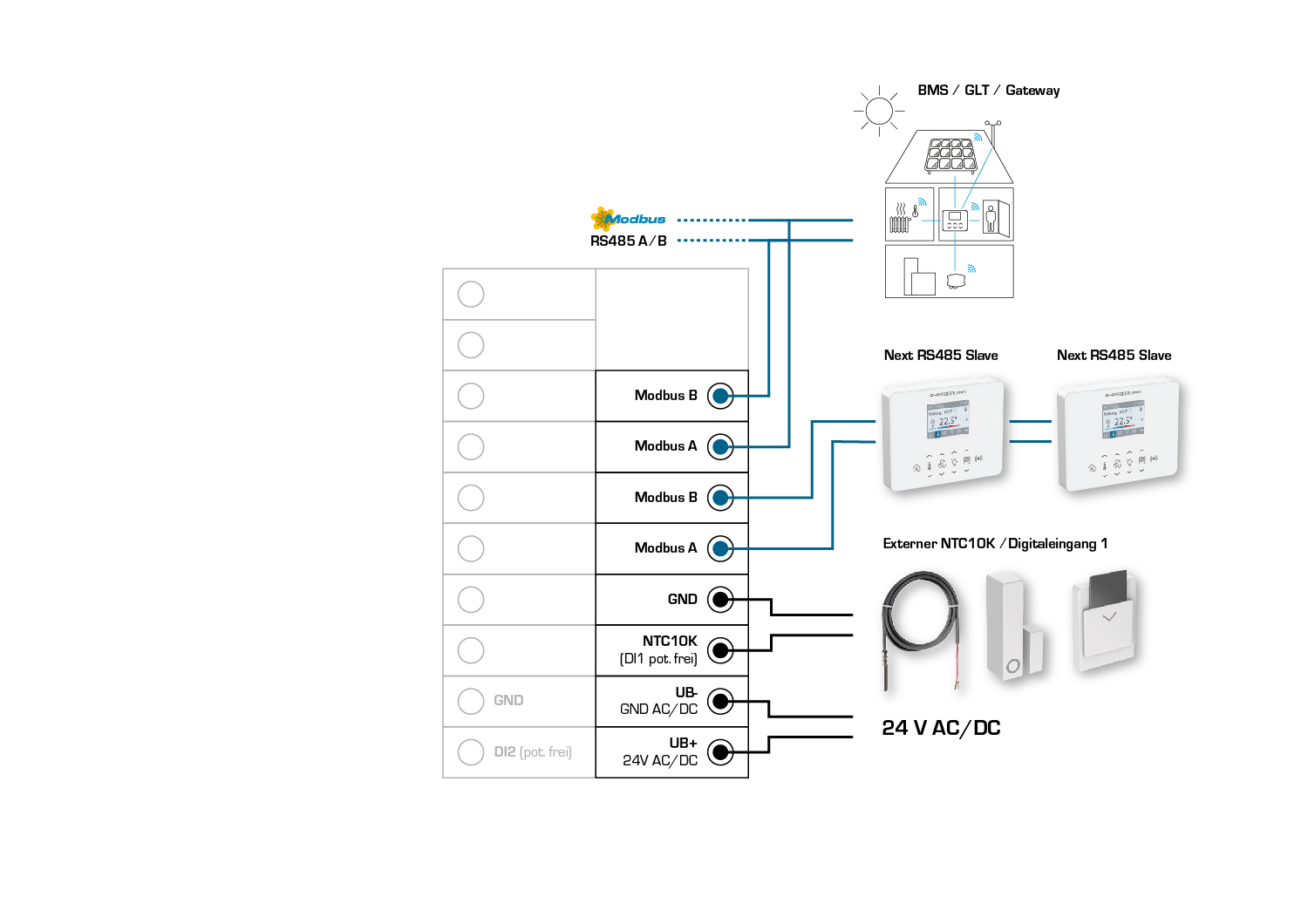

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to flexibly and individually condition the rooms.

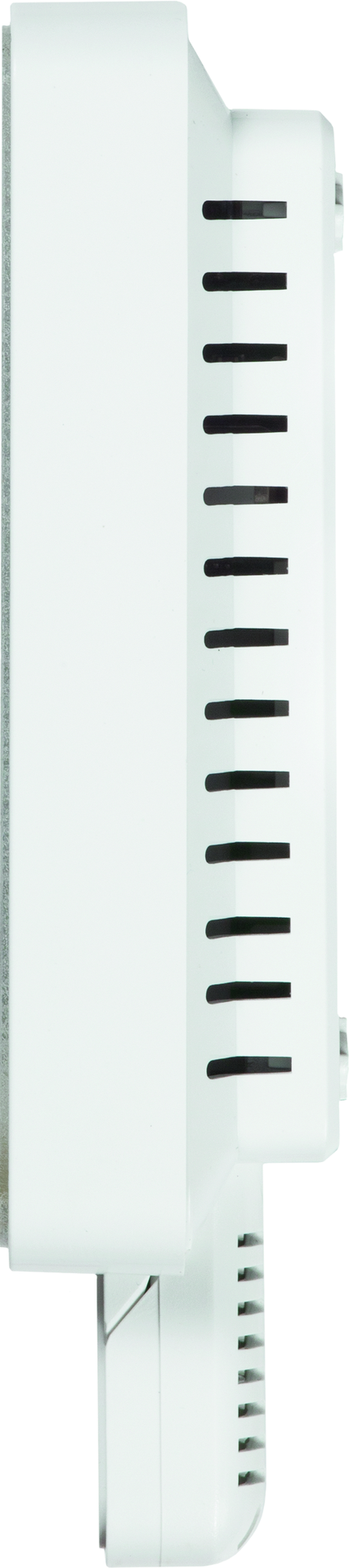

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounted boxes or surface-mounting.
