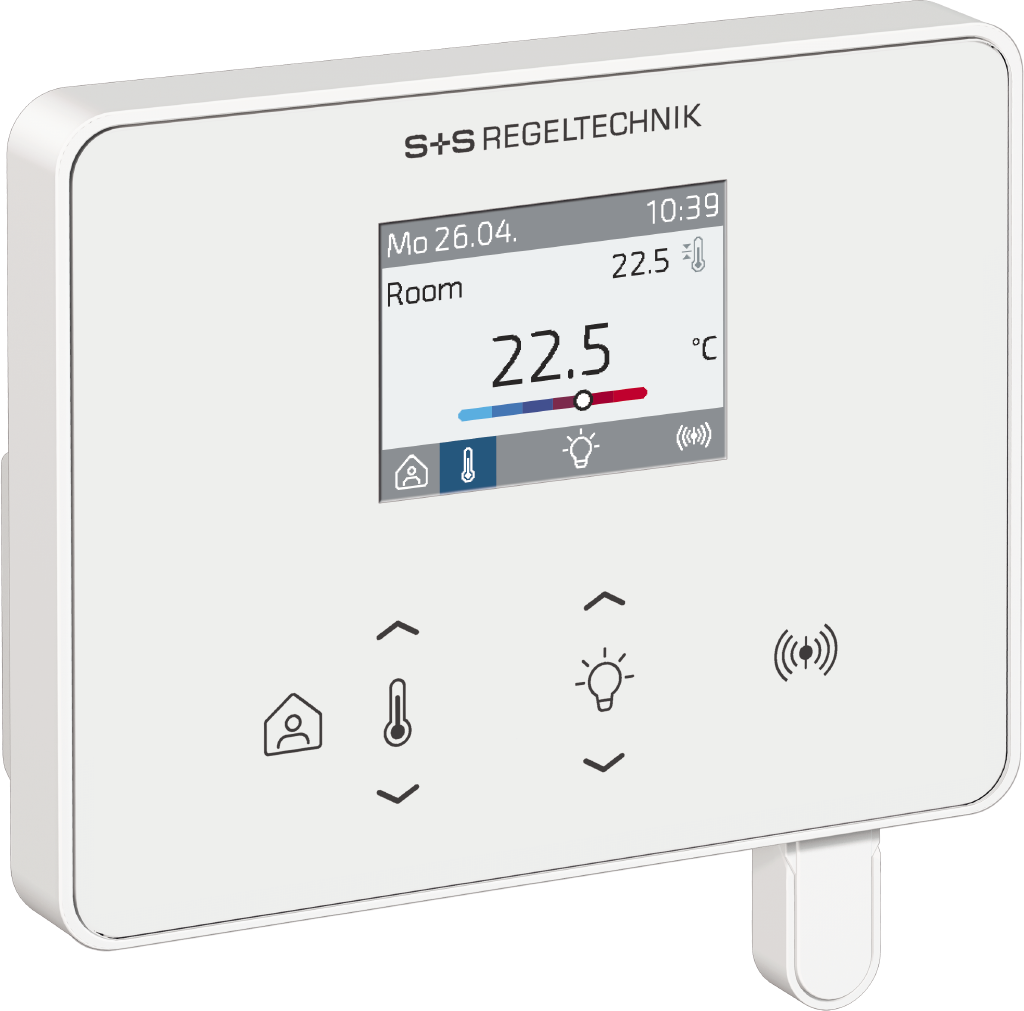

Room operating unit (interface) RYMASKON® RYM 1301-RH-MOD-AP-L

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually control the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is distinguished by its elegant design, intuitive operation and the many combination options of the individual components.

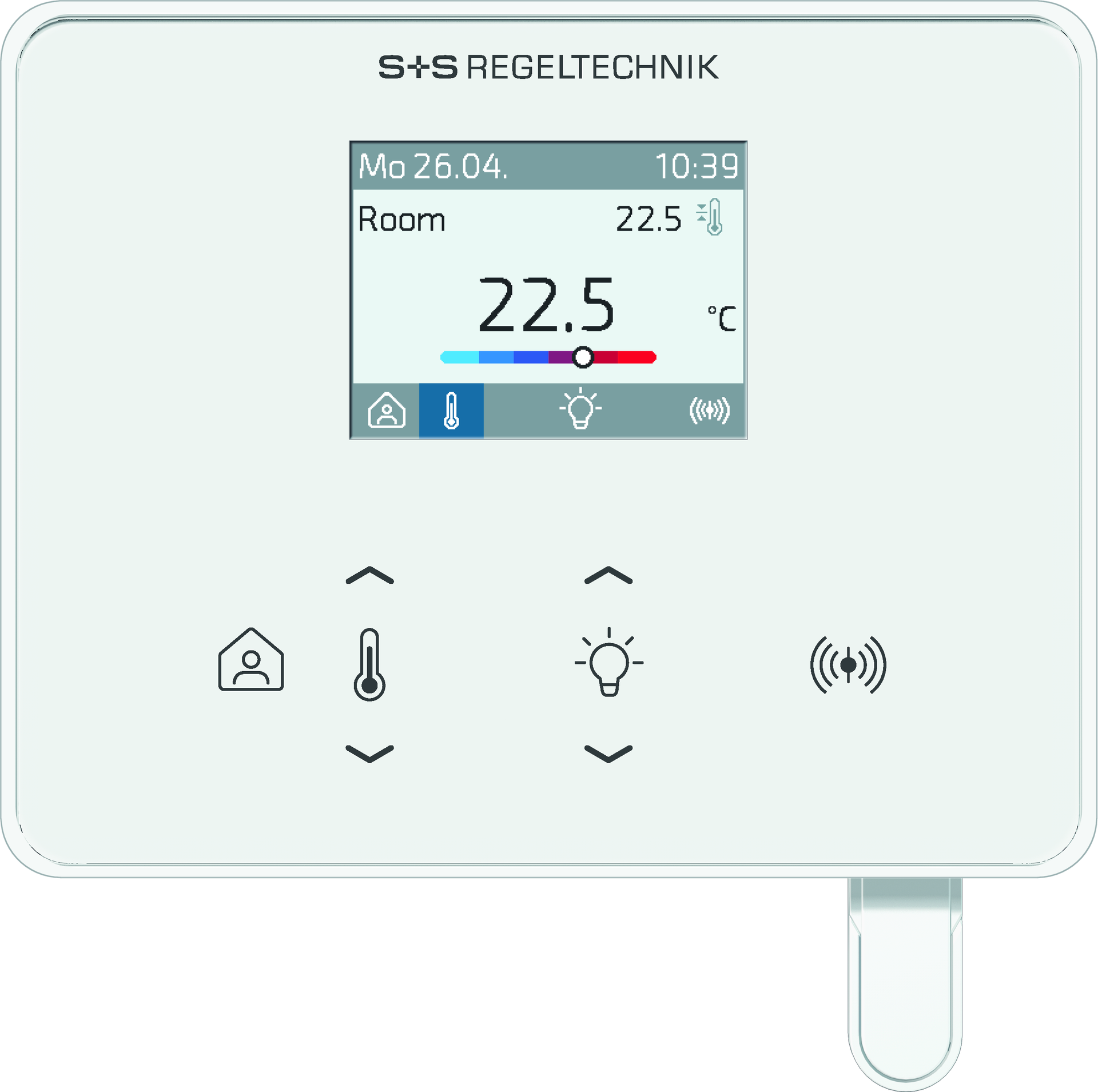

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roller shutters, blinds) or light (with dimming function). The room control units provide setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical indication is provided by a 2" TFT display; operation is via capacitive buttons (touchkeys).

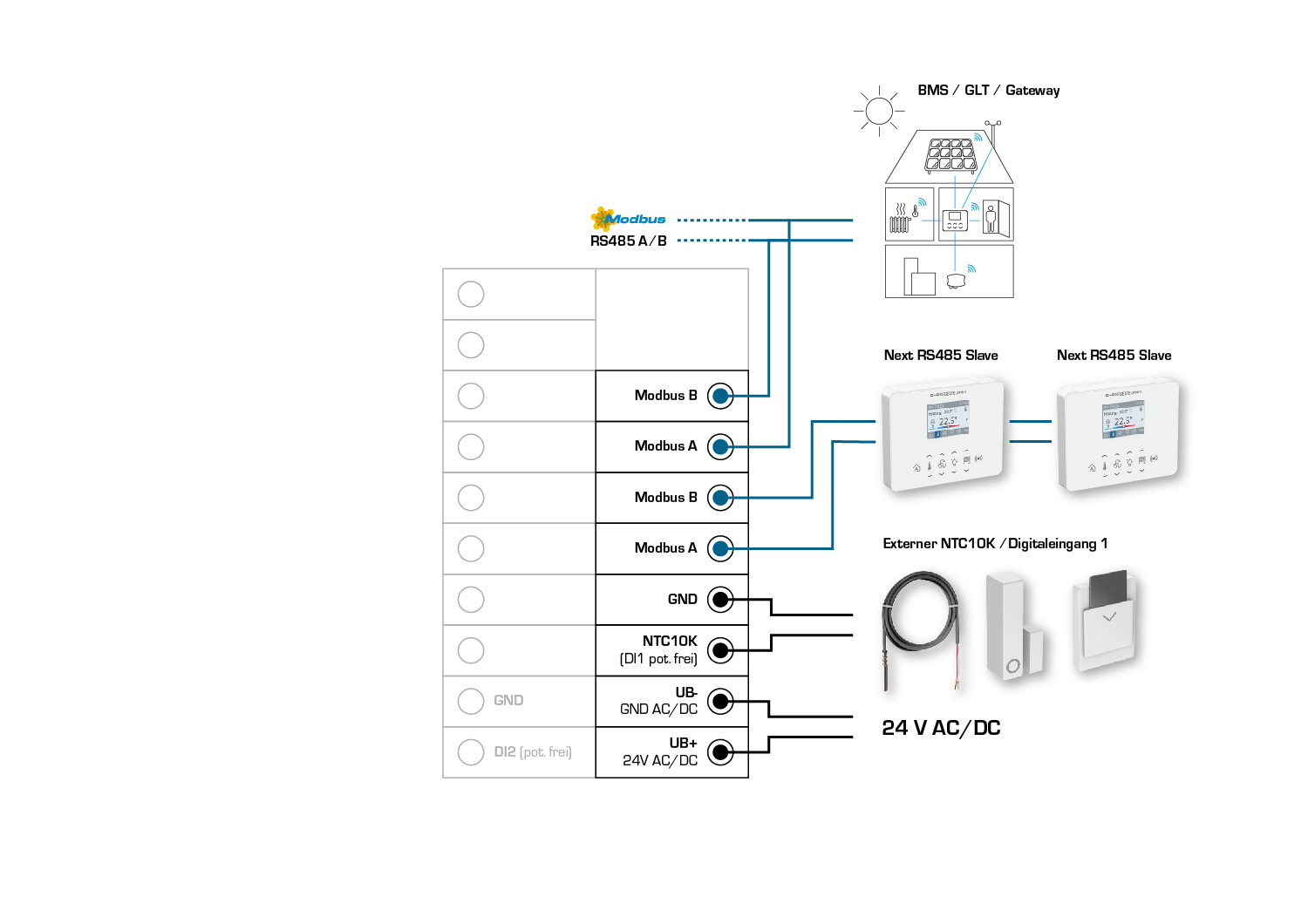

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation detector. This ensures all options are available to climate-control rooms flexibly and individually.

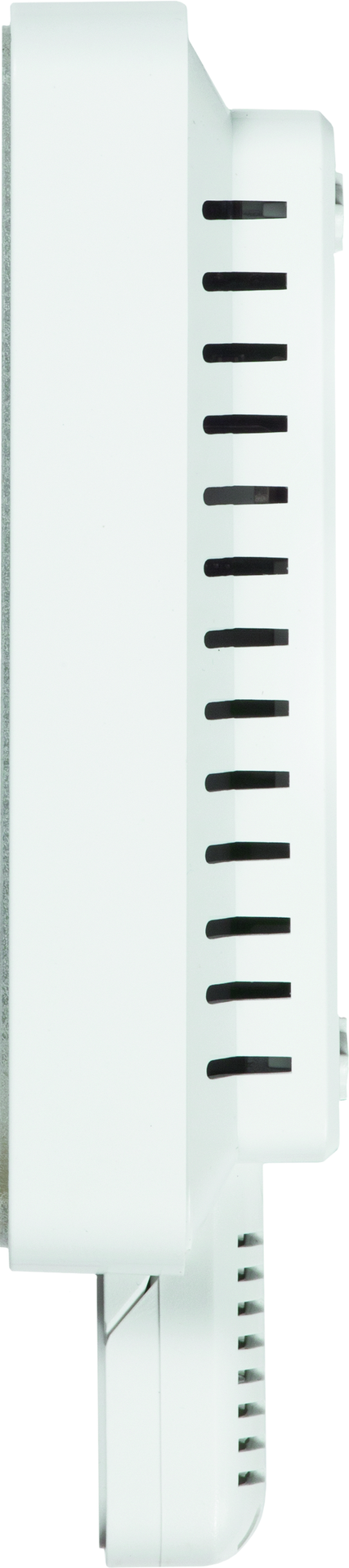

All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounted boxes or surface-mounted.
