MF-15-K
Regular price
$7.63
Regular price
Sale price
$7.63
°C
Product description
- Installation length: 200mm / 8 in
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- 0 - 10 V
- IP65, IP67
Patented quality product (patent no. DE 10 2012 017 500.0 and DE 10 2015 015 941 B4)

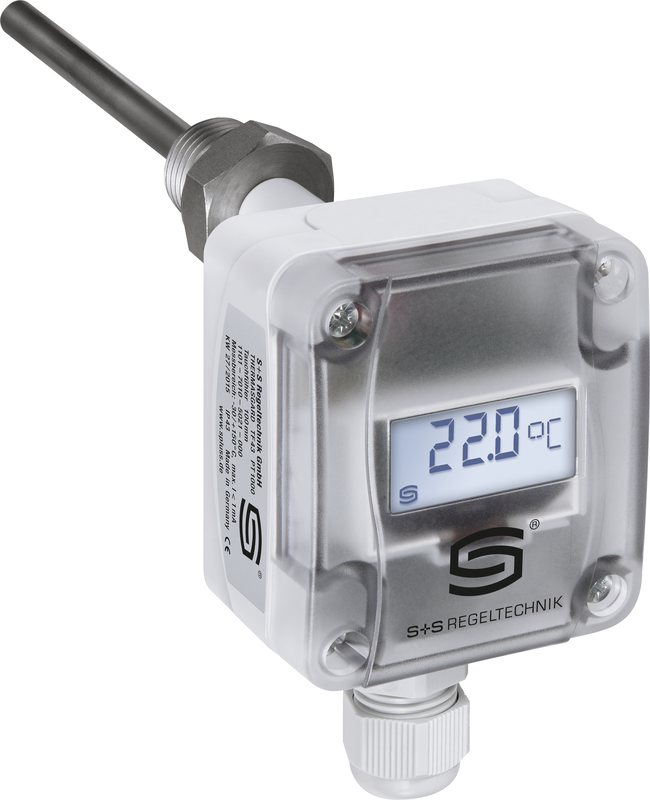

Calibratable temperature transmitter THERMASGARD® TM 65, with eight switchable measuring ranges (max. -20...+150 °C), active output, straight protective tube, housing made of impact-resistant plastic with quick-locking screws (IP 67), optionally with/without display. The standard display can be switched from SI [°C] to imperial units [°F] via DIP switches. The measuring transducer converts the measured variables into a standard signal of 0 -10 V or 4...20 mA. The device with Automatic Output Switching (AOS) recognizes the required output type and automatically switches to U or I output. Alternatively, a type variant (2-wire) with 2-wire connection and I output is available.
For recording temperatures in liquid or gaseous media. The stainless steel immersion sleeves must be used for aggressive media. The sensor is used in pipelines, in heating technology, ventilation and air conditioning ducts, in storage tanks, compact district heating stations, hot and cold water systems, oil and lubrication circulation systems, in machine, apparatus and plant construction as well as in the entire industrial sector. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Calibratable temperature transmitter THERMASGARD® TM 65, with eight switchable measuring ranges (max. -20...+150 °C), active output, straight protective tube, housing made of impact-resistant plastic with quick-locking screws (IP 67), optionally with/without display. The standard display can be switched from SI [°C] to imperial units [°F] via DIP switches. The measuring transducer converts the measured variables into a standard signal of 0 -10 V or 4...20 mA. The device with Automatic Output Switching (AOS) recognizes the required output type and automatically switches to U or I output. Alternatively, a type variant (2-wire) with 2-wire connection and I output is available.
For recording temperatures in liquid or gaseous media. The stainless steel immersion sleeves must be used for aggressive media. The sensor is used in pipelines, in heating technology, ventilation and air conditioning ducts, in storage tanks, compact district heating stations, hot and cold water systems, oil and lubrication circulation systems, in machine, apparatus and plant construction as well as in the entire industrial sector. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
