MFT-20-K
Regular price
$11.57
Regular price
Sale price
$11.57
Sale
°C
% RH
Product description
- -35...+35 / -35...+75 / 0...+50 / 0...+80 °C
0...100 % RH - Accuracy Humidity: ± 2 % / Temp.: ± 0.2 K
- Temperature [°C], relative humidity [% RH]
- 0 - 10 V
- IP 54

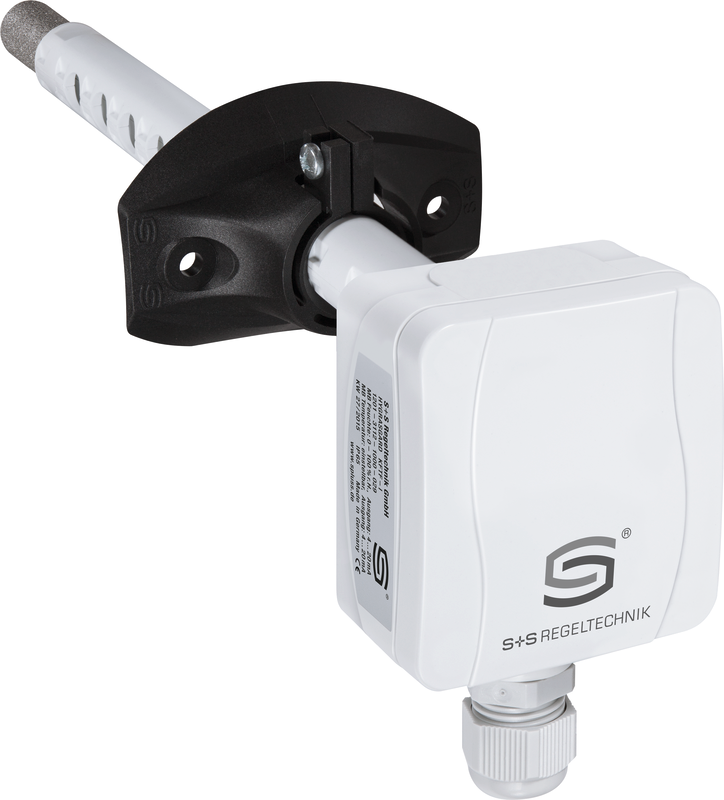

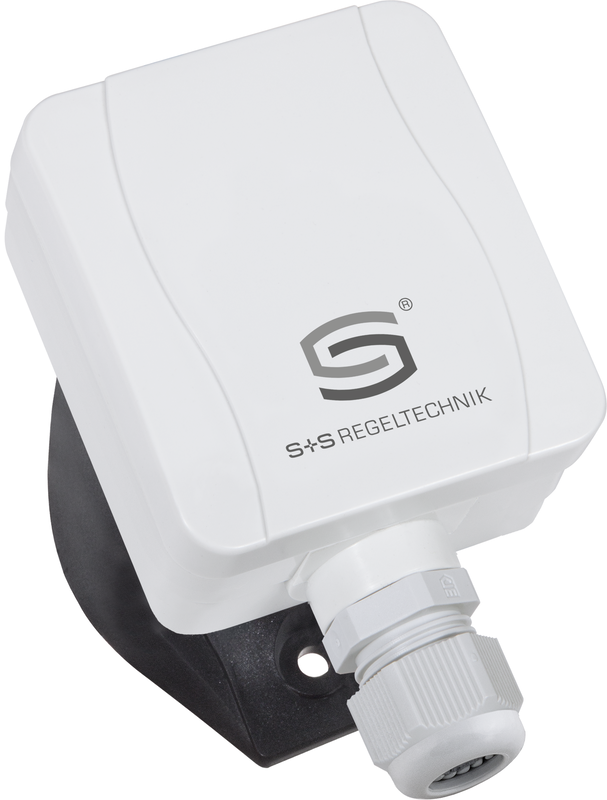

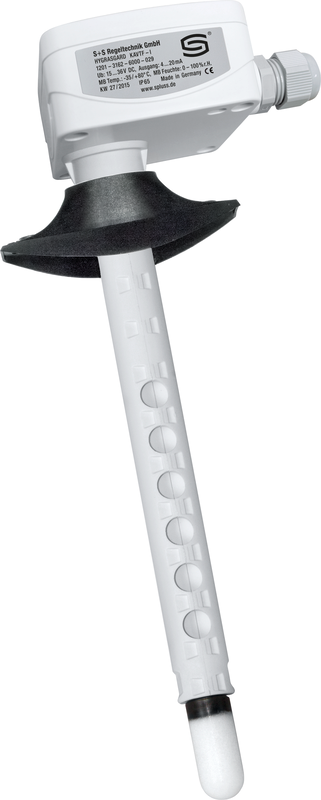

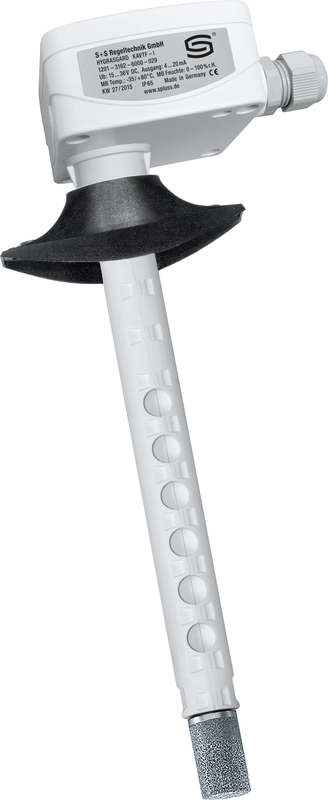

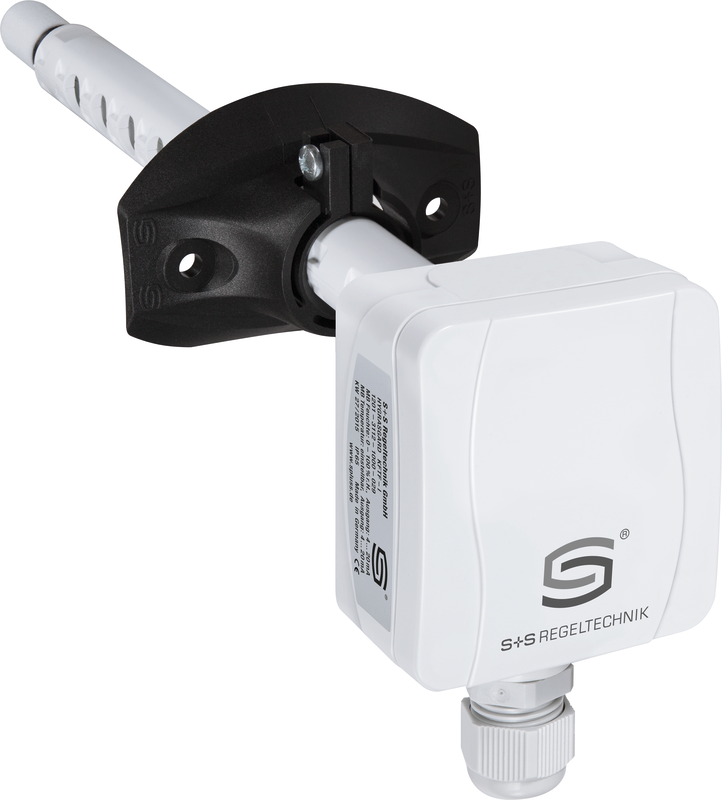

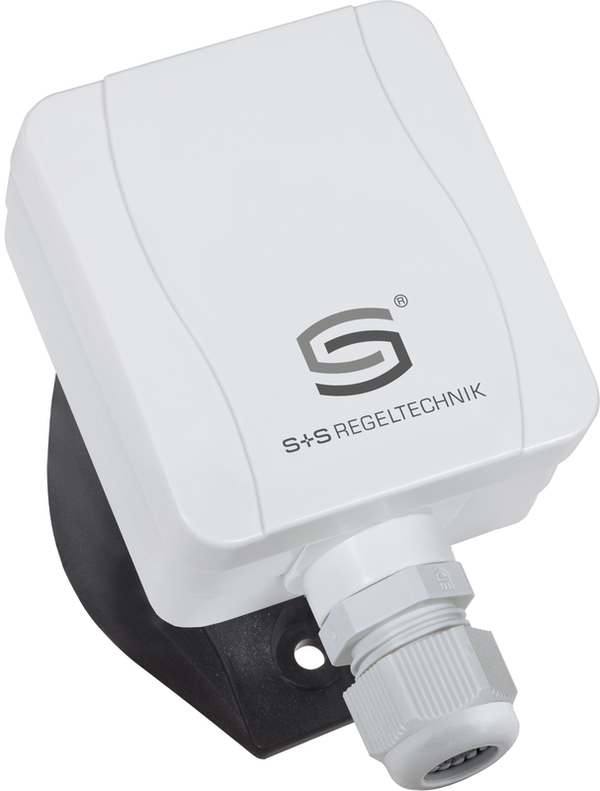

Calibratable duct humidity ⁄ temperature sensor HYGRASGARD® KFF - SD ⁄ KFTF - SD (± 2.0 %), with plastic sintered filter (optional metal sintered filter), housing made of impact-resistant plastic with snap-on cover, with cable gland (optional M12 plug connector to DIN EN 61076-2-101).
It measures the relative humidity and ⁄ or the temperature of the air and converts the measured variable into a standard signal of 0 - 10 V or 4...20 mA. It has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for the precise measurement of humidity. A digital, long-term stable sensor is used as the measuring element for humidity measurement. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
