MF-14-K
Regular price
$11.57
Regular price
Sale price
$11.57
Sale
°C
Product description
- Temperature controller (external setting) + safety temperature limiter
- 1. temperature range: 0...+60 °C
2nd temperature range: +65...+85 °C - Tmin ± 5 K; Tmax ± 3 K
- Output: Switching / changeover contact
- Switching capacity (contact load):
24...250 V AC +10 %, 10 A, cos ϕ = 1.0
24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
at 24 V at least 150 mA - Operating medium: Air
- Thermowell:
made of metal, material CuZn37 (2.0321),
Ø 14 mm, NL = 205 mm - Installation length: approx. 205 mm (with flange);
approx. 184 mm (without flange) - IP65
DIN-tested, German quality product. EC type-tested (Module B), in accordance with Directive 97/23/EC. Temperature control and limiting devices for heat generation systems, in accordance with DIN EN 14597.

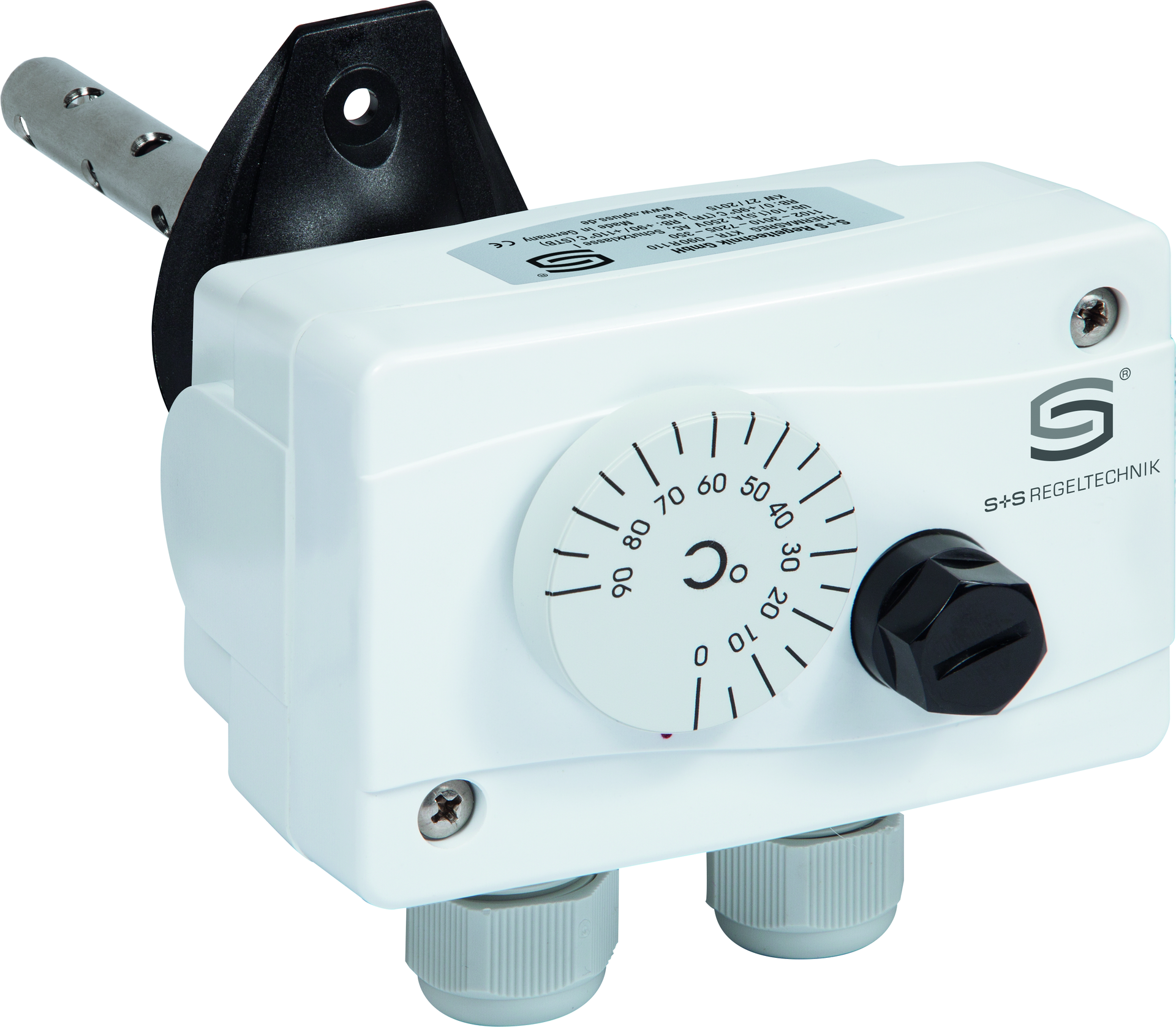

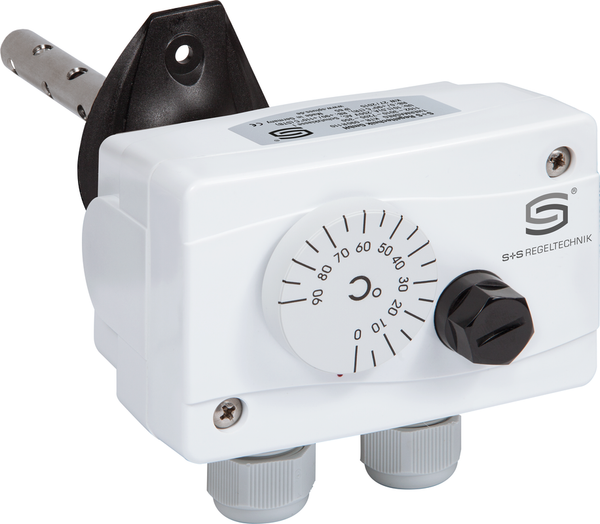

Mechanical temperature controller/rod thermostat THERMASREG® KTR with switching output, which is used to monitor, control or limit the temperature of liquid or gaseous media as a boiler controller or in heating, ventilation and air conditioning technology as well as in mechanical and apparatus engineering and in heat generation systems. The device is designed as a single or two-stage, adjustable temperature controller TR, temperature monitor TW or safety temperature limiter STB.
