MF-14-K
Regular price
$11.92
Regular price
Sale price
$11.92
°C
Product description
- Safety temperature limiter
- +65 ... +85 °C
- Tmin ± 5 K; Tmax ± 3 K
- Switching capacity (contact load): 24...250 V AC +10 %, 10 A, cos ϕ = 1.024...250 V AC +10 %, 1.5 A, cos ϕ = 0.6at 24 V at least 150 mA
- Switching differential: +0/ -15...20 K
- Installation length: approx. 205 mm (with flange); approx. 184 mm (without flange)
- Thermowell: made of metal, material CuZn37 (2.0321), Ø 14 mm, NL = 205 mm
- IP65

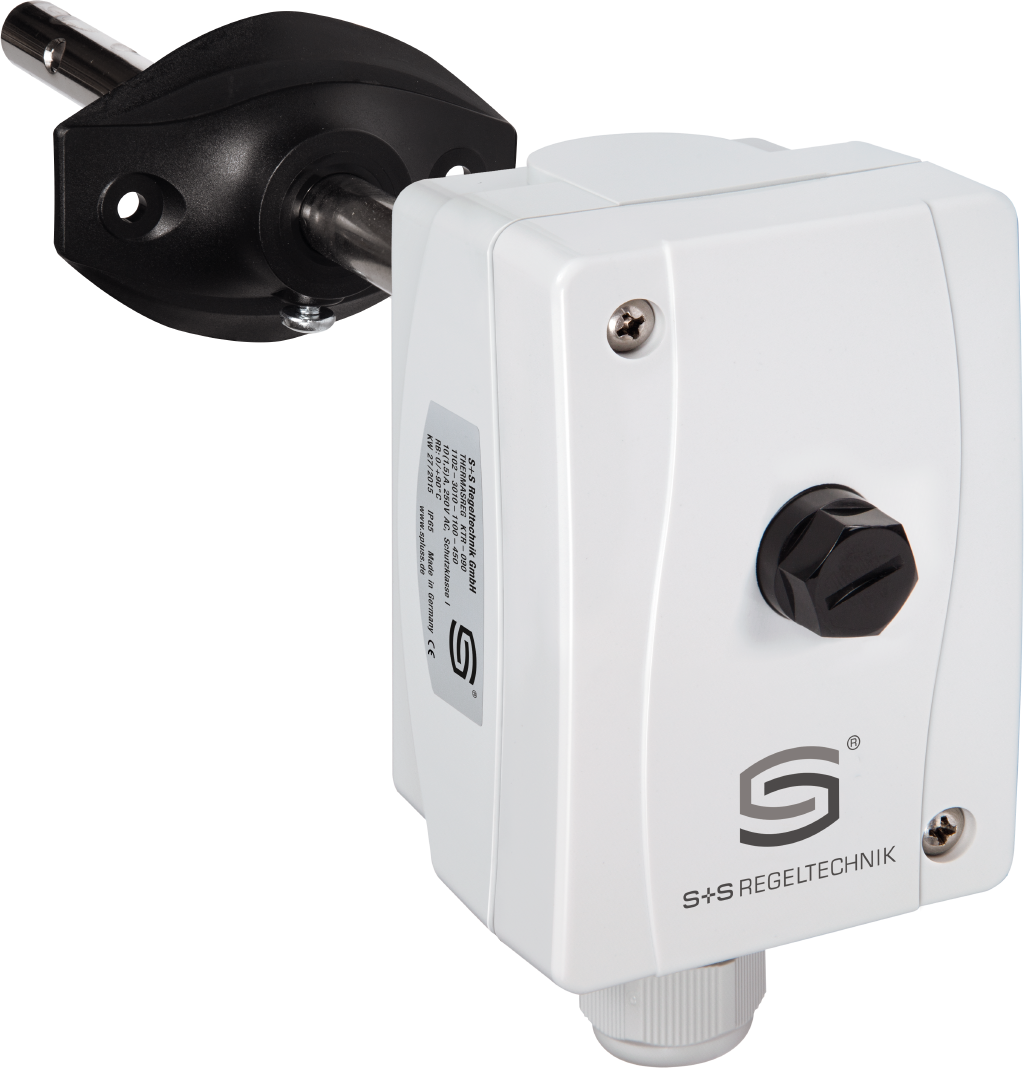

DIN-tested, German quality product. EC type-tested (Module B), in accordance with Directive 97/23/EC. Mechanical temperature controller/rod thermostat THERMASREG® KTR with switching output, which is used to monitor, control or limit the temperature of liquid or gaseous media as a boiler controller or in heating, ventilation and air-conditioning technology as well as in mechanical and apparatus engineering and in heat generation systems. The device is available in one or two stages, as an adjustable temperature controller TR, temperature monitor TW or safety temperature limiter STB.
