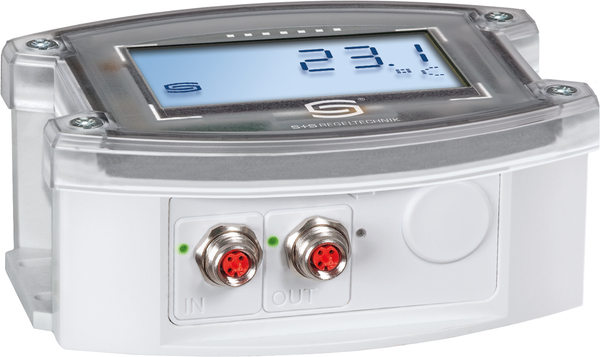

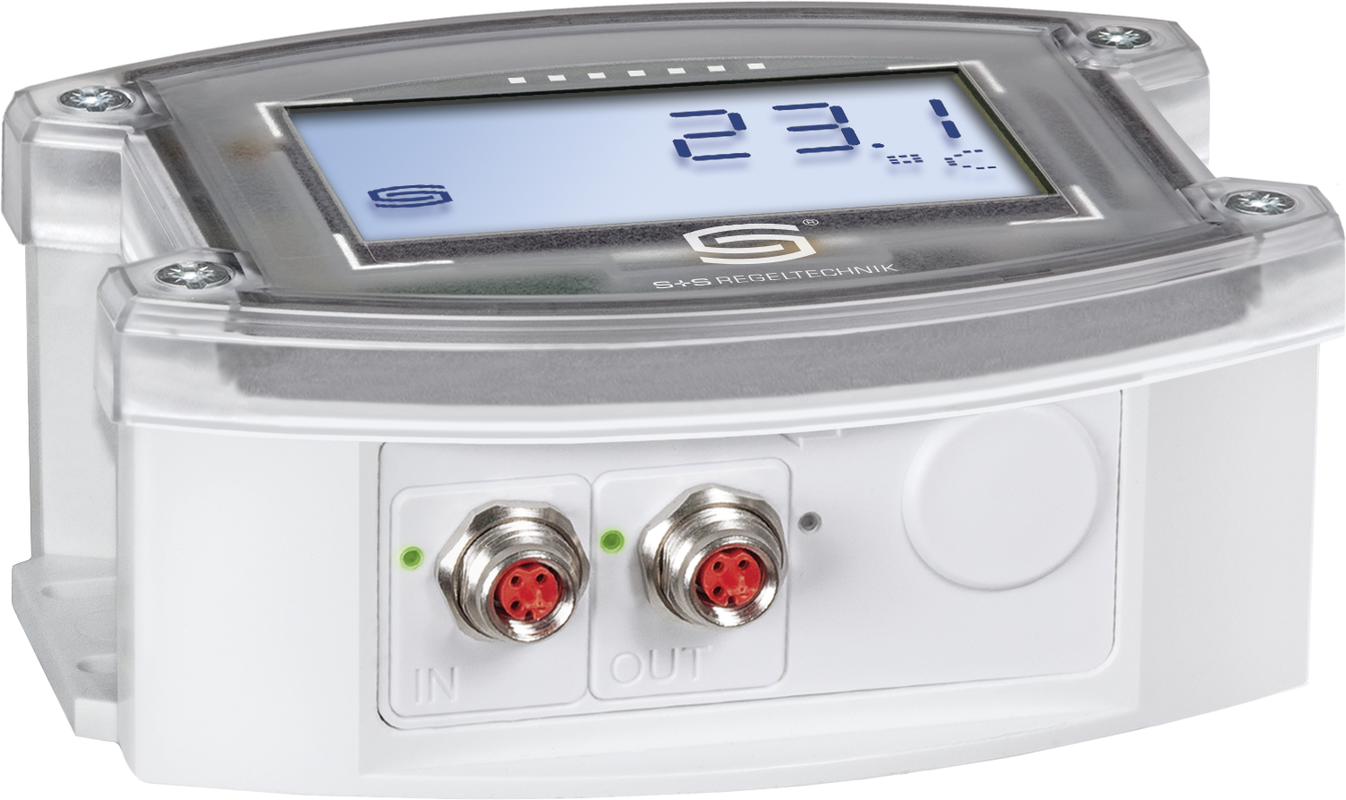

Mean value temperature transmitter THERMASGARD® MWTM-ECATP 6.0m LCD

Networkable mean value temperature transmitter THERMASGARD® MWTM - EtherCATP with M8 plug connector (EtherCATP-coded), Bluetooth-capable, in impact-resistant plastic housing with quick-locking screws, optionally with/without display and bar graph, with flexible sensor rod (0.4...20 m, fully active) in robust protective tube made of copper with plastic coating, incl. mounting flange.

The rod sensor is used to measure the average temperature (mean value) in gaseous media. It is used in ventilation and air conditioning ducts over the entire cross-section or over a defined length (installed in a meandering pattern, it evenly measures the temperature present). Mounting clamps are available for professional installation of the rod. MK-05-M (accessory) are available. The sensor is calibrated at the factory.

EtherCAT P-capable measuring transducer for industrial requirements with maximum reliability: with simple integration into the PLC level via the ESI configuration file of the device, with diagnostic options (such as communication error counter), extended setting options, retrievable historical data (min/max) and maintenance interval determination of the sensor. Optionally with large illuminated display (three lines, individually programmable in the 7-segment and dot-matrix area) and bar graph (seven digits, LEDs freely configurable) for graphical representation, e.g. as a traffic light display.
