Product description
A color touchscreen with modern symbols is used for visual display and operation on site.
The product family is characterized by the many possible combinations of the individual components.
The series RYMASKON® 700 Interface uses the bus to control heating or cooling valves, fan speed and the sun protection (external blinds, venetian blinds) in two zones. In addition to the integrated temperature sensor, two external temperature sensors (NTC10K) can be connected. Measuring elements for relative humidity and CO2 are also available. The devices are used in room air conditioning technology, including fan coil units, chilled ceilings and heating/cooling systems. They are wall-mounted on standard flush-mounted boxes. The devices are optionally available with a communication interface for Modbus or BACnet and in various type variants (see number key).

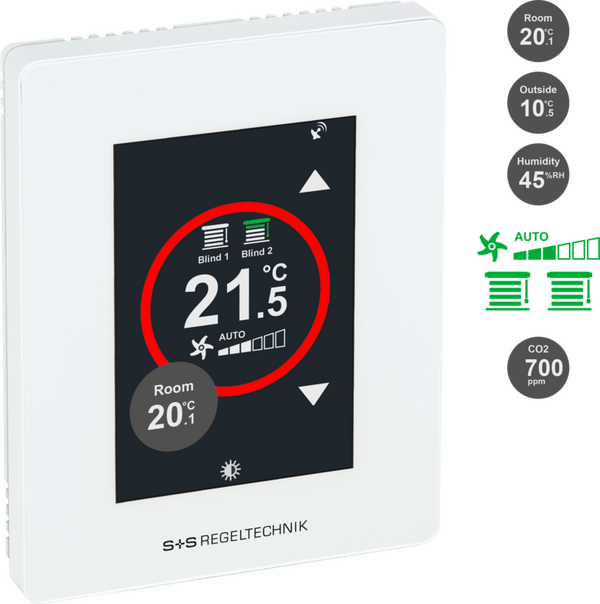

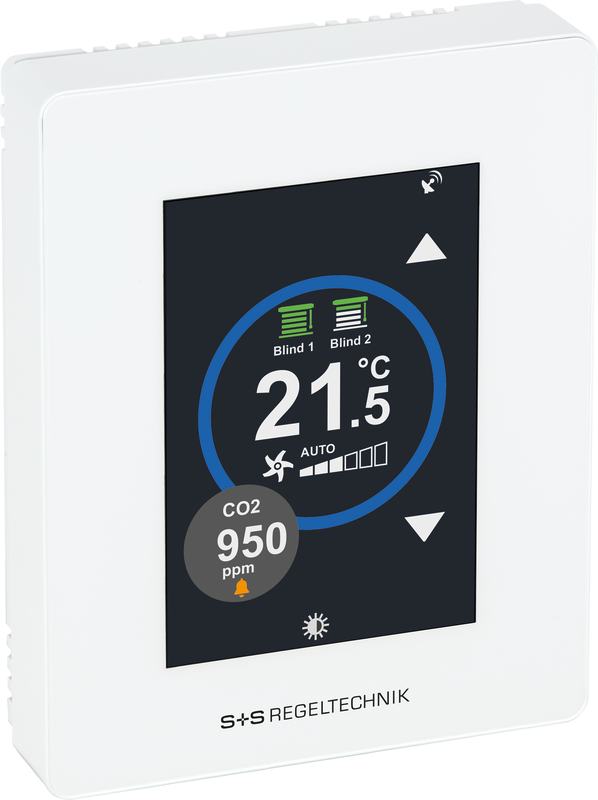

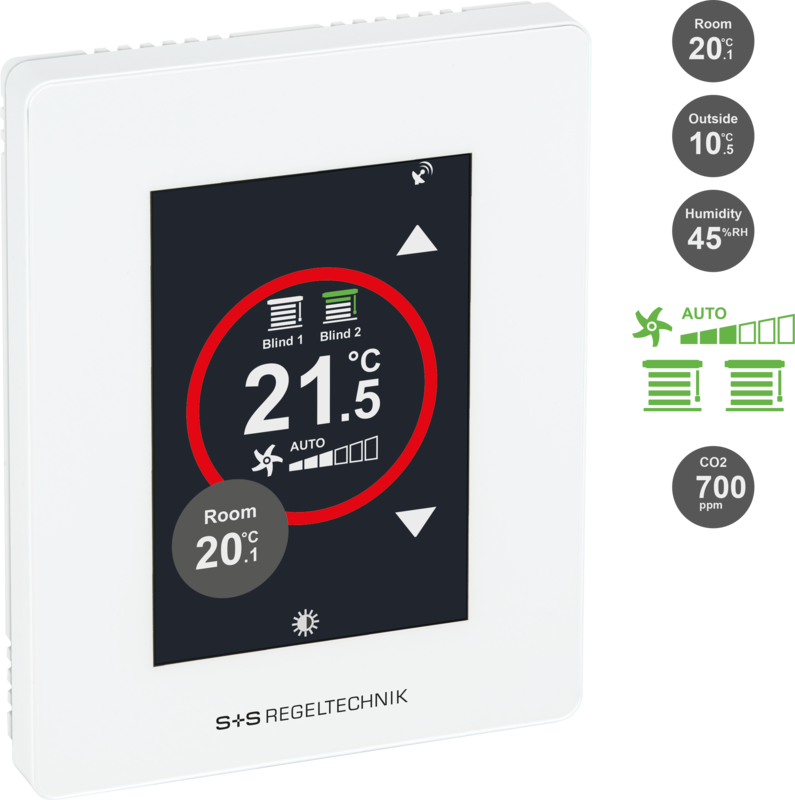

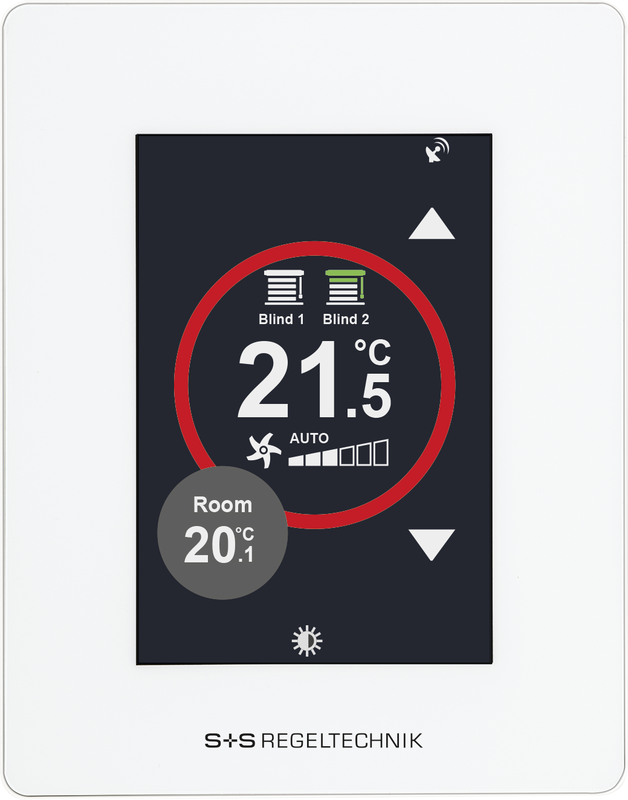

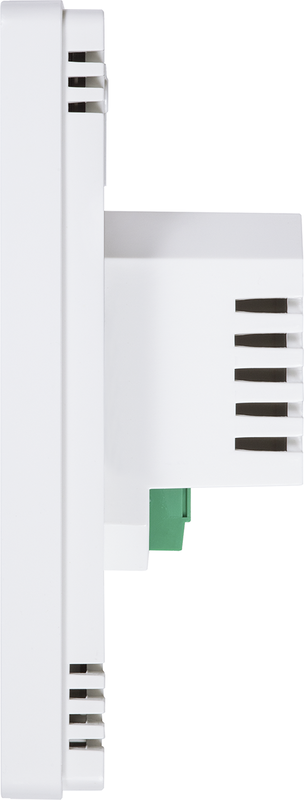

The basic model RYMASKON® 710 Interface with color touch screen (3.5") in white housing has an integrated temperature and humidity sensor (CO2 sensor optional), 2 resistance inputs (NTC10K) for external sensors, 1 digital input, 1 relay output (7A / 0.5A with CO2) and optional Modbus or BACnet connection. The room operating units are used to control the temperature, fan and sun protection (2 zones) via the bus.
