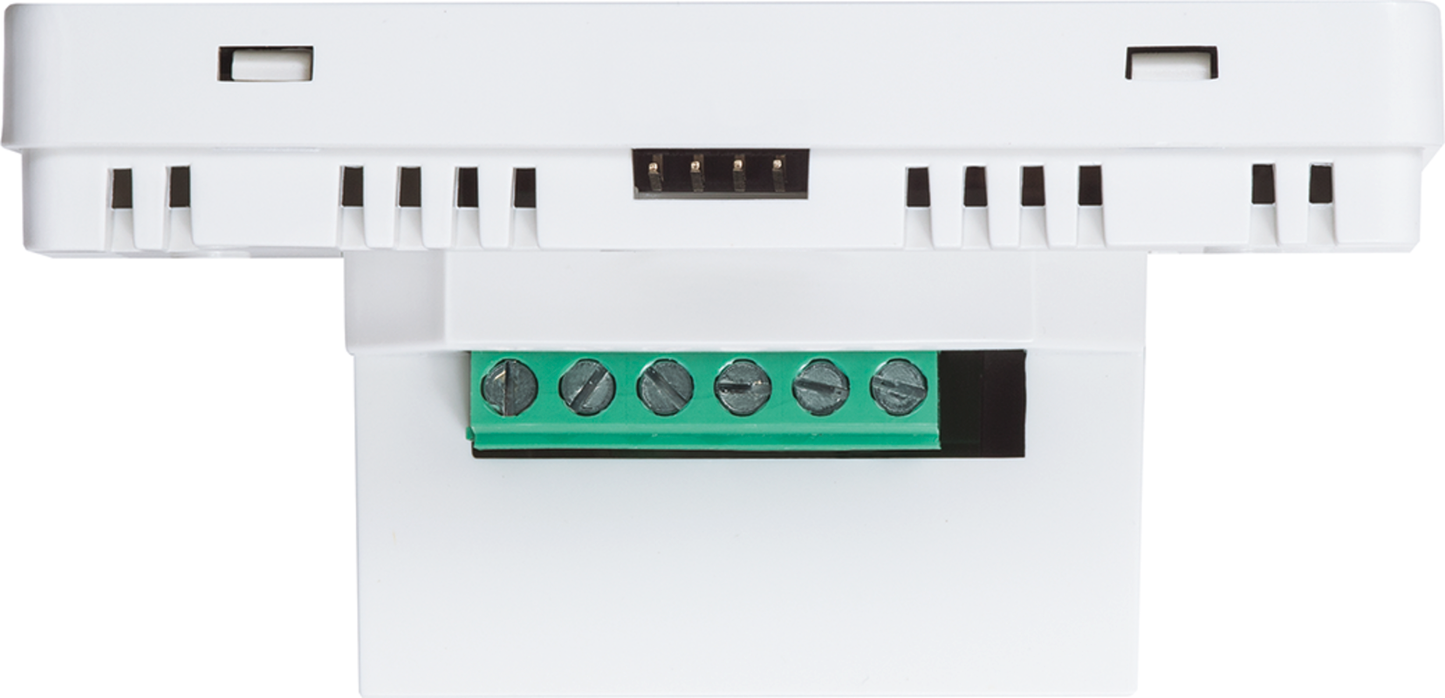

Room operating unit with 2-point control Rymaskon 512-MOD-RH

The Rymaskon® 500 / 600 / 700 series room operating units are designed to control a climate zone in residential, hotel and office rooms and individually regulate the heating/cooling levels of the interior.
A color touchscreen with modern symbols is used for visual display and operation on site. The product family is characterized by the many possible combinations
of the individual components.
The Rymaskon® 500 thermostat series controls a heating or cooling valve directly via the relay. The sun protection (external venetian blinds, Venetian blinds) can be controlled in a zone via the bus. Instead of sun shading, light and air conditioning can also be controlled using appropriate symbols. In addition to the integrated temperature sensor, two external temperature sensors (NTC10K) can be connected. A measuring element for relative humidity is also available. The devices are used in room air conditioning and heating/cooling systems, such as chilled ceilings and underfloor heating. They are wall-mounted on standard flush-mounted boxes. The devices are available with either a Modbus or BACnet communication interface (optionally without communication) and in various type variants (see number key).




The basic model Rymaskon® 510 thermostat with color touchscreen (3.5"), in a white housing, has an integrated temperature and humidity sensor, 2 resistance inputs (for external NTC10K temperature sensors), 1 digital input, 1 relay output (7A) and optionally with Modbus or BACnet connection. The room operating units are used to control heating/cooling directly via the relay (2-point control) as well as lighting, air conditioning and sun protection (1 zone) via the bus.
