Einschraubtemperaturregler THERMASREG ETR-50140 MS/150 - S+S Regeltechnik

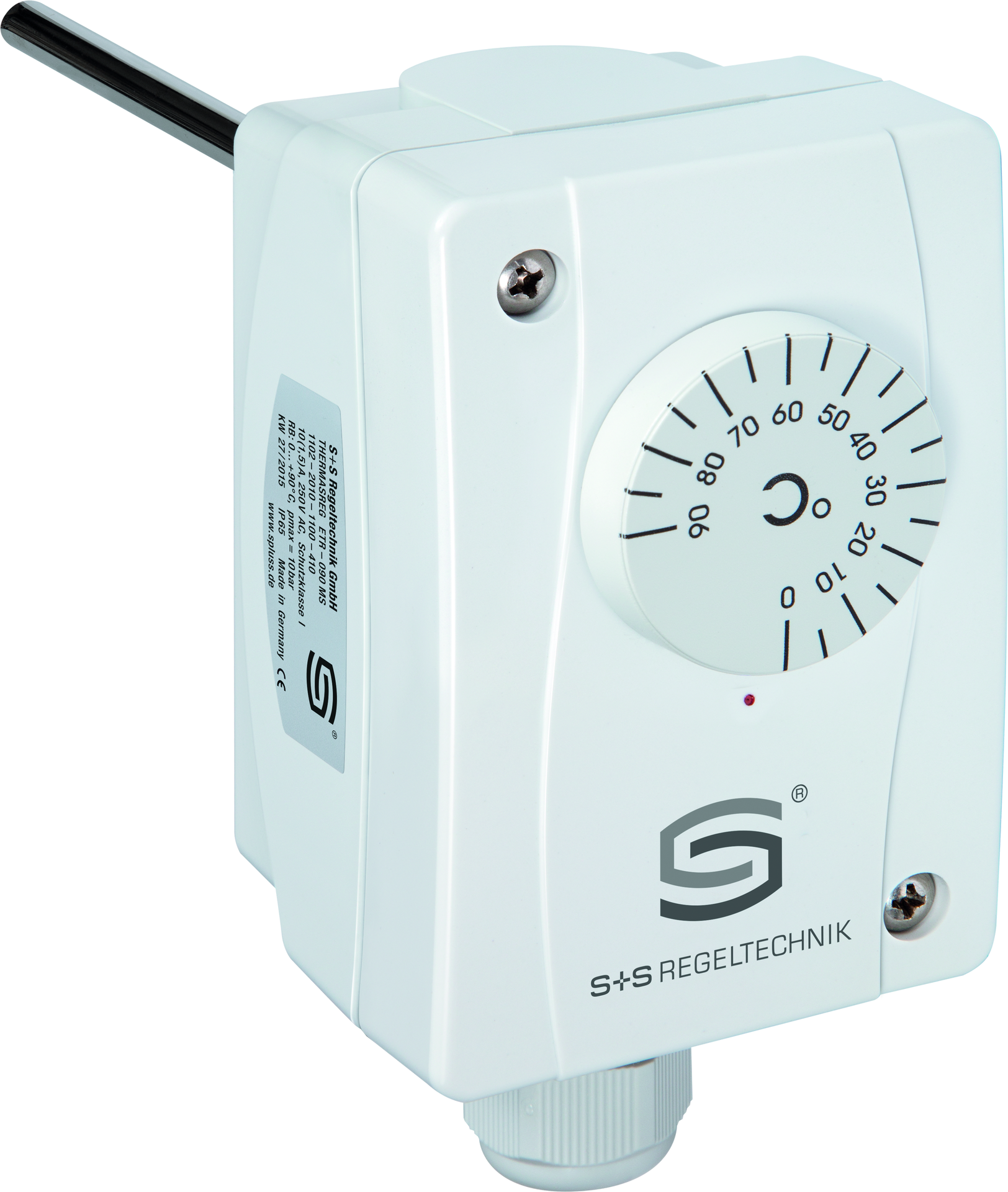

Screw-in temperature controller THERMASREG® ETR-50140 MS/150

SKU 1102-2010-1100-610 EAN 4251325609386 Product group: WG02
In stock , available in 1-3 working days
Regular price $88.63
Regular price Sale price $88.63

Product description

  • Temperature controller (external setting)
  • +50 ... +140 °C
  • Tmin ± 5 K; Tmax ± 3 K
  • Switching capacity (contact load):
    24...250 V AC +10 %, 10 A, cos ϕ = 1.0
    24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
    at 24 V at least 150 mA
  • Switching differential: 5K
  • Installation length: 150 mm
  • brass
  • IP65

DIN-tested, German quality product. EC type-tested (Module B), in accordance with Directive 97/23/EC. Temperature control and limiting devices for heat generation systems, in accordance with DIN EN 14597.

Mechanical temperature control device/rod thermostat THERMASREG® ETR with switching output, which is used to monitor, control or limit the temperature of liquid or gaseous media as a boiler controller or in heating, ventilation and air conditioning technology as well as in mechanical and apparatus engineering and in heat generation systems. It is designed as a single or two-stage device, as an adjustable temperature controller TR, temperature monitor TW or safety temperature limiter STB.
