Sale
°C
Temperaturregler, einstufig THERMASREG TR-0120-F - S+S Regeltechnik

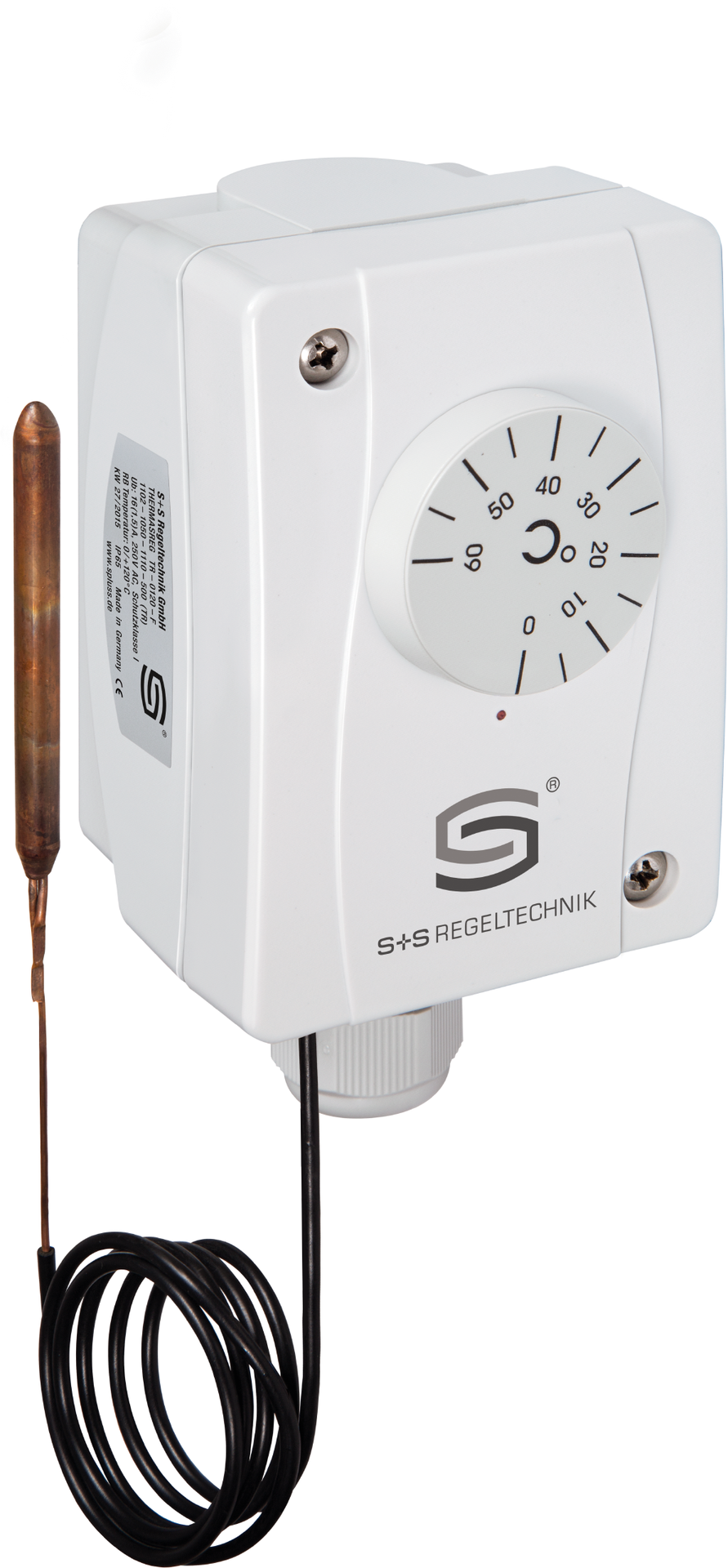

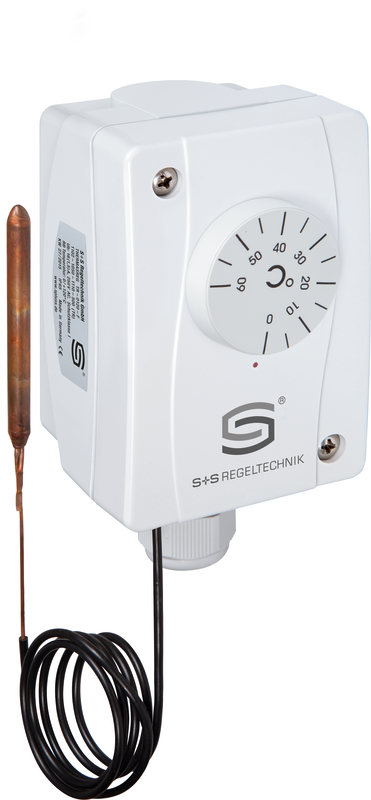

Temperature controller, single-stage THERMASREG® TR-0120-F

SKU 1102-1050-1110-500 EAN 4251325609102 Product group: WG01
In stock , available in 1-3 working days
$96.60
$96.60

Product description

  • Temperature controller (external setting)
  • 0... +120°C
  • Tolerance: Tmin ± 3 K; Tmax ± 3 K
  • Switching capacity (contact load):
    24...250 V AC +10 %, 16 A, cos ϕ = 1.0
    24...250 V AC +10 %, 1.5 A, cos ϕ = 0.6
    at 24 V at least 150 mA
  • in immersion sleeve EL = 150 mm
  • Copper tube, capillary length 1 m with PVC protective hose,
    Ø 6.8 mm
  • IP65
Mechanical temperature controller THERMASREG® TR xx - F with remote sensor, switching output (single-stage), which operates without external voltage, as capillary thermostat/capillary controller.



The capillary controller is suitable for temperature monitoring or control of non-aggressive liquid or gaseous media, in heating, ventilation and air-conditioning technology as well as in mechanical and apparatus engineering, for installation in thermowells or air-conditioning ducts.

Downloads

Blog posts

Der neue LS-Flex: Leckagen an Rohren schneller entdecken

The new LS-Flex: Detect leaks in pipes more qui...

Early detection of water leaks is now not just an option, but a necessity. With...

The new LS-Flex: Detect leaks in pipes more qui...

Early detection of water leaks is now not just an option, but a necessity. With the LS-Flex we of...

Hochfeuchte im Griff – mit diesen Spezialisten

High humidity under control – with these specia...

Perfect performance – our special solutions for extreme humidity Where other humidity sensors have long...

High humidity under control – with these specia...

Perfect performance – our special solutions for extreme humidity Where other humidity sensors hav...

Kanalfeuchtefühler im Blick: Präzise, zuverlässig, preiswert – bei jeder Messung

Duct humidity sensors in focus: Precise, reliab...

in measurement and control technology, precision and reliability are crucial - especially when it comes...

Duct humidity sensors in focus: Precise, reliab...

in measurement and control technology, precision and reliability are crucial - especially when it...

Kanalfühler im Fokus – So steigern Sie Energieeffizienz und Betriebssicherheit

Focus on duct sensors - how to increase energy ...

In modern HVAC systems, the precise detection of humidity and temperature in the ventilation duct...

Focus on duct sensors - how to increase energy ...

In modern HVAC systems, the precise detection of humidity and temperature in the ventilation duct...

Druck im System? So behalten Sie Temperatur & Feuchte im Griff!

Pressure in the system? How to keep temperature...

Made for extreme conditions - HYGRASGARD® humidity and temperature sensors - specially developed for use...

Pressure in the system? How to keep temperature...

Made for extreme conditions - HYGRASGARD® humidity and temperature sensors - specially developed ...

Kurz erklärt: RYMASKON® – Interface vs. Controller

Briefly explained: Rymaskon® - Interface vs. Co...

For modern building automation, we offer you a variety of room operating devices that can...

Briefly explained: Rymaskon® - Interface vs. Co...

For modern building automation, we offer you a variety of room operating devices that can optimiz...

Der All-in-One Controller.

The all-in-one controller.

With a controller from the RYMASKON® series, you have a digital room controller that can...

The all-in-one controller.

With a controller from the RYMASKON® series, you have a digital room controller that can do more ...

Auf die Halt(er)ung kommt es an!

It depends on the stop!

Whether in ventilation channels or directly on the ventilation device-the KMW-F 450mm bracket offers a...

It depends on the stop!

Whether in ventilation channels or directly on the ventilation device-the KMW-F 450mm bracket off...

W-Modbus – die Revolution in der Gebäudeautomation!

W-Modbus - the revolution in building automation!

W-Modbus is a wireless solution for building automation that is characterized by simple installation, long...

W-Modbus - the revolution in building automation!

W-Modbus is a wireless solution for building automation that is characterized by simple installat...

Jetzt Verfügbar: Die neuen Rymaskon Raumbediengeräte

Now available: The new Rymaskon room operating ...

Our best room sensor on the marketThe new RYMASKON room operating units are now in...

Now available: The new Rymaskon room operating ...

Our best room sensor on the marketThe new RYMASKON room operating units are now in stock and avai...

Accessories

Tauchhülse aus Edelstahl Tauchhülsen THR-08-MS/VA THR-VA-09/150 - S+S Regeltechnik

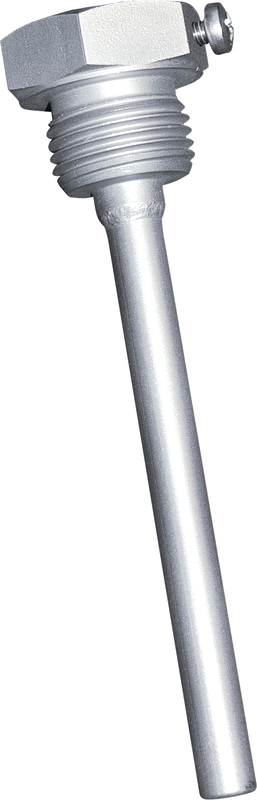

Thermowells THR-08-MS/VA THR-VA-09/150
